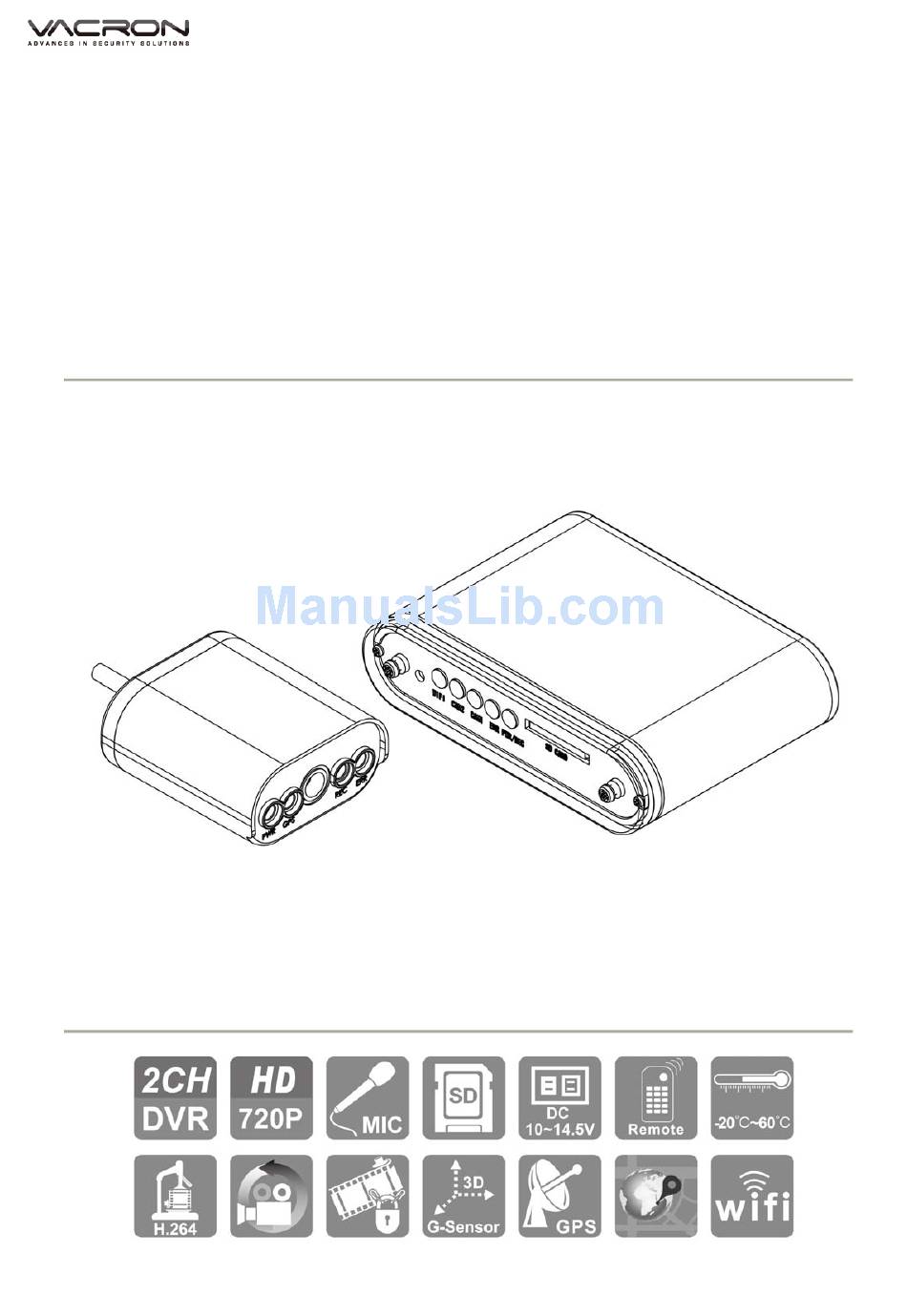

- Page 1 2CH Vehicle Video Recorder Operation Manuel 2015 MAR. V1.0...
-
Page 2: Table Of Contents
2-Channel Mobile Video Recorder User Manual Menu Packaging ..........................1 Characteristics: ........................2 Specification sheet ......................3 Product appearance ......................6 Installation of SD card ....................... 7 Cable Installation ........................ 8 Installation diagram ......................10 IR remote control ......................12 Recording .......................... -
Page 3: Safety Precautions
2-Channel Mobile Video Recorder User Manual Safety Precautions To Whom It May Concern Thanks for your patronage. Please contact your local dealer for any assistance. We will backup services via local dealers. Rights are reserved to upgrade software and hardware without notice beforehand. Please read this manual prior to use of this product. - Page 4 2-Channel Mobile Video Recorder User Manual Surrounding Please have the DVR under recommended temperature away from the sun and heating source. Please keep this equipment away from humid surrounding. Please keep this equipment away from smoke and dust. ...
-
Page 5: Packaging
2-Channel Mobile Video Recorder User Manual A. Packaging 1. Accessories Power cable Multi-functional OBD display (built with GPS and microphone). WiFi antenna CD: user manual, player, and product information. Velcro Tape IR remote controller 2. -
Page 6: Characteristics
2-Channel Mobile Video Recorder User Manual B. Characteristics: Aluminum casing make it durable and waterproof. Small independent system, 2 channels video and 1 channel audio recording. H.264 compression format, 720P video resolution. Low power consumption and efficient heat dissipation, no build-in Lithium battery to prevent possible danger and heat explosion. -
Page 7: Specification Sheet
2-Channel Mobile Video Recorder User Manual C. Specification sheet Item Specification Video Input 2CH 720P Resolution 720P (a) DC12V input, power consumption is approx. 1A. (b) DC12V input, ACC OFF standby power consumption is Power approx. 30mA. Consumption (c) Operation voltage: DC10.0v ~ DC14.5v. (d) Initial voltage: DC11V above. - Page 8 2-Channel Mobile Video Recorder User Manual Indicator frequency for event recording). (b) Blue flashing: F/W updating. Red light on means device error. (c) Blue light: WiFi connection. (a) Power and signal input: i. Power input DC12V ii. ACC signal: power input range DC10.0v ~ DC14.5v。...
- Page 9 2-Channel Mobile Video Recorder User Manual position and weather condition. (a) Camera video and signal may be electromagnetic interfered of installing on non-EMC certified vehicles. (b) Please use alcohol to clean cable connectors to eliminate dust, mud, oil, …etc. to ensure signal transmission and video quality.
-
Page 10: Product Appearance
2-Channel Mobile Video Recorder User Manual D. Product appearance Mobile DVR unit: SD card slot IR Receiver Power / Recording Lid screw Lid screw Error Indicator CAM1 CAM2 WiFi OBD (On Board Display) Microphone Error Power Recording... -
Page 11: Installation Of Sd Card
2-Channel Mobile Video Recorder User Manual E. Installation of SD card SD card slot Dustproof screw Dustproof screw (1). Counterclockwise to unscrew the screw of dustproof lid to install/takeoff the SD card. (2). Please do SD card format/ restoration with attached player. Attention (1). -
Page 12: Cable Installation
2-Channel Mobile Video Recorder User Manual F. Cable Installation Cables (1) Multi-functional OBD display connector (2) Power connector (3) Camera 1 connector (4) Camera 2 connector (5) Video out (6) WiFi antenna Note: Please use LVDS camera Power cable ... - Page 13 2-Channel Mobile Video Recorder User Manual Microphone (A) PWR (Green)：power indication. (B) GPS (Blue)：Flashing mean GPS 3D positioning searching. Consistent blue light on means 3D positioned successfully. (C) Microphone：Audio input. (D) REC (Green)：Flashing means continuous recording. (E) ERR (Red)： Error diagnosis, please check camera signal, OBD display, SD storage…status.
-
Page 14: Installation Diagram
2-Channel Mobile Video Recorder User Manual G. Installation diagram Installation on motorcycle Attention (1). Please install this device with the help of professional technician to avoid damaging your vehicle. (2). For installation by none-technician, please use tapes instead of boring tools to avoid damaging the electrical and gasoline system. - Page 15 2-Channel Mobile Video Recorder User Manual DVR installation diagram (a) DC12V input is approx. 1A consumption； Standby power consumption when ACC OFF is 30mA。 (b) Operation electric pressure：DC10.0v ~ DC14.5v。 (c) Device initiate by power DC11v above. Red cable: DC (+) Brown cable: ACC power DC current Grey cable: positive DC power, for LAMP Black cable: Ground cable...
-
Page 16: Ir Remote Control
2-Channel Mobile Video Recorder User Manual H. IR remote control Forced recording Split screen switch Audio recording switch Display menu Up / Down / Left / Right Confirm / Enter Fast forward Back forward Playback / Play Stop / Quit Pause Icon Function... -
Page 17: Recording
2-Channel Mobile Video Recorder User Manual Recording 1. System initialization / Recording: System initializes within 30 seconds when power is on. PWR green light ON when system is rebooting. System starts to recording when REC green light is flashing. Light Indication: PWR/REC：GREEN on means device POWER is on, Flashing resembles ●... -
Page 18: Live View
2-Channel Mobile Video Recorder User Manual J. Live View: 1. If the screen shows on top right, it means that both channel 1 (left) and channel 2 (right) have video signal. A icon indicates that one channel has no video input. shows the audio recording is shut off. -
Page 19: Pc Player
2-Channel Mobile Video Recorder User Manual K. PC Player Run the player software (included in the CD). ◎NOTE: The software requires Direct X version 9.0 or above. 1. Viewer Interface CAM1 CAM2 Speed display G sensor Google Map / File list Operation control interface Volume control Play speed... - Page 20 2-Channel Mobile Video Recorder User Manual 2. G SENSOR G sensor analyzer is to recording the vehicle moving information. G SENSOR (1) X：Left and right movement (2) Y：Front and rear movement (3) Z：Vertical movement Note：3 axis direction varies according to device posture of installation. 3.
-
Page 21: Data Backup
2-Channel Mobile Video Recorder User Manual L. Data backup Save data from SD card to PC or other device. Use PC player and click to enter backup interface: Step1. Choose SD card source: Step2. Choose backup files Step3. Choose backup data format Data format：... - Page 22 2-Channel Mobile Video Recorder User Manual Note: backup to memory card in original format, the format will be containing GPS latitude and longitude, speed, recorded data such as G-SENSOR, if the backup date in *.AVI format, it contains only video and audio, so back up in original format is recommended.
-
Page 23: Configuring The Memory Disk
2-Channel Mobile Video Recorder User Manual M. Configuring the Memory Disk Please insert SD card into card reader and launch player on your computer to do card formatting. Click on player to do setting: Choose disk Select video recording resolution: Video Format 720P, D1 Select video picture quality: High /... - Page 24 2-Channel Mobile Video Recorder User Manual This feature can encrypt the memory card and to prevent unauthorized access. Password length allows to 15 characters. User have to key in password for video playback, settings, Password memory card format after password Management is set.
-
Page 25: Google Map Track Playback
2-Channel Mobile Video Recorder User Manual N. Google Map track playback If there’s GPS recording, user will be able to read driving path, direction, speed information when doing video playback. Tracking path... -
Page 26: Data Playback
2-Channel Mobile Video Recorder User Manual O. Data Playback There’re two way to do video playback: 1) Playback via video out and 2) PC player playback. 1. On screen playback Click key on remote control in Live mode screen, it switches to playback mode event list like below;... - Page 27 2-Channel Mobile Video Recorder User Manual 2. Playback on PC player Click to enter playback mode: (1). Select the path of the memory disk or a backup file on the hard disk. (2). Double click the desired footage to play the file.
- Page 28 2-Channel Mobile Video Recorder User Manual Image Snapshot (3). User can take a snapshot of the current frame by pressing to save screenshot. The player will save the file to *.bmp format and open the destination folder: Snapped image is default saved to /Snapshot, user can enter to set image path.
-
Page 29: Screenshot Tool
2-Channel Mobile Video Recorder User Manual P. Screenshot tool Q1. When do user need to format SD card? When user uses brand new SD card, please format it before use. Q2. When do user have to restore SD card? If you want to repurpose the memory disk for other uses (e.g. for computer or digital camera), you need to restore the disk. - Page 30 2-Channel Mobile Video Recorder User Manual Q3. How to format/restore SD cards? (1). Put the SD card into a card reader and plug the card reader into your computer USB slot. (2). Play software , click to enter formatting tool. (3).
-
Page 31: Wifi Connection
Channel” to see LIVE VIEW 5. Function: Live view image shot, Live recording, Video playback, Video backup. Attention (1). There might be video transmission delay due to wireless transmission. (2). Please remember to restore WiFi setting to external network after using Vacron Player. - Page 32 For more information Please visit VACRON website http://vvr.vacron.com Made in Taiwan...
