Vacron VVH-MDE304 Manual

4channel /mobile dvr
Hide thumbs Also See for VVH-MDE304:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Quick Manual

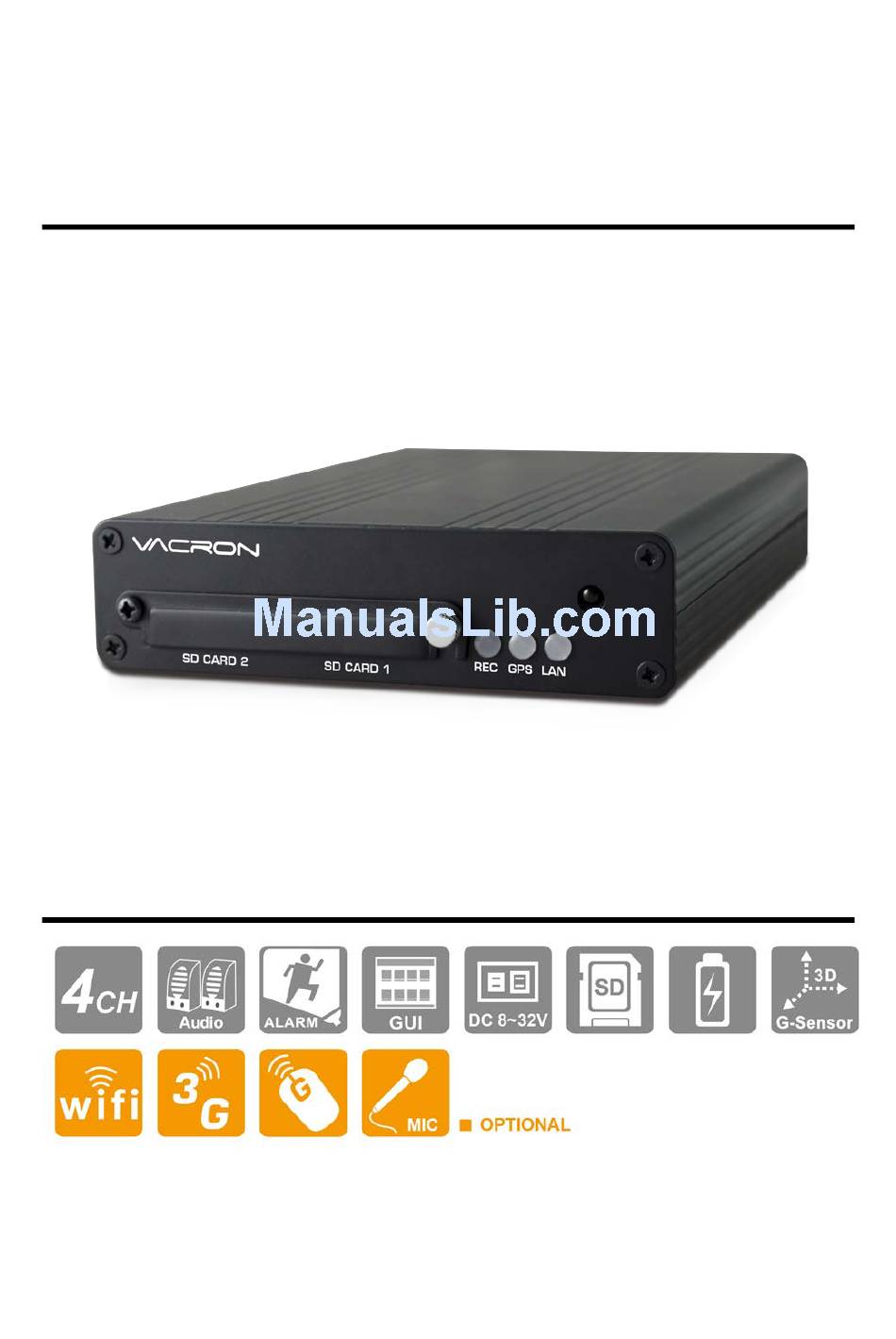

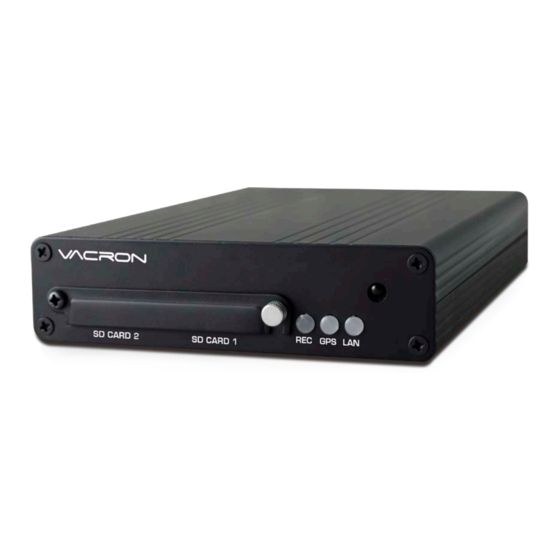

4Channel
Mobile DVR
2016 JULY V1.0
(Optional : WIFI / 3G / G-MOUSE)
* We reserve the right to modify the interest in the product specification, without notice,
product display and operation screen content with a real machine-based.

Advertisement

Table of Contents
loading

Related Manuals for Vacron VVH-MDE304

Summary of Contents for Vacron VVH-MDE304

  • Page 1 4Channel Mobile DVR 2016 JULY V1.0 (Optional : WIFI / 3G / G-MOUSE) * We reserve the right to modify the interest in the product specification, without notice, product display and operation screen content with a real machine-based.

  • Page 2: Safety Precautions

    4Channel Mobile DVR User Manual Safety Precautions Take and review some testing video initially to make sure the images were recorded correctly. Please note that manufacturer, its subsidiaries and affiliates, and its distributors are not liable for consequential damages arising from any malfunction of main device accessory, including memory device that results in the failure of an image to be recorded or to be recorded in a way that is machine readable.
  • Page 3 4Channel Mobile DVR User Manual Before applying 3G products, please ensure that you read the safety notifications described below. • Company and user shall not modify certified low power radio frequency device the frequency, increase the power and change the characteristics and functions without permit.

  • Page 4: Table Of Contents

    4Channel Mobile DVR User Manual Index Features ......................1 Specification ....................2 Accessories ...................... 3 Product Exterior ....................4 Power ON / Power Off ..................7 IR Remote Controller ..................8 System Interface and Operation ..............9 CARBOX Player on PC ................... 13 Format/Restore SD Card ................

  • Page 5: Features

    4Channel Mobile DVR User Manual A. Features 1. Support 8CH recording cameras at the same time to record driving images completely. 2. Wide range of power input, suitable for any kinds of vehicles. 3. Auto recording after power supplied. 4. Provide Video output for playing-back mode and operating in mainframe.

  • Page 6: Specification

    4Channel Mobile DVR User Manual B. Specification ITEM DESCRIBTION TV System NTSC/PAL Embedded Linux Video Input Camera Power Output 4x 12V / 750mA Video Output Audio Input Audio Output ALARM IN/OUT User Interface GUI ICON CONTROL Languages English Trad/Simplified Chinese 1280 x 720 / 720 x 480 Resolution Storage...

  • Page 7: Accessories

    4Channel Mobile DVR User Manual C. Accessories This product contains accessories as below: Standard:  Main Device Power Cable ALARM Cable IR Extension Cord IR Remote Control Software Disc User Manual Optional  3G Module /Antenna G-Mouse SD Card Camera Microphone pad Camera extension cable...

  • Page 8: Product Exterior

    4Channel Mobile DVR User Manual D. Product Exterior Front Panel SD Slot Cover IR Receiver SD Slot 1 SD Slot 2 Network...
  • Page 9 4Channel Mobile DVR User Manual Rear Panel Camera 1CH / AV out Camera 2-4CH 3G Antenna Alarm/Audio Power GPS Connector SIM Slot IR Ext WIFI USB Slot ※ GPS / 3G / WiFi are optional Power Connector  A. GNDP (-) B.
  • Page 10 4Channel Mobile DVR User Manual Alarm/Audio Connector  ALARM IN AUDIO ALARM OUT ALARM IN AUDIO (spare) (spare) (spare)

  • Page 11: Power On / Power Off

    4Channel Mobile DVR User Manual E. Power ON / Power Off (1) Power On Insert SD Card into SD slot and closet SD slot lock, then turn on the power and it will take approximately 30 seconds. When lights start flashing as the recording is in progress.

  • Page 12: Ir Remote Controller

    4Channel Mobile DVR User Manual F. IR Remote Controller Vehicle DVR can be operated through two methods: IR remote controller and PC software application.  Through IR Remote controller instruction Buttons Instruction No. Function Description Function Description 1CH Screen Display Confirm Button Force Recording Button Backward(Not Working)

  • Page 13: System Interface And Operation

    4Channel Mobile DVR User Manual G. System Interface and Operation  Live Monitoring Mode Display Live Monitoring Mode -4 Split Display (1~4Ch) (1) Display Description: • Press Ch1~Ch4 button or select on menu for single display. • Press quad split screen button for 4Ch display. •...
  • Page 14 4Channel Mobile DVR User Manual  OSD Menu Operation and Parameters Setup Description 720P 5-30 fps NTSC Recording 5-30 fps Recording Setting Frame 720P 5-25 fps 5-25 fps Resolution Normal Better High Video Setting Select 1~4CH to adjust Bright, Contrast and Color The time setting will be automatically calibrated by Time Setting GPS signal.
  • Page 15 4Channel Mobile DVR User Manual  Playback Mode Live screen on the device or on PC On the Device  (1) Click play button on the remote control during live monitoring mode, to enter playback page. (2) To select search type then click enter button, to enter playback list (3) To select the playback file, then click enter button to enter the playback video file.
  • Page 16 4Channel Mobile DVR User Manual Playback List Display  (Remark:If the playback list cannot be read in Win7 system. Solution: click right button and execute CARBOX as Administer identity. )

  • Page 17: Carbox Player On Pc

    4Channel Mobile DVR User Manual H. CARBOX Player on PC Execute player software CarBox2.exe Caution: It needs to install DirectX 9.0 or above before ★ running CarBox2 software. Operating Instruction  Control Interface Playback Date Selection Google Map GPS Direction Latitude &...
  • Page 18 4Channel Mobile DVR User Manual Tool, SD Card format, language setting. Previous File: Play previous video. Previous Frame: Backwind previous frame in Pause situation. Save as SD files, Video backwind play. Pause: Pause playing video Stop: Stop playing video Play: Play pause video Next Frame: Forward next frame in pause situation.
  • Page 19 4Channel Mobile DVR User Manual Resolution 720P and VGA Video Quality Choose the resolution: High / Normal / Low Video Frame Rate Set the fps from 5 to 30 Car information Car License, Driver (For Company car, Taxi, or fleet) UI Mode Setup Player Size.
  • Page 20 4Channel Mobile DVR User Manual  Backup : Backup folder: Choose the folder that backup file will save. Backup the footage on the to your computer for SD CARD device data backup. Select icon to start the backup function as the following : Step1.Choose the Local Disk, Removable Storage or Backup File.
  • Page 21 4Channel Mobile DVR User Manual Step3.Choose backup file format. Backup Format： ● SD Format Save as .sd file. ● AVI Format Save as .avi file. Note：*.sd format file contain image/ speed/ location and G-SENSOR data. *.avi format only can backup the video and audio.
  • Page 22 4Channel Mobile DVR User Manual Step5.Choose the backup folder. Step6.Start to backup.  Playback Playback the footage: Choose the file in or in SD CARD device the computer to playback. 1. Choose the Local Disk, Removable Storage or Backup File 2.
  • Page 23 4Channel Mobile DVR User Manual (2). GPS Latitude & Longitude Coordinates Location Latitude & Longitude GPS Latitude & Longitude Coordinates ：Display driving location and latitude & longitude with G-mouse ( Optional) (3). G-SENSOR G-SENSOR： X: The G-force from left & right of the car. Y: The G-force from front &...
  • Page 24 4Channel Mobile DVR User Manual (4). Volume Control Volume BAR: Click the left button of mouse control to adjust the volume degree. (5). Video Search Video Searching：You can use the mouse to drag the bar to search the video quickly. (6).

  • Page 25: Format/Restore Sd Card

    4Channel Mobile DVR User Manual Format/Restore SD Card  Format SD Card Q: When should you format the SD card? A: For brand new SD card or an used SD card which is used in other equipment before, it should be formatted before using.。 ※...
  • Page 26 4Channel Mobile DVR User Manual Step 2: Click icon to enter format tool menu. Step 3: Click “Format” button. Step 4: Click “ Yes” (After format, re-plug the storage device, then you can set up related parameters and save. After setting, Install the SD CARD into the DVR and it can start to work.)
  • Page 27 4Channel Mobile DVR User Manual  Restore SD Card Q. When you need to restore the Storage? A. If the storage device(SD CARD) will be used in other purpose., please back-up record footages to PC firstly and then restore it. ※Before Restore please backup the important data in your SD CARD.
  • Page 28 4Channel Mobile DVR User Manual Step4. Now system will pop up the window to proceed the format procedure, please choose 『Quick format』，then click 『Start』. Step5. Click 「Yes」 to start formatting the Storage...
  • Page 29 4Channel Mobile DVR User Manual Step6. Click "OK" to finish restore SD CARD device Step7.After finished, press 『OK』。Then the Storage format is normal windows format.

  • Page 30: Internet Setting

    4Channel Mobile DVR User Manual J. 3G Internet Setting (1) SIM Card Setting During using SIM card, the protected pin code must be turned off, please refer to the following steps. (For example like HUWEI CHT-E180 model, 3.5G USB wireless adaptor) Step1.
  • Page 31 4Channel Mobile DVR User Manual Step3. Input the correct PIN numbers, Default Setting: 0000。 Step4. After input PIN numbers, it will have a pop-up message to complete disable PIN numbers。 Step5. After complete these steps, reinsert SIM card to the socket on the device to activate.
  • Page 32 4Channel Mobile DVR User Manual Step1. Please double click and open the setting page as below: 。 Step2. Insert SD Card to PC and select SD Card to enter relative parameter. Config tool Removable Storage Source of Device UserName Default Setting Password Default Setting...
  • Page 33 4Channel Mobile DVR User Manual Server Address Server IP Address Default Sever Port is 13579, Not recommend changing the original Server Port setting). 3G APN, generally preset to be Taiwan Telecommunication providers, if in other area, Please check local Telecommunication providers offered APN setting name.) Dial-Up Number: 3G Dial-Up Number, generally preset to be *99#,...
  • Page 34 4Channel Mobile DVR User Manual Step 5. After the system restart, please go into 3G Network in the main menu to check if the parameter is successfully configured. (Once the configuration is completed, it will show the information on the screen)

  • Page 35: Client Remote Monitoring

    4Channel Mobile DVR User Manual K. 3G Client Remote Monitoring (1) Login Execute 3GClientApp.exe and login Enter the username and password and then press “Login” button to login screen. Note: To perform this software will require DirectX 9.0 or more. User Name User Account Name Password...
  • Page 36 4Channel Mobile DVR User Manual (2) Live View Display Equipments list display all the connecting equipments. Be able to play real-time image form all channels. Lift click mouse to open equipment channel than click on channel to view the real-time image. Device List ...
  • Page 37 4Channel Mobile DVR User Manual Live View  Split screen display mode button  Single Display Quad Display 16 disvisions 9 divisions Display Display Muti-divisions display,25/36/49/64 Live View-Single Channel Display...
  • Page 38 4Channel Mobile DVR User Manual Live View- Quad Channels Display Live View Function buttons  Recording Signle snapshot as AVI file Snapshot Snapshot Auto-flip Auto flip to next page Stop auto-flip Stop auto-flip to next page Save the current live viewing Monitoring channels to be able to Status...
  • Page 39 4Channel Mobile DVR User Manual Recording: To record the selected channel, the red recording signal will show up at the bottom of the screen. Snaptshot: To take the snapshot of the selected channel, it will automatically go to the saving directory. Start Auto-flip: Once auto-flip is triggered, it will go to next page in a period of time.
  • Page 40 4Channel Mobile DVR User Manual click the saved status name to watch. Manually select page: Manually select the previous or next page Live View Interface  To select different display mode: Event/Dev List/Map to show different status.
  • Page 41 4Channel Mobile DVR User Manual Event Dev List (3) Electronic Map ※G-Mouse must equiped with Device to have GPS function to provide positioning information Once positioning is done, you could use the mouse to click the device for current position.
  • Page 42 4Channel Mobile DVR User Manual Device Positioning  Without GPS function. With GPS function Device Located. Electronic Map  Select the positioned device on the list, then it will show its position on the map. Live View Interface  To select different display mode: Event/Dev List/Map to show different status.
  • Page 43 4Channel Mobile DVR User Manual Event Dev List...
  • Page 44 4Channel Mobile DVR User Manual Live View (4) Route ※G-Mouse must equiped with Device to have GPS function to provide positioning information To display the positioned device at the track, you can notice the traveling route of the vehicle. Device Positioning Information ...
  • Page 45 4Channel Mobile DVR User Manual Tracking Route Search  Choose Date and Car Name/ID to search the data...
  • Page 46 4Channel Mobile DVR User Manual Remote Live View Message Interface  Mode: Event/Dev List/Map/Live View Event Dev List...
  • Page 47 4Channel Mobile DVR User Manual Live View (5) Setting Page Page 1  Setting the FPS, recording function, auto turn over page, and language. Video Buffer Setting Real-Time-> Higher frame rate Smooth-> Higher video resolution...
  • Page 48 4Channel Mobile DVR User Manual Recording Setting Record Path, Record Duration (Seconds), and Disk Free Space(MB) are the relative options. Snapshot Set the path after snapshot Auto-Change Duration (Seconds) Set the duration in seconds of auto-change page. Language Setup 3G Client Language display. Page 2 ...
  • Page 49 4Channel Mobile DVR User Manual 3G Setting Unit of Speed, Auto Disconnect Time, Read Device functions are available. • Speed Unit: Speed unit of E-map and tracking route display • Auto Disconnect Time: During live video playing, once it is set, the video image will be Close at the setup time.
  • Page 50 4Channel Mobile DVR User Manual E-mail setting When the alarm is triggered, the server will send a e-mail to the specific account, please refer to the following figure. • SMTP Servr：SMTP Server Address • SMTP Port：SMTP Port • Email Account •...

  • Page 51: Capacity Evaluation Of Continuous Recording Storage Device

    4Channel Mobile DVR User Manual L. Capacity Evaluation of Continuous Recording Storage Device Assumption of the minimum record time for Mobile DVR: 8Ch/15FPS , Statics Recording and different capacity of SD Cards. SD Capacity Estimated Rec Time 128G Data for reference, real recording time will be affected by different recording environment.
  • Page 52 MADE IN TAIWAN...
