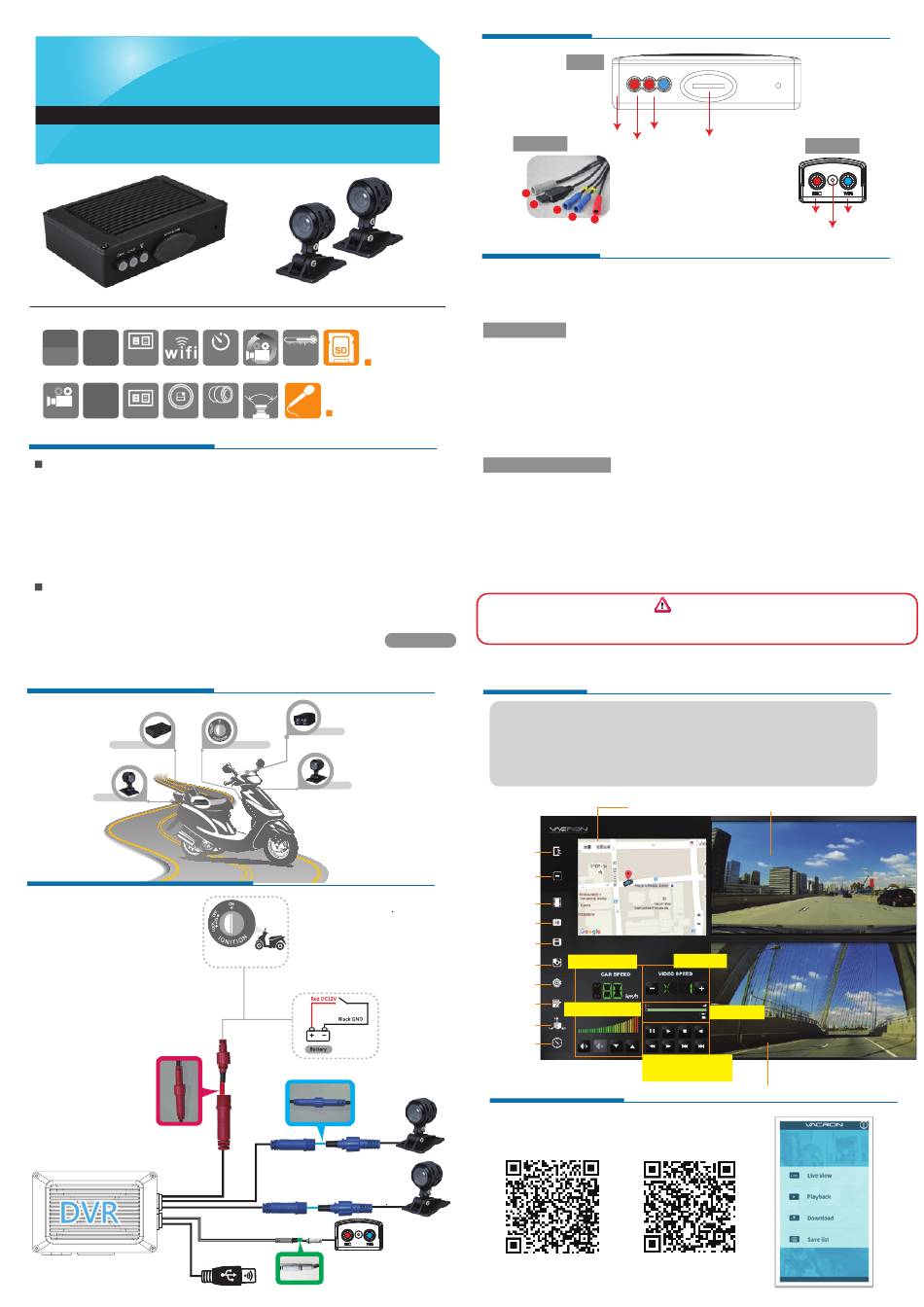

Vacron VVH-MDE58G Quick User Manual

Mobile DVR for Motorcycle
Q u i c k U s e r M a n u a l
2 Channel H.264 FULL HD 1080P
DVR
※Memory card is excluded, please purchase it separately.
2CH DVR
Full
2CH
HD
DVR
DC
10V~15.6V
Full HD Camera
Full
HD
DC5V
car cam
1/2.7" CMOS
Pro d uc t Ac c ess o ri e s
Standard Set:
1. Camera*2
2. Camera extended cable 2 meter*1pc + 1 meter*1pc
3. Power cable
4. USB WIF dongle
5. Velcro
6. Quick guide manual
Optional:
1. 8/16/32G/64G/128G Class10 above Micro SD card
2. OBD (On-board Display unit)
Insta lla t io n d i ag ra m
Vehicle DVR
Camera
D V R ins ta l la t i on d i ag ra m
Method 1: Connect DVR with
battery, and then sets ON/OFF
switch. The DVR use independent
power supply.
Method 2
Method 2: DVR connect with
motorcycle power supply (ACC ON),
the DVR will be activated when
motorcycle engine is on.
Full HD camera
Micro
super-
optional
-20~55°C
capacitor
OBD (On-board display unit)
110˚
optional
LENS
MIC
3.3 mm
Installation on motorcycle ( For example)
Displayer
(optional)
Power on/off
Camera
ACC ON/OFF
Red cable： DC cable
Black cable： Ground cable
Method 1
OBD
(On-board display unit)
(optional)
Ap pe arance
DVR cables
1
2
1
L ig ht si gnal
1. Boot / Recording
Device boots after power on and wait approx. 20-30 sec. Red light will constantly
bright after power on, and then system starts to record when REC red light
is flashing.
Host Indicator
● CAM1 indication light: as red light,
If light in flashing, it starts recording. In rapid flashing as triggered
for recording instant events.
● CAM2 indication light: as red light,
If light in flashing, it starts recording. In rapid flashing as triggered
for recording instant events.
● WiFi indication light: as blue light.
Light on as connecting to WiFi.
Display signal indicator
● REC indicator: as Red light.
In flashing as in recording. In rapid flashing, as events trigger recording.
● WiFi indicator: as blue light.
Light on as connecting to WiFi.
2. Shut off/Stop recording
The DVR will keep recording 3 seconds after power off, at this point, system will
write the buffer back to Micro SD card. In addition, after all light turn off, user can
remove Micro SD card and get all video files from it.
For ensure recording system working correctly, please play and
H12AE58G00
V ie we r
*Notes:
(A) To do this, the software should be installed DirectX 9.0 or above.
(B) Support OS: WINDOWS 7,8,10, does not support MAC OS
(C) The recommended hardware requirements: i3 above grade 2.7GHZ,
RAM: 4G or more, more preferably independent display card
Close
Minimal
Playback
Calendar
Backup
Snapshot
Configuration
Format
Volume control
G-Sensor
Compass
WiFi Connection
VACRON MOTO
for IOS
DVR host
WIFI
CAM1
Micro SD card insert
CAM2
(1)OBD cable connector
(2)WiFi dongle connector
(3)Camera 1 cable connector
(4)Camera 2 cable connector
(5)Power cable connector
4
5
if light off, no cameras detected.
if light off, no cameras detected.
Light off as no WiFi dongle detected.
Light off as 1 CH or 2 CH camera undetected.
Light off as WiFi dongle undetected.
At te nti o n
check storage files on PC regularly.
Google Map / File list
Play speed
Speed display
Play speed
Operation control
interface
VACRON MOTO
for android
OBD (optional)
Record
WiFi
Microphone receiver
CAM1
CAM2
