- Page 1 2CH H.264 HD Motorbike Video Recorder Operation Manuel 2ch DVR (Optional) HD Camera*2 2016 OCT. V1.0 2-Channel Mobile Video Recorder OBD(optional) HD Camera...
-
Page 2: Table Of Contents
User Manual 2-Channel Mobile Video Recorder Menu Packaging ................... 4 Characteristics: ..................5 Specification Sheet ................6 Produt/Size ..................8 SD Card Installation ................10 Cable Installation ................12 Installation diagram ................. 14 Recording / Stop recording ............. 17 PC player ................... 19 Data backup .................. -
Page 3: Safety Precautions
User Manual 2-Channel Mobile Video Recorder Safety Precautions TO Whome It May Concern Thanks for your patronage. Please contact your local dealer for any assistance. We will backup services via local dealers. Rights are reserved to upgrade software and hardware without notice beforehand. Please read this manual prior to use of this product. - Page 4 User Manual 2-Channel Mobile Video Recorder Surrounding Please have the DVR under recommended temperature away from the sun and heating source.。 Please keep this equipment away from humid surrounding. Please keep this equipment away from smoke and dust. ...
-
Page 5: Packaging

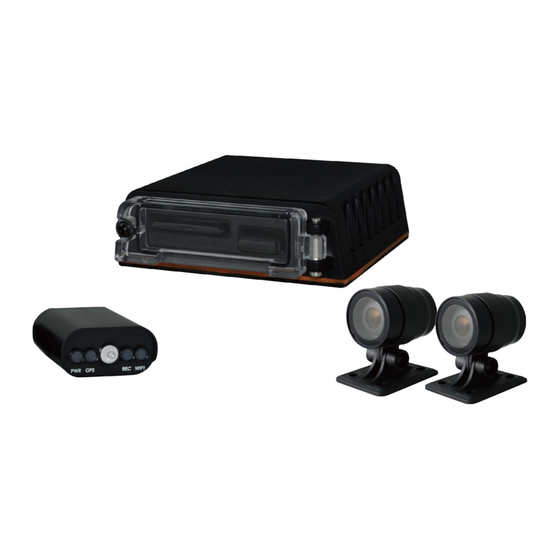

User Manual 2-Channel Mobile Video Recorder A. Packaging Before installation, Please check all Accessories(Showed below). If there is any missing part please contact the local dealer. ※SD card (optional)。 Accessories: DVR Host HD camera *2 WiFi dongle Camera cable 2.5meter*2 Power cable Optional Accessory: SD card, 8/16/32G Class10 or above... -
Page 6: Characteristics
User Manual 2-Channel Mobile Video Recorder B. Characteristics: Small independent system, 2 channels video. H.264 compression format, HD video resolution. Low power consumption and efficient dissipation, no build-in Lithium battery to prevent possible danger and heat explosion. Devices starts recording automatically when engine is on, file is well formatted and saved securely with extension recording by super capacitor. -
Page 7: Specification Sheet
User Manual 2-Channel Mobile Video Recorder C. Specification Sheet DVR Host Item Specification Resolution 2CH 720P@30FPS Display Mode 2CH Camera Mode Record/Play Resolution Display 1280x720 Record 1280x720 Copy/Record 4 LED (WIFI、REC、GPS、power) Optional Host light Signal Notice SD card Optional G-SENSOR WIFI WIFI Dongle System... - Page 8 User Manual 2-Channel Mobile Video Recorder Storing temperature：-40 ℃～85 ℃ Output terminal Micro Din Dust & Water proof IP67 Size 30x43x50mm OBD (Optional) Item Specification Light 4LED (WIFI、REC、GPS、Power) Signal Notice Microphone Audio input ★There will not be any notice of the different specification, thank you for your understanding SD Card is not include!!
-
Page 9: Produt/Size
User Manual 2-Channel Mobile Video Recorder D. Produt/Size DVR Host unit ：mm SD card slot WIFI Dongle slot... - Page 10 User Manual 2-Channel Mobile Video Recorder OBD(Optional) unit：mm Microphone 48mm Power WIFI...
-
Page 11: Sd Card Installation
User Manual 2-Channel Mobile Video Recorder E. SD Card Installation SD card Slot Dust Proof Lid Dust Proof screw (1). Counterclockwise to unscrew the screw of dustproof lid to intall/take off the SD card. (2). Please do SD card format/ restoration with attached player. Attention 1. - Page 12 7. SD card 8G、16G、32G or 64G，after format by DVR，there will be only 80.5MB can show on PC by Windows system, rest of those space can only showed by Vacron Player. To restore SD card again, please use the Vacron software and follow the steps.。...
-
Page 13: Cable Installation
User Manual 2-Channel Mobile Video Recorder F. Cable Installation DVR Cables (1)Camera 1 connector (2)Camera 2 connector (3)Multi-functional OBD display connector (4)Power Connector Note：Please use 720P AHD camera... - Page 14 User Manual 2-Channel Mobile Video Recorder Power Cable (a) (RED): Connect to positive electrode (b) (Black): Connect to negative electrode OBD(Optional) Microphone WIFI (A) PWR(Red)：Power indication (B) GPS(Green)：Flashing mean GPS 3D positioning searching. Consistent green light on means 3D positioned successfully. (C) Microphone：Audio input (D) REC(RED)：...
-
Page 15: Installation Diagram
User Manual 2-Channel Mobile Video Recorder G. Installation diagram Installation on Motorbike (Example Only) Installation Notes (a) Please install this device with the help of professional technician to avoid damaging your vehicle. (b) For installation by none-technician, please use tapes instead of boring tools to avoid damaging the electrical and gasoline system. - Page 16 DVR for long period. And date & time need adjustment when it is connect again. (f) If the SD card is not format by Vacron Player, DVR will automatically clean all memory inside also format it. Some DVR might not recording if the SD card is not been format.
- Page 17 User Manual 2-Channel Mobile Video Recorder DVR Installation Diagram 1. Method：Connect to battery ，set up the switch. Independent power supply 2.Method：Connect to Motorbike power supply (ACC ON)，when engine is on turn on automatically. 2. Method 1. Method Motorbike ACC ON Optional...
-
Page 18: Recording / Stop Recording
User Manual 2-Channel Mobile Video Recorder H. Recording / Stop recording 1.Systme initialization/Recording: System initializes within 30 seconds when power is on. PWR red light on when system is rebooting. System starts to recording when REC red light is flashing. Microphone WIFI Light Indication:... - Page 19 User Manual 2-Channel Mobile Video Recorder 2. Shut off / Stop recording Device offer prolong 3 seconds recording after power off to ensure date is well stored, user can take out the SD card when indication is off. ATTENTION For those who do not have OBD: All memory disks have limited lifespan.
-
Page 20: Pc Player
User Manual 2-Channel Mobile Video Recorder PC player Run the player sofware ，(included in the CD)： ◎NOTE: The software requires Direct X version 9.0 or above. 1. Viewer Interface Function control interface Google Map / File list Car speed Volume control Play speed Time bar/ File mark Operation control interface... - Page 21 User Manual 2-Channel Mobile Video Recorder 2. Function Description Close Minimal Play back Calendar Backup Snapshot Configuration Format G-sensor Compass 3. Play & Setting Icon Instruction Play previous file Stop Play previous frame Play Play backward Play next frame pasue Play next file...
-
Page 22: Data Backup
User Manual 2-Channel Mobile Video Recorder J. Data backup Save data from SD card to PC or other device. Use PC player and click to enter backup interface: Step1. Choose SD card source: Step2. Choose backup files Step3. Choose backup data format Data format：... - Page 23 User Manual 2-Channel Mobile Video Recorder Cam1, *.avi file Note：backup to memory card in original format, the format will be containing GPS latitude and longitude, speed, recorded data such as G-SENSOR, if the backup data in *.AVI format, it contains only video and audio, so back up in original format is recommended.
-
Page 24: Configuring The Memory Disk
User Manual 2-Channel Mobile Video Recorder K. Configuring the Memory Disk Please insert SD card into card reader and launch player on your computer to do card formatting Click on player to do setting: Choose disk Video Format Select video recording resolution Identification message, can input car palte number or driver’s name…etc. - Page 25 User Manual 2-Channel Mobile Video Recorder Please manual adjust time when in no Time Setting GPS cover environment. Time zone Would automatically calibrated to GMT time when GPS connect. Copy Player to SD card storge Copy to SD Card player Use X-Y-Z axis vibration detection to Determine the collision and forced G sensor...
-
Page 26: Google Map Map Track Playback
User Manual 2-Channel Mobile Video Recorder L. Google Map Map track playback If there’s GPSS recording, user will be able to read driving path, direction, speed information when doing video playback. Tracking path... -
Page 27: Data Playback
User Manual 2-Channel Mobile Video Recorder M. Data Playback Playback on PC player Click to enter playback mode: (1). Select the path of the memory disk or a backup file on the hard disk. (2). Double click the desired footage to play the file. -
Page 28: Image Snapshot
User Manual 2-Channel Mobile Video Recorder N. Image Snapshot User can take a snapshot of the current frame by pressing to save screenshot. The player will save the file to *.bmp format and open the destination folder: Snapped image is default saved to /Snaopshot, user can enter to set image path. -
Page 29: Format / Restore Memory Card
User Manual 2-Channel Mobile Video Recorder O. Format / Restore Memory card Q1. When do user need to format SD card? When user uses brand new SD card, please format it before use. ★Backup the date, before formatting SD card. Q2. - Page 30 User Manual 2-Channel Mobile Video Recorder Q3. How to format/restore SD cards： (1). Put the SD card into card reader and play the card reader into your computer USB slot (2).Play software ，click to enter formatting tool. (3). Select memory card location and choose format or restore memory card a.
-
Page 31: Wifi Connection
User Manual 2-Channel Mobile Video Recorder P. WiFi Connection Visit Google store and search for”VacronPlayer ”and download Turn on WLAN name「SSID」 ，password「12345678」 。 Run APP ”VacronPlayer”，click「Decice」 、 「Add」 ，key in a preferred device name. Click on device name and choose”All Channel”to see LIVE VIEW Function: Live view image shot, Live recording, Video playback, Video backup. - Page 32 User Manual 2-Channel Mobile Video Recorder Playback device information Add device 1. Host Name: at your favor 2. Host Address:Wifi AP mode to smart phone will gave IP automatically. 3. Media Port: 80 (Default) 4. Account : admin (Default) 5. Password：(Default) Save and exit...
- Page 33 1. There might be video transmission delay due to wireless transmission 2. Please remember to restore WiFi setting to external network after using Vacron Player. 3. After Vehicle Video Recorder been setup, please reset WiFi system. Otherwise it’s not able to connect to the Internet.
- Page 34 For more information Please visit VACRON website http://www.vacron.com.tw Made in Taiwan...
