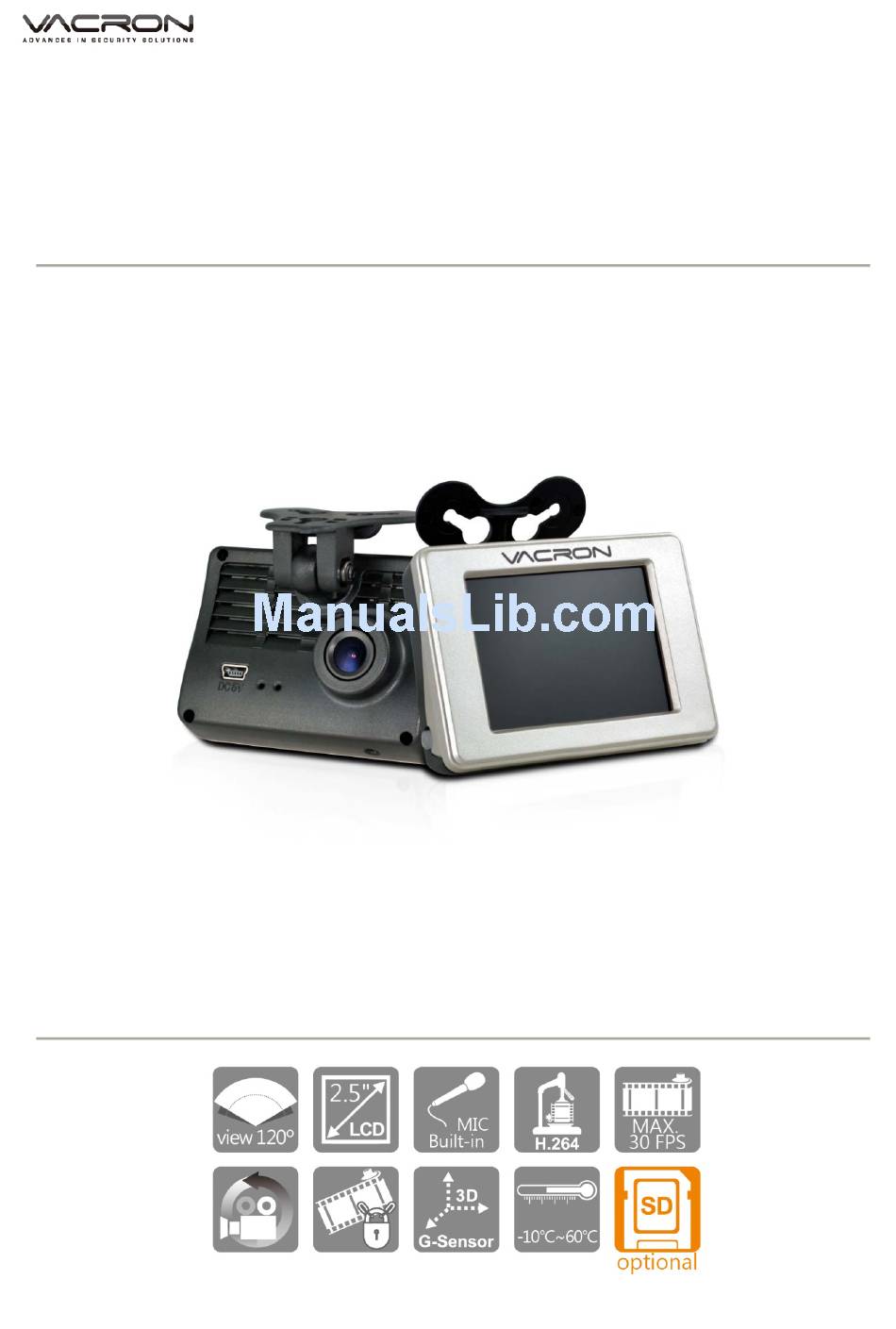

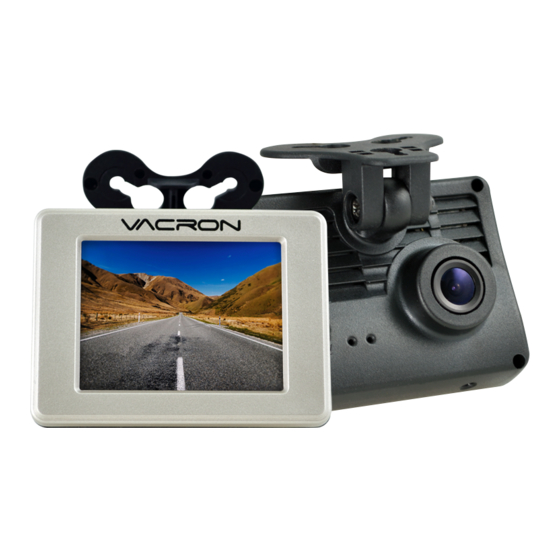

- Page 1 Vehicle Video Recorder User Manual 2016. JAN V2.0...
-
Page 2: Safety Precautions
Vehicle Video Recorder User Manual Safety Precautions Please Take and review some testing videos initially to make sure the images were recorded correctly. Please note that manufacturer, its subsidiaries and affiliates, and its distributors are not liable for consequential damages arising from any malfunction of main device accessory, including memory device that results in the failure of an image to be recorded or to be recorded in a way that is machine readable. - Page 3 Vehicle Video Recorder User Manual • Do not place the VVR near or in direct flame. • Do not handle the power cord with wet hands. • Do not use the equipment in a manner that exceeds the rated capacity of the electrical outlet or wiring accessories.
-
Page 4: Table Of Contents
G. RECORD AND STOP ........................10 H. REMOTE CONTROL........................11 OSD MENU FUNCTION ......................12 PLAYBACK............................13 K. VACRON VIEWER ........................14 L. RECORD TIME ESTIMATION ....................18 M. CRITERIA OF TFT LCD INSPECTION ..................19 APPENDIX – EXCEPTION CLAUSE ....................20... -
Page 5: Accessories
Vehicle Video Recorder User Manual A. ACCESSORIES Please review the contents prior to use. Please contact your local dealer if something not found in the box. ※ Storage card is not included in the box as free provision. Standard Cigar Lighter Adapter Bracket holder Suction cup bracket... -
Page 6: Feature Description
Vehicle Video Recorder User Manual B. FEATURE DESCRIPTION Built-in super capacitor offers extensional power supply and ensures video ■ is well stored of critical moment and compact. ■ Wide angle glare-depressed lens . ■ Low light high sensitive sensor equipped. ■... -
Page 7: Specifications
3 seconds recording after power off. Recording Data Date/Time/Video/Audio/G-Sensor TS files playback on normal player, or download player Playback from Vacron website, also playback by using remote control on the machine. Audio Input Built-in microphone Time setting Use remote control to set up time in OSD interface. - Page 8 Vehicle Video Recorder User Manual Notification: Startup Menu and OSD (on screen display) might be varied with firmware update. Please refer to the SD card usage and life limit, and check video recording periodically with Carbox player on PC to ensure normal recording. Please replace build-in battery CR1220 for clock memory when time is not calibrated.
-
Page 9: Installation
Vehicle Video Recorder User Manual D. INSTALLATION 1. Select 「Suction-cups」or 「Stick-Holder」to install on windshield. Sticker Adhesive Spot 2. The best position to install 3. Adjust the view angle properly the device on the windshield 4. Plug in DC5V Power Supply 5. - Page 10 Vehicle Video Recorder User Manual 6. VVR Installation Best Location Cigar Lighter Notice This device should be installed on the windshield of clean and dry. The best location must be in the range of the moving wipes. Format the memory card in the DVR prior the very first recording. Set time zone and timing on OSD.
-
Page 11: Product Function Introduction
Vehicle Video Recorder User Manual E. PRODUCT FUNCTION INTRODUCTION Bracket Manual Force Recording Button Light Indicator Screen Lens DC5V Power In SD Card Slot IR receiver... - Page 12 Vehicle Video Recorder User Manual Size of VVR Unit：mm...
-
Page 13: Sd Card Installation
Vehicle Video Recorder User Manual F. SD CARD INSTALLATION (1). Please read other pages for detailed information of SD card format. Reminder – SD card is not free provision from manufacturer. Warning (1). Recommended Class 10 or above 8GB at least, maximum support to 64GB (2). -
Page 14: Record And Stop
Vehicle Video Recorder User Manual G. RECORD AND STOP 1. Reboot / Record Reboot the DVR system ready in 20 seconds. DVR starts recording. 2. Power Off / Stop It stops recording once power is off, build-in capacitor offer 3 seconds extra power to make sure file is well stored. -
Page 15: Remote Control
Vehicle Video Recorder User Manual H. REMOTE CONTROL Play OSD screen Emergency REC On/Off Menu Navigator Enter Stop... -
Page 16: Osd Menu Function
Vehicle Video Recorder User Manual OSD MENU FUNCTION Select Menu enter OSD as below NTSC / PAL Time setting Eco-saving monitor Microphone G-Sensor SD card format Firmware version 1. Video standard: click to set NTSC or PAL. 2. Time setting: click to set calendar. -
Page 17: Playback
Vehicle Video Recorder User Manual J. PLAYBACK Click the playback function to enter playback menu, and choose the recorded video fragment. : Manual/Emergency Recording. : G-Sensor Recording. -
Page 18: Vacron Viewer
Vehicle Video Recorder User Manual K. VACRON VIEWER ★ Reminder- DirectX 9.0 is required. Allow to move the user interface to left or right. Playback Speed: Fast Forward 2X, 4X, 8X; Slow Forward 1/2X, 1/4X, 1/8X Scroll Bar: playback display can be scrolled to wanted position. Set the start... - Page 19 Vehicle Video Recorder User Manual Control Panel Pause Reverse Play Stop Previous File Previous Frame Next Frame Next File Volume control: Click +、- to adjust volume. File backup: click to choose file save directory.
- Page 20 Vehicle Video Recorder User Manual Snap Shot: to capture the picture during playback, and click to save the file to directory (default directory: /Snaptshot, the saving directory can be changed. The file format is “.bmp”) Current Version: click to view current version and setting language.
- Page 21 Vehicle Video Recorder User Manual Playback List: to access video recording and jump to required segment by scrolling time bar. G-SENSOR G-Sensor will detect the impacts form the car, and record 1-3 minutes video automatically. This footage saves to the separate area to avoid file from being overwritten.
-
Page 22: Record Time Estimation
Vehicle Video Recorder User Manual L. RECORD TIME ESTIMATION The chart below is for reference only. The length of recording time can be varied due to variation in image size and video quality. Capacity 16GB 32GB Quality High... -
Page 23: Criteria Of Tft Lcd Inspection
Vehicle Video Recorder User Manual M. CRITERIA OF TFT LCD INSPECTION Ｑ: What is bright spot? What is dark spot? Ａ: Bright Spot: At dark background, we found the abnormal bright spots, we called those spot are “Bright Spot” Dark Spot: At multiple color background (excluded dark ... -
Page 24: Appendix - Exception Clause
Vehicle Video Recorder User Manual APPENDIX – EXCEPTION CLAUSE Fuho Technology Co., Ltd. states exception clause to reserve the rights of the exclusive warranty and product liability hereafter. 1. Users do not follow the proper installation stated in user manual. 2. - Page 25 For more information Please visit VACRON website http://vvr.vacron.com Made in Taiwan...
