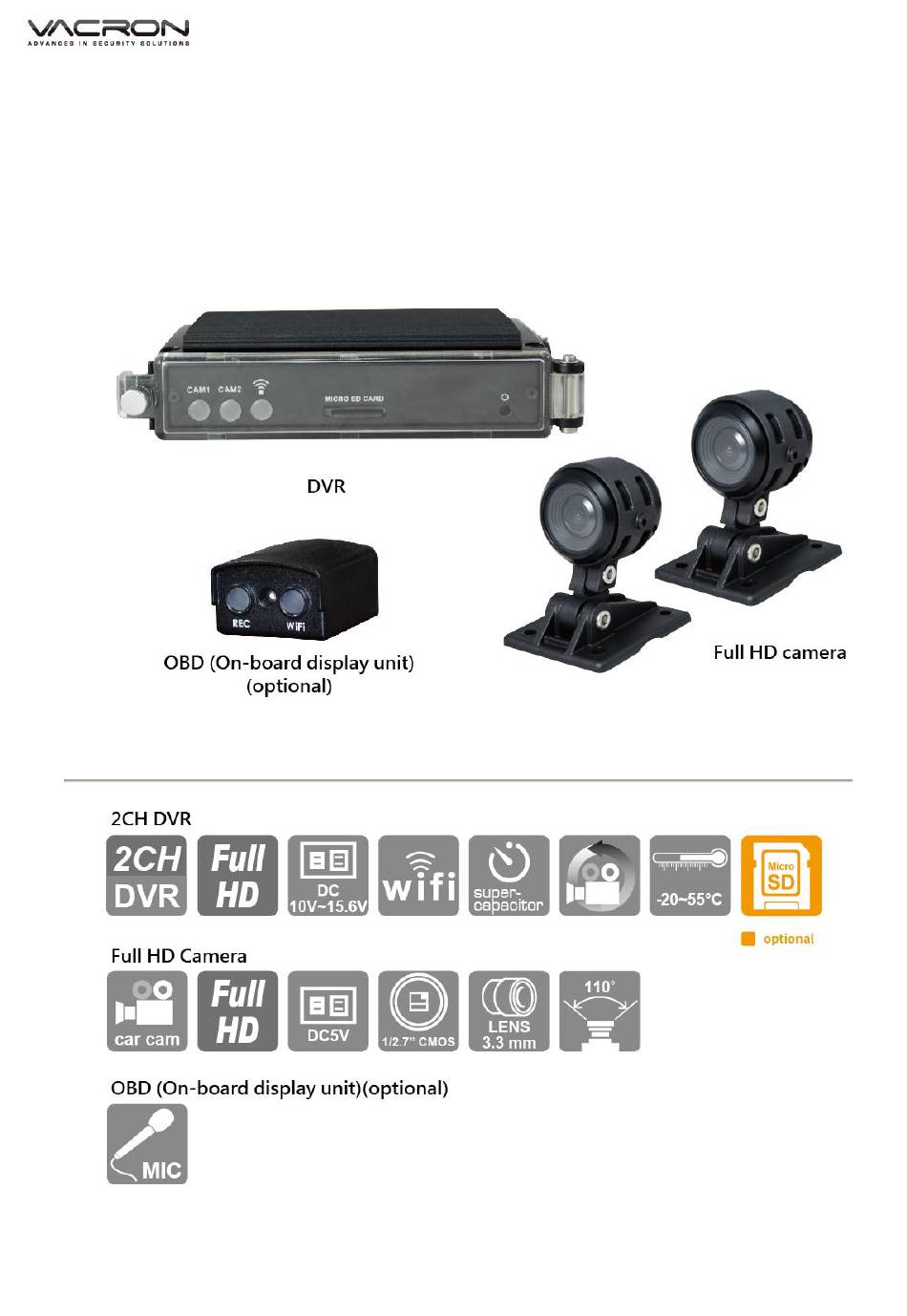

Page 1: User Manual
2CH Mobile DVR User Manual 2018 AUG V1.0 ※Memory card is excluded, please purchase it separately. -
Page 2: Safety Precautions
Safety Precautions Dear Vacron user, Appreciate for you purchase Vacron products. Please contact your local distributor if you meet any question or need for any assistance. We will offer you complete and in time service via local distributor. However, we still have rights to upgrade software and hardware without any kind notice beforehand. - Page 3 Operation Manual 2 Channels Mobile DVR for Motorcycle Surrounding Please have the DVR under recommended temperature and set it away from the sun and heating source. Please keep this equipment away from humid surrounding. Please keep this equipment away from smoke and dust environment.
-
Page 4: Table Of Contents
Operation Manual 2 Channels Mobile DVR for Motorcycle Table of Contents A. Product Accessories ....................1 Features ........................2 C. Specifications ......................3 D. Appearance ......................... 7 SD card installation ....................8 Cable Installation ....................10 G. Installation diagram ....................12 H. -
Page 5: Product Accessories
Operation Manual 2 Channels Mobile DVR for Motorcycle A. Product Accessories Please check every accessory we listed below, make sure everything is included in the product package before use. If you found anything is missing, please contact local distributor. Note：The product set does not come with memory card, please purchase the memory card separately. -
Page 6: Features
Operation Manual 2 Channels Mobile DVR for Motorcycle B. Features 1. Auto video recording system which has 2 channels with 1080p resolution input and OBD (On-board display unit) which is optional, that goes with Microphone and recording video & audio simultaneously. 2. -
Page 7: Specifications
Operation Manual 2 Channels Mobile DVR for Motorcycle C. Specifications DVR Specifications Terms Specifications Inputs Hisilicon HI3520DV300，SoC (b) 2 channels in 1080P Resolution (a) 1080p (b) CH1 30FPS、CH2 30FPS Power (a) Power consumption 1 A when DC12V input (b) Operating voltage: DC10V ~ DC15.6V (c) Starting voltage requires DC10V or above. - Page 8 Operation Manual 2 Channels Mobile DVR for Motorcycle 12 Display Viewing live images by using WiFi connecting to APP and image playback. 13 Output (a) Blue light as WiFi connection indicator. Light on as when in WiFi connection, light flashing as searching available WiFi, light off as no WiFi available.
- Page 9 Operation Manual 2 Channels Mobile DVR for Motorcycle device has EMC problem. (c) If the SD card not formatted by dominated video player, it may forcibly clear all data in the card and start to record in default. It is possibly unable to record without formatting.
- Page 10 Operation Manual 2 Channels Mobile DVR for Motorcycle OBD specification (optional) Term Specifications Light 2LED (WIFI、REC) Interrupted detection Microphone Audio input Waterproof and IP66 dustproof level Notes: The product specification is subject to change without prior notice...
-
Page 11: Appearance
Operation Manual 2 Channels Mobile DVR for Motorcycle D. Appearance DVR host Anti-dust cover screw WIFI Indication light CAM2 Micro SD card insert CAM1... -
Page 12: Sd Card Installation
Operation Manual 2 Channels Mobile DVR for Motorcycle E. SD card installation Anti-dust cover Micro SD memory card insert (1). Loosen the screw in counterclockwise and open the transparent plastic cover. Then insert or take out Micro SD memory card. (2). - Page 13 Operation Manual 2 Channels Mobile DVR for Motorcycle Attention Suggest using class 10, 8GB above SDHC/SDXC Micro SD Card Before using the memory disk, please format the disk first by using the software player. If not, device will automatically erase all data in the memory disk before recording.
-
Page 14: Cable Installation
Operation Manual 2 Channels Mobile DVR for Motorcycle Cable Installation DVR cables Power cable connector Camera 1 cable connector Camera 2 cable connector OBD cable connector WiFi dongle connector Note: This device needs to be equipped with exclusive camera... - Page 15 Operation Manual 2 Channels Mobile DVR for Motorcycle Power cables Ignition cable (Red): connecting to the switch controller for power on/off from Positive Pole of backup battery or connecting to motorcycle ACC. Ground cable(black): connecting with negative pole OBD (optional) unit：mm ...
-
Page 16: Installation Diagram
Operation Manual 2 Channels Mobile DVR for Motorcycle G. Installation diagram Installation on motorcycle ( For example) Attention (a) For installation by none-technician, please use tapes instead of boring tools to avoid damaging the electrical and gasoline system. (b) Suggest to use soft tubes to cover the cables as to endures high heat and extend reliability. - Page 17 Operation Manual 2 Channels Mobile DVR for Motorcycle connection due to shock and vibration. (e) Before inserting wires through holes, temporarily wrap the terminal with tape to prevent bad connection from accumulated dirt or debris. (f) Tightly seal all electrical connection with tape to prevent loose connection or leak leaking to the connection.
- Page 18 Operation Manual 2 Channels Mobile DVR for Motorcycle DVR installation diagram Method 1: Connect DVR Red cable： DC with battery, and then sets cable ON/OFF switch. The DVR use Black cable： independent power supply. Ground cable Method 2: DVR connect with motorcycle power supply (ACC ON), the DVR will be activated when motorcycle...
- Page 19 Operation Manual 2 Channels Mobile DVR for Motorcycle grease and so on. Prevent the recording error that cause by poor signal. (d) Memory card may have compatibility issue due to manufacture process change or adjustment. This device does not guarantee can compatibility with all current memory cards.
-
Page 20: Boot/Recording
Operation Manual 2 Channels Mobile DVR for Motorcycle Boot/Recording Boot/Recording Device boots after power on and wait approx. 20-30 sec. light will constantly bright after power on, and then system starts to record when REC red light is flashing. WiFi indicator CAM1 CAM2... - Page 21 Operation Manual 2 Channels Mobile DVR for Motorcycle (optional) Display signal indicator REC indicator: as Red light. Light off as 1 CH or 2 CH camera undetected. In ● flashing as in recording. In rapid flashing, as events trigger recording. WiFi indicator: as blue light.
-
Page 22: Pc Player
Operation Manual 2 Channels Mobile DVR for Motorcycle PC Player Run the player software by pressing , player o as following ◎* Notes: (a) To do this, the software should be installed DirectX 9.0 or above. (b) Support OS: WINDOWS 7,8,10, does not support MAC OS. (c) The recommended hardware requirements: i3 above grade 2.7GHZ, RAM: 4G or more, more preferably independent display card. - Page 23 Operation Manual 2 Channels Mobile DVR for Motorcycle CAM1 CAM2 Google Map / File list Play controller Function controller Volume Play speed Time bar/ File mark Available for Google map key...
- Page 24 Operation Manual 2 Channels Mobile DVR for Motorcycle 2. Function control interface Close Minimal window Select and playback file Calendar Backup Screen shot Setting Tool box, for format SD card, language G-sensor Compass 3. Play & Setting Icon Instruction Previous file Stop Play revious frame...
-
Page 25: Data Backup
Operation Manual 2 Channels Mobile DVR for Motorcycle Data Backup Save data from SD card to PC or other device. Use PC player and click to enter backup interface: Step1. Choose SD card source: Step2. Choose backup files Step3. Choose backup data format... -
Page 26: Data Format
Operation Manual 2 Channels Mobile DVR for Motorcycle Data format： (1) SD card original format (RAW) RAW file *.sd (2) AVI Format (*.avi) Cam1 and Cam 2, *.avi file Note: it is recommend backup to memory card in original format, the format will be containing GPS latitude and longitude, speed, recorded data such as G-SENSOR, if the backup date in *.AVI Step4. -
Page 27: Sd Card
Operation Manual 2 Channels Mobile DVR for Motorcycle SD card Before recording, insert SD Card into card reader, and then insert the card reader to USB slot in PC, launch player and setting record format and displaying mode. After setting successfully, remove and insert SD card back to DVR. Click on the player to do the setting: Base Configuration... - Page 28 Operation Manual 2 Channels Mobile DVR for Motorcycle Encrypted memory card for preventing other people get any information from this card. Set a password to 15 characters limited, for example 123456789123456 After setting the password, it 3 Password is required to enter password to access the playback file, setting, formatting memory card.
- Page 29 Operation Manual 2 Channels Mobile DVR for Motorcycle Base Configuration (1) Set up SSID default password as SSID, 12345678 (2) Create new password, as least 8 digits.
-
Page 30: Playback Files
Operation Manual 2 Channels Mobile DVR for Motorcycle Playback files Playback on PC Click to enter playback mode (1). Select the path of the memory disk or a backup file on the hard disk. (2). Double click on the desired footage to play the file. -
Page 31: Screenshot Tool
Operation Manual 2 Channels Mobile DVR for Motorcycle M. Screenshot tool User can take a screenshot of the current frame by pressing Screenshot image will be saved at C: /Black Box, user can enter to set image path. Data format is *.bmp... -
Page 32: Format / Restore Sd Card
Operation Manual 2 Channels Mobile DVR for Motorcycle Format / Restore SD card Q1. When do user need to format SD card？ When user uses brand new SD card, please format it before use. ★Note: This recording system cannot delete some specific video file, please backup video files that you need first before formatting. - Page 33 Operation Manual 2 Channels Mobile DVR for Motorcycle Q3. How to format/restore SD cards? (1). Put the SD card into a card reader, and then plug the card reader into your computer USB slot. (2). Play software , click to enter formatting tool. (3).
-
Page 34: Wifi Connection
VACRON MOTO FOR IOS VACRON MOTO FOR ANDROID (b)、Android: Visit Google play store, search for ” VACRON MOTO ”and download WLAN connection, type in「DIRECT-SSID-XXXXXX」 as user ID, password as 「12345678」 . Open “VACRON MOTO”, watch real time video record by selecting real time video Select「Playback」... - Page 35 Operation Manual 2 Channels Mobile DVR for Motorcycle Click " Video fragment ": watch the video fragment during play real time and playback video APP main menu Real time image...
- Page 36 Operation Manual 2 Channels Mobile DVR for Motorcycle Playback Playback Today: choose channel 1 or channel 2, and then press Search button, it will show all video files that record in today. Select and playback any video record as your request. Custom : Choose channel1 or channel2, at meanwhile, setting date and time period, press search, it will show all video...
- Page 37 Operation Manual 2 Channels Mobile DVR for Motorcycle Save list Save list 1. All records: press and playback all downloaded records, which include video clip of real time video, playback video, download image. Real time: video fragment of real time video record, the file name ending with “L”.
- Page 38 Operation Manual 2 Channels Mobile DVR for Motorcycle Setting: Setting 1. Select microphone On/Off.( Require use with OBD) 2. Reset to default: After initiate resetting, the device will restore to the factory default setting, reboot itself and begin to record. Version︰...
-
Page 39: (C)、Ios
2. WLAN connection, type in「DIRECT-SSID-XXXXXX」 a s user ID, password as 「12345678」 . 3. Open “ VACRON MOTO ”, watch real time video record by selecting real time video 4. Select「Playback」 : Capable play all video files that storage in SD card. - Page 40 Operation Manual 2 Channels Mobile DVR for Motorcycle Playback Playback Today: choose channel 1 or channel 2, and then press Search button, it will show all video files that record in today. Select and playback any video record as your request. Custom : Choose channel1 or channel2, at meanwhile, setting date and time period, press search, it will show all video...
- Page 41 Operation Manual 2 Channels Mobile DVR for Motorcycle Save list Save list 1. All records: press and playback all downloaded records, which include video clip of real time video, playback video, download image. 2. Real time: video fragment of real time video record, the file name ending with “L”.
- Page 42 Operation Manual 2 Channels Mobile DVR for Motorcycle Attention 1. Live image may be delay caused by wireless signal connection error. 2. Remote control only use for records that storage in device, record cannot be searched when the SD card had been overwritten. 3.
- Page 43 Please go on Vacron website for more information http://www.vacron.com Made in Taiwan...
