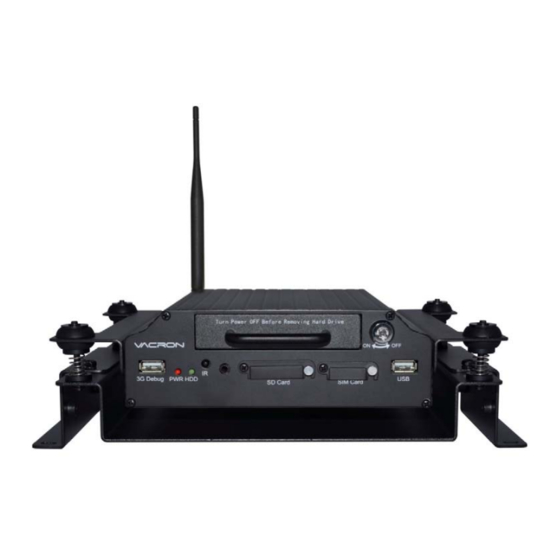

- Page 1 4 CH Vehicle Mobile DVR User’s Manual 2015 MAY V1.1...
-
Page 2: Safety Notice
Safety Notice Dear Users, Sincerely thanking you for choosing our products, for any product inquiry, please contact your local dealer for a prompt and precise service from the local dealer. We will continuously improving our product software or hardware design to satisfy your requirement. Before using this product, please read the following instruction carefully. - Page 3 • If any camera or alarm is installed outside of vehicle, please remember to ground the mobile DVR to main frame of the vehicle to avoid damages by lightning, surges or electrostatics. • Mobile DVR system is capable of recording, live streaming and remote monitoring, live and remote functions need APN Service provided by ISP or telecommunication provider for free or at a cost.
-
Page 4: Table Of Contents
Index A. Features ....................1 B. Specification .................... 2 C. Product Appearance ................3 D. 2.5” HDD Installations ................5 E. Record and Stop Recording ..............6 Remote Controller (RC or Remote hereafter) ......... 7 G. System UI and Operating Instruction ............9 •... -
Page 5: Features
User Manual Standalone Mobile DVR A. Features Video output for video playback on local device. H.264 compression, D1 and CIF resolution choices. Support 1 channel audio input. User friendly operating and player software, easy to operate. Reliable event log for quick search of events and recordings. Complete build-in date &... -
Page 6: Specification
User Manual Standalone Mobile DVR B. Specification Video Format NTSC / PAL Operating System Embedded Linux Video Input Channel 4 channel input via BNC or harness connector Camera Power Input 4 channel power 12V / 400mA Video Output 1 channel output via BNC or harness connector Audio Input 1 channel harness connector Audio Output... -
Page 7: Product Appearance
User Manual Standalone Mobile DVR C. Product Appearance Front Panel 2.5” HDD tray HDD lock SD card 3G SIM Power indicator Extended IR jack HDD record indicator IR receiver... - Page 8 User Manual Standalone Mobile DVR Back Panel 3G module Video in Video out Power input DC 8-28V Audio out Harness connector Alarm in 1. DC+12V output (+) 2. Signal and DC ground 3. Signal and DC ground Harness connector : 4.
-
Page 9: 2.5" Hdd Installations
User Manual Standalone Mobile DVR D. 2.5” HDD Installations Mobile DVR Hard Disk 1. Remove the side 2. Push out the HDD tray parallel. tray , screws x4, 2.5” Hard screws of HDD tray. Disk (Purchased Optionally) 3. Connect HDD to SATA flat 4. -
Page 10: Record And Stop Recording
User Manual Standalone Mobile DVR E. Record and Stop Recording HDD Indicator LED Power Indicator LED 1. Power on / Record Turn on the power and wait approximately 40 seconds for the device to boot up. HDD indicator starts blinking once the recording is in progress. Light Indicator: Red light: constant red power on signify normal power supply, no light ●... -
Page 11: Remote Controller (Rc Or Remote Hereafter)
User Manual Standalone Mobile DVR Remote Controller (RC or Remote hereafter) Vehicle DVR can be operated through two methods: IR remote controller and PC software application. IR remote controller instruction Channel 2 Channel 1 Record Channel 3 Quad display Channel 4 Menu Mute... - Page 12 User Manual Standalone Mobile DVR Stop Stop playback and return to previous page Pause Pause the video during playback Fast Forward Fast forward during playback Fast Rewind Fast rewind during playback √ Check the mercury cell is installed in How to check if the correct direction.
-
Page 13: System Ui And Operating Instruction
User Manual Standalone Mobile DVR G. System UI and Operating Instruction Live Monitoring Display Live Monitoring – Quad Display Live Monitoring – Single (1) Screen Display: • Press channel 1 to 4 to display channel 1 to 4. • Press quad display to display 4 channels simultaneously. -
Page 14: Osd (On Screen Display) Menu Operation
User Manual Standalone Mobile DVR OSD (On Screen Display) Menu Operation (1) Menu: Main Menu 2/5 Main Menu 1/5 Main Menu 4/5 Main Menu 3/5 Main Menu 5/5 (2) Remote Controller Operation: • During live view monitoring, press menu key on RC to bring up the main menu •... -
Page 15: Main Menu And Encode Parameter Setting
User Manual Standalone Mobile DVR Main Menu and Encode Parameter Setting (1) Encode Parameter Recording parameter Setting 5-15 frames NTSC 5-30 frames Recording Frames (second) 5-15 frames 5-25 frames Normal Good Finest Image Quality (2) Stationary Recording Setting ... - Page 16 User Manual Standalone Mobile DVR (3) Video Parameter Selecting Channels: Press on remote control to select different channel. Brightness/Contrast/Hue: press on RC to change to the gain setting, press Confirm to save the setting and exit. (4) Time Setting ...
- Page 17 User Manual Standalone Mobile DVR (6) Format HDD ※Caution! All data will be deleted when you click “Yes”. (7) Default Live View Channel Display Multiple Channels: Displaying live channels in Quad or checker grid. Channel 1：Displaying channel 1 in live view. (8) Power Management ...
- Page 18 User Manual Standalone Mobile DVR (9) MDVR ID Display MDVR ID, this is the unique serial code of each device, it is to be used with 3G Client software for remote monitoring. (10) 3G Network The MDVR ID displayed in previous page is the only device S/N, and the default number to be used with 3G Client software.
- Page 19 User Manual Standalone Mobile DVR (11) Alarm Setting Alarm Mode Setting：Each individual channel (1 to 8 depending on model) on / off, and server report. Alarm On CH1~ CH4(CH8): When an alarm is triggered, the corresponding channel will pop up in full display. ...
- Page 20 User Manual Standalone Mobile DVR (14) Backup Menu The user can choose to search or display all recorded footage for backup; once a file is selected, press Confirm to access backup selection in playback mode. (15) Language Settings –Only for non 3G Device Main Menu－Languages Language Setting ( in non-3G models...
- Page 21 User Manual Standalone Mobile DVR (17) Version (Firmware Version) Display firmware version and release date. Please check current firmware before upgrade.
-
Page 22: Playback Mode
User Manual Standalone Mobile DVR H. Playback Mode At site playback and PC playback are available. At site playback (1) Press Play in live mode to enter playback mode. (2) Press Play to enter option (3) Select the option and press enter to enter file list. ：Signifies manually forced recording. - Page 23 User Manual Standalone Mobile DVR Playback Selection Menu (Note：If you experience difficulty reading the files on Windows 7 or 8 computer, please right click on CarBox software icon and choose to run it as Administrator)
-
Page 24: Playback Through Pc Software
User Manual Standalone Mobile DVR I. Playback Through PC Software Executing CarBox2.exe software, the interface is as below ★Note: Require DirectX 9.0 or above Quad & 9CH Control Interface Google Map Software Interface Data Interface Playback Screen Playback Speed GPS Coordinate, Speed and Google Map (select models with 3G modules) (1). - Page 25 User Manual Standalone Mobile DVR Fast Forward Next File Disk backup, choose the desired backup path Setup, setups related to MDVR Google Map, display map location corresponding to footage Open document folder and choose desired document Snapshot Configuration, Language setting and disk format selection can be found here (2).
- Page 26 User Manual Standalone Mobile DVR Note：A SATA to USB converter cable can be used for easy access the storage device (HDD) on computer Video Recording quality in High / Quality normal / low Set recording frame rate per second Video Frame D1 resolution：5~10 frames Rate CIF resolution frame rate:...
- Page 27 User Manual Standalone Mobile DVR Set the size of software UI Mode appearance on computer This function can encrypt the data and prevent others from accessing. Maximum letters:15 characters Example: 123456789123456 After setting the password up, you have to input password every time for playing the files, Password modify the settings, formatting...
- Page 28 User Manual Standalone Mobile DVR Power Set extended recording period Management after engine powered off Stationary The extended recording frame Recording rate after engine powered off Frame Rate...
- Page 29 User Manual Standalone Mobile DVR (4). Backup :Start backup Press the icon to access backup menu and select the files on storage device to backup to computer for future playback requirement. Step 1. Select storage device with recorded footage. Step 2. Select desired footage for backup...
- Page 30 User Manual Standalone Mobile DVR Step 3.Select file format to backup Fomat available： ● SD Format (RAW data) SD format also contains speed, direction, GPS location and G-sensor data (recommended format) ● AVI Format Only video and audio Choose start and end time to set backup range. Step 4.
- Page 31 User Manual Standalone Mobile DVR (5). Playback Footage Playback footage：Select storage device with stored footage to playback. 1. Choose the Local Disk, Removable Storage or Backup File 2. Choose the file (6). Format :Format storage device, please refer to “Format and Restore Storage Device) for detailed information.
- Page 32 User Manual Standalone Mobile DVR (7). GPS Data Display Direction Display GPS location Direction and longitude, latitude Display traveling direction and location related information. (GPS mouse needed) (8). G-SENSOR G-SENSOR：Gravitational analysis, when G-sensor is triggered, this area displays the force variances of X, Y and Z axis. X：Related to left and right of vehicle.
- Page 33 User Manual Standalone Mobile DVR (10). Playback Volume Volume Control： Left click on + or – to change the volume level. (11). Playback Search Bar Playback Search Bar：On the search bar, hold down left click to drag and place to vehicle icon to jump to the desired time. (12).
-
Page 34: Format / Restore Device
User Manual Standalone Mobile DVR J. Format / Restore Device Format Storage Device When do I need to format storage device? Please format all new and used storage devices, especially and when the current format is different from the format MDVR required, before proceeding to installation. - Page 35 User Manual Standalone Mobile DVR (2) Format on Computer Steps for formatting on computer is as below: Step1. Remove the storage device from MDVR, then connect it to PC and launch CarBox software. Click on Format to access formatting menu. Step 2.
-
Page 36: Restore Storage Device
User Manual Standalone Mobile DVR Restore Storage Device When do I need to restore my storage device? When the storage device is to be used for other purposes, please format it before all else. ※Please make sure to look for any important files has yet to backup, and make copy to it before formatting. - Page 37 User Manual Standalone Mobile DVR Step 4. A successful notification box will pop up after format completed, click Yes to proceed. Step 5. The system will then proceed to format the storage device, please choose Quick Format then hit Start. Step 6.
- Page 38 User Manual Standalone Mobile DVR Step 7. The Format Complete notification will notify you when the formatting is complete. The storage device can now be used for other purposes.
- Page 39 User Manual Standalone Mobile DVR K. 3G Setting (1) SIM Card Setting Please switch off PIN protection code on SIM card before using on MDVR, the step as below: （Using Huawei CHT-E180 3.5G USB dongle as example） Step 1. Connect 3G SIM card with PC via 3G dongle, the system will launch Mobile Partner.
- Page 40 User Manual Standalone Mobile DVR Step 3. Type in correct PIN code, the default code is 0000 for some ISP. Please always check this with your ISP telecommunication provider. Step 4. After stopping PIN verification successfully, a notification box will pop up, please check the box to proceed.
- Page 41 User Manual Standalone Mobile DVR Step 2. Connect USB disk drive to PC and select USB drive, adjust related parameter accordingly. Setting Parameters Removable Storag Storage device location (path) UserName User name (blank by default) Password Password (blank by default) Server Address Server IP address Server Port...
- Page 42 User Manual Standalone Mobile DVR Step 4. Please connect USB disk drive to MDVR, then reboot / switch on for automatic network configuration setting. The system will reboot after 10 second. Step 5. When reboot complete, please go in to 3G Network to check if all information has been updated.
-
Page 43: Client Remote Monitroing
User Manual Standalone Mobile DVR L. 3G Client Remote Monitroing (1) Log In Page Please launch 3GClientApp.exe and log in with your account. Log in page as below, click on Log In to log in Note：Need DirectX 9.0 or above. 61.221.66.200 User Name User Name... - Page 44 User Manual Standalone Mobile DVR (2) Live Monitoring Display Interface MDVR List MDVR Tracking Signals GPS not yet located GPS located Yellow light signifies slow speed or stationary Red light signifies over speed limit Live Monitoring Screen Display Screen Settings Map/event list/device list...
- Page 45 User Manual Standalone Mobile DVR (3) Location Tracking ※G-Mouse，is requried for GPS location tracking Display MDVR traveling path, historical path of up to 1 month can be checked by selecting / searching device ID.
- Page 46 User Manual Standalone Mobile DVR (4) Setting Page Setting Page - 1 Setting live streaming preferences (real time or smooth), sanpshot, next page interval and language setting. Video Real time→ Streaming preference Streaming Smooth→ Quality preference Recording Set recording path, length, storage device. Snapshot Set snapshot path Next Page...
- Page 47 User Manual Standalone Mobile DVR Setting Page - 2 Set alarm, event and SMTP mail. Set the recording preference when alarm Alarm Setting triggered. When alarm is triggered, an email with below notification will be sent to the desired email. Mail Dispatch Option Alarm 1 Alarm 2...
- Page 48 User Manual Standalone Mobile DVR Common SMTP ServerList Setting Page - 3 For 3G, 3G triangulation and time off setting. Set speed unit, automatica video off duration, 3G Setting only communicating with online device. Set auto stop talk / broadcast during (in case of Other Setting voice con left on)
- Page 49 User Manual Standalone Mobile DVR (5) Event Log Search / Select a specific device to retrieve device information.
-
Page 50: Continuous Recording Capacity Evaluation
User Manual Standalone Mobile DVR M. Continuous Recording Capacity Evaluation The graph below charts the maximum recording time length under different resolution. Examples using 1TB and 500 GB HDD. The above graph is for reference only, the real recording length may vary according to the actual recording environment. - Page 51 For more information Please visit VACRON at http://vvr.vacron.com.tw Made in Taiwan...
