Page 1: Operation Manual

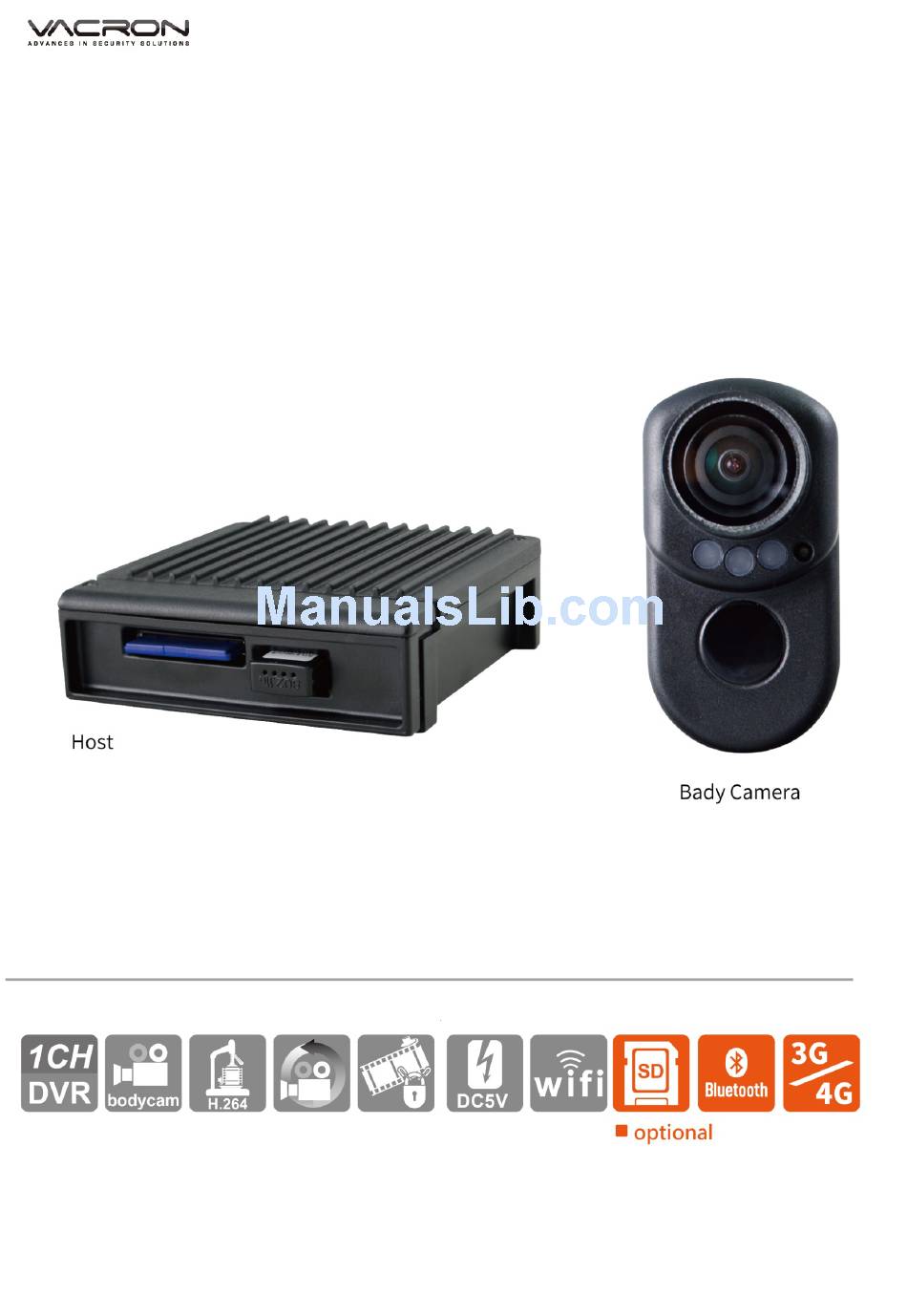

1 Channel H.264 FULL HD 1080P Cloud Wearable Mobile Video Recorder Operation Manual 2017 DEC. V1.0... -
Page 2: Table Of Contents
Operation Manual Cloud Wearable Mobile Video Recorder Table of Contents Product Accessories ......................4 Features ..........................5 Specifications ........................6 Appearance/ Dimensions ..................... 7 SD Card / WiFi wireless card installation ..............9 Cable Installation ......................11 Installation diagram ...................... 13 Recording and Stop recording ................. -
Page 3: Safety Precautions
Safety Precautions Dear Vacron user, Appreciate for you purchase Vacron products. Please contact your local distributor if you meet any question or need for any assistance. We will offer you complete and in time service via local distributor. However, we still have rights to upgrade software and hardware without any kind notice beforehand. - Page 4 Operation Manual Cloud Wearable Mobile Video Recorder Surrounding Please have the DVR under recommended temperature set it away from the sun and heating source. Please keep this equipment away from humid surrounding. Please keep this equipment away from smoke and dust environment. ...
-
Page 5: Product Accessories
If you found any thing missing, please contact local distributor. Note：The product set does not come with memory card, please purchase the memory card separately. Standard Set: VVG-MDE55 Host device, 1 meter camera cable WiFi dongle Waist bag Quick start manual Optional:... -
Page 6: Features
Operation Manual Cloud Wearable Mobile Video Recorder B. Features Personal wearable video recording system, 1 Channel high resolution 1080P, use H.264 image compress technology, which ensure image dose not distorted. Use SONY Low luminance high sensitivity camera, with 140 degrees wide- angle lens. -
Page 7: Specifications
Operation Manual Cloud Wearable Mobile Video Recorder C. Specifications VVG-MDE55 Specifications Terms Specifications Resolution NTSC 1920x1080@30fps / PAL 1920x1080 @25fps Display mode Single image Record/Play Simplex mode SD Card, recommended to use Class 10 or above Storage device (8GB above SD card support Max. 128GB), require buying separately. -
Page 8: Appearance/ Dimensions
Operation Manual Cloud Wearable Mobile Video Recorder D. Appearance/ Dimensions DVR host unit: SD Card slot WIFI Dongle slot... - Page 9 Operation Manual Cloud Wearable Mobile Video Recorder Camera Unit: mm 48mm Microphone receiver Recording Touch button WIFI...
-
Page 10: Sd Card / Wifi Wireless Card Installation
Operation Manual Cloud Wearable Mobile Video Recorder E. SD Card / WiFi wireless card installation Water-dust proof cover SD card WiFi dongle (1). Remove water-dust proof cover to install/take off the SD card or WiFi dongle. (2). For format/restore SD card please refer to other chapter. Attention Suggest using class 10, 8GB above SD card Before using the memory disk, please format the disk first by using the... - Page 11 Operation Manual Cloud Wearable Mobile Video Recorder All memory disks have limited lifespan. Please regularly watch videos on PC and check the memory disk to ensure proper functioning. Collision and vibration may cause SD card defective and result intermittent recording, please check data and backup file periodically. When you using new memory card insert host, the device will format the memory card, and beginning recording after approx.
-
Page 12: Cable Installation
Operation Manual Cloud Wearable Mobile Video Recorder F. Cable Installation DVR cables (1) Power connector (2) Camera connector Note: device power require use with Mobile power pack. - Page 13 Operation Manual Cloud Wearable Mobile Video Recorder Camera Microphone receiver WIFI (A) GPS(green light): GPS search and position. (B) WIFI(blue light): WiFi search and connection (C) REC(Red light) : Video recording and error (D) Microphone receiver: Built-in microphone receiver...
-
Page 14: Installation Diagram
Operation Manual Cloud Wearable Mobile Video Recorder G. Installation diagram Product Installation diagram (For reference only) Installation Notes (a) During installation, please put the host and mobile power pack inside the waist pack. The camera is equipped with multi-turn clamp, please install it in proper position as user’s requirement. - Page 15 Operation Manual Cloud Wearable Mobile Video Recorder Attention (a) It is recommended put the device inside the waterproof waist pack, because the host dose not waterproof. Please ensure the waist pack cover is close after installation (b) During the installation, please check the camera waterproof connector and power connector condition, prevent video error that caused by poor contact.
-
Page 16: Recording And Stop Recording
Operation Manual Cloud Wearable Mobile Video Recorder H. Recording and Stop recording 1. Boot / Recording 1-1 OBD Device boots after power on, and wait approx. 15~20 sec. system starts to recording when REC red light is flashing. Microphone receiver Record WIFI Light signal... - Page 17 Operation Manual Cloud Wearable Mobile Video Recorder the device will reboot and record video as normal. WIFI(Blue)： (a) Blue light off: system does not detect, does not install USB WIFI Dongle, or the WiFi Dongle was damaged. (b) Blue light flashing: System detected USB WIFI Dongle and waiting for connect with WiFi Dongle.
-
Page 18: Pc Player
Operation Manual Cloud Wearable Mobile Video Recorder PC Player Run the player software by press , player shows screen as following: ◎NOTE: The software requires Direct X version 9.0 or above. 1. Viewer interface Function control interface Google Map / File list Car Speed Volume Play speed... - Page 19 Operation Manual Cloud Wearable Mobile Video Recorder 2. Function control interface Close Minimal Select and playback file Calendar Backup Screen shot Setting Tool box, for format SD card, language setting G-sensor Compass 3. Play & Setting Icon Instruction Play previous file stop Play previous frame Play...
-
Page 20: Data Backup
Operation Manual Cloud Wearable Mobile Video Recorder J. Data Backup Save data from SD card to PC or other device. Use PC player and click to enter backup interface: Step1. Choose SD card source: Step2. Choose backup files Step3. Choose backup data format... -
Page 21: Data Format
Operation Manual Cloud Wearable Mobile Video Recorder Data format： 1. SD card original format (RAW) RAW file *.sd 2. AVI Format (*.avi) Cam1 and Cam 2, *.avi file Note: backup to memory card in original format, the format will be containing GPS latitude and longitude, speed, recorded data such as G-SENSOR, if the backup date in *.AVI Step4. -
Page 22: Memory Card
Operation Manual Cloud Wearable Mobile Video Recorder K. Memory Card Please insert SD card into card reader and launch player on your computer to do card formatting. Click on player to do setting: Choose disk Video Quality Select video recording quality as：High, Normal, Low. - Page 23 Operation Manual Cloud Wearable Mobile Video Recorder Greenwich Mean Time, adjust it with desired Time Setting Copy to SD Copy files from Player to SD card storage card player Use X-Y-Z axis vibration detection to determine G sensor the collision and forced recording. Audio Set audio record: OFF / ON Recording...
-
Page 24: Google Map Drive Track Playback(Optional)
Operation Manual Cloud Wearable Mobile Video Recorder L. Google Map drive track playback(optional) If there is GPS signal files, the device will be able to record route track and playback the route track during video file playback. Tracking path... -
Page 25: Playback Files
Operation Manual Cloud Wearable Mobile Video Recorder M. Playback files Playback on PC player Click to enter playback mode (1). Select the path of the memory disk or a backup file on the hard disk. (2). Double click the desired footage to play the file. -
Page 26: Snapshot Tool
Operation Manual Cloud Wearable Mobile Video Recorder N. Snapshot tool User can take a snapshot of the current frame by pressing to save screenshot. Snapped image is default saved to C: /Black Box, user can enter to set image path. Data format is *.bmp... -
Page 27: Format / Restore Sd Card
Operation Manual Cloud Wearable Mobile Video Recorder O. Format / Restore SD card Q1. When do user need to format SD card？ When user uses brand new SD card, please format it before use. ★Note: This recording system cannot delete some specific video file, backup video files that you need before format. - Page 28 Operation Manual Cloud Wearable Mobile Video Recorder Q3. How to format/restore SD cards? (1). Put the SD card into a card reader, and then plug the card reader into your computer USB slot. (2). Play software , click to enter formatting tool. (3).
-
Page 29: Wifi Connection
WLAN connection, type in「DIRECT-SSID-XXXXXX」 as user ID, password as 「12345678」 . Open “Vacron player”, watch real time video record by select real time video Select「Playback」 : Capable play all video files that storage in SD card. Select「Download Video files」 , capable download video by date, time and channel for 1 minute. - Page 30 Operation Manual Cloud Wearable Mobile Video Recorder Playback Playback Today: choose channel 1 or channel 2, and then press Search button, it will show all video files that record in today. Select and playback any video record as your desire. Custom : Choose channel1 or channel2,at meanwhile, setting date and time period, press search, it will showing...
- Page 31 Operation Manual Cloud Wearable Mobile Video Recorder Save list Save list All records: press and playback all downloaded records, which include video clip of real time video, playback video, download image. Real time: video fragment of real time video record, the file name ending with “L”.
-
Page 32: (C)、Ios
WLAN connection, type in「DIRECT-SSID-XXXXXX」 as user ID, password as 「12345678」 . Open “Vacron player”, watch real time video record by select real time video Select「Playback」 : Capable play all video files that storage in SD card. Select「Download Video files」 , capable download video by date, time and channel for 1 minute. - Page 33 Operation Manual Cloud Wearable Mobile Video Recorder Playback Playback Today: choose channel 1 or channel 2, and then press Search button, it will show all video files that record in today. Select and playback any video record as your desire. Custom : Choose channel1 or channel2,at meanwhile, setting date and time period, press search, it will showing...
- Page 34 Operation Manual Cloud Wearable Mobile Video Recorder Save list Save list All records: press and playback all downloaded records, which include video clip of real time video, playback video, download image. Real time: video fragment of real time video record, the file name ending with “L”.
- Page 35 Operation Manual Cloud Wearable Mobile Video Recorder Attention 1. Live image may delay cause by wireless signal connection error. 2. Remote control only use for records that storage in device, record cannot be search when the SD card had been overwritten. 3.
-
Page 36: Client Remote Surveillance(Optional)
Operation Manual Cloud Wearable Mobile Video Recorder 3G Client remote surveillance(optional) (1) Login Please execute 3GClientApp.exe and log in og in page shown as below, key in the user account and password to log in the system. Note: The version of executed software must be installed DirectX 9.0 above. User Account User Account Password... - Page 37 Operation Manual Cloud Wearable Mobile Video Recorder (2) Live View Display Operation Interface Equipment lists Device Positioning Light Description devices that are not positioning by GPS positioning is ready. Yellow light is idling status. Red light is over speed status Live view Display Windows Division/Function Bottom Events Information/Device List/ Map...
- Page 38 Operation Manual Cloud Wearable Mobile Video Recorder (3) Track path ※The Device need to use G-mouse for GPS positioning Routes of Vehicle can be known by tracks and shown on the device.
- Page 39 Operation Manual Cloud Wearable Mobile Video Recorder (4) Setting page Setting page1 Capable setting the video playback fluency, video camera-related settings, auto-flip seconds and language-related settings. Real time→ Video smooth priority. Video Playing Smooth→ Image smooth priority. Setting Recording Recording storage route, Recording time, Setting HDD(SD/CIF) storage division related setting.
- Page 40 Operation Manual Cloud Wearable Mobile Video Recorder Setting page2 Capable setting event recording and mail sending function. Alarm event record Set video recording channel and duration after setting device trigger alarm Send mail to mail box when trigger alarm Mail sending options Alarm 1 Alarm 2...
- Page 41 Operation Manual Cloud Wearable Mobile Video Recorder Video Loss Trigger G sensor Offline Common SMTP server list...
- Page 42 Operation Manual Cloud Wearable Mobile Video Recorder Setting page 3 For setting 3G function Capable setting speed unit, disconnect image 3G Setting automatically, read device. Set to close the communication time Other setting...
- Page 43 Operation Manual Cloud Wearable Mobile Video Recorder (5) Statement table For search drive data...
