Vacron VVH-MDE52 Quick Start Manual

4 ch dvr / all in one camera vehicle surveillance camcorder

Advertisement

Quick Links

4 CH DVR / All in one Camera
Vehicle Surveillance Camcorder
VVH-MDE52 (Vehicle DVR)
4CH
DVR
720P
30/25 FPS
optional
Extending
AVM-1276 (Vehicle Cam)
360°
720P
DC 12V
View 360°
4 LEDs
LENS
1 M
Accessories
Standard Set
(1) Device
(2) Camera
(3) Power cord (black/blue/red)
(4) Alarm cable
(5) IR extension cord
(6) Remote controller
Optional Accessories
(1) USB interface SD card reader.
(2) 4/8/16/32G Class10 above SD card。
Safety Precautions
▪ Installation Precautions
1. Make sure power connections clear enough to you before installation.
2. System installation is required professional installers and ventilation space.
3. Please use recommended and genuine storage device.
4. Please contact local dealers in case of service requirement.
▪ In Use Precautions
1. Please keep the inner components off any solid or liquid.
2. Please do not disassemble the equipment for warranty issue. Please contact local
dealers or the manufacturer for prompt service.
3. Please remove the battery if remote control keeps idle for quite a long while.
4. The equipment best connects with ground wire in case of outdoor cameras connection
or alarm I/O connection. This is to keep the DVR away from static electricity damage.
▪ Surrounding
1. Please have the DVR under recommended temperature away from the sun and
heating source.
2. Please keep this equipment away from humid surrounding.
3. Please keep this equipment away from smoke and dust.
4. Please do not drop the equipment.
5. Please keep this equipment in ventilation space.
6. Please supply rated voltage and Amp. To the equipment.
7. Please keep flammable objects away from the equipment.
Vehicle Camera Appearance
6
5
2
1
4
3
Vehicle Camera Installation Diagram
1. Install camera on windshield by
adhesive bracket
3. To adjust a best view angle.
4. To connect power
cable to Mini USB hole.
Light Signal
● Power Light (GREEN)
No light = No power supply.
Light on = Stable power supply.
Recording Light (RED)
No light = No recording.
Light Blinked = Recording.
Light Blinked Fast = Force recording.
● WiFi Light(Orange)(optional)
No light = Not connecting with WiFi
Light Blinked = WiFi connecting
(NOTE: The device cannot recording during video playback on itself .)
(7) Microphone
(8) Velcro strap
(9) Double-side3M tape
(10) Bracket mount
(11) CD
(12) Quick start guide
(3) GPS Module
(4) USB WIFI
(5) External connect Vehicle Camera
H12AE52004
1. Lens 1 (Front)
2. Lens 2 (Right)
3. Lens 3 (Inner)
4. Lens 4 (Left)
5. Cable collect slot
6. 3M Double-side tape
2. Pick up a best location for
installation.
5. To connect the other end
with the "Video In" slot in DVR.
● GPS Light (BLUE)(optional)
No light = Not position yet.
Light Blinked = Position successfully
Mobile DVR Dimension
1
2
3
4
(1). Power Light
(4). GPS Light
10
7
8
9
(7). GPS Connector: For connect with G-Mouse to use GPS function.
The GPS function includes record vehicle location, speed, longitude and latitude.
(8). EXT: Video output jack, connect with parking assist camera
(9). MIC: Microphone jack, connect and record audio with microphone.
(10). Composite cables :including video output, audio output and USB connector.
(11). Alarm Input: Alarm input connector, use by parking assist camera.
(12). Camera Connector: Connect with dedicated vehicle camera, which able to record
360°surrounding view.
(13). IR Extension Cable Connector: Once upon connecting with the extension cable,
the IR receiver will only receive signal from extension cable, cannot control by
remote controller.
(14). Power Connector: To cooperate with power management function
(in OSD), it can provide delay shut down function.
Power Cable (Black/Blue/Red)
1. Positive Port (Red cable): DC8~32V power input.
2. ACC Control (Blue cable): Can setup delay shut
down recording after turn off engine.
3. Negative Port(Black cable): GND
Alarm Cable(Black/Yellow)
1. Positive 12V ALARM Input (Yellow cable): Connect
with Positive port on parking assist camera.
2. Negative GND(Black cable): GND
Viewer
Backup
Configuration
Playback
Capture
CH4
(Left view)
G-Sensor
Footage
playback
speed
CH3(Vehicle inside
Volume
Control panel
MAP
「Direction and Latitude」、「Speed」、「Google Map」by GPS function, GPS is optional.
Real Time Monitoring Mode
1
2
3
4
0 km/h
5
6
(2). Recording Light
(3). Wifi Light
(5). IR receiver
(6). SD Card Slot
11
12
13
14
Format
CH1(Front view)
Footage playback speed
Direction and Latitude
(1) Monitor Screen Operation Instruction:
• For display 1~4 channel separately, use
remote controller switch channel.
• To show quad display, press the quad
display button.
• To open menu, press Menu button.
• To playback, press Playback button.
(2) Icon Description:
: Recording
: GPS sensor position successfully.
: Microphone ON
: Activate event recording
: Alarm
CH2
(Right view)
Speed

Advertisement

loading

Summary of Contents for Vacron VVH-MDE52

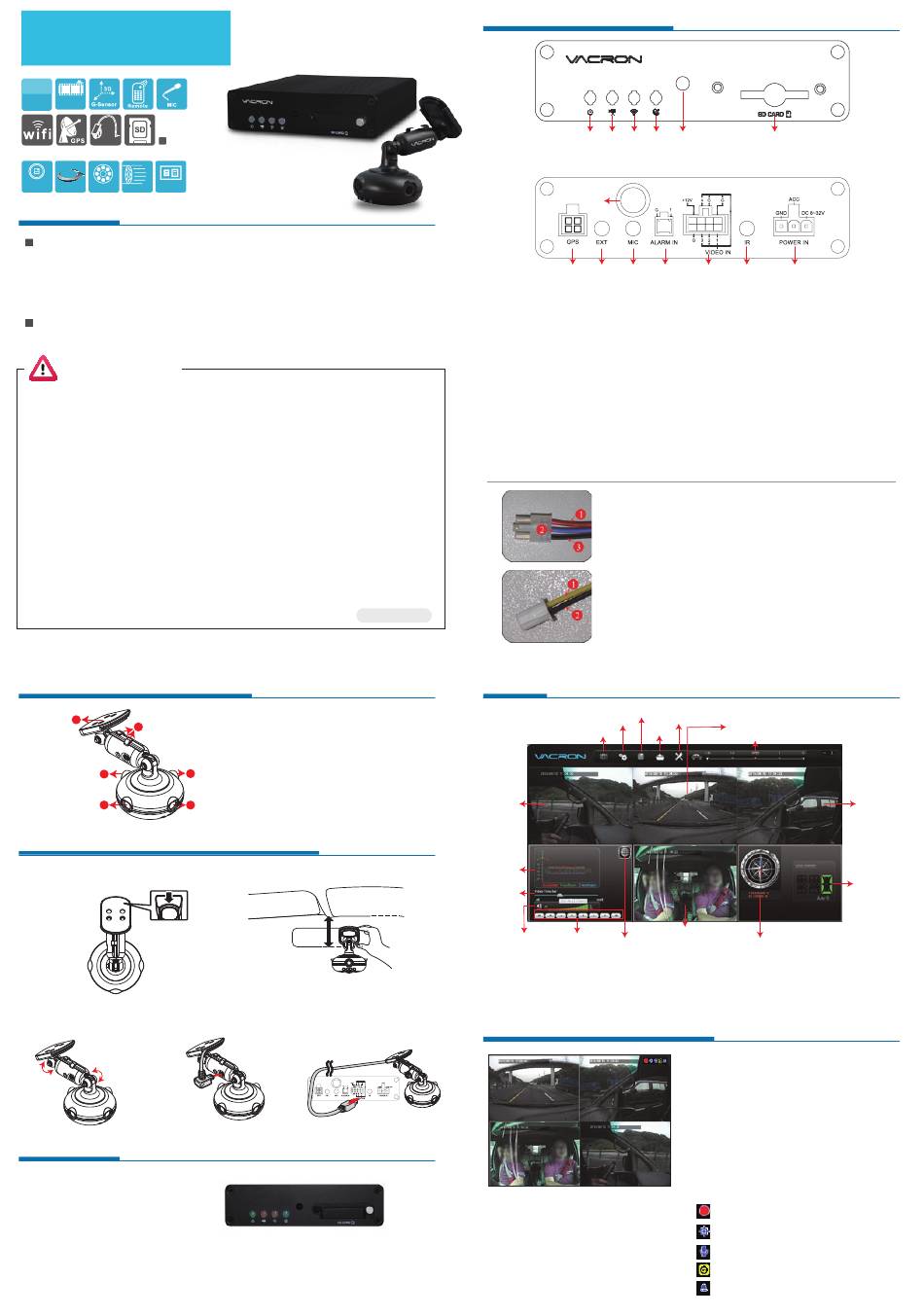

  • Page 1 Mobile DVR Dimension 4 CH DVR / All in one Camera Vehicle Surveillance Camcorder VVH-MDE52 (Vehicle DVR) 720P 30/25 FPS optional Extending (1). Power Light (2). Recording Light (3). Wifi Light AVM-1276 (Vehicle Cam) (4). GPS Light (5). IR receiver (6).
