Vacron VVH-MDE304 Manual

4ch Vehicle DVR System
W i F i / G P S / 3 G ( o p t i o n a l )
4
CH
GUI
MIC
Note 1: Vehicle Camera optional, 720P and D1 camera can not be used simultaneously
Note 2: SD Card is not included; suggest to apply Class 10 or above., 8-128G acceptable
Note 3: No further notice for any modifications afterwards.
Accessories
This product contains accessories as below:
※ Storage devices such as hard drives, memory cards are not supplied, please purchase.
Standard
Main Device / Power Cable / ALARM Cable / IR Extension Cord
IR Remote Control / Software Disc / User Manual
Optional
3G Module and Antenna / G-Mouse / SD Card / Camera / Microphone pad / Camera
extension cable
Safety Precautions
Take and review some testing video initially to make sure the images were recorded correctly. Please note
that manufacturer, its subsidiaries and affiliates, and its distributors are not liable for consequential
damages arising from any malfunction of main device accessory, including memory device that results in
the failure of an image to be recorded or to be recorded in a way that is machine readable.
Before using the product, please ensure that you read the safety precautions described below. Always
ensure that the product is used correctly.
• Please keep device away from children.
• Use only recommended power sources.
• Do not attempt to disassemble, alter or apply heat to the product.
• Avoid dropping or subjecting the product to severe impacts.
• To avoid the risk of injury, do not touch the interior of the product if it has been dropped or otherwise
damaged.
• Stop using the product immediately if it emits smoke, a strange smell, or otherwise behaves abnormally.
• Do not use organic solvents such as alcohol, benzene, or thinner to clean the product.
• Do not let the product come into contact with water (e.g. sea water) or other liquids.
• Do not allow liquids or foreign objects to enter the VVR.
• Do not place the VVR near or in direct flame.
• Do not handle the power cord with wet hands.
• Do not use the equipment in a manner that exceeds the rated capacity of the electrical outlet or wiring
accessories. Do not use if the power cord or plug are damaged, or not fully plugged into the outlet.
• Do not allow direct or metal objects (such as pins or keys) to contact the terminals or plug.
• Avoid using, placing or storing the product in the humid or dusty areas.
Before using 3G products, please ensure that you read the safety notifications
described below.
• Company and user shall not modify certified low power radio frequency device the frequency, increase
the power and change the characteristics and functions without permit.
• Use low power radio frequency device shall not affect flight safety and interfere with legal communications;
when there is interference happened should be immediately suspended, and improve without interfering
may continue to use.
• Legal communication means operation of radio communication in accordance with the provisions of the
Telecommunications Act Low-power radio frequency device must endure the interference of legal
communications, industrial, scientific and medical radiation wave equipment.
Power On / Power Off
(1) Power On
Insert SD Card into SD slot and closet SD slot lock, then turn on the power and it
will take approximately 30 seconds. When lights start flashing as the recording is
in progress.
(2) Power Off
Turn off the power; please wait for 5 seconds until super capacitor without
electric. Then take the SD Card out out and playback the recording files in
computer.
Light Indicator
● Recording/Power Light(Red Light)：
Light Off- non-recording. Light Flashing- recording.
Rapidly Flashing-Event/Trigger recording.
● GPS Light(Blue Light)：
Light Off-GPS is not ready. Light On- GPS is locating position.
● Network Light (Orange Light)：
Light Off-network disconnected. Light On-network connected.
Two SD Card Mechanism
While both of the SD Cards are blank, the videos will be recorded in SD1;
When both of the SD Cards have videos; new videos will be recorded in the
SD Card with latest videos
IR Remote controller
1CH Screen
Display
Mute
Arrow
Playback/
Play
Pause
DC 8~32V
OPTIONAL
H12AE30404
Before the first recording,

please set the video format.
Force Recording Button
4CH Screen Display
Remote Control Precautions
Menu
Confirm
?
Remote control inspection
ˇCheck the battery's positive and
Backward negative polarity.
ˇCheck the battery if run out.
ˇCheck the sensor of remote control
Stop/Left
if be obscured.
ˇCheck if there are fluorescent
lamps are used nearby.

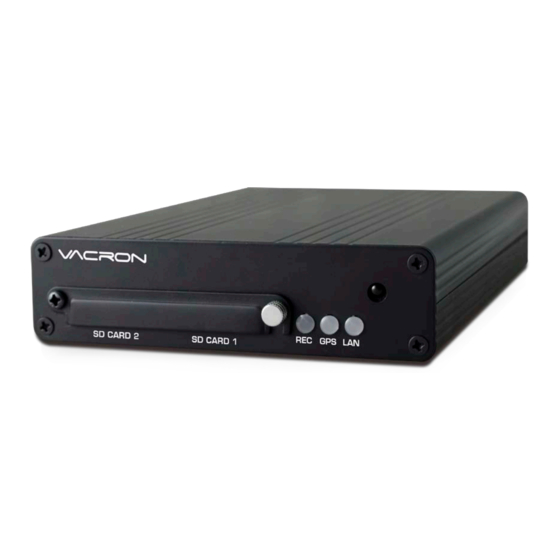

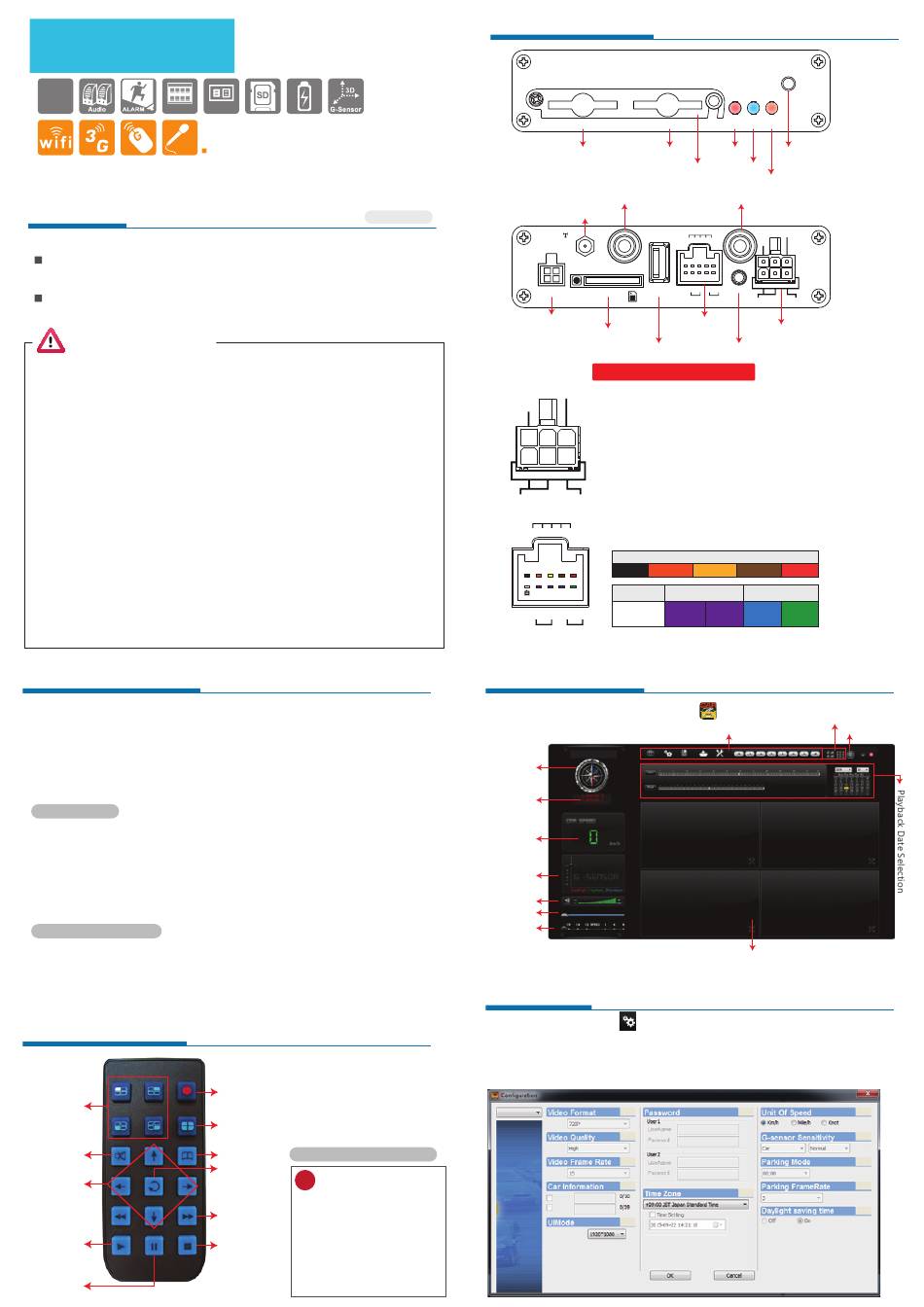

Product Appearance
SD CARD 2
SD Slot 2 SD Slot 1
SD Slot Cover
Camera 2-4CH
3G Antenna
GPS SIM CARD
GPS Connector
SIM Slot
WIFI USB Slot
※ GPS / 3G / WiFi are optional
DC
◆ Power Connector
ACC 8~32V
GND
1. GNDP (-)
2. ACC
1 2 3
3. DC8~32V IN (+)
4. Signal and DC grounding
4 5 6
5. Signal and DC grounding
6. DC+12V Out
GND +12V OUT
ALARM IN
G 4 3 2 1
◆ Alarm/Audio Connector
G
黑 橘 黃 棕 紅
AUDIO
紫 紫 藍 綠
AUDIO
IN 2 1 6 5
AUDIO
ALARM ALARM
OUT IN
CARBOX Player on PC
Execute player software CarBox2.exe
GPS Direction
GPS Latitude &
Longitude
Speed
G-Sensor
Volume
Play Bar
Play Speed
 GPS Direction / GPS Latitude & Longitude / Speed for GPS models.
Configuration
Setup the SD Card Setting
Before execute this function, please insert the SD Card into your computer.
When finish all setting and click 『Save』, all the setting will save to the SD
CARD device. When you insert the SD CARD device into your DVR, the DVR
will read the setting and follow the setting to start recording.
REC GPS LAN
SD CARD 1
IR Receiver
REC
GPS
Network
Camera 1CH / AV out
ALARM IN DC
ACC 8~32V
G 4 3 2 1
GND
WI-FI IN 2 1 6 5
IR
USB
AUDIO
ALARM ALARM
GND +12V OUT
OUT IN
Alarm/Audio
Power Connector
IR Ext
ALARM IN
4 3 2 1
ALARM OUT ALARM IN
2 6 5
1
(spare) (spare) (spare)
*Support windows operating system
Control Interface
1~4 CH
4ch / 9ch
Google Map
