TECHNICAL ADVICE
1. Check there is no earth braid touching the centre
conductor on the coaxial cable.
2.
s I there more than one outlet? Check the
splitter box, the power supply must be connected
to the coaxial outlet that feeds the AC/DC leg of
the splitter box to pass power to the head unit.
(Check if LED is on).
3.
s I there now too much signal causing an
overload effect to the VCR? Try turning down
the gain controls on the masthead unit, or select a
smaller dB rating amplifier.
4.
f I there is a white line moving through the
picture? Try a PSK06 14 V DC power supply.
Drawing No: 40565-7
Part No. 310113
4

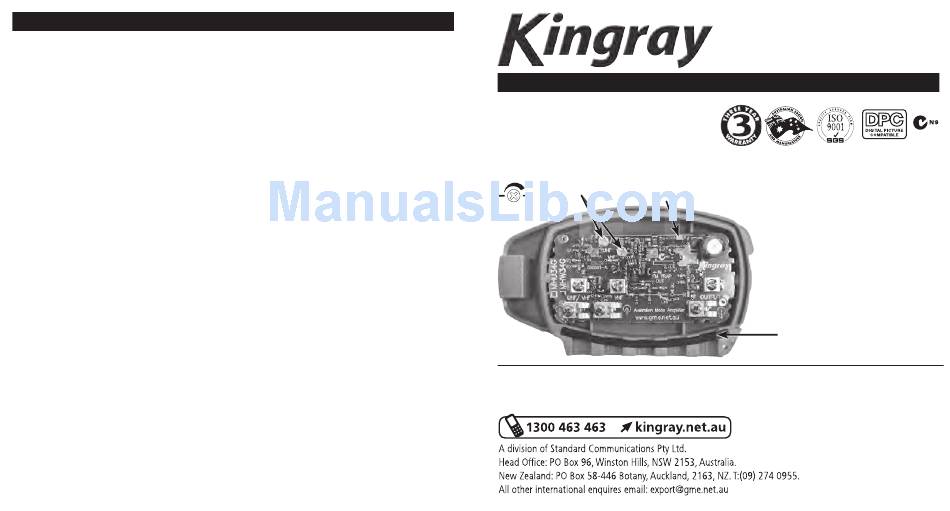

INSTALLATION MANUAL
MODEL MHW34G/GDP MHU34G
Masthead Amplifiers
Thank you for selecting an Australian designed and built
masthead amplifier.
For maximum
VHF/UHF gain
Power Indicating LED
turn control
clockwise.
Optimised for both Digital and
Analogue TV Signal Amplification
• A masthead amplifier is designed
to amplify low signal levels for both
analogue and digital applications.
• The amplifier gain should be selected
to suit each individual environment.
• Mount with polypropylene securing
strap on to mast or mount to a wall
with cable connectors at the bottom.
• Best Mounting location for masthead
unit is on mast 30 cm to 100 cm
below antenna.
• Ensure weatherproof strips remain
in place.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MHW34G and is the answer not in the manual?

Questions and answers

Noel Coutts
February 16, 2025

iF THE GAIN IS TURNED RIGHT UP TO HIGH AND THE PICTURE IS STILL PICTULATING WILL A HIGHER GAIN AMPLIFIER IMPROVE THE INCOMING SIGNAL

Summary of Contents for Kingray MHW34G

  • Page 1 I there is a white line moving through the to the coaxial outlet that feeds the AC/DC leg of MODEL MHW34G/GDP MHU34G picture? Try a PSK06 14 V DC power supply. the splitter box to pass power to the head unit.
  • Page 2 Controls UHF10dB simplyremovingtheshortinglinkandplacingiton thespecifiedterminals.TheFMtrapmustbeintheout MaxGain VHF:22-28dB(WModelsONLY) Supply PSK08/F17.5VACand positiontoviewtelevisionchannel3. UHF:34dB Voltage PSK06/F14VDC@80mA (PSK02mayalsobeused). PagerFiltersettoattenuatebetween148-158MHz. noise VHF<3dB (PagerFiltermayberemovedifyouneed Figure MhW34G/GdPonly UHF<2.5dB toamplify5a,simplyremove2coilsas indicatedonthePCbabovetheVhFinput.) ausPagerFilter -25dB@148MHz output 105dB nZPagerFilter -25dB@158MHz Figure DIN45004B@(-60dBIMR) FM  Filter -25dB@88-108MHz INstallatIoN PoWerING INlINe oPtIoNs allthesemodelsaredesignedforcombinedorseparateantennainputs. Powerthroughoption:MhuModelsonly.
