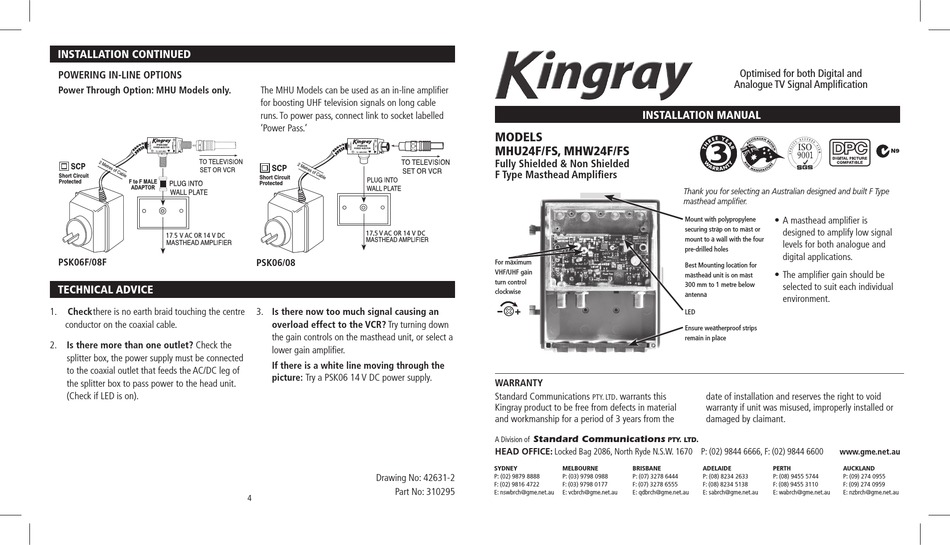

Kingray MHU24F/FS Installation Manual

INSTALLATION CONTINUED
POWERING IN-LINE OPTIONS
Power Through Option: MHU Models only.
PSK06F/08F
TECHNICAL ADVICE
check there is no earth braid touching the centre
1.
conductor on the coaxial cable.
2. Is there more than one outlet? Check the
splitter box, the power supply must be connected
to the coaxial outlet that feeds the AC/DC leg of
the splitter box to pass power to the head unit.
(Check if LED is on).
The MHU Models can be used as an in-line amplifier
for boosting UHF television signals on long cable
runs. To power pass, connect link to socket labelled
'Power Pass.'
�
TO AMPLIFIE R
PSK06/08
3. Is there now too much signal causing an
overload effect to the VcR? Try turning down
the gain controls on the masthead unit, or select a
lower gain amplifier.
If there is a white line moving through the
picture: Try a PSK06 14 V DC power supply.
Drawing No: 42631-2
Part No: 310295
4
INSTALLATION MANUAL
MODELS
MHU24F/FS, MHW24F/FS
Fully Shielded & Non Shielded
F Type Masthead Amplifiers
For maximum
VHF/UHF gain
turn control
clockwise
WARRANTy
Standard Communications . warrants this
PTY. LTD
Kingray product to be free from defects in material
and workmanship for a period of 3 years from the
Standard Communications
A Division of
PTY. LTD.
Head Office: Locked Bag 2086, North Ryde N.S.W. 1670 P: (02) 9844 6666, F: (02) 9844 6600
SydNEy MELbOURNE bRISbANE
P: (02) 9879 8888 P: (03) 9798 0988 P: (07) 3278 6444
F: (02) 9816 4722 F: (03) 9798 0177 F: (07) 3278 6555
E: nswbrch@gme.net.au E: vcbrch@gme.net.au E: qdbrch@gme.net.au
Optimised for both Digital and
Analogue TV Signal Amplification
Thank you for selecting an Australian designed and built F Type
masthead amplifier.
• A masthead amplifier is
Mount with polypropylene
securing strap on to mast or
designed to amplify low signal
mount to a wall with the four
levels for both analogue and
pre-drilled holes
digital applications.
Best Mounting location for
• The amplifier gain should be
masthead unit is on mast
300 mm to 1 metre below
selected to suit each individual
antenna
environment.
LED
Ensure weatherproof strips
remain in place
date of installation and reserves the right to void
warranty if unit was misused, improperly installed or
damaged by claimant.
