Kingray KDA20 Installation Manual

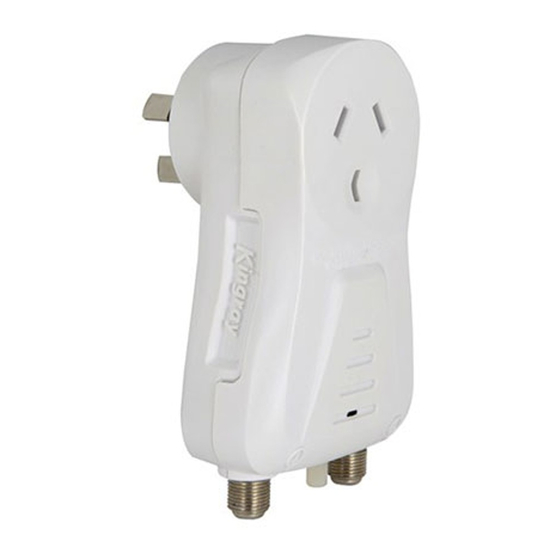

1 in 1 out tv signal amplifier

MODEL KDA20

OUT TV SIGNAL AMPLIFIER

Thank you for selecting an Australian designed amplifier.

The KDA20 is a low noise signal amplifier designed to suit digital installations.

•

The unit is powered directly from the 240 volt mains power.

•

A 20dB maximum gain with 10dB gain control ensures optimum performance.

•

The LED power indicator allows the user to easily confirm the unit is operational.

•

The frequency range is 44 ~860 MHz.

•

The maximum output level is 100dB.

Specialists in Digital TV Distribution Solutions

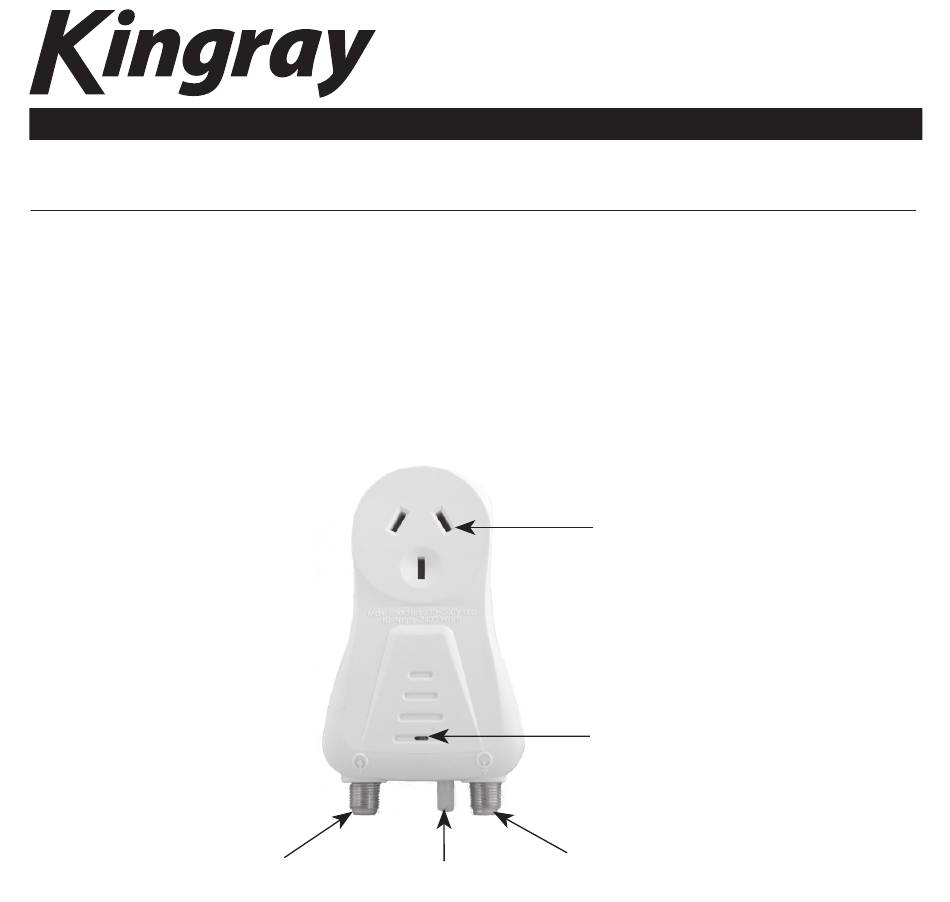

Input

Gain control

240V AC

extension

socket

LED power

indicator

Output

Table of Contents

Need help?

Do you have a question about the KDA20 and is the answer not in the manual?

Page 1 MODEL KDA20 OUT TV SIGNAL AMPLIFIER Thank you for selecting an Australian designed amplifier. The KDA20 is a low noise signal amplifier designed to suit digital installations. • The unit is powered directly from the 240 volt mains power. •...
Page 2 INSTALLATION Connect the lead from the antenna to the input of the amplifier and connect the television to the output of the amplifier. Connect the amplifier to the 240 volt mains and ensure the LED is lit. Adjust the gain control for optimum performance. Note: Two F to PAL adaptors have been included to ensure easy installation in the case PAL connections are being used.
Page 3 GME CONTRACT WARRANTY AGAINST DEFECTS This warranty against defects is given by GME Pty Ltd ACN 000 (i) the replacement of the goods or the supply of equivalent 346 814 (We, us, our or GME). Our contact details are set out goods;...
Page 4 3.1 This warranty will not apply in relation to: 4.1 We provide the following warranty on GME and Kingray products. No repair or replacement during the (a) goods modified or altered in any way; warranty period will renew or extend the warranty (b) defects and damage caused by use with non GME period past the period from original date of purchase.
