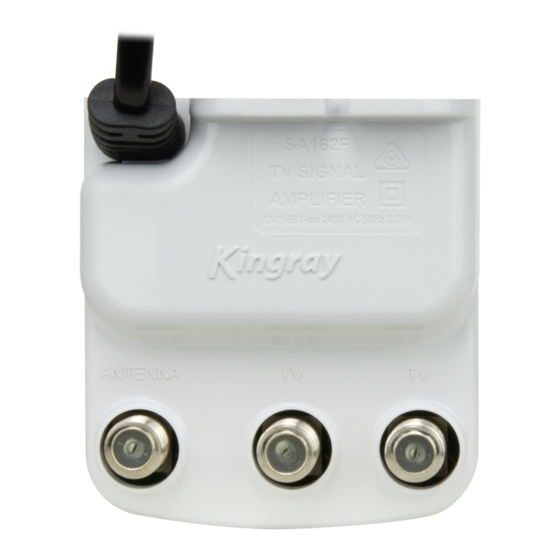

SA162F & SA164F
2 WAY & 4 WAY SPLITTER AMPLIFIER
The SA162F & SA164F is a low noise splitter amplifier designed to distribute FM radio & digital TV signals.
•
Both models are powered directly from the 240 volt mains power.
•
A 16dB maximum gain for both models. The SA164F also has 8dB gain control on VHF.
•
The LED power indicator allows the user to easily confirm the unit is operational.
Mount the splitter amplifier in a
weatherproof location as close
to the antenna as possible.
Specialists in Digital TV Distribution Solutions
Installation MANUAL
Advertisement
Table of Contents
Related Manuals for Kingray SA162F
Summary of Contents for Kingray SA162F
- Page 1 SA162F & SA164F 2 WAY & 4 WAY SPLITTER AMPLIFIER The SA162F & SA164F is a low noise splitter amplifier designed to distribute FM radio & digital TV signals. • Both models are powered directly from the 240 volt mains power.
- Page 2 INSTALLATION Connect the lead from the antenna to the input of the amplifier and connect the television to one of the outputs of the amplifier. Connect the amplifier to the 240 volt mains and ensure the LED is lit. Adjust the gain control for optimum performance. (SA164F model only) Note: F Male to Pal Female adaptors have been included to ensure easy installation in the case PAL connections are being used.
- Page 3 GME CONTRACT WARRANTY AGAINST DEFECTS This warranty against defects is given by GME Pty Ltd ACN 000 (i) the replacement of the goods or the supply of equivalent 346 814 (We, us, our or GME). Our contact details are set out goods;...
- Page 4 3.1 This warranty will not apply in relation to: 4.1 We provide the following warranty on GME and Kingray products. No repair or replacement during the (a) goods modified or altered in any way; warranty period will renew or extend the warranty (b) defects and damage caused by use with non GME period past the period from original date of purchase.
