Kingray MHV34 Installation Manual

TECHNICAL ADVICE
1. Check there is no earth braid touching the centre
conductor on the coaxial cable.
2. I s there more than one outlet? Check the
splitter box, the power supply must be connected to
the coaxial outlet that feeds the AC/DC leg of the
splitter box to pass power to the head unit. (Check
if LED is on).
All manuals and user guides at all-guides.com
3. I s there now too much signal causing an
overload effect to the VCR? Try turning down
the gain controls on the masthead unit, or select a
smaller dB rating amplifier.
4. I f there is a white line moving through the
picture: Try a PSK06 14 V DC power supply.
Drawing No: 30673-6
Part No. 310077
4
INSTALLATION MANUAL

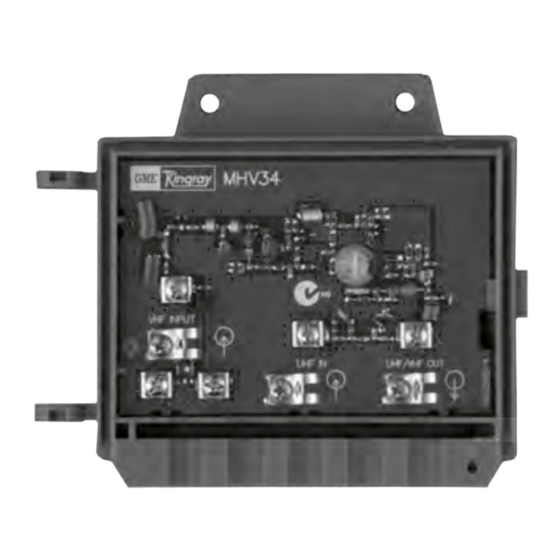

MODEL MHV34
Masthead Amplifier
Thank you for selecting an Australian designed and built
masthead amplifier.
Optimised for both Digital and
Analogue TV Signal Amplification
• A masthead amplifier is designed
to amplify low signal levels for both
analogue and digital applications.
• The amplifier gain should be selected
to suit each individual environment.
• Mount with polypropylene securing
strap on to mast or mount to a wall
with cable connectors at the bottom.
• Best mounting location for masthead
unit is on mast 30 cm to 100 cm
below antenna.
• Ensure weatherproof strips remain
in place.
