Specialists in Digital TV Distribution Solutions
INSTALLATION MANUAL

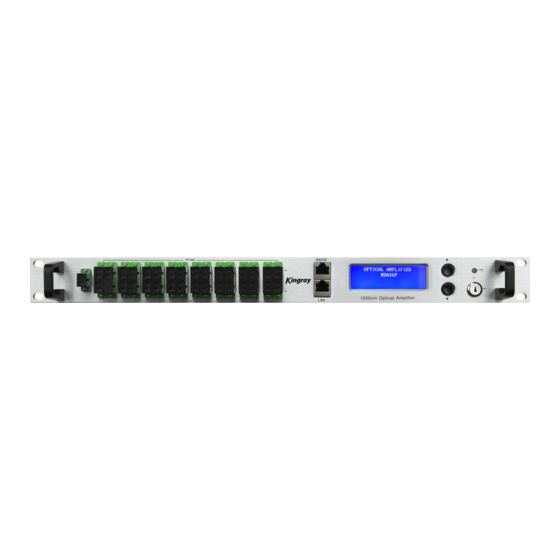

1550nm OPTICAL AMPLIFIER
Amplifier: KOA X Series
PRODUCT DESCRIPTION
KOA X Series is a low noise, high performance, fibre to the premises (FTTP) high power, multi-ports optical amplifier with
a gain spectrum bandwidth within 1540~1563nm range. The output port for the optical amplifier has a built-in Coarse
Wavelength Division Multiplexer to enable multiplexing with corresponding input ports connecting to a carrier OLT
PON port should this be required. Each 1550nm (CATV)'s output optical port can optically multiplex with corresponding
1270/1310/1490/1577nm carrier OLT PON input data stream to reduce the number of components and improve the reli-
ability of the system.
The optical amplifiers have a very low noise figure and the units adopt twin-stage amplification. The pre-amplifier uses
low noise EDFA, with its output feeding into the high-power Erbium Ytterbium Doped Fibre Amplifier (EYDFA). The noise
figure of optical amplifiers are ≤5.5dB, with input optical power Pin=0dBm.
The optical amplifiers uses a high-quality Pump Laser, Auto Output Power stability Control (APC), Automatic Current
Control (ACC), and Auto Temperature Control (ATC), combined with excellent ventilation and heat-dissipation from the
unit to ensure long life and achieve a highly reliable pump laser performance.
The LCD at the front panel provides a means of quickly checking the key parameters for the equipment and any warning
alarms.
The pump laser will switch off automatically if optical power is disconnected, which offers protection for the pump laser.
The optical amplifier supports dual power supply, 1+1 backup and is powered by AC power.
The optical amplifier uses a 19" 1RU chassis, for the 4, 8 and 16 port versions. The 32 port model is in a 19" 2RU chassis.
The equipment is managed via the SNMP network management port which is a RJ45 interface.
PRODUCT FEATURES
•
Built-in low noise pre-amplifier
•
1540~1563nm operating bandwidth for optical amplifier
•
Optional optical output power range of 200~2500mW (23~34dBm)
•
4~32 uplink optical ports, for OLT
•
4~32 1550nm output optical ports, multiply 1270/1310/1490/1577nm data stream
•
Each output optical port includes built-in high performance CWDM, single fibre, to save optical fibre resources
•
Compatible with any FTTx PON technology: EPON, GPON, XG(S)-PON
•
Carrier level reliability with network management
•
SNMP Management interface
•
Efficient space, simple and reliable in construction/maintenance
•
Dual power supply, 1+1 backup
Installation Manual: KOA X Series • 1
Advertisement
Table of Contents
Related Manuals for Kingray KOA Series
Summary of Contents for Kingray KOA Series
- Page 1 Specialists in Digital TV Distribution Solutions INSTALLATION MANUAL 1550nm OPTICAL AMPLIFIER Amplifier: KOA X Series PRODUCT DESCRIPTION KOA X Series is a low noise, high performance, fibre to the premises (FTTP) high power, multi-ports optical amplifier with a gain spectrum bandwidth within 1540~1563nm range. The output port for the optical amplifier has a built-in Coarse Wavelength Division Multiplexer to enable multiplexing with corresponding input ports connecting to a carrier OLT PON port should this be required.
-
Page 2: Main Application
MAIN APPLICATION • EPON, GPON, XG(S)-PON • Triple-play SAFETY INFORMATION DANGER HIGH POWER LASER PLEASE DO NOT PLUG IN /OUT OUTPUT OPTICAL CONNECTORS WHEN THE UNIT IS UNDER OERATING STATUS WITH KEY TURNED ON. UNDER NO CIRCUMSTANCES LOOK AT FIBRE CONNECTORS WITH LASER POWER ON. HIGH POWER LASER WILL BURN THE FIBRE CORE AT THE CONNECTOR. -
Page 3: Cleaning Procedure
CONNECTOR CLEANING GUIDE Optical fibre connectors require care and careful cleaning. Caps should be left on connectors whenever they are not in use. Do not touch the connector end. Damage to connector end faces caused by improper care is not covered by the warranty. -
Page 4: Optic Connection
Place the unit into a 19-inch wide rack or cabinet. Make sure to leave a 1.75-inch (about 4.5cm) space above and below the unit. According to the design specifications, KOA Series 1550nm EDFA can work under 0°C~50°C (32°F~122°F) temperature range. We recommend a 25°C (77°F) environment as the ideal operating temperature. -
Page 5: The Operation Of The Panel
2. Make sure the laser key switches on the front panel of the transmitter are in the OFF position. 3. Connect two fibre patch cords, one from the output of the transmitter to the EDFA, the other from the output of the EDFA to an optical power meter. - Page 6 START-UP MAIN MENU (FOR 4, 8 AND 16 PORT MODELS) Press \ button will display below menu in sequence. Menu #1 - Model Read-only menu, tells the type of this equipment Menu #2 - S/N Read-only menu, tells the serial number of this equipment Menu #3 - Input Read-only menu, tells the input optical power of EDFA Menu #4 - Total Output...
- Page 7 START-UP MAIN MENU (FOR 32 PORT MODEL) Press button will display below menu in sequence. Menu #1 - Descriptor Read-only menu, tells the type of this equipment Menu #2 - S/N Read-only menu, tells the serial number of this equipment Menu #3 - Input Read-only menu, tells the input optical power in dBm.
- Page 8 RJ-45 MDI can be connected with other network equipment such as other KOA series equipment with other network equipment such as other KOA Series equipment or network Hub. You can use unshielded twisted- or network Hub. You can use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable for RJ-...
-
Page 9: Pin Assignment
10Mbps Ethernet connections, or Cat 5 cable for 100Mbps, Fast Ethernet connections. Plug one end of the cable into the PC's NIC port and plug the other end into any RJ-45 port of the KOA Series. All the EDFA RJ-45 ports support both 10Mbps and 100Mbps Ethernet connections. Ensure that the plug's locking tab clicks into proper position to make good access. -
Page 10: Power Connection
FAULTS KOA Series FTTP EDFA can monitor system operation and offer brief warnings and can correct the majority of the operational status deviations of the equipment, such as: equipment tolerance, laser aging, RF level changing, and temperature changes. -
Page 11: Alarm Status
COLOR Work Status Status Display LED Colour Explanation Present laser deflection is low Key Off The EDFA isnt working. Its shut down Present case temp Warning when the temp ≥60˚C Input Input Low Optical input power is low Output Output Low Optical output power is low WARNING STATUS LED ALARM STATUS... -
Page 12: Technical Index
TECHNICAL INDEX Index Performance Supplement Min. Max. CATV Operation Wavelength (nm) 1540 1563 CATV OLT Pass Wavelength (nm) 1270/1310/1490/1577 CATV Pass Wavelength Loss (dB) 1550nm OLT Pass Wavelength Loss (dB) 1270/1310/1490/1577nm CATV & OLT Isolation (dB) Number of Uplink (pcs) Optical Ports (for OLT) CATV Input Power (dBm) - Page 13 Warranty period equivalent goods; We provide the following warranty on GME and Kingray in the case of services we supply, to any one of the products. No repair or replacement during the warranty following as we decide – ...
