inStAllAtion MAnuAl
Specialists in tV signal amplification
Sat42d, Sat29d
Dual Satellite
950-3000 MHz
DiStribution AMplifier
Optimised for both digital and analogue
TV signal amplification.
Thank you for selecting an Australian
designed and built amplifier.
Satellite
Inputs
0-15 dB
Equalisation
Controls
950-2150 MHz
Satellite
Outputs

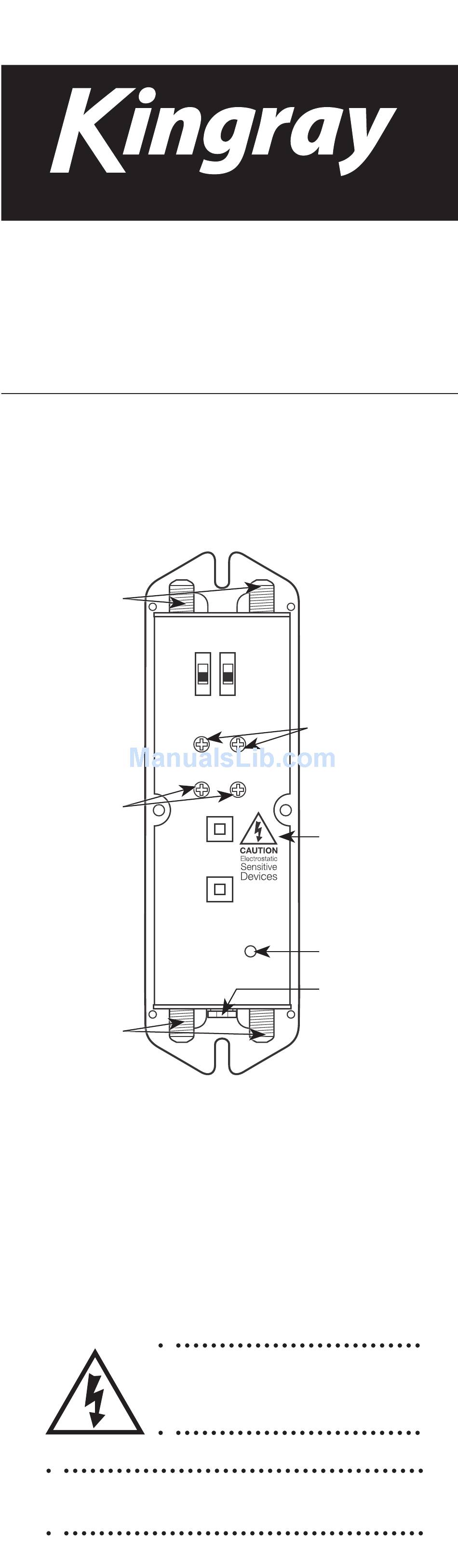

Fig. 1 (Lid removed)

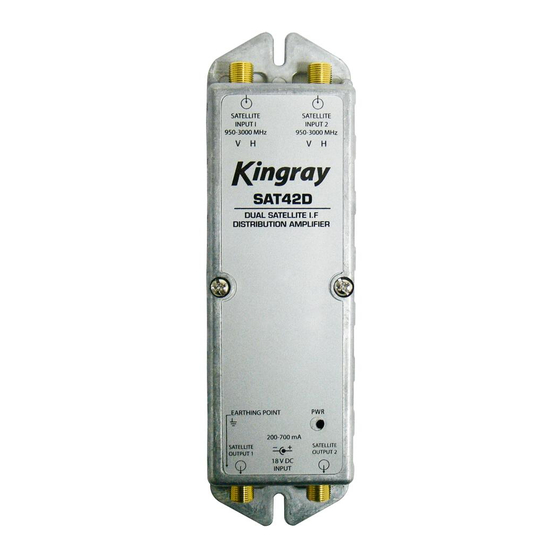

The SAT42D and SAT29D are dual satellite
distribution amplifiers for use in SMATV
multiple dwelling applications. They feature
high outputs with adjustable gain and
equalisation control. The amplifier is designed
to be powered by an 18 volt DC power supply
(see Fig .1).
Warning: Do not connect power directly into
the input sockets otherwise damage will occur.
CauTion: This amplifier contains
devices that are sensitive to
Electrostatic Discharge (ESD).
0-10 dB (SAT29D)
0-20 dB (SAT42D)
Gain Control
950-3000 MHz
Electrostatic
Warning
Power LED
18 V DC
Input
Advertisement
Table of Contents
Related Manuals for Kingray SAT 42D
Summary of Contents for Kingray SAT 42D
- Page 1 inStAllAtion MAnuAl Specialists in tV signal amplification Sat42d, Sat29d Dual Satellite 950-3000 MHz DiStribution AMplifier Optimised for both digital and analogue TV signal amplification. Thank you for selecting an Australian designed and built amplifier. Satellite Inputs 0-10 dB (SAT29D) 0-20 dB (SAT42D) Gain Control 950-3000 MHz 0-15 dB...
-
Page 2: Cable Connections
inStaLLation The SAT42D or the SAT29D is intended for indoor use. Mount so there is free circulation of air around the amplifier and sufficient space for the cable connections. Cable connections The input/output cable connectors are ‘F’ Type. Powering options LnB powering: A LNB can be powered by the SAT42D or SAT29D from each input socket. - Page 3 Fig. 2 (Lid removed) PSK18f Satellite Signal In Fig. 3 (Lid removed) PSK18f PIK2000 adjustments gain: Set the output level according to the network calculations. Adjustment range is 0-20 dB (SAT42D) 0-10 dB (SAT29D) equalisation: Set the equalisation according to the network calculations. Adjustment range 0-15 dB (950-2150 MHz).
- Page 4 Standard communicationS contract warranty againSt defectS This warranty against defects is given by Standard Communications Pty Ltd ACN 000 346 814 (We, us, our or GME). Our contact details are set out in clause 2.7. This warranty statement only applies to products purchased in Australia.
-
Page 5: Warranty Period
4. Warranty period 4.1 We provide the following warranty on GME and Kingray products. No repair or replacement during the warranty period will renew or extend the warranty period past the period from original date of purchase. - Page 6 Drawing No: 43135-4 Part No: 310369...
