MDA15V/MDA15U/MDA15W
F TYPE MASTHEAD AMPLIFIER
Thank you for selecting an Australian designed and built F Type masthead amplifier.
This Kingray Edge series is engineered to provide a future-proof solution with LTE / 4G filtering to
maximise interference rejection.

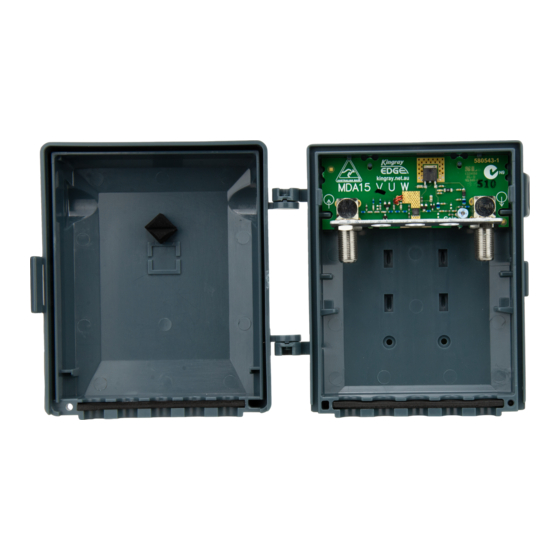

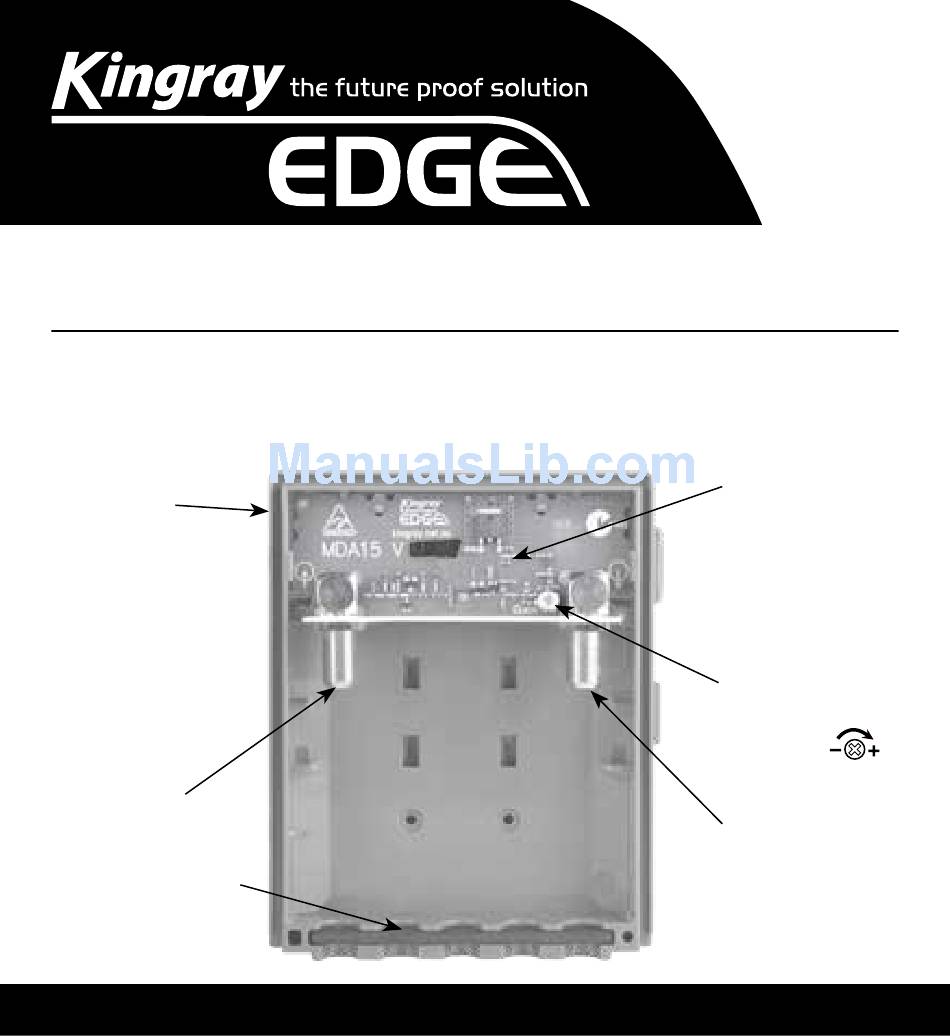

Mount with
polypropylene
securing strap onto
mast or mount to a
wall with the four
pre-drilled holes.
Best mounting location
for masthead unit is on
mast, 300 mm to 1 m
below antenna.
Antenna input.
Ensure weatherproof
strips remain in place.
www.kingray.net.au
Power ON LED.
For maximum gain
turn control clockwise.
Output connector,
to splitter / power
supply.
Advertisement
Table of Contents
Related Manuals for Kingray MDA15V
Summary of Contents for Kingray MDA15V
- Page 1 F TYPE MASTHEAD AMPLIFIER Thank you for selecting an Australian designed and built F Type masthead amplifier. This Kingray Edge series is engineered to provide a future-proof solution with LTE / 4G filtering to maximise interference rejection. Power ON LED.
- Page 2 Masthead Distribution Amplifier (MDA). problem reception areas. The MDA15 Series are multipurpose amplifiers that are ideal for our digital environment. SPECIFICATIONS MODEL MDA15V MDA15U MDA15W Frequency 174-230 MHz 470-694 MHz 174-694 MHz...
- Page 3 INSTALLATION The head of the amplifier may be mounted Bare back cable with a cable stripper or Stanley outside on the pole under the antenna or in the knife (FIG.2). roof. The amplifier requires F type connectors. Slide on F connector and crimp or use a twist-on The power supply unit (FIG.1) is placed at a connector (FIG.3).
- Page 4 TECHNICAL ADVICE 1. Check if the power is reaching the amplifier, if it is, the LED will be lit. 2. Check the orientation of the injector is correct on the power supply. 3. Is there more than one outlet? Check the splitter box, the power supply must be connected to the coaxial outlet that feeds the AC/DC leg of the splitter box to pass power to the head unit.
-
Page 5: Warranty Period
4.1 We provide the following warranty on GME and good faith. If we are satisfied that the complaint is Kingray products. No repair or replacement during justified, and as our sole liability to you under this the warranty period will renew or extend the... - Page 6 A division of Standard Communications Pty Ltd. Head Office: PO Box 96, Winston Hills, NSW 2153, Australia. New Zealand: PO Box 58-446 Botany, Auckland, 2163, NZ. T: (09) 274 0955. All other international enquiries email: export@gme.net.au Drawing No: 48183-2 Part No: 310661...
