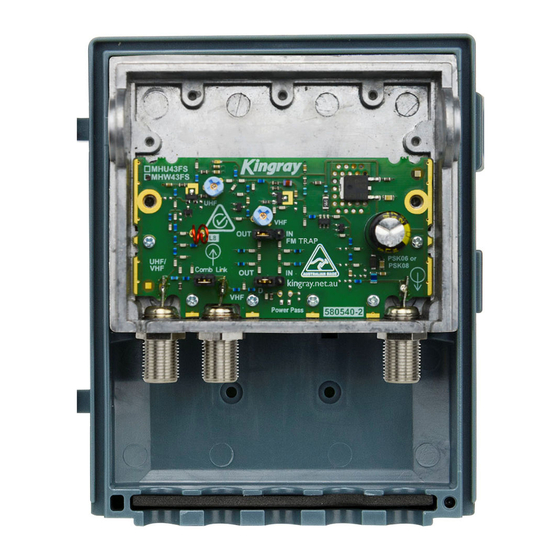

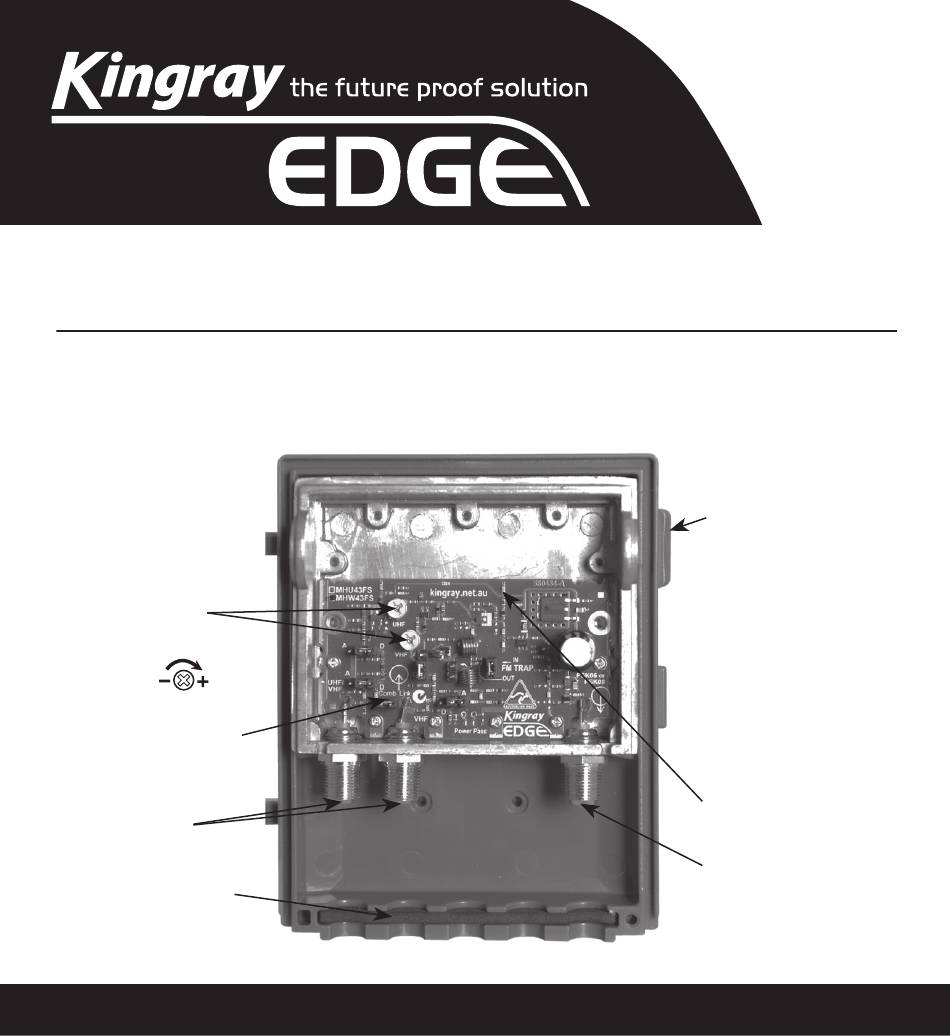

MHW43FS/MHU43FS
FULLY SHIELDED MASTHEAD AMPLIFIERS
Thank you for selecting an Australian designed and built masthead amplifier.
This Kingray Edge series is engineered to provide a future-proof solution with switchable low band
VHF and LTE/4G filtering to maximise interference rejection.
For maximum VHF/
UHF gain turn control
clockwise.
Combined or separate
antenna option.
Antenna inputs.
Ensure weatherproof
strips remain in place.
www.kingray.net.au
Mount with plastic
securing strap onto
mast or mount to a
wall with the four
pre-drilled holes.
Best mounting location
for masthead unit is
on mast 30 to 100 cm
below antenna.
Power ON LED.
Output connector, to
splitter / power supply.
Advertisement
Table of Contents
Related Manuals for Kingray Edge MHW43FS
Summary of Contents for Kingray Edge MHW43FS
- Page 1 FULLY SHIELDED MASTHEAD AMPLIFIERS Thank you for selecting an Australian designed and built masthead amplifier. This Kingray Edge series is engineered to provide a future-proof solution with switchable low band VHF and LTE/4G filtering to maximise interference rejection. Mount with plastic...
- Page 2 INSTALLATION FM filter (MHW versions only) The Kingray Edge series of amplifiers have several built-in filters for interference rejection. To eliminate FM radio interference; make sure The inclusion of selectable low band and LTE the jumper link is on the ‘FM trap IN’ (DEFAULT).
- Page 3 ‘A’ position as shown in fig 2. MHU43FS The amplifier will now amplify 44-230 MHz and 520-820 MHz. As shown in Fig.2. kingray.net.au Fig 2 Position the 3 links to be seated on ‘A’ Band 1 and 2 removal...
- Page 4 520-694 MHz in the UHF band. As shown in Fig.4. UHF Links ‘D’ freq 520-694 MHz kingray.net.au ‘A’ freq 520-820 MHz Fig 4 NOTE: It is recommended to remove LTE band if there are no TV services being received above 694 MHz.
- Page 5 POWER SUPPLY OPTIONS PSK06F TV SET SHORT CIRCUIT MALE PLUG INTO PROTECTED ADAPTOR WALL PLATE 17.5 V AC OR 14 V DC TV SET MASTHEAD AMPLIFIER SHORT CIRCUIT PLUG INTO PROTECTED WALL PLATE PSK06F/08F KPS06F/08F 17.5 V AC OR 14 V DC MASTHEAD AMPLIFIER PSK06/08 KPS06/08...
- Page 6 The lid can be inserted into the plastic Please see diagrams below for installation tips. outer cover whilst installing. Bare back cable with a cable stripper or Stanley knife. Slide on F connector and crimp or use a twist on connector.
- Page 7 STANDARD COMMUNICATIONS CONTRACT WARRANTY AGAINST DEFECTS This warranty against defects is given by Standard (a) in the case of goods we supply, to any one of the Communications Pty Ltd ACN 000 346 814 (We, us, following as we decide - our or GME).
- Page 8 4.1 We provide the following warranty on GME and 3.1 This warranty will not apply in relation to: Kingray products. No repair or replacement during (a) goods modified or altered in any way; the warranty period will renew or extend the...
