AudioArts Engineering audio console r-55e Technical Manual page 52

SS-55e Second Studio Module
EXT 2 LT IN SH
EXT 2 LT IN HI
EXT 2 RT IN LO
ST 2 PRE LT OUT SH
ST 2 PRE LT OUT HI
ST 2 PRE RT OUT LO
HDPN 2 PRE LT OUT SH
HDPN 2 PRE LT OUT HI
HDPN 2 PRE RT OUT LO
MON 2 PRE LT OUT SH
MON 2 PRE LT OUT HI
MON 2 PRE RT OUT LO
I/O PORTS
(Right DB-25 "B")
R-55e / July 2004
S E C O N D S T U D I O M O D U L E

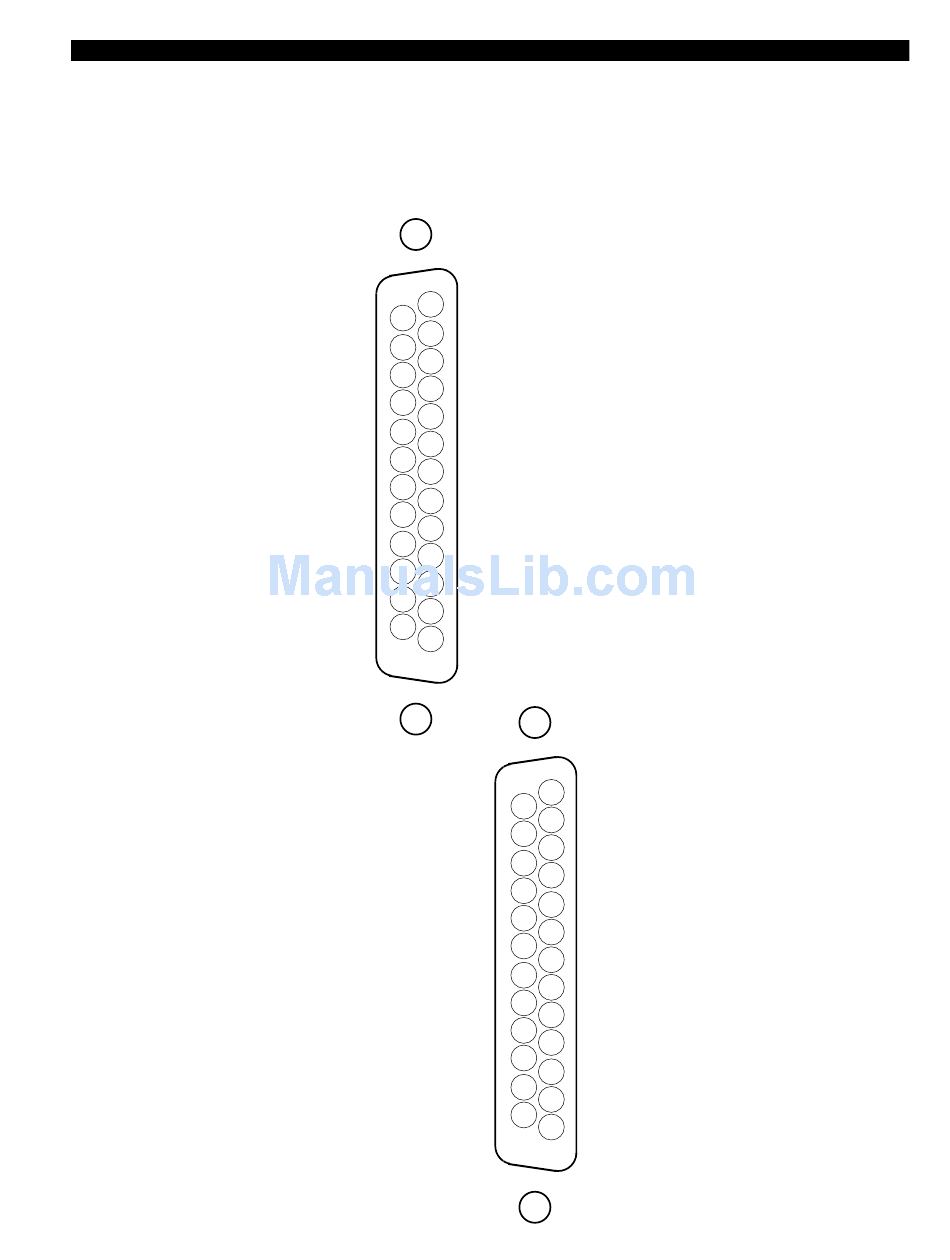

DB Connector Pinouts
AUDIO GROUND
13
25
EXT 2 LT IN LO
12
24
EXT 2 RT IN SH
11
23
EXT 2 RT IN HI
10
22
ST2 PRE LT OUT LO
9
21
ST 2 PRE RT OUT SH
8
20
ST 2 PRE RT OUT HI
7
19
HDPN 2 PRE LT OUT LO
6
18
HDPN 2 PRE RT OUTSH
5
17
HDPN 2 PRE RT OUT HI
4
16
MON 2 PRE LT OUT LO
3
15
MON 2 PRE RT OUT SH
2
14
MON 2 PRE RT OUT HI
1
EXT 1 LT IN SH
EXT 1 LT IN HI
EXT 1 RT IN LO
ST 2 LT OUT SH
ST 2 LT OUT HI
ST 2 RT OUT LO
HDPN 2 LT OUT SH
HDPN 2 LT OUT HI
HDPN 2 RT OUT LO
HDPN 3 LT OUT SH
HDPN 3 LT OUT HI
HDPN 3 RT OUT LO
13
AUDIO GROUND
25
12
EXT 1 LT IN LO
24
11
EXT 1 RT IN SH
23
10
EXT 1 RT IN HI
22
9
ST 2 LT OUT LO
21
8
ST 2 RT OUT SH
20
7
ST 2 RT OUT HI
19
6
HDPN 2 LT OUT LO
18
5
HDPN 2 RT OUTSH
17
4
HDPN 2 RT OUT HI
16
3
HDPN 3 LT OUT LO
15
2
HDPN 3 RT OUT SH
14
1
HDPN 3 RT OUT HI
I/O PORTS
(Left DB-25 "A")
page 6 – 6
