S E C O N D S T U D I O M O D U L E
Pin 22 – ST 2 Lt Out SH
Pin 21 – ST 2 Lt Out HI
Pin 9 – ST 2 Lt Out LO
Pin 8 – ST 2 Rt Out SH
Pin 7 – ST 2 Rt Out HI
Pin 20 – ST 2 Rt Out LO
Pin 19 – HDPN 2 Lt Out SH
Pin 18 – HDPN 2 Lt Out HI
Pin 6 – HDPN 2 Lt Out LO
Pin 5 – HDPN 2 Rt Out SH
Pin 4 – HDPN 2 Rt Out HI
Pin 17 – HDPN 2 Rt Out LO
Pin 16 – HDPN 3 Lt Out SH
Pin 15 – HDPN 3 Lt Out HI
Pin 3 – HDPN 3 Lt Out LO

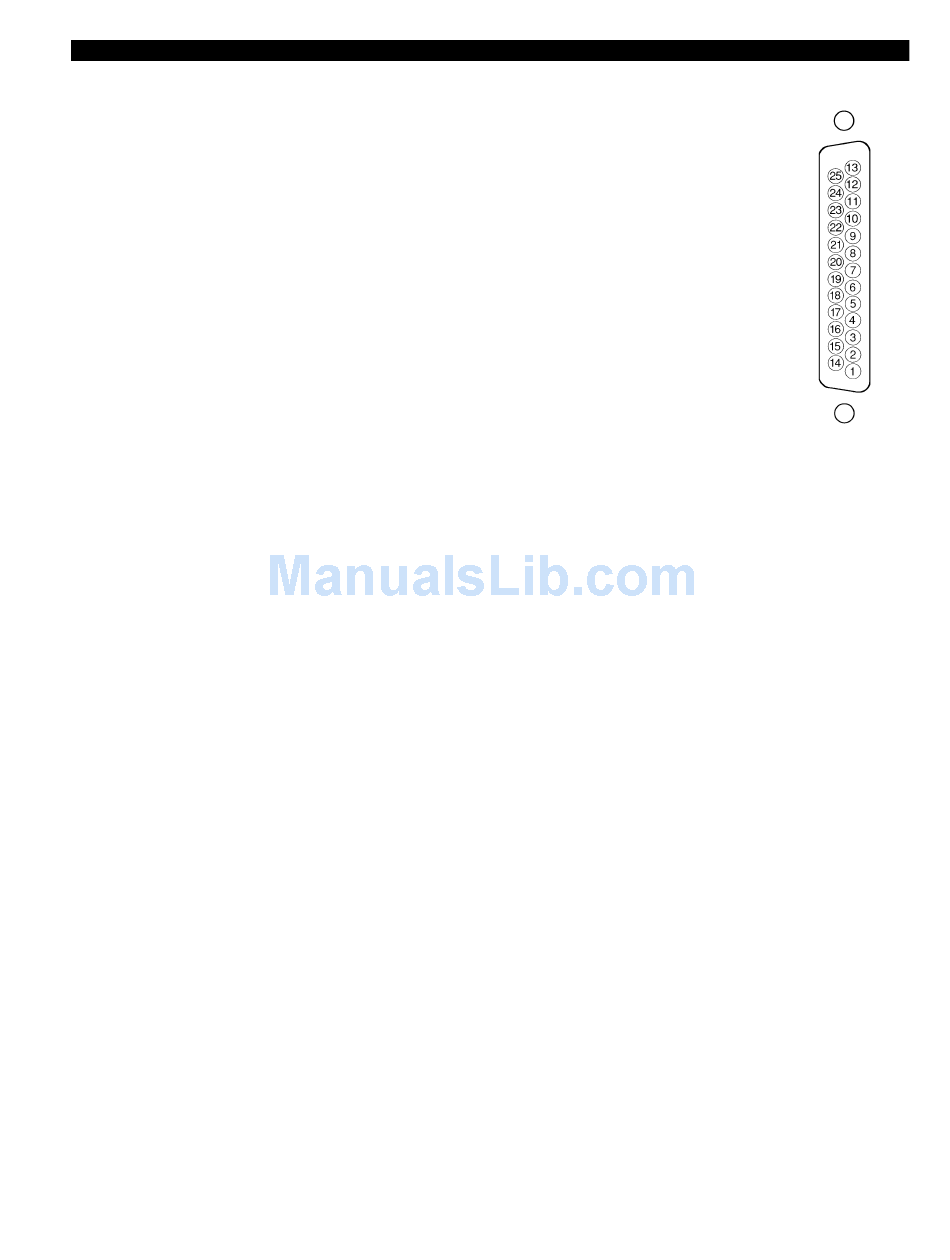

Typical DB-25
Pin 2 – HDPN 3 Rt Out SH
connector
Pin 1 – HDPN 3 Rt Out HI
Pin 14 – HDPN 3 Rt Out LO
