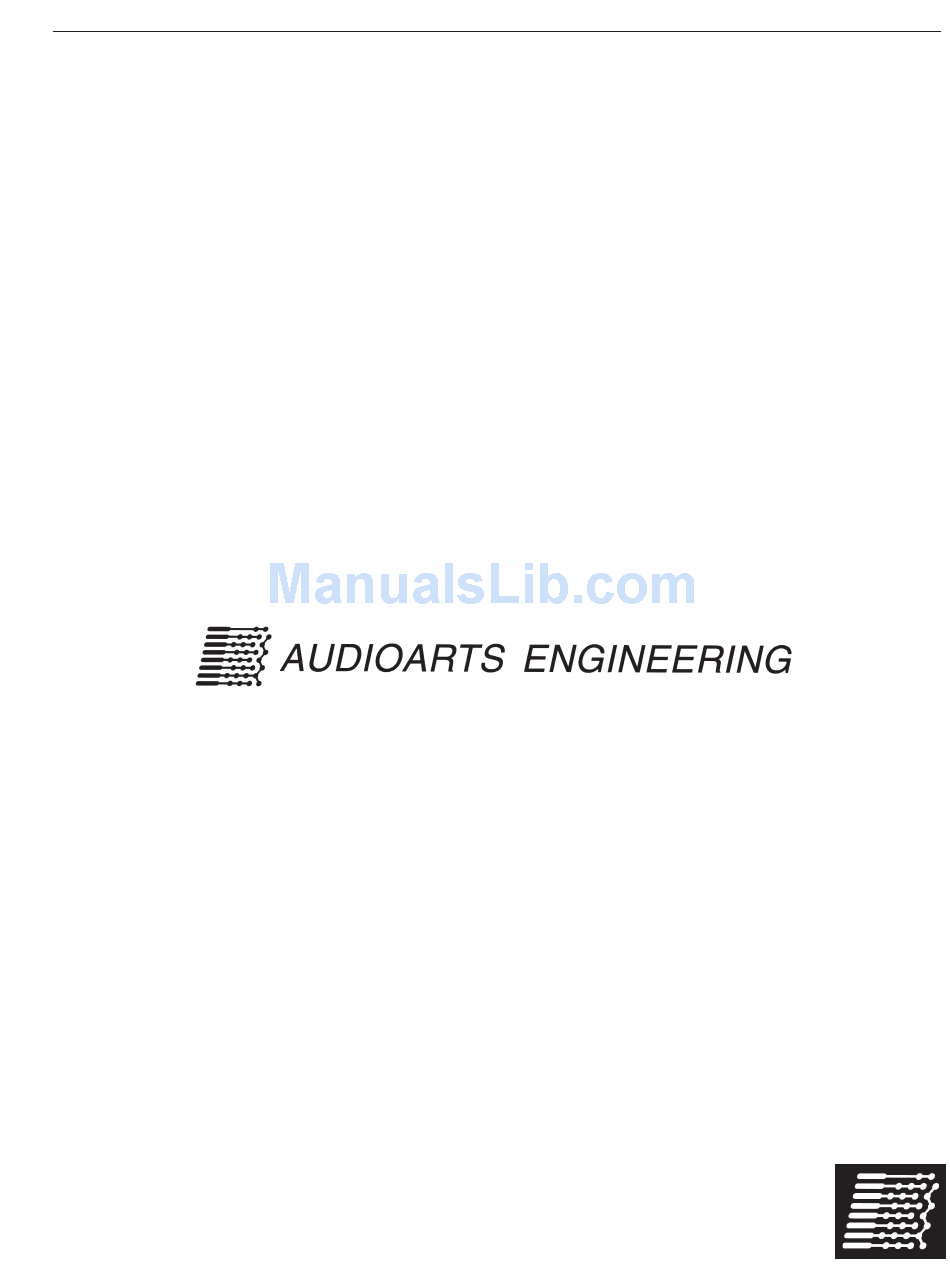

  • Page 1 A I R 1 AdIo IxIng onsole echnical anual December 2007...
  • Page 2 AIR 1 Radio Mixing Console Technical Manual - 2nd Edition ©2012 Audioarts Engineering* ® AUDIOARTS ENGINEERING 600 Industrial Drive New Bern, North Carolina 28562 252-638-7000 *a division of Wheatstone Corporation AIR 1 / Mar 2012...

  • Page 3: Table Of Contents

    USB Port ..................2-7 Using the USB Port....................2-8 ... With a MAC ......................2-8 ® ... With a Windows PC .....................2-8 Other Computers ......................2-8 General Considerations ....................2-9 page Contents – 1 AIR 1 / Dec 2007 AIR 1 / Mar 2012...
  • Page 4 Load Sheet ........................4-11 VUA1-2 Meters PCB Schematic .........................4-12 Load Sheet ........................4-13 Appendices Appendix 1 AIR 1 Console Performance Specifications ........A-3 Appendix 2 Replacement Parts List ..............A-5 page Contents – 2 AIR 1 / Dec 2007 AIR 1 / Mar 2012...
  • Page 5 MIC 1 and MIC 2 Inputs .....................1-5 LINE 3 IN through LINE 8 IN ..................1-5 EXT IN .........................1-6 PGM 1 OUT and PGM 2 OUT ..................1-6 MONITOR OUT ......................1-6 CUE ..........................1-6 HDPN .........................1-6 TALLY ..........................1-7 SPARE ........................1-7 page 1 – 1 AIR 1 / Dec 2007...

  • Page 6: Unpacking And Installing The Console

    Installation and Power Unpacking and Installing the Console The AIR 1 console with its power supply, connecting cable, and techni- cal manual is shipped in one packing box. The console can be unpacked by one person by grasping the console at the both sides, and lifting it up-...

  • Page 7: Power Supply

    Energizing Assuming the AIR 1 console mainframe is properly placed, and its power supply correctly connected to the console, you may now energize the power supply adapter by plugging it into the AC mains. The console’s switches will assume factory default settings.

  • Page 8: Audio And Control Wiring

    I N S T A L L A T I O N A N D P O W E R Audio and Control Wiring All audio I/O connections to the AIR 1 console are made via TRS and XLR connec- tors located on the rear panel of the console, except for the USB connection.

  • Page 9: Unbalanced Connections (Analog Audio)

    (like Belden 9451), just as if you were connecting a balanced source. At the unbalanced source machine’s output, connect the black wire (LO) to the shield. ANALOG OUTPUTS – The AIR 1 console’s PGM 1 and PGM 2 line level analog outputs are electronically balanced, low impedance, outputs, expecting a minimum load of 600 ohms.

  • Page 10: Ext In

    TRS SLEEVE – CUE SH HDPN Analog stereo, headphone level, unbalanced. TRS TIP – HDPN LEFT TRS RING – HDPN RIGHT TRS SLEEVE – HDPN SH page 1 – 6 AIR 1 / Dec 2007 AIR 1 / Mar 2012...

  • Page 11: Tally

    TRS RING – TALLY COM TRS SLEEVE – GROUND SPARE Not used. TRS TIP – NO CONNECTION TRS RING – NO CONNECTION TRS SLEEVE – GROUND page 1 – 7 AIR 1 / Dec 2007 AIR 1 / Mar 2012...
  • Page 12 On Air Tally ......................2-7 USB Port ..................2-7 Using the USB Port....................2-8 ... With a MAC ......................2-8 ® ... With a Windows PC .....................2-8 Other Computers ......................2-8 General Considerations ....................2-9 page 2 – 1 AIR 1 / Mar 2012...

  • Page 13: Overview

    Console Features Overview The AIR 1 console consists of an input section with eight faders and associated switches, monitor and headphone section with two faders and associated switches. The basic purpose of the console is to take some of the many audio signals that are wired to the console inputs, and generate several outputs that combine these inputs in various groups and at various degrees of loudness, or signal strength.
  • Page 14 C O N S O L E F E A T U R E S AIR 1 Bottom Panel page 2 – 3 AIR 1 / Mar 2012...

  • Page 15: Inputs

    C O N S O L E F E A T U R E S Inputs The AIR 1 console is designed to handle 6 analog stereo (+4dBu balanced) inputs, two mono microphone (-50dBu balanced) inputs, and one external stereo line level (+4dBu balanced) input that goes directly to control room or meter.

  • Page 16: Outputs

    When SW 11 is DOWN the PGM 2 is in stereo mode. Monitor Output The AIR 1 has a MONITOR output designed to drive a stereo pair of powered speakers, or a stereo amplifier driving separate speakers, to allow the operator to listen to either PGM 1 or PGM 2, or an external signal.

  • Page 17: Split Cue, Monitor

    ON AIR LED in the center of the meterbridge is also turned on, and a closure is provided at the TALLY output to activate the external circuitry for the ON AIR indicator. page 2 – 6 AIR 1 / Mar 2012...

  • Page 18: On Air Tally

    Audio coming back from the computer via USB shows up as a stereo analog signal on the LINE 8 fader as long as there are no connections made to the LINE 8 input jacks. page 2 – 7 AIR 1 / Mar 2012...

  • Page 19: Using The Usb Port

    Air 1 USB port. Use a cable having a USB Type B connector on the Air 1 end and a connector on the other end that will mate with the computer’s USB port; this will typically be a USB Type A connector.

  • Page 20: General Considerations

    PGM 1 and PGM 2 as the source (see page 2-7). • The audio coming back into the Air 1 on the USB port is available at the LINE 8 fader as long as nothing is plugged into the LINE 8 input jacks.
  • Page 21 Monitor ........................3-5 Program Select ......................3-5 EXT Switch ......................3-5 Monitor Fader ......................3-5 Cue Level Control ....................3-6 Headphone Fader ....................3-6 Meters ........................3-6 VU Meter Pair ......................3-6 Meter Select Buttons .....................3-7 On Air LED ........................3-7 page 3 – 1 AIR 1 / Mar 2012...

  • Page 22: Input Section

    C O N T R O L S A N D F U N C T I O N S Controls and Functions Input Section The AIR 1 Input section consist of two mono microphone input channels and six stereo analog input channels. The MIC and LINE input channels have the same controls, except that the MIC channels don’t have a CUE switch.

  • Page 23: Source

    C O N T R O L S A N D F U N C T I O N S Source The AIR 1 console accepts two mono mic input signals via female XLR and six stereo line level input signals via TRS connectors.

  • Page 24: Master Section

    C O N T R O L S A N D F U N C T I O N S Master Section The Master section includes the monitor, headphone, and meters controls. page 3 – 4 AIR 1 / Mar 2012...

  • Page 25: Monitor

    NOTE: If the Monitor is muted and you slide the fader all the way up, then remove the condition that has the Monitor muted, the sound in the Monitor speakers will suddenly be VERY LOUD! page 3 – 5 AIR 1 / Mar 2012...

  • Page 26: Cue Level Control

    The more elements lighted, the stronger is the signal being displayed. The right two LEDs in each bargraph are red to indicate when the signal level is approaching a clipping (distorted) level. The next two LEDs page 3 – 6 AIR 1 / Mar 2012...

  • Page 27: Meter Select Buttons

    The ON AIR LED, located in the middle of the meterbridge, lights up when either of the two MIC channels is programmed by slide switch to have the MONITOR MUTE activated, and is also ON. page 3 – 7 AIR 1 / Mar 2012...

  • Page 28: Mbusba1-1 Mother Board

    Schematic and Load Sheet Drawings Chapter Contents Console Flow Diagram ..............4-2 MBUSBA1-1 Mother Board Schematic ........................4-3 Load Sheet ........................4-11 VUA1-2 Meters PCB Schematic .........................4-12 Load Sheet ........................4-13 page 4 – 1 AIR 1 / Dec 2007 AIR 1 / Mar 2012...
  • Page 29 PGM 2 ACN PGM 2 RT MONITOR PGM 2 RT OUT AIR 1 1/4" RTS System Flow Diagram FROM COMPUTER CODEC CONN PATCH OUT SLIDE SW LINE 8 1/4" RTS PROGRAM page 4 - 2 AIR 1 / Mar 2012...
  • Page 30 MIC "1" IN MIC "2" IN MIC1_IN_HI MIC2_IN_HI -50dBu BAL -50dBu BAL MIC1_IN_LO MIC2_IN_LO AGND AGND CT10 CT11 AGND AGND EXT_LT_HI PGM1_LT_HI AGND EXT_LT_LO PGM1_LT_LO AGND AGND AGND EXT IN PGM 1 OUT CT10 CT11 AGND AGND AGND AGND LINE3_LT_HI LINE4_LT_HI EXT_RT_HI PGM1_RT_HI...
  • Page 31 INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 SW15 SW16 SW17 SW18 SW19 R79 220 PGM1SW_1 R78 220 PGM1SW_2 R77 220 PGM1SW_3 R76 220 PGM1SW_4 R75 220 PGM1SW_5 R84 220 R69 220 R83 220 R68 220 R82 220 PGM-1 PGM-1 PGM-1...
  • Page 32 R175 10.0K PGM1_1 PGM1_3 PGM1_5 PGM1_7 PGM1_1 BAT54 D17 PGM1SW_1 PGM1SW_3 PGM1SW_5 PGM1SW_7 ON_1 ____ ____ ____ ____ 74ACT08 74LS00 BAT54 D16 ____ 74LS74 74LS74 74LS74 74LS74 BAT54 D15 74ACT08 74LS74 PGM2_1 74LS00 BAT54 D14 PGM1_2 PGM1_4 PGM1_6 PGM1_8 PGM1_2 BAT54 D13 PGM1SW_2 PGM1SW_4...
  • Page 33 R371 10.0K R368 10.0K PGM1LTACN PGM1LTACN 4053 4053 R372 10.0K R369 10.0K PGM2LTACN PGM2LTACN -2dBu C13 10uF MIC1_IN_HI 4053 4053 22uF C120 -50dBu BAL SSM2017 -2dBu C14 10uF MIC1_IN_LO 330pF C342 22uF 100uF C307 5532 C5V1 C5V1 AGND 0.001uF 0.001uF 5.1V 5.1V 10.0K...
  • Page 34 R213 6.19K R210 6.19K LINE LINE R243 R280 R239 R278 5 LT 6 LT 3.92K 3.32K 3.92K 3.32K C189 33pF C186 33pF GAIN AGND GAIN AGND -14dBu -14dBu 100uF C283 100uF C281 R418 22.1K R417 88.7K R359 10.0K R416 22.1K R415 88.7K R356 10.0K LINE5_LT_HI...
  • Page 35 1.30K R190 C131 C244 C274 C243 C273 C242 C272 C241 C271 C240 C270 C239 C269 C275 C245 C344 C126 C128 C125 C109 C363 C5V1 5.1V 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF 0.22uF...
  • Page 36 -2dBu 22uF C247 PGM1LTMON R339 10.0K R343 4.99K R310 47 PGM1_LT_HI C249 33pF -2dBu C268 33pF R337 4.99K R201 6.19K -2dBu C254 33pF PGM1LTACN 22uF C256 R344 10.0K R227 R272 5532 -2dBu R347 10 R333 4.99K 3.92K 3.32K 5532 C177 33pF GAIN R338 10 R334 47...
  • Page 37 AGND 3.32K R385 -14dBu A1 A2 CR12 R377 10.0K R407 40.2K R374 47 MON_LT_OUT PGM1LTMON R188 10.0K R399 40.2K 22uF C310 22uF R174 10.0K C328 10pF 3.32K R400 4053 C112 33pF 4053 PGM2LTMON R186 10.0K R408 10 5532 -2dBu 4053 5532 EXTLTMON R187 10.0K...
  • Page 38 +3.3V R30 53.6K LT1117 10uF 0.1uF 150uF C44 68pF AGND R45 22.1K R29 3.92K TS8L C56 10uF OPA2353 USB_OUT_LT_HI R44 100 C36 10uF 0.001uF AGND +3.3V +3.3V +3.3V +3.3V 40.2K OPA2353 RS8L 0.1uF 10uF OPA2353 USB_OUT_LT_LO 0.1uF AGND AGND AGND +3.3V +3.3V AGND...
  • Page 39 Mother Board Load Sheet - Sheet 1 of 2 page 4 – 11 AIR 1 / Feb 2012...
  • Page 40 Mother Board Load Sheet - Sheet 2 of 2 page 4 – 11a AIR 1 / Feb 2012...
  • Page 41 - SA UR US - Sergey Averin - APPROVALS DATE DRAWN 600 Industrial Drive 9-19-07 New Bern, NC 28562 CHECKED SIZE FSCM NO. DWG. NO. 22S1002 ISSUED W# 700929 SCALE VUA1-2 PCB SHEET 1 OF 1 page 4 - 12 AIR 1 / Dec 2007...
  • Page 42 S C H E M A T I C D R A W I N G S Meters PCB Load Sheet page 4 – 13 page 4 – 2 AIR 1 / Dec 2007...

  • Page 43: Appendices

    A P P E N D I C E S Appendices Appendix 1 AIR 1 Console Performance Specifications ......A-3 Appendix 2 Replacement Parts List ............... A-5 page Appendix – 1 AIR 1 / Dec 2007...
  • Page 44 A P P E N D I C E S Appendix 1 Contents AIR 1 Performance Specifications ..........A-3 page Appendix – 2 AIR 1 / Dec 2007...
  • Page 45 11.511” Height (rear) 2.442” Line, +24dBu <0.002% Height (front) 1.283” <0.006% MAXIMUM INPUT Line +28dBu Mic, minimum trim -4dBu MAXIMUM OUTPUT Line +28dBu Specifications and features subject to change without notice. page Appendix – 3 AIR 1 / Dec 2007...
  • Page 46 Replacement Parts List ............... A-5 For the most part there are no user-replaceable parts in the AIR 1 console. Exceptions are those controls and components that in the course of normal use may need maintenance (i.e., faders, pots, ON switches, etc.). A complete list of available components is shown on the next page.
  • Page 47 A P P E N D I C E S REPLACEMENT PARTS — AIR 1 CONSOLE COMPONENT DESCRIPTION WS P/N "009789" MBUSB-A1 LOADED CARD ASSY MOTHERBOARD LOADED CARD ASSEMBLY "009715" VU-A1 LOADED CARD ASSY VU METERS LOADED CARD ASSEMBLY "540061"...
