Summary of Contents for Nilfisk-Advance E 130.3

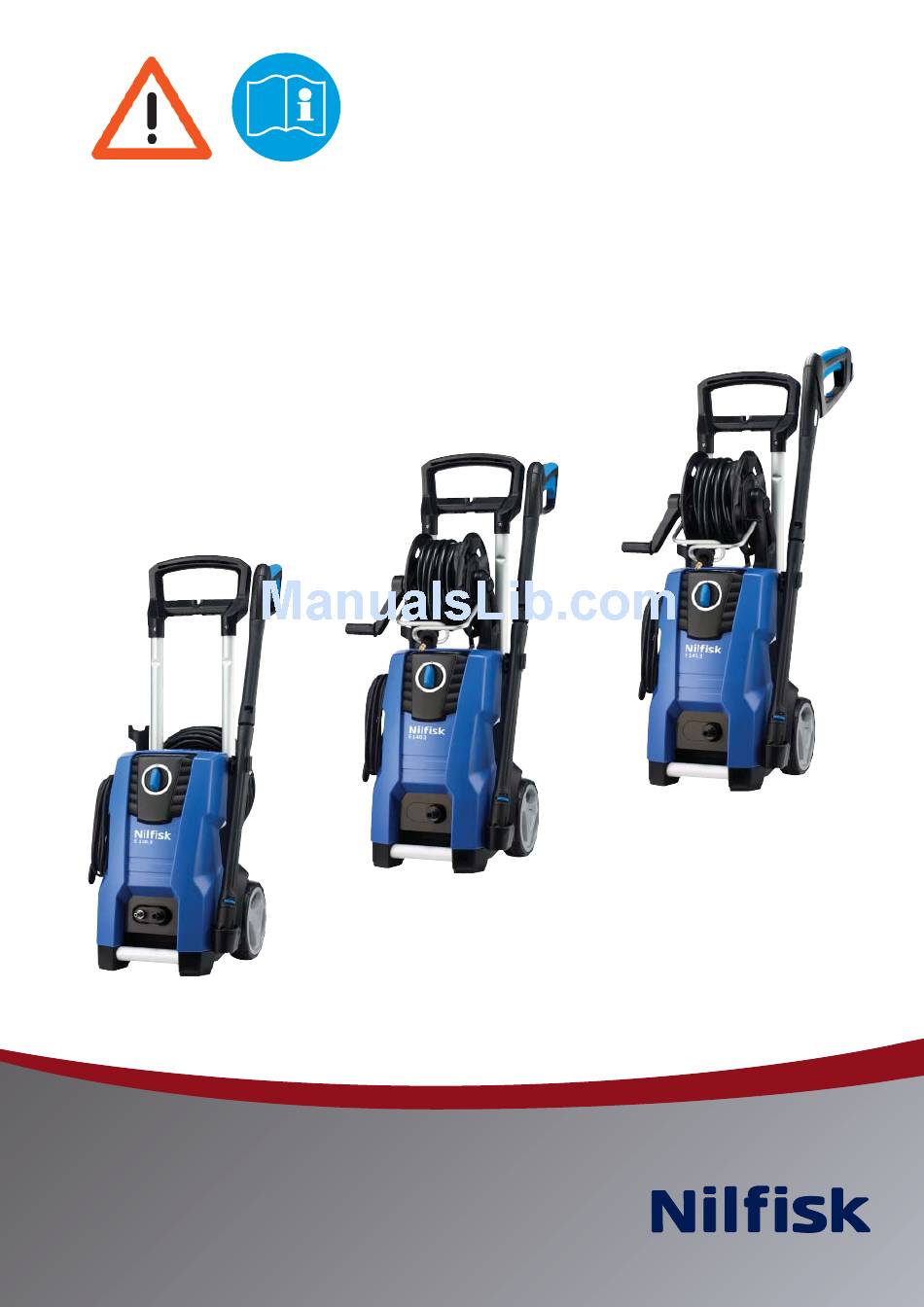

- Page 1 E 130.3, E 140.3, E 145.3 User Manual 128332518 b (05.2014) EN-DA-NO-SV-FI-DE-FR-NL-IT-ES-PT-EL- TR-CS-HU-PL-HR-SL-SK-LV-LT-ET-RU-ZH...
- Page 2 User Manual ..............3 - 18 Instruktionsbog ............19 - 34 Instruksjonsbok............35 - 50 Instruktionsbok ............51 - 66 Käyttöohje..............67 - 82 Betriebsanleitung ............83 - 100 Instructions d’utilisation ..........101 - 119 Gebruiksaanwijzing ............. 120 - 137 Istruzioni sull’uso ............
-
Page 3: Table Of Contents
Contents Introduction ....................4 1.1 Symbols used to mark instruction ...............4 Safety precautions and working techniques ..........4 Before you start using your high pressure washer ........ 10 3.1 Mounting of trolley handle, hose hook and hose reel ........10 3.2 Mounting of quick coupling ................10 3.3 Telescopic handle .....................10 Operating your high pressure washer ............. -
Page 4: Introduction
1 Introduction 1.1 Symbols used to mark instruction All pictograms attached to the high pressure washer and its components are shown and ex- plained in this manual. Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property. - Page 5 the machine to another function. • Observe the national safety regulations issued, for example, by the employers liability insurance associa- tion, social security institutions, occupational safety and health authorities or other organizations. Accessories and spare parts • To ensure the machine safety only use original spare parts from Nilfi...
- Page 6 Transporting the high pressure washer • When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over. • Nilfi sk recommends that the machine is positioned horizontally on the backside, when transported in or on a vehicle.
- Page 7 exceeds 30 mA for 30 ms. • Inadequate extension cables can be dangerous. If an extension cable is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground • Nilfi sk recommends use of an extension cable drum when cable extension is needed which keeps the socket at least 60 mm above the ground.
- Page 8 During work WARNING! • Never use the machine in an environment where there could be a danger of explosions. If any doubt arises contact the local authorities. • It is not allowed to clean asbestos-containing surfaces with high pressure. • Never draw in fl uids containing solvents (e.g., gaso- line, heating oil, paint thinner or acetone) These sub- stances damage the materials used in the machine.
- Page 9 After fi nishing the work WARNING! • Always switch off the machine and unplug the power plug from the socket after work and when leaving the machine unattended. • Disconnect water inlet hose between machine and water supply. • Wind up electrical cable and high pressure hose – to avoid damage of cable, plug, high pressure hose and fi...
-
Page 10: Before You Start Using Your High Pressure Washer
3 Before you start using your high pressure washer See the pictorial quick reference guide – unpacking. Illustration shows the operation elements and how to prepare your machine for use. Operation elements 1. Start/stop switch 2. Water inlet with fi lter 3. -
Page 11: Operating Your High Pressure Washer
4 Operating your high pressure washer See the pictorial quick reference guide – operating your high pressure washer. 4.1 Connection of high pressure hose Attach the high pressure hose (4) to the spray handle (7). Detach the high pressure hose by pressing the pawl (A). -
Page 12: Starting The High Pressure Washer
When connecting the machine to operate from pressure less water supplies – always use ad- ditional fi ltering to secure that impurities are not sucked in. Hose length should be max. 3 meter and of minimum ½". To meet these requirements, Nilfi sk recommends that you use the original Nilfi sk suction hose kit. -
Page 13: Fields Of Application And Working Methods
5 Fields of application and working methods 5.1 General Effi cient high presure cleaning is achieved by following a few guidelines, combined with your own personal experience of specifi c cleaning tasks. Accessories and detergents, when correct- ly chosen, can increase the effi ciency of your pressure washer. Here is some basic information about cleaning. -
Page 14: Typical Fi Elds Of Application
5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents. Task Accessories ‘Click Cleaning method &... -
Page 15: After Using The Pressure Washer
6 After using the pressure washer See the pictorial quick reference guide – storing the high pressure washer. The high pressure washer should be stored in a frost free room! Should the machine by a mis- take be frozen, it will be necessary to check it for damages. 6.1 Stopping the high pressure washer Shut off the water supply and activate the trigger of the spray handle and let the machine run until no more water runs out of the nozzle. -
Page 16: Troubleshooting
Flush the nozzle backwards with water. Cleaning of machine vents The machine should be kept clean so as to let cooling air pass freely through the machine vents. Greasing of O-rings To ensure an easy connection and that O-rings do not dry up the couplings should be greased regularly. -
Page 17: Accessories And Detergents
fi ca ti on of the fault. Repairs not covered by the guarantee conditions will be invoiced. (I.e. malfunctions due to Causes men - ti o ned in section Troubleshooting Chart of the instruction manual). 11 Main technical Data E 130.3 E 140.3 E 145.3 Type... -
Page 18: Declaration Of Conformity
Declaration of Conformity Product: High Pressure Washer Type: Nilfi sk E 130.3 / E 140.3 / E 145.3 and accessory variants of above-mentioned types Description: 220-240 V 1~, 50/60 Hz - IP X5 The design of the unit corre sponds to the following... - Page 20 Max. 60°C Max. 60°C...
- Page 22 http://www.nilfi sk.com HUNGARY SOUTH AFRICA HEAD QUARTER Nilfi sk-Advance Kereskedelmi Kft. WAP South Africa 12 Newton Street II. Rákóczi Ferenc út 10 DENMARK Spartan 1630 2310 Szigetszentmiklos-Lakihegy Nilfi sk-Advance Group Website: www.nilfi sk.com Website: www.nilfi sk.hu Sognevej 25 DK-2605 Brøndby SOUTH KOREA INDIA Tel.: (+45) 4323 8100...
