Summary of Contents for Nilfisk-Advance C 120.2

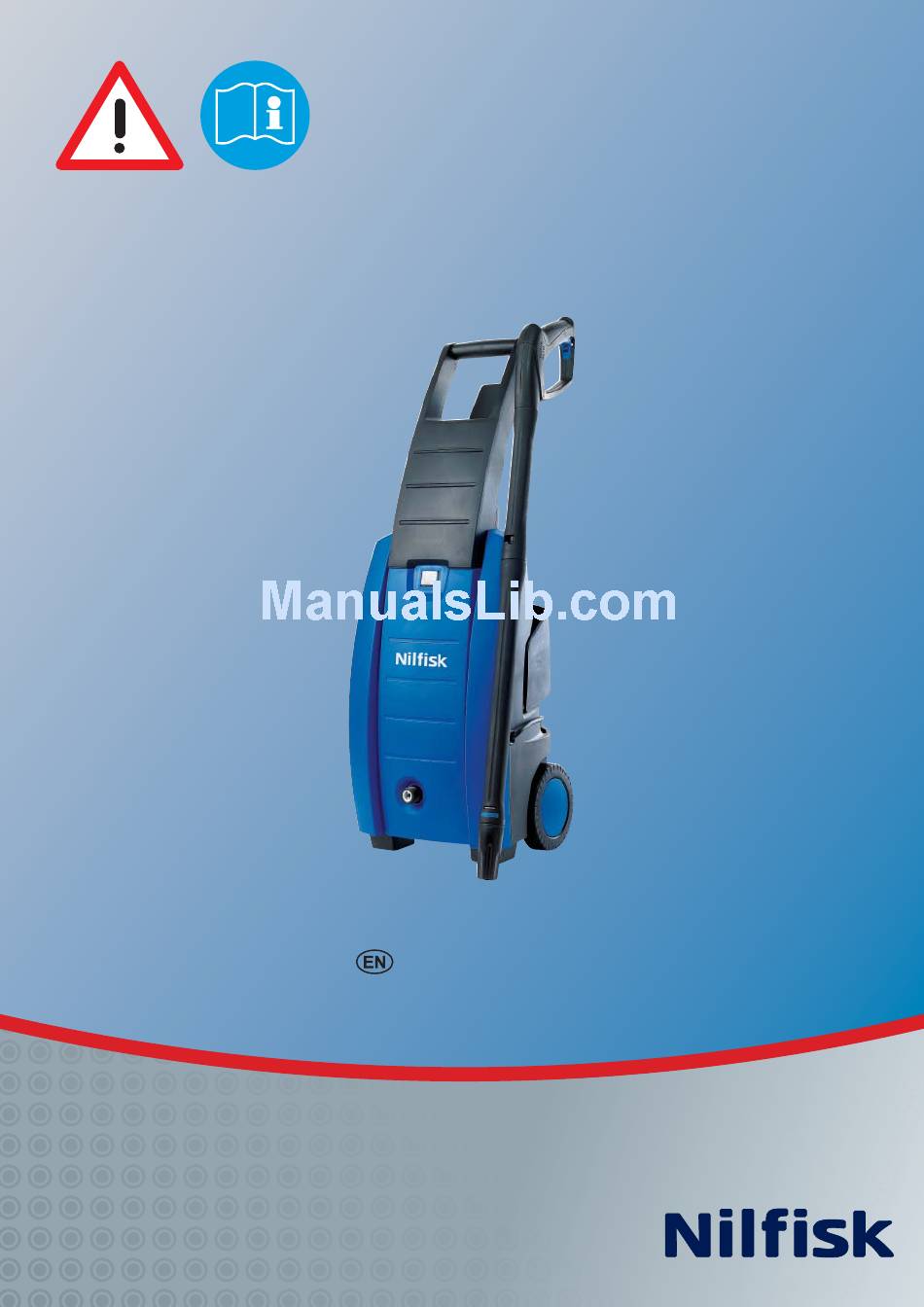

- Page 1 Nilfi sk C 120.2 Nilfi sk C 125.2 User Manual...
- Page 2 Copyright © 2008 Nilfi sk...
-
Page 3: Table Of Contents
Index 1 Safety precautions and warnings ..........3 2 Description ................5 3 Before you start using your pressure washer ......6 4 Operating your pressure washer ..........8 5 Fields of Application and Working Methods ......9 6 After using your pressure washer ...........11 7 Maintenance ................12 8 Trouble Shooting ..............14 9 Further information ..............15... - Page 4 1.0 mm² max. 12.5 m safety only use original spare appropriate backfl ow preventer 1.5 mm² max. 20 m parts from the manufacturer has been installed, Type BA ac- 2.5 mm² max. 30 m or approved by the manufac- cording to EN 1717. The back- turer.
-
Page 5: Description
2 Description 2.1 Application This high-pressure washer has the high-pressure washer for been developed for domestic various cleaning jobs. use within: Only use the high-pressure - Car, motorbike, boat, cara- washer for purposes described van, trailer, patio/drive/fl ag- in this manual. stones, woodwork, brickwork, barbecue, garden furniture, The safety precautions must be... -
Page 6: Operating Your Pressure Washer
3.2 Mounting of quick 1. Screw the quick coupling coupling tight on to the water inlet (2). Note: The inlet fi lter (2a) must always be fi tted in the water inlet pipe to fi lter out sand, lime- stone and other impurities as these will damage the pump valves. - Page 7 4.2 Mounting of spray 1. Push the spray lance (6) into 2. Attach the nozzle. lance and Click & Clean the spray gun (7) and screw nozzles it on. Warning: When attaching the Click & Clean nozzles, the pawl on the side of the spray lance (6) should come out again.
- Page 8 4.4 Start and stop of the The spray lance is affected Do not cover the machine machine (when by a thrust during operation - during operation or use it in a connected to a water therefore always hold it fi rmly room without adequate ventila- supply) with both hands.
-
Page 9: Fields Of Application And Working Methods
5 Fields of application and working methods 5.1 General Effi cient high pressure cleaning is achieved by following a few guidelines, combined with your own personal experience of specifi c cleaning tasks. Accessories and detergents, when correctly cho- sen, can increase the effi ciency of your pressure washer. Here is some basic information about cleaning. - Page 10 5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents. Task Accessories ‘Click Cleaning method &...
-
Page 11: After Using Your Pressure Washer
6 After using your pressure washer 6.1 Storing the washer The machine should be 3. Stop the machine, unplug stored in a frost-free room! and wind up hose and cable. 4. Place spray handle, nozzles Pump, hose and accessories and other accessories in the should always be emptied of holders of the machine. -
Page 12: Maintenance
7 Maintenance WARNING! Always disconnect Wash out water hose, high the electrical plug from the pressure hose, spray lance socket prior to maintenance or and accessories before cleaning. mounting. Clean the connectors of dust To ensure a long and problem and sand. - Page 13 7.2 Cleaning of nozzle A clogging up in the nozzle causes a pump pressure which is too high. This is why cleaning is required immediately. 1. Stop the machine and dis- connect the nozzle. 2. Clean the nozzle. IMPOR- TANT: The cleaning tool (11) should only be used when the nozzle is detached! 3.
-
Page 14: Trouble Shooting
8 Trouble-shooting To avoid unnecessary disappointments, you should check the following before contacting the Nilfi sk service organization: Symptom Cause Recommended action Machine refuses to start Machine not plugged in Plug in machine. Defective socket Try another socket. Fuse has blown Replace fuse. -
Page 15: Further Information
9 Further information 9.1 Recycling the washer Make the old cleaner unusable As specifi ed in European Direc- immediately. tive 2002/96/EC on old electri- cal and electronic appliances, 1. Unplug the cleaner and cut used electrical goods must the electric cable. be collected separately and recycled ecologically. - Page 16 9.3 Accessories Only use original accessories. Click & Clean Special nozzle for enameled surfaces. Optimal distance: 30 Car nozzle - 50 cm. Click & Clean 90° angled special nozzle for undercarriage and wheel arches. Undershassis Integrated guide shoes. nozzle Click & Clean Adjusted in angles from 0°...
-
Page 17: Main Technical Data
For cleaning of grease and oil on motors for instance. Applied with an atomizer. Wood Cleaner For cleaning of wooden surfaces incl. of wooden garden furniture. 10 Main Technical Data Type C 120.2-6 Rated pressure bar/MPa 100/10.0 Permissible pressure bar/MPa max. -
Page 18: Declaration
Name of the person responsible for the technical Wolfgang Nieuwkamp documentation Description of the equipment: High pressure washer Equipment name Nilfi sk Model C 120.2 Dimension 280 x 270 x 820 mm Rated output voltage AC 230-240 V Rated frequency 50 Hz Rated input power 1.65 kW... - Page 20 Nilfi sk, Division of Nilfi sk-Advance A/S, Industrivej 1, DK - 9560 Hadsund, tel.: (+45) 7218 2100...
