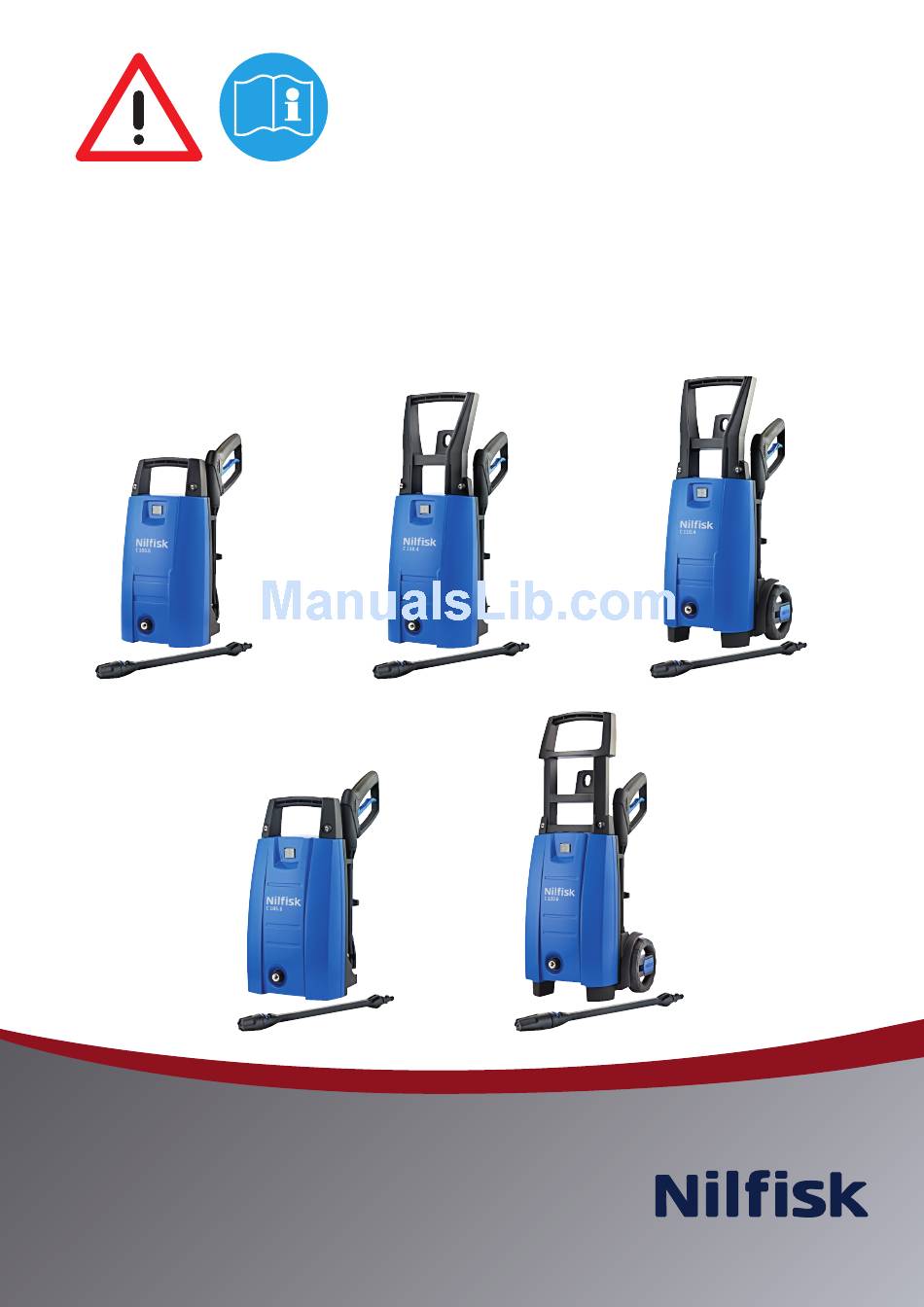

- Page 1 C 100.6, C 110.4, C 110.4 X-TRA, C 105.6, C 120.6 X-TRA User Manual 128700022 e (09.2014) EN-DA-NO-SV-FI-DE-FR-NL-IT-ES-PT-EL-TR-CS- HU-PL-HR-SL-SK-LV-LT-ET-RU-ZH...
- Page 2 User Manual .......... 3 - 16 Instruktionsbog ........17 - 30 Instruksjonsbok........31 - 44 Instruktionsbok ........45 - 58 Käyttöohje..........59 - 72 Betriebsanleitung ........73 - 87 Instructions d’utilisation ......88 - 103 Gebruiksaanwijzing ....... 104 - 118 Istruzioni sull’uso ........
-
Page 3: Table Of Contents
Contents Introduction ....................4 1.1 Symbols used to mark instruction ...............4 Safety precautions and working techniques ..........4 Before you start using your high pressure washer ........ 10 3.1 Mounting of trolley handle and wheels .............10 3.2 Mounting of quick coupling ................10 Operating your high pressure washer ............. -
Page 4: Introduction
1 Introduction 1.1 Symbols used to mark instruction All pictograms attached to the high pressure washer and its components are shown and ex- plained in this manual. Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property. - Page 5 the machine to another function. • Observe the national safety regulations issued, for example, by the employers liability insurance associa- tion, social security institutions, occupational safety and health authorities or other organizations. Accessories and spare parts • To ensure the machine safety only use original spare parts from Nilfi...
- Page 6 Transporting the high pressure washer • When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over. • Nilfi sk recommends that the machine is positioned horizontally on the backside, when transported in or on a vehicle.
- Page 7 exceeds 30 mA for 30 ms. • Inadequate extension cables can be dangerous. If an extension cable is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground • Nilfi sk recommends use of an extension cable drum when cable extension is needed which keeps the socket at least 60 mm above the ground.
- Page 8 During work WARNING! • Never use the machine in an environment where there could be a danger of explosions. If any doubt arises contact the local authorities. • It is not allowed to clean asbestos-containing surfaces with high pressure. • Never draw in fl uids containing solvents (e.g., gaso- line, heating oil, paint thinner or acetone) These sub- stances damage the materials used in the machine.
- Page 9 After fi nishing the work WARNING! • Always switch off the machine and unplug the power plug from the socket after work and when leaving the machine unattended. • Disconnect water inlet hose between machine and water supply. • Wind up electrical cable and high pressure hose – to avoid damage of cable, plug, high pressure hose and fi...
-
Page 10: Before You Start Using Your High Pressure Washer
20. Wheel caps 3.1 Mounting of trolley handle and wheels Mounting of trolley handle Only applicable for models with trolley handle and wheels (C 100.6-6, C 110.4, C 110.4 X-TRA and C 120.6 X-TRA) Place the trolley handle (15) on the machine. -
Page 11: Operating Your High Pressure Washer
4 Operating your high pressure washer See the pictorial quick reference guide – operating your high pressure washer. 4.1 Connection of high pressure hose Attach the high pressure hose (4) to the spray handle (7). Detach the high pressure hose by pressing the pawl (A). -
Page 12: Starting The High Pressure Washer
When connecting the machine to operate from pressure less water supplies – always use ad- ditional fi ltering to secure that impurities are not sucked in. Hose length should be max. 3 meter and of minimum ½". To meet these requirements, Nilfi sk recommends that you use the original Nilfi sk suction hose kit. -
Page 13: Maintenance
6 Maintenance See the pictorial quick reference guide - maintenance. To ensure a long and problem free working life of the high pressure washer, please take the following advices: • Wash out water hose, high pressure hose, spray lance and accessory before mounting •... -
Page 14: Warranty Conditions
Symptom Cause Recommended action Machine stops Fuse has blown Replace fuse. Switch off other machines. Incorrect mains voltage Check that the mains voltage corresponds to specifi cation on the model tag. Thermal sensor activated Leave the washer for 5 minutes to cool down. -
Page 15: Main Technical Data
74 ±3 74 ±3 74 ±3 74 ±3 ance with ISO 3744 Guaranteed sound power level L WA dB(A) in accordance with 2000/14/EC We reserve the right to make alterations. * C 100.6-6, ** C 110.4 X-TRA Original Instructions... -
Page 16: Declaration Of Conformity
Product Description Type HPW - Consumer 220 - 240 V 1~, 50/60 Hz – Nilfi sk C 100.6 / C 105.6 / C 110.4 / IP X5 C 120.6 and accessory variants of above- mentioned types Is in compliance with the following standards:... - Page 19 Max. 40°C Max. 40°C...
