Page 1: Instructions For Use

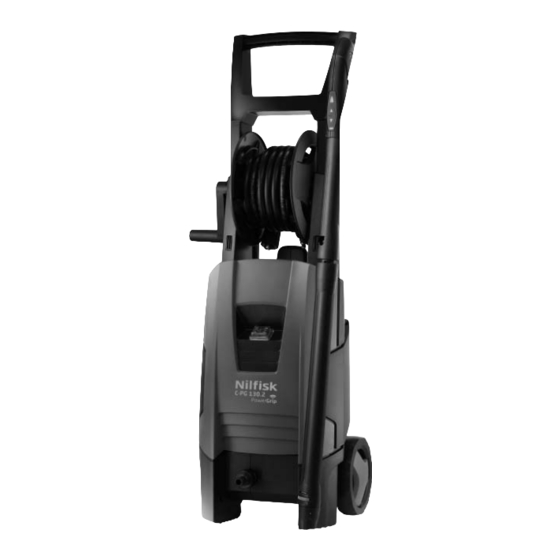

C 125.4 / C 130.2 / C-PG 130.2 X-TRA Instructions for use 128332679 c (07.2015) EN-DA-NO-SV-FI-DE-FR-NL-IT-ES-PT-EL- TR-CS-HU-PL-HR-SL-SK-LV-LT-ET-RU-ZH... - Page 2 User Manual ..............3 - 19 Instruktionsbog ............20 - 36 Instruksjonsbok............37 - 53 Instruktionsbok ............54 - 70 Käyttöohje..............71 - 87 Betriebsanleitung ............88 - 105 Instructions d’utilisation ..........106 - 124 Gebruiksaanwijzing ............. 125 - 142 Istruzioni sull’uso ............
-
Page 3: Table Of Contents
Contents Introduction ....................4 1.1 Symbols used to mark instruction ...............4 Safety precautions and working techniques ..........4 Before you start using your high pressure washer ........ 10 3.1 Mounting of trolley handle, hose hook and hose reel ........10 3.2 Mounting of quick coupling ................10 3.3 Mounting of Battery (Cell battery –... -
Page 4: Introduction
1 Introduction 1.1 Symbols used to mark instruction All pictograms attached to the high pressure washer and its components are shown and ex- plained in this manual. Safety instructions marked with this symbol must be observed to prevent personal injury or serious damage to property. - Page 5 • Observe the national safety regulations issued, for example, by the employers liability insurance associa- tion, social security institutions, occupational safety and health authorities or other organizations. Accessories and spare parts • To ensure the machine safety only use original spare parts from Nilfi...
- Page 6 during operation. Transporting the high pressure washer • When transporting the machine in or on a vehicle, it must be secured, e.g. with straps, so that it cannot slip or tip over. • Nilfi sk recommends that the machine is positioned horizontally on the backside, when transported in or on a vehicle.
- Page 7 machine should include a residual current device that will interrupt the supply if the leakage current to earth exceeds 30 mA for 30 ms. • Inadequate extension cables can be dangerous. If an extension cable is used, it shall be suitable for outdoor use, and the connection has to be kept dry and off the ground.
- Page 8 Pressure safety device: • An integrated hydraulic safety valve protects the system from excessive pressure. During work WARNING! • It is not allowed to clean asbestos-containing surfaces with high pressure. • Risk of explosion – Do not spray fl ammable liquids. •...
- Page 9 • Always empty pump, hose and accessories of water after use of the machine and prior to storing. Maintenance and repairs WARNING! • Always disconnect the electrical plug from the socket prior to maintenance, cleaning and repair. • Any repair should always be made in Nilfi sk autho- rized workshop with original Nilfi...
-
Page 10: Before You Start Using Your High Pressure Washer
3 Before you start using your high pressure washer See the pictorial quick reference guide – unpacking. Illustration shows the operation elements and how to prepare your machine for use. Operation elements 1 Start/stop switch 2 Water inlet (with fi lter) 3 High pressure connection 4 High pressure hose 5 Electric cable... -
Page 11: Operating Your High Pressure Washer
IMPORTANT! When the battery runs out and you insert a new battery, the old battery must be disposed of safely. 4 Operating your high pressure washer See the pictorial quick reference guide – operating your high pressure washer. 4.1 Connection of high pressure hose Attach the high pressure hose (4) to the spray handle (7). -
Page 12: Starting The High Pressure Washer
Turn off the water and connect the water hose by means of the quick coupling to the wa- ter inlet of the machine. Connecting to pressure less water supply The machine can also operate in suction mode, meaning that you can connect the machine to e.g. -
Page 13: Pairing The Machine (Models With Wireless Regulation)
IMPORTANT! The bearing capacity of the wall hook is max. 30 kg. 4.7 Pairing the machine (Models with wireless regulation) Before using the machine with wireless regulation, the spray handle must be electrically paired to the machine. When the battery has been mounted - ref. section 3.4, and the spray handle is in pairing mode (orange LED is fl... -
Page 14: Typical Fi Elds Of Application
5.2 Typical fi elds of application Below you will fi nd a description of a lot of cleaning tasks which can be solved by a pressure washer from Nilfi sk in association with accessories and detergents. Task Accessories ‘Click Cleaning method &... -
Page 15: After Using The Pressure Washer
6 After using the pressure washer See the pictorial quick reference guide – storing the high pressure washer. The high pressure washer should be stored in a frost free room! Should the machine by a mis- take be frozen, it will be necessary to check it for damages. 6.1 Stopping the high pressure washer Shut off the water supply and activate the trigger of the spray handle and let the machine run until no more water runs out of the nozzle. -
Page 16: Troubleshooting
Cleaning of machine vents The machine should be kept clean so as to let cooling air pass freely through the machine vents. Greasing of O-rings To ensure an easy connection and that O-rings do not dry up the couplings should be greased regularly. -
Page 17: Accessories And Detergents
Only Wireless models: Symptom Cause Recommended action The orange LED is not The spray handle is in stand- Press the up/down keys to activate the fl ashing while ready by mode spray handle. The orange LED will then for pairing fl... -
Page 18: Main Technical Data
11 Main technical Data C 130.2 C 125.4 Type C-PG 130.2 X-TRA Electric specifications Rated voltage 230-240 230-240 Rated frequency Rated power consumption Current Class I/ Protection class Class II Class II Class II Protection degree IP xx IPX5 IPX5... -
Page 19: Declaration Of Conformity
Product Description Type HPW - Consumer 230-240 V 1~, 50/60 Hz Nilfi sk C 125.4 / C 130.2 / HPW - Consumer w/wireless remote* – IPX5 C-PG 130.2 X-TRA and accessory variants of above-mentioned types Is in compliance with the following standards:... - Page 21 Max. 40°C...
- Page 23 http://www.nilfi sk.com SOUTH AFRICA HEAD QUARTER HUNGARY WAP South Africa 12 Newton Street Nilfi sk-Advance Kereskedelmi Kft. DENMARK Spartan 1630 II. Rákóczi Ferenc út 10 Nilfi sk A/S Website: www.nilfi sk.com 2310 Szigetszentmiklos-Lakihegy Banemarksvej 58 Website: www.nilfi sk.hu 2605 Broendby SOUTH KOREA DENMARK INDIA...
