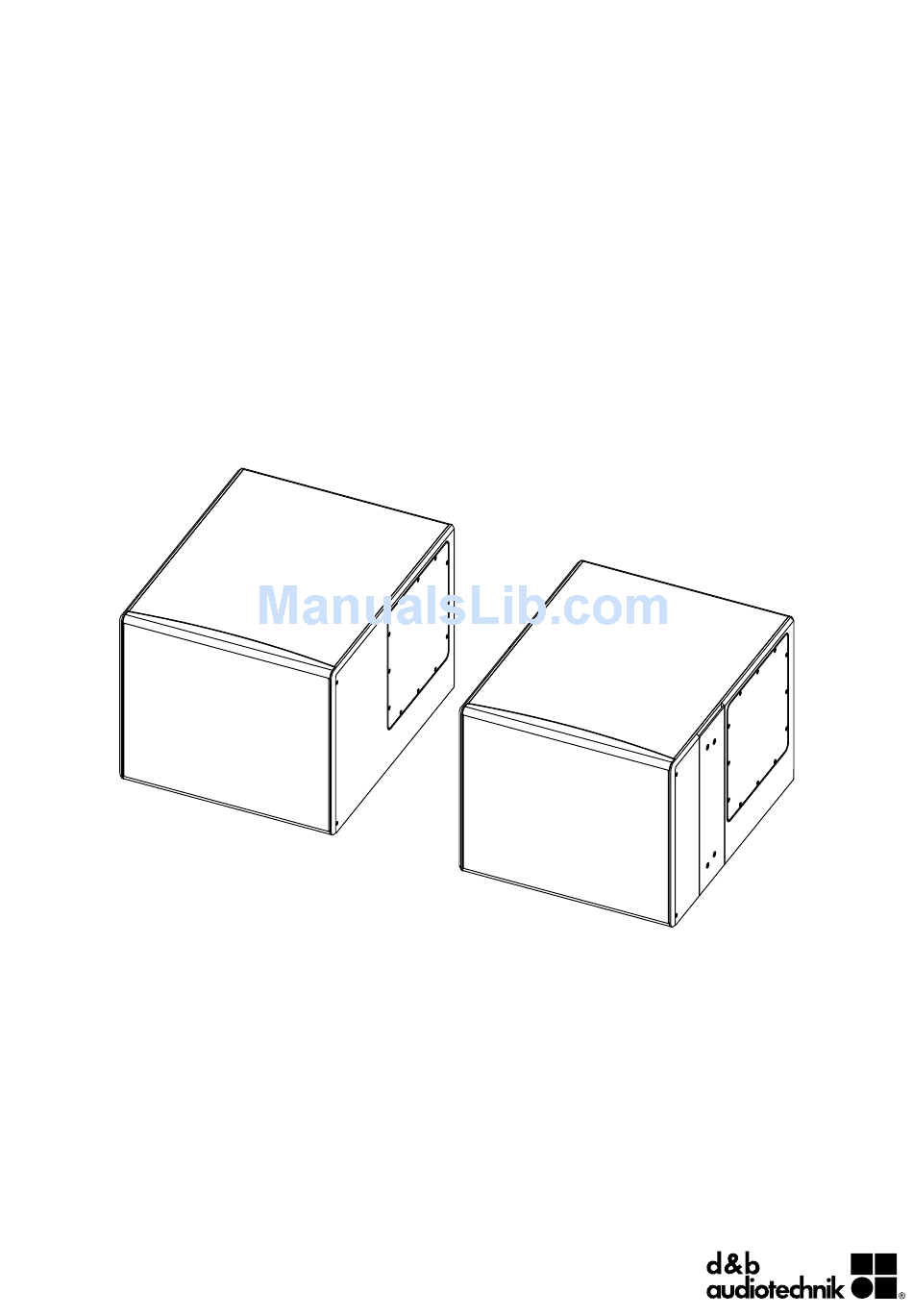

  • Page 1 27S-SUB/27A-SUB Manual (1.2 EN)

  • Page 2: General Information

    General information 27S-SUB/27A-SUB Manual Version: 1.2 EN, 12/2011, D2614.EN .01 Copyright © 2011 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new customer.

  • Page 3: Table Of Contents

    27S-SUB/27A-SUB loudspeaker....... 5 2.1. Product description............5 2.2. Connections..............6 2.3. Operation..............7 2.3.1. Controller settings............ 7 2.4. Technical specifications..........8 Manufacturer's Declarations........9 3.1. EU conformity of loudspeakers (CE symbol)..... 9 3.2. WEEE Declaration (Disposal)........9 d&b 27S-SUB/27A-SUB Manual (1.2 EN)

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b 27S-SUB/27A-SUB Manual (1.2 EN)

  • Page 5: S-Sub/27A-Sub Loudspeaker

    15 cm (0.5 ft). 27S-SUB rigging components The 27S-SUB side panels are each equipped with a pair of M10 threads to accept the Z5410 Horizontal bracket 18S/27S. The threaded inserts are covered by dummy caps in cabinet color. The caps must be removed before mounting any accessories.

  • Page 6: Connections

    Brown (+) Blue (–) Fixed cable connection The 27S-SUB and 27A-SUB loudspeakers are each supplied with a cover plate [1] and a rubber grommet feed through [2]. For indoor operation, these items can be used to hide the connector panel, if required. For unprotected outdoor operation, the connector panel must be covered, i.e.

  • Page 7: Operation

    TOP/SUB" mode. For combinations with full range systems fed by a single 4-wire cable "Mix TOP/SUB" mode must be selected. Up to a total of two 27S-SUB or 27A-SUB loudspeakers can be driven by each channel of the D6 or D12 amplifiers.

  • Page 8: Technical Specifications

    (AWG 13), 5.5 m (18 ft) Pin assignment NL4: 2+/2– Fixed cable (PG): brown + / blue – Weight 41 kg (90 lb) Fig. 9: 27A-SUB cabinet dimensions in mm [inch] Fig. 8: 27S-SUB cabinet dimensions in mm [inch] d&b 27S-SUB/27A-SUB Manual (1.2 EN)

  • Page 9: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b 27S-SUB/27A-SUB Manual (1.2 EN)
