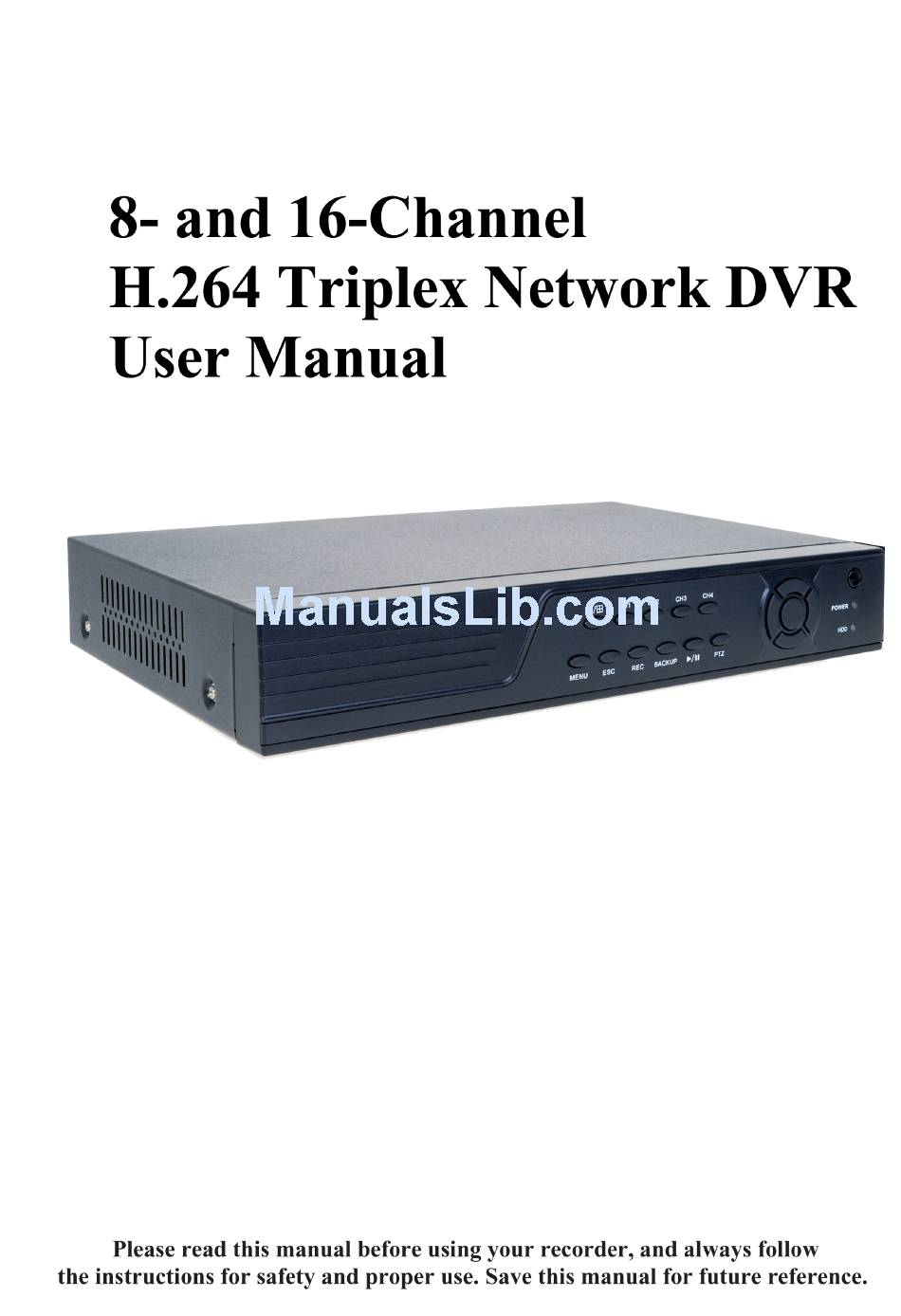

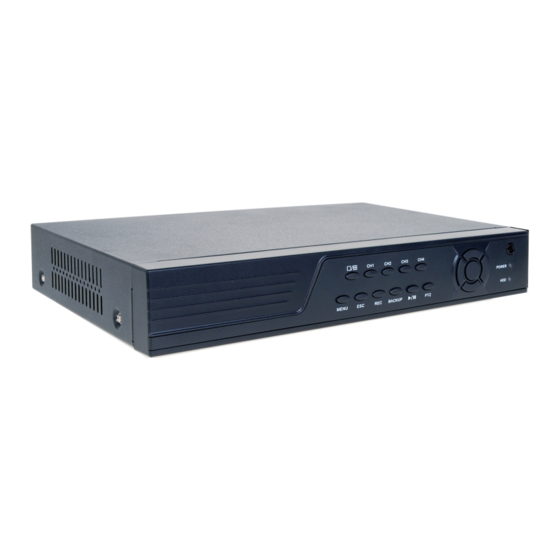

Super Circuits DMR81U User Manual

8- and 16- channel h.264 triplex network dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMR81U and is the answer not in the manual?

Questions and answers

Related Manuals for Super Circuits DMR81U

Summary of Contents for Super Circuits DMR81U

  • Page 2 CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a Class “A”...

  • Page 3: Limitation Of Liability

    LIMITATION OF LIABILITY THIS PUBLICATION IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTIBILITY, FITNESS FOR ANY PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF THE THIRD PARTY’S RIGHT. THIS PUBLICATION COULD INCLUDE TECHNICAL INACCURACIES OR TYPOGRAPHICAL ERRORS.
  • Page 4 PRECAUTIONS Please refer all work related to the installation of this product to qualified service personnel or system installers. Do not operate the appliance beyond its specified temperature, humidity or power source ratings. Use the appliance at temperatures between C (32 F) and hum idity C ~ +45 F ~ 113...

  • Page 5: Table Of Contents

    Table of Content 0.Quick Reference to Start this DVR························································ 1.Product Overview···················································································· 1.1Features······························································································· 2. Panels And Remote Controller······························································ 2.1 Front Panel························································································· 2.2 Back Panel························································································· 2.3 Remote Controller············································································· 3. Hardware Installations··········································································· 3.1 Basic Connections·············································································· 3.2 Hard Disk and Internal DVD Burner Install···································· 3.3 PTZ Control Connections··································································...
  • Page 6 5.4.7 Privacy Mask(Mosaic)······························································ 5.4.8 Motion, Video Lost and Channel Name(Video-Advanced Setting)································································································ 5.5 Net Setting························································································· 5.5.1 Network(Static IP/DHCP)························································· 5.5.2 Http Port····················································································· 5.5.3 Command Port··········································································· 5.5.4 Media Port·················································································· 5.5.5 PPPoE/DDNS(Net-Second Page)·············································· 5.5.6 E-Mail Server············································································· 5.6 Alarm Input/Output Setting ······························································ 5.6.1 Alarm Input Channel·································································· 5.6.2 Alarm Input Type·······································································...

  • Page 7: Quick Reference To Start This Dvr

    0. Quick Reference to Start this DVR Please Refer to the Manual inside the CD for details, the hard copy is only for reference Please refer to Appendix E– What is inside the DVR package Appendix F– Change Notice for details. Please refer to Before Turning On The System Please install SATA HDD in the Hard Disk Tray.

  • Page 8: Basic Operations

    【Formatting】to start HDD format.. Change Language, Time, NTSC/PAL, Record Resolution, Password, User Auority : MENU(Setting) →<System> Setup PTZ: MENU(Setting) →<Camera> Setup Network: MENU(Setting) →<Net> →<Network> Static IP/DHCP, or MENU(Setting) →<Net> →<Next Page> for PPPoE/DDNS Change Network Port: MENU(Setting) →<Net> →<Network> for Http/Command/Media Ports, MENU(Setting) →<Net>...

  • Page 9: Product Overview

    1. Product Overview 1.1 Features Model 8 Channel 16 Channel Video Format PAL/NSTC Video Compression H.264 Baseline Compression Video Input BNC 8 Input / 1 Output BNC 16 Input / 1 Output BNC x 1 and VGA(maximum 1920 x 1080 resolution) Video Main Output display simultaneously Call(SPOT) Out...
  • Page 11 3. ESC Exit window or switch the tool bar(main menu) and status bar 4. REC Start or Stop manual record function. 5. Backup Open video search and backup menu 6. Play/Pause ( Open video search and playback menu. Press to play/pause playback when activated 7.

  • Page 13: Remote Controller

    Support PTZ camera control 16CH DVR: Alarm Input Connectors (ALARM IN 1-8, Ground, 9-16, Ground) Connect to external sensor device Alarm Output Connectors (ALARM OUT 1+, 1-, 2+, 2-, 3+, 3-, 4+, 4-) Connect to external sensor device RS-422 Connector (TX+, TX-, RX+, RX-) RS-485 Connector (TX+, TX-) Support PTZ camera control 10.

  • Page 14: Hardware Installations

    Press this button to search and play the recorded images, or pause the playback. Fast Forward Button ( Press this button for fast forward playback. Fast Backward Button ( Press this button for fast backward playback. 10. Function Key(FN) Start time and Stop time setting of playback or back up in schedule record(Chapter 4.5 Video Playback), or 5.4.6 Motion/5.4.7 Privacy Mask setting(Mosaic)

  • Page 15: Hard Disk And Internal Dvd Burner Install

    3.2 Hard Disk and internal DVD Burner Install HDD must be formatted by DVR system before it can be used to record. PS. Do not format HDD by PC, it will cause incompatibility. Please refer to Section 4.3 Format HDD to format the HDD. There are u sually p ower cable and data cable with the DVD...

  • Page 16: Power-On Dvr And Quck Start

    4. Power-on DVR and Quick Start Power-on the DVR and wait for system program loading. The DVR will buzz and “NO Hard Disk” appears when no hard disk installed in DVR. First window will request to select user account and password to operate DVR system. Default password of Admin is [888888] User is [666666] Status Bar Tool Bar...

  • Page 17: Live View Screen(Status Bar)

    DVR system status bar at the bottom of the screen. Right-click mouse key or press 【Enter】at front panel will open【Tools Bar】for system setting and operating. 4.1 Live view screen(Status Bar) Single Channel display When in 4/9/16 split view modes, the window with highlight green border is the current selected one.

  • Page 18: Main Menu(Tools Bar)

    4.2 Main Menu(Tools Bar) Right click mouse or press 【Enter】 button in preview mode, the Tool Bar shown as below will appear: : Hide the tool bar. : System configuration : Manual record : Search, playback and backup record files : PTZ operation : Cancel alarm notification.

  • Page 19: Format Hdd

    ：To reduce or increase screen in vertical direction. 、 ：To reduce or increase screen in horizontal direction. 、 ：To move the screen up, down, left, right 、 、 、 ：To zoom out the screen to largest and show in central. 4.3 Format HDD Login DVR system as【Admin】account.

  • Page 20: Video Record

    4.4 Video Record There are two methods to precede record in DVR, manual record and schedule record. If the record schedule is conflict with The priority of manual record is higher than schedule. manual record, the manual record will be processed firstly until the manual record being canceled. Record types include “common recording”...
  • Page 21 The video recorded manually is named “common recording” Schedule Record Please select <Tool Bar> → < Setting > → <Record> → < Record Schedule> to set. The setting screen is shown as the figure below: ① ． The current recording channel number ②...

  • Page 22: Video Playback

    4.5 Video Playback Specify the date/time and channel number by selecting <Tool Bar>→<Record Search>. The searching results will be list on the screen in responding different colors so as to distinguish different record types. Date & time search by Panel or remote control In order to playback a certain vi deo feed from a particular camera, you first need to indicate what time and which camera you wish to receive this information from.
  • Page 23 depending on the type of the recording (Blu e: common recording, Green: m otion detection triggered recording, Red: alarm triggered recording, Grey: manually made recording). After all settings, move highlight icon to Play using 【 】,【 】 buttons, and press 【Enter】 button to start playing.

  • Page 24: Video Backup

    4.6 Video Backup Select <Tool Bar>→<Record Search> to search, backup and playback the specific record files you needs. Set the start time and stop time as describe in 4.5 Video Playback - 23 -...

  • Page 25: Play Backup Video On Pc

    Click [Backup] to enter into the backup screen. System will detect all the backup devices available and display them. Backup device can use USB flash drive, USB portable HDD and USB/ Internal DVD Burner. Only support FAT32 file system for USB flash and HDD Please select the suitable device and record type according to requirement first, and click [Backup] to start save audio/video.
  • Page 26 Close ○ 2 Speed ○ 3 Zoom ○ 5 Focus ○ 4 Iris More menu ○ ○ 1 Direction 6 Auxiliary ○ 7 Preset ⑧ Cruise (Sequence) ⑨ Track Internet explorer web browser Operate NO. Name Description Click the arrow icons to control direction of PTZ.
  • Page 27 value. 3. Click on the set button call preset: 1. Select the preset number you want to call. 2. Click on the go-to button Clear/reset preset: Select the preset number you want to clear/reset. Click on the clear button Cruise is a running r oute of cam era that passes through multiple presets.

  • Page 28: Dvr Setting

    5. DVR Setting 5.1 Menu Tree & Operate - 27 -...
  • Page 29 General Operations Press 【MENU】 button to enter into system setting screen. Press 【●】 button to start/stop recording manually. Press 【 ∥】 button to play record file. Press【PTZ】 button to enter into PTZ control screen. Menu Selection The highlight menu is the current active one. User can move highlight icon to the menu needed using 】,【...

  • Page 30: System Setting

    5.2 System Setting 5.2.1 Language Change DVR menu text and OSD language depend upon your requirement. Take effect immediately ** 5.2.2 Video Standard Change DVR and camera video system, NTSC or PAL system. Take effect after being saved. ** 5.2.3 VGA Setting Switch different VGA output resolution, there are 800x600@60Hz, 1024x768@60Hz 1280x1024@60Hz, 1440x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@60Hz Please set up according to your LCD spec., screen will be blurred if over spec., and you have to...

  • Page 31: Password Setting And What If Forgotten

    5.2.6 Password Setting and what if forgotten Choose any account to change its password (password is only digital) Default password of Admin is [888888] User is [666666] If password forgotten, turn off the machine, open this DVR case, find the JP15 jumper, it is near the faceplate;...

  • Page 32: Create/Delete User Account, Assign Its Authorities, Set Up Seq

    5.2.8 Create/Delete User Account, assign its authorities, set up SEQ Display(Preview Cruise), Lock Camera and Spot Setting: Click “Advanced Setting” of “System”, enter the following setup: Add User Account Enter “ADD USER”o add user account, most 7 users accounts can be produced, and there will be warning message if exceed.
  • Page 33 Authority Manage Operation of DVR for “User” account can be defined by system. There are two conditions to apply restriction, Local operation and Remote access. The user accounts are not allowed to operate DVR setting. Enter “Authority Manage”, choose User account, and assign its authorities. SEQ Display(Preview Cruise) Set up the SEQ display (Cruise Way) for 8CH(1/4/9CH) and 16CH(1/4/9/16CH), and the time interval(Cruise Way) in seconds between them, also choose the channels for Preview Cruise...

  • Page 34: Record Setting

    DVR ID NUMBER It is future growth, to set up the same ID number with RS422 Keyboard if you want to control DVR from keyboard. Lock Cameras(Cover Cameras) Administrator [Admin] can cover cameras that user accounts can not see locally and remotely. SPOT SETTING There are at most 32 sequential display procedures to look at the individual channel through call out...

  • Page 35: Video Channel

    5.3.1 Video Channel Select channel number for apply record setting. Select [ALL] for apply to all channels. 5.3.2 Record Schedule The current recording channel number ① ． The record schedule ② ． Description of record type ③ ． no record (white ): No recording during this time common record (blue ): Recording always...

  • Page 36: Video Qaulity

    When motion detection & alarm recording is selected, the motion detection sensitivity and area should be set ahead. Please refer to 5.4.6 Motion Detection Settings for details. When alarm recording is selected, the alarm triggering settings should be set ahead. Please refer to 5.6.3 Event Handling for details;...

  • Page 37: Video Setting

    5.4 Video Setting 5.4.1 Camera Channel Select camera channel for apply camera setting. Select [ALL] for apply to all channels. 5.4.2 PTZ Protocol Select PTZ device protocol. Support CLT-618, JY2000, Philip, Pelco-D, Pelco-P, Panasonic, Samsung, SYYT, TD500, Tiandy, VIDO, VTS, YAAN, Yiboer and etc. - 36 -...

  • Page 38: Ptz Buad Rate

    5.4.3 PTZ Baud Rate Select PTZ device baud rate. Support 1200, 2400, 4800, 9600. 5.4.4 PTZ ID Select PTZ device ID from 0~255. 5.4.5 Color Setting Adjust camera color attribute, by default the value is 8. Brightness: 1 ~ 16 Contrast: 1 ~ 16 Hue: 1 ~ 16 Saturation: 1 ~ 16...

  • Page 39: Motion, Video Lost And Channel Name(Video-Advanced Setting)

    To cancel the privacy region, by use mouse/ left-click, or press (faceplate button), or press [FN] (remote control) to move to the privacy region, and press [ECS] or mouse/right-click to confirm; by mouse right-click or press [ESC] again to finish the setting and return back to manual.

  • Page 40: Net Setting

    Alarm Out: Set the Alarm output enable Buzzer: Set the internal Buzzer enable E-mail: Send E-mail with Snapshot picture(please refer to 5.5.6 E-mail Server about how to set up the E-mail address list) UPLOAD: upload these events message to IE or CMS server, to be displayed at the top right corner Motion Detect ideo Loss...

  • Page 41: Http Port

    5.5.2 Http Port By default is port:80, user can specify different port number. 5.5.3 Command Port By default is port:5050, user can specify different port number. 5.5.4 Media Port By default is port:6050, user can specify different port number. If DVR installed behind a Router to share a single public IP address. Be sure to configure the “Port Forwarding”...
  • Page 42 DDNS Click 〖>>〗to open sub window and input DDNS account and password from DDNS Service Provider. User must apply DDNS service account at first. update.ods.org www.easydns.com www.justlinux.com www.dyns.cx www.hn.org www.zoneedit.com members.3322.org embers.3322.org(static) members.dyndns.org embers.dyndns.org(static) www.EZ-IP.net www.penguinpowered.com members.dhs.org cgi.tzo.com Auto Register DVR can configure to automatically register to CMS, input CMS Server IP address, Server Port: 8003(default) and register time interval in seconds(register to CMS server if failed);...

  • Page 43: E-Mail Server

    File Sharing Check to activate files sharing function, then able to visit video files in DVR HDD vi network neighborhood. How to visit shared files: Double click network neighborhood, input \\ IP address, such as \\192.168.10.220 , to enter the login page, type in the super authority “Admin”...

  • Page 44: Alarm Input/Output Setting

    field and [ ADD] it into the list of recipients. You can [ VIEW] the list of recipie nts in th e Email to list, where you can delete if no need any m ore. [SSL] option is necessary if you use Gmail.

  • Page 45: Alarm Input Type

    5.6.2 Alarm Input Type The alarm input attribution includes N/O. and N/C. Each camera has one input pin on Terminal Block at the real panel. User must use voltage output type sensor to connect alarm input interface. Sensor device output pin connect to DVR’s input pin (1~4, or 1 ~ 8, 9~16 pin) POSITIVE (+) Sensor device output...

  • Page 46: Alarm Setting(Schedule), Zoom Out And Hdd Full Actions

    set up the E-mail address list) Note1: if user wants to set alarm triggered record, please set the record schedule first at “Record Schedule”. Note2: if user wants to set alarm triggered PTZ, please select the channel number first, and then to set (only preset 1 can be selected) Note3: Event handling sound / report to alarm center need to be set in IE explorer.

  • Page 47: Maintenance

    Alarm Out: Set the Alarm output enabled Buzzer: Set the internal Buzzer enable Upload: upload these events message to IE or CMS server, to be displayed at the top right corner E-mail: Send E-mail with Snapshot picture(please refer to 5.5.6 E-mail Server about how to set up the E-mail address list) 5.7 Maintenance 5.7.1 Log View...

  • Page 48: Software Upgrade

    Note: The maxim um numb er of logs sup ported curr ently is 30 00. T he storag e mode a dopts o verwrite mod e: continuously overwrite the oldest data when the database is full. 5.7.2 Software Upgrade The upgrade modes supported now are USB & IE Remote Software: USB：Please make sure the USB device is connected correctly and the upgrade applications have already being copied into USB root directory.

  • Page 49: Hdd Capacity

    5.7.4 HDD Capacity Show DVR current HDD capacity status. 5.7.5 Hardware Version Show DVR current hardware version. 5.7.6 Software Version Show DVR current software version. 5.7.7 Software Release Date Show DVR current software release date. 5.8 Save Setting 5.8.1 Save & Exit Save all setting and exit menu.

  • Page 50: Web Browser Operation(Ie Browser Only)

    6. Web Browser Operation (IE Browser only) 6.1 Enable Download Un-singed ActiveX Control User’s computer need download ActiveX components for web access at the first time connect to DVR. If user’s Internet explorer prohibits the download action(the DVR software is unsigned) then please manually enable the download of un-signed ActiveX in IE.

  • Page 51: Web Browser Main Screen

    6.3 Web Browser Main Screen Open IE browser, input IP address of the DVR, the Login windows will appear. Check “Automation Open All Preview” to watch all cameras after login. Camera view window: Full Screen /1 camera / 4 cameras / 8 cameras cameras /16 cameras...

  • Page 52: Alarm Notification

    Camera view is idle if not opened Available Camera list: double right-click the to open the channel if closed Tools Bar The description of icons from left to right is: Parameters: configure device parameters(set up), please refer to 6.5 Device Parameters Settings Talk-back: use channel 1 only, please open PC microphone and speakers, and DVR need to connect active microphone/speaker...

  • Page 53: Device Parameters Setting

    When alarms of video loss with uploading to ce nter occu r, the alarm notification with the alarm channel num ber contained such as “ Device alarm: video loss, channel x” will be displayed in the right up side of the main screen. 6.5 Device Parameters Settings Click , the Device Parameters will appear...
  • Page 54 Channel Camera setting, Record setting – please refer to 5.3 Record Setting Camera Setting as well Channel Camera setting, Sub Bitstream, Subcode – please refer to 5.3.8 Dual Streaming for Network(Record- Advanced Setting) as well For limited upload bandwidth of internet that DVRs connect, or limited streaming capability of some mobile phone/PDA, you have to adjust bandwidth of DVR to internet: [Enable Subcode] ->[Sub Bitstream] ->[Video Bitrate] - 53 -...
  • Page 55 Serial PTZ Setting - 54 -...
  • Page 56 Alarm alarm input / output setting Device Firmware upgrade , time synchronize and E-mail Notify setup - 55 -...
  • Page 57 User User account and authority setting State – HDD capacity, Channel and Network status - 56 -...

  • Page 58: Video Files Playback & Download

    6.6 Video Files Playback & Download 6.6.1 Video Files Playback Click , the playback screen will a ppear. It includes video file s search, playback and video files download. Video Files Search The file search part is on the right upper side of the screen, please set tar get, type, start tim e and end time there.

  • Page 59: Download Video Files

    left to right are as follows: ; Fast play option (The current speed Play ; Pause ; Stop ; Go to next frame of playing will be dou bled by each clic king. It includes : 2X, 4X, 8X, and 16X); Slow play option (The current speed of playin g will be half down by each clicking .

  • Page 60: Water Mark Verification

    6.6.4 Water Mark Verification All the record files for this DVR have watermark, but only MPEG4 format for verification. Select the “Local host” from Target, you will find the find the shown up in the files Windows: , click the , to select the MPEG4 file from your PC, which may comes from Network back up as Files, or USB back up from local DVR(Chapter 4.6 Video...

  • Page 61: G/3.5G Mobile Phone/Pda Support

    7. 3G/3.5G Mobile Phone/PDA Support To streaming from 3/3.5G mobile phone or PDA, you have to open the mobile port of DVR, the default setting is 7050, please refer to 5.5.5 PPPoE/DDNS(Net- Second Page] or IE Device Parameters Settings Server Network setting, video system For limited upload bandwidth of internet that DVRs connect, or limited streaming capability of some mobile phone/PDA, you have to adjust bandwidth of DVR to internet, please refer to 5.3.8 Dual Streaming for Network(Record- Advanced Setting)

  • Page 62: Nokia/Samsung/Lg Symbian S60

    Input user name 〖Admin〗and password. IP address of DVR and port:7050 for streaming data. Click ok to save the setting. In the main windows, click “connect” to login DVR and watch the steaming video from DVR. At the bottom is the PTZ control and picture snapshot.
  • Page 63 Click icon to connect DVR immediately, after login DVR successfully, user can watch the remote video from mobile phone. switch channel，click show another 4 channel list Control PTZ camera direction, Zoom, Focus. , Iris. Picture Snapshot. Exit QQEYE Mobile phone reference list: Nokia 5730 XpressMusic S60 3rd_FP2 11-Mar-09...

  • Page 64: 3.5G Iphone Series

    Nokia N80 S60 3rd_INIT 09-Nov-05 Nokia E70 S60 3rd_INIT 09-Oct-05 Nokia E61 S60 3rd_INIT 09-Oct-05 Nokia E60 S60 3rd_INIT 09-Oct-05 Nokia 3250 S60 3rd_INIT 13-Sep-05 Nokia N91 S60 3rd_INIT 14-Apr-05 Symbian OS S60 5 Mobile Phone – Nokia 5800XM, N97, 5230, 5802XM, 5530XM and x6 7.

  • Page 65: Blackberry

    7. 4 3G/3.5G Blackberry Series Make sure your mobile location is in good signal condition, and it is suggested to try the sub Bitstream from 32Kbps in the beginning stage because they depends upon your mobile service(3G or 3.5G), and BlackBerry model. Before doing the BlackBerry mobile software installation, please have your BlackBerry Desktop Manager software ready, and copy our software QQEye.alx/QQEys.cod to some directory in your PC;...

  • Page 66: Software Operation

    7.4.2 Software Operation After the successful download of QQeye.alx, click its icon to run QQeye.alx on your BlackBerry in download section The Main page If this is your first time setting BlackBerry remote view, or should you want to set the parameters, click to access the configure page [Configure] The Configure page...
  • Page 67 Record name: Input this setting name, which will be saved in the Record lists The Live page After the setting, go back to the main page, click to access the live page for live view [Live] Choose Channel：Switch the channel. ：...

  • Page 68: Appendix

    8. Appendix Appendix A-HDD Capacity/Recording Time Estimate 1) Calculate the maximum capacity of the build-in hard disk. Timing Recording: Step 1: Calculate the ma ximum cap acity of the hard disk nee ded in selected channel per ho ur, suppose as Si (MByte) (i is the channel number), and supp ose the bit rate of the chann el selected as D (Kbit/s).

  • Page 69: Appendix B- Compatible Hdd List

    Appendix B– Compatible HDD List The other brand or model, please test by yourselves Item Model Number Size(GB) Drive WD5001ABYS, WD5000AADS SATA WD5000AVVS, WD5000AVDS SATA WD7500AACS SATA WD10EADS, WD10EVDS, WD10EALS 1000 SATA WD15EADS 1500 SATA WD20EVDS, WD20EADS 2000 SATA HITACHI HDS721050CLA362 SATA HITACHI...

  • Page 70: Appendix E- What Is Inside The Dvr Package

    software/Symbian S60 3 /English/ 5. Symbian S60 5 mobile software: P2P_5Th_20090112.sis in the /Mobile Phone software/Symbian S60 5th 6. iPhone user manual in the /Mobile Phone software/iPhone 7. BlacKBerry user manual and software QQEye.alx/QQEye.cod in the /Mobile Phone software/BlackBerry * CMS software, CMS manual/DDNS setup and applying manual in the \CMS\ subdirectory Appendix E–...
