  • Page 1: Date: 2007/12/02 Ver

    Volume DVQ4CD-3 DMR8CD-3 DMR16CD-3 User Guide...
  • Page 2 S U P E R / C I R C U I T S DVQ-4CD-3, DMR8-CD3, DMR16CD3/ USER MANUAL © SUPER/CIRCUITS 11000 NORTH MOPAC EXPRESSWAY SUITE 300 Austin, TX 78759 Phone 800-335-9777 • Fax 866-2567-9777 Please read instructions thoroughly before operation and retain it for future reference The product specifications and information may be updated without notification.
  • Page 3 RISK OF EL ECTRIC SHOCK. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NON SERVICEABLE PARTS INSIDE PLEASE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL All the safety and operating instructions should be read before operation. Improper operation may cause permanent damage.

  • Page 4: Table Of Contents

    Table of Contents Date: 2007/12/02 VER: 1 PRODUCT OVERVIEW………………………………………………………….…...6 Features…………………………………………………………………………………………….……. 6 Package Includes…………………………………………………………………………………….…..6 Front & Rear Panel Description ………..………………………………………………………...….8 … • Front Panel Introduction……………………………………………………………………..…8 • Rear panel Introduction………………………………………………………………….…..11 Getting Started………………………………………………………………….…...14 Installation Guide……………………………………………………………………………….……….14 • DVR and Camera Installation……………………………………………………….…….…16 • DVR and Monitor Installation……………………………………………………….………..17 Basic Menu Setup………………………………………………………………...…18 Getting Started with Basic Menu Setup………………………………………………………….…...18 •...
  • Page 5 • Record in Alarm…………………………………………………………..51 • Record in Motion……………………………………………………..….….51 • Continuous Record……………………………………………………...….51 • Schedule Setup……………………………………………………………………………..…52 • Holiday Setup……………………………………………………….…………..…….….……54 • CD Backup………………………………………………………………………….……..…54 CD/ DVD Backup………………………………………………………………….…55 CD/ DVD Backup Player Software Installation…………………………………...56 • External Devices……………………………………………………………………….….…..60 TCP/IP Setup…………………………………………………………………..…….60 RS232C Setup……………………………………………………………………….62 PANTILT Setup………………………………………………………………………63 SPOT Setup……………………………………………………………………..…..64 AUDIO…………………………………………………………………………….….65 •...

  • Page 6: Product Overview

    Chapter Product Overview 1. Features DVQ 4 records 120 frames per second max using lowest resolution. DMR8/16 records 480 frames per second max using lowest resolution. Remote viewable via 10/100 Ethernet Easily backup hard drive data to DVR-R burner Selectable motion detection recording Instant search by time, alarm events, etc.
  • Page 7 DVR-1 Manual REMOTE Power cord Power Supply Package NOTE: Check the package to make sure that you receive all accessories which include the components shown above.

  • Page 8: Front & Rear Panel Description

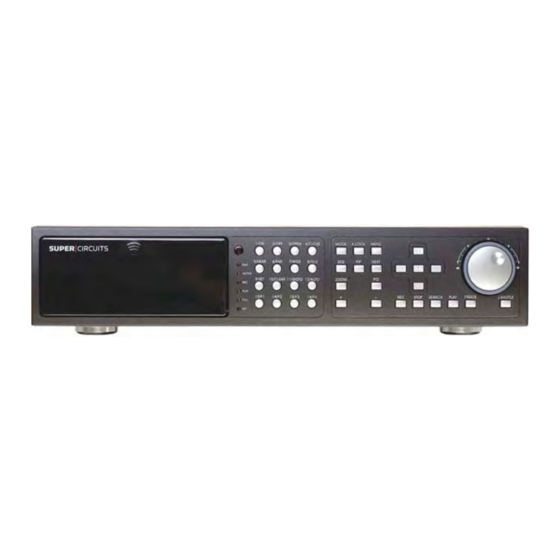

    Front & Rear Panel Description Front Panel Introduction **Special NOTE for line items 6 and 19** 1. DVD+R burner • Built-in DVD+R burner. 2. USB Port • Used to connect PC to DVR for firmware upgrade. • USB memory stick backup. 3.
  • Page 9 8. Arrow Keys & ENTER • Directions- Navigate the menu. • ENTER- Confirm the selected options. 9. Jog Shuttle • Use inner Jog shuttle control for frame by frame image display. Turn clockwise for forward and turn counter-clockwise for reverse. •...

  • Page 11: Rear Panel Introduction

    BACK PANEL INTRODUCTION 1. RS485, Relay Output, Sensor Input • RS485, for connection to PTZ cameras. • 16 sensor inputs and 1 relay output. 2. VGA Output • Connection to a VGA monitor or TFT LCD.

  • Page 12: Ir Remote Controller Introduction

    3. ETHERNET • LAN connection. 4. RS-232C • Use to connect to PC or other serial control devices. 5. 1~16 Camera Input/ LOOP Output • CAMERA IN- channels 1~16 camera input. • LOOP- channels 1~16 camera video out. 6. Monitor / SPOT Output •...
  • Page 13 6. SEARCH/-/+/NEXT • SEARCH - Open the search window in playback • [-]/[+] – Adjust options in set-up • NEXT- Go to the next PTZ command in PTZ mode. / Go to the next channel in full screen display/ Go to next page in split screen display. 7.

  • Page 14: Getting Started

    Chapter GETTING STARTED Installation Guide Camera and Monitor Installation This manual has been carefully written to help you assemble and configure your digital video recorder system for optimal performance. It’s easy to setup your digital video recorder just follow the instructions on pages 14 through 30 for your basic setup. If you have any comments questions about this manual, please feel free to call us at 800-335-9777.
  • Page 15 NOTE: Un-regulated power supplies are very common and will damage your cameras. 3. Connect each one of your cameras to your regulated power supply and cable assembly. Most cable assemblies are 100 ft long or more. You will see all types of cable configurations here is one example of a cable option below.

  • Page 16: Dvr And Camera Installation

    5. Connect the digital video recorder to cameras. DVR and Camera Installation...

  • Page 17: Dvr And Monitor Installation

    DVR and Monitor Installation DVR system diagram...

  • Page 18: Basic Menu Setup

    Chapter BASIC MENU SETUP GETTING STARTED with the BASIC MENU SETUP In this section we will cover basic menu settings to get you started and operational right away. Connect the AC Power Cord with Power Adapter and plug into an electrical AC outlet. Power switch is on the rear panel, turn the switch on.
  • Page 19 Before operating the digital video recorder you will need to set up the SYSTEM MENU within the DVR. Go into the MENU and run the FACTORY DEFAULT, CLEAR HARD DRIVE and change the SYSTEM TIME. 1. FACTORY DEFAULT 2. CLEAR HARD DRIVE 3.

  • Page 20: System Menu

    SYSTEM MENU 1. DISPLAY SETUP 2. CONFIGURATION 3. RECORD SETUP 4. BACK-UP 5. EXTERNAL DEVICE 6. FACTORY DEFAULT 7. LANGUAGE .4 Set FACTORY DEFAULT 4. Press UP and DOWN arrow keys and hit the ENTER key for selection. Move the cursor to FACTORY DEFAULT and hit the ENTER key.

  • Page 21: Clear Hdd

    5. Move the cursor to ALL and hit the ENTER key to turn all FACTORY Defaults ON. Move the cursor to RUN and press the ENTER key to execute the Factory Default. All options will turn to OFF. 6. Hit MENU Key to exit. 7.
  • Page 22 8. Select HDD SETUP hit the ENTER key, move the cursor to HDD CLEAR and hit the ENTER key. Enter a password, which at this time is blank (_________), just hit the ENTER key again. HHD CLEAR will show EMPTY. 9.

  • Page 23: Time/ Date Setup

    TIME/ DATE SETUP 11. From the main SYSTEM MENU select CONFIGURATION, go to TIME/DATE SETUP hit the ENTER key. The date and time set by the manufacturer maybe different from your time zone. It is very important to set up the system date and time before the DVR starts recording. Set the date and time by using direction buttons and [-] [+] button or Jog shuttle.

  • Page 24: Record In Motion

    • Date format- Asia/American/European Time format- 12 hours/24 hours Month format- English/Numeric 13. Use American, 12 hours/24 hours is optional, use English. 14. Move on to MOTION SETUP. Exit TIME/DATE SETUP and go to SYSTEM MENU. RECORD IN MOTION 15. Under SYSTEM MENU select REORD SETUP and hit the ENTER key. Select RECORD CONFIGURATION.
  • Page 25 Use the UP and DOWN arrow keys to select an item. Use the [+] and [-] keys to change the value. Set OVERWRITE to ON. When the hard drive is full, the system will overwrite the earliest recorded data. If the DVR has two hard drives, the overwriting starts from the Master drive.
  • Page 26 The QUALITY mode has 5 options. Option names can be different depending on DVR version. 8, 16 CHANNEL DMR. 4, 8, 16 CHANNEL DMR. 1. SUPER FINE 1. HYPER 2. FINE 2. SUPER 3. ENHANCED 3. HIGH 4. NORMAL 4. MID 5.
  • Page 27 If you like high quality video, then your choice would be 7.2 with a QUALITY at HYPER and an IPS set at 1/4. If you would like a better flowing video (closer to real time) then your choice would be 8.4 with QUALITY at LOW and an IPS set at 1/2. 4 Ch QUALITY High...
  • Page 28 EXTENDING YOUR RECORDING TIME We can extend the recording time by introducing a larger hard drive or increasing the RECORD IN MOTION parameters - 1/1, 1/2, 1/3, 1/4… to 1/999. The higher the denominator the longer period you can record. NOTE: You are not limited to the tables above;...
  • Page 29 SCHEDULE SETUP 20. Hit the ENTER key. 21. Hit the “–“ minus key. Your monitor screen should look like this, showing all M’s indicating motion detection. 22. If not press the MODE key.
  • Page 30 • MODE: Press MODE to select an editing mode. Continue till you see “MODE: ALL” at bottom of screen, then press [+] and [-] to select a recording mode M. Continue to press MENU to exit all menus at this time. We are done for now and your system should be up and running.

  • Page 31: Advance Menu Setup

    Chapter ADVANCE MENU SETUP SYSTEM MENU 1. DISPLAY SETUP • Includes SCREEN DISPLAY, MONITOR SETUP (VGA SETUP) 2. CONFIGURATION • HDD MANAGEMENT • TIME/DATE SETUP • CAMERA SETUP • INTERVAL SETUP • ALARM SETUP • BUZZER SETUP • PASSWORD SETUP •...

  • Page 32: Display Setup

    DISPLAY SETUP 1. SCREEN DISPLAY • Set up your screen display for Live and Playback mode. 2. MONITOR SETUP • Adjust the VGA display resolution and the monitor color.
  • Page 33 SCREEN DISPLAY UP DOWN arrow keys to select an item and press the ENTER key to select between LIVE and PLAY BACK. 1. LIVE Set up LIVE mode. TIME/DATE – Display the time and date. (ON) or (OFF) • • ICON DISPLAY - Display the cue icons on screen (ON) or hide (OFF).

  • Page 34: Monitor Setup

    MONITOR SETUP 1. VGA SETUP • Set up the VGA resolution. 2. COLOR BAR TEST • Adjust monitor colors with monitor controls. • VGA resolution setup: 1024*768/60HZ、800*600/60HZ、640*480/60HZ、 1024*768/75HZ、800*600/75HZ、640*480/75HZ...

  • Page 35: Configuration

    CONFIGURATION 1. HDD MANAGEMENT • Menu options. HDD SETUP (HDD Clear), and HDD INFORMATION. 2. TIME/DATE SETUP • Program the system date and time. 3. CAMERA SETUP • Menu options. CAMERA TITLE, CAMERA COLOR SETUP, CAMERA ACTIVE SETUP, and MOTION SETUP. 4.

  • Page 36: Hdd Management

    ※ Default password: ADMIN: blank (No default password. Press ENTER key directly to enter the system). You can change ADMIN password “See “PASSWORD SETUP” “to change your password. 9. SYSTEM INFORMATION • System information/ version of S/W and H/W, HDD model number, and CD-R model number.

  • Page 37: Time/ Date Setup

    2. HDD INFORMATION • Displays HDD (Master/Slave) information. TIME/ DATE SETUP 1. To setup TIME/ DATE SETUP go to SYSTEM MENU select CONFIGURATION, and go to TIME/DATE SETUP. Hit the ENTER key. The date and time set by the manufacturer maybe different from your time zone. It is very important to set up the system date and time before the DVR starts recording.

  • Page 38: Camera Setup

    NOTE: DO NOT change the date and time after the recording starts it may and cause playback errors. • Date format- Asia/American/European Time format- 12 hours/24 hours Month format- English/Numeric 2. Use American, Use 12 hours or 24 hours, use English. NOTE: We strongly suggest completing the following settings at the initial setup.
  • Page 39 1. CAMERA TITLE • Enter camera Title, max. 8 characters. Using Left or Right arrow keys [-][+] buttons to change value and press Enter. To return to the previous menu, press the MENU key. 2. CAMERA COLOR SETUP Adjust the image color: Use UP and DOWN to select an item and use [-] and [+] or Jog shuttle to adjust the values.

  • Page 40: Motion Setup

    1. STATUS • Display camera status: ACTIVE means video input status is normal, and LOSS means the video is lost. 2. LIVE • Set channel to display live video ON or OFF. 3. REC • Set channel to record video ON or OFF. 4.

  • Page 41: Motion Configuration

    MOTION CONFIGURATION 1. CHANNEL • Select channel for motion setup. 2. SENSITIVITY GRADE • Adjust motion detection sensitivity. 1 (LOW) ~ 4 (VERY HIGH) 3. MOTION DISPLAY TYPE Use MOTION DISPLAY TYPE to setup visual indicators to give you more visibility to help identify motion targets.
  • Page 42 4. RECORD DURATION • Set motion RECORD DURATION time. Motion continuously records through-out event occurrences, and last motion event. • Example: Motion RECORD DURATION is set for 10 seconds. DVR detects motion for 3 minutes. Result: The DVR will record for 3 minutes and 10 seconds. 5.
  • Page 43 4. BLOCK ON: Is a quick way to active cell blocks for motion detection. You should turn off all the cells by selecting ALL OFF and use the BLOCK ON function to activate the desired area for motion detection. 5. BLOCK OFF: This function is the opposite of the BLOCK ON function. You should turn on all the cells by selecting ALL ON and use the BLOCK OFF function to deactivate the desired area.
  • Page 44 Note: Don’t forget to go to RECORD SETUP > SCHEDULE SETUP and change record mode to MOTION to activate the motion settings. SCHEDULE SETUP 20. Hit the ENTER key. 1. Hit the – minus key. Your monitor screen should look like this, showing the character M’s indicating motion detection.
  • Page 45 2. If not press the Mode key. • MODE: Press MODE to select an editing mode. Continue till you see MODE : ALL at bottom of screen, then press [+] and [-] to select a recording mode M.

  • Page 46: Interval Setup

    INTERVAL SETUP 1. SWITCH INTERVAL • FULL- Full Screen Sequence Interval setup. (Range: 1~99 SEC). Set up the time to display each video sequence before moving on to next camera display. • PIP- Picture in Picture, the sub- picture’s sequence interval setup. (Range:1~99 SEC) PIP VIEW In full screen mode, press “PIP”...

  • Page 47: Alarm Setup

    ALARM SETUP 1. CHANNEL • Use [+] and [-] to select a channel. 2. ALARM INPUT Set up the Alarm Input type. • N.C- when the alarm is triggered, the switch is closed (ON). • N.O- when the alarm is triggered, the switch is opened (OFF).

  • Page 48: Buzzer Setup

    BUZZER SETUP Select alarm conditions to trigger BUZZER. Use UP and DOWN Keys to select trigger and press ENTER to turn ON or OFF the selection. 1. ALL • Select ALL alarm conditions to trigger BUZZER. Turn BUZZER ON or OFF. 2.

  • Page 49: System Information

    NOTE: You have three user levels. SYSTEM INFORMATION Displays system information and status. 1. S/W VERSION Displays the firmware version 2. H/W VERSION Displays the PCB version 3. PRODUCT ID Displays the product ID number 4. MASTER Displays MASTER HDD information. 5.

  • Page 50: Record Setup

    RECORD SETUP 1. RECORD CONFIGURATION • Set up overwrite, recording mode, picture quality, resolution, and recording speed. 2. SCHEDULE SETUP • Program the recording schedule. 3. HOLIDAY SETUP • Set up holidays, max. 100 days. RECORD CONFIGURATION Use UP and DOWN arrow keys to select an item.

  • Page 51: Quality

    3. QUALITY Set up the recording picture quality • Quality level: 4CH/ 8CH and 16CH: Low / Mid / High / Super / Hyper Some models: 8CH and 16CH: Basic / Normal / Enhanced / Fine / Super Fine. 4. RESOLUTION By lowering the resolution, you increase the recording speed but reduce the picture size.

  • Page 52: Schedule Setup

    NOTE: 1. To increase recording time lower your recording speed, this will reduce your IPS (Images per second). 2. When using QUAD Mode your recording speed are limited to 1/1, 1/2, and 1/3. 3. All active cameras share the recording speed. Turn off all unused camera channels to maximize your video recording quality and performance.
  • Page 53 SCHEDULE SETUP Editing modes: • TIME CELL: Program the schedule at a two-hour interval. • TIME ZONE: Program the schedule by time zone. There are 12 Time Zones adding up to 24 hours. A time zone is a two-hour interval. •...

  • Page 54: Holiday Setup

    2. If the motion settings are too sensitive, you may want to lower the sensitivity level and define a motion detection area for more accuracy. If the motion is not triggered, you may want to increase the sensitivity level, clear the motion mask, or enlarge the detection area. HOLIDAY SETUP Set up holidays.

  • Page 55: Cd/ Dvd Backup

    CD/DVD SETUP 1. HDD • Displays HDD start and end recording time and date. 2. CD/DVD • Select a starting date and time for backup. Press the ENTER key and use the and DOWN arrow keys to move the cursor. Use [+] [-] or J.Shuttle to change the value. Press the ENTER key and then press the down arrow key and go to SIZE to choose a backup size.

  • Page 56: Cd Backup

    ※BACKING UP, takes a little time to load, please wait till CD ejects. 4. BURN • Move the cursor to BURN and press the ENTER key to start the backup. System will save the file in AJP format. You will have to install the BACKUP PLAYER software to playback the backup file on your PC.
  • Page 57 CD/DVD Backup Player software interface 1. Display screen: To display the backup image 2. Time display: To indicate the current time 3. Information window: To indicate the CD’s start/end time and date, and the backup video quality (resolution). 4. Speed Adjustment: Select a playback speed (2X, 4X, 8X,16X, 32X, 64X)and press Fast Rewind and Fast Forward.
  • Page 58 7. Function button: 8. Channel selection: To select a single channel from CH1 to CH16 9. AVI SAVE: To save the backup video to AVI format 10. EDIT: To open the dialog window to save a single frame as a JPEG file or print out. 11.
  • Page 59 Save JPG file 1. Click EDIT during playback to save image in FULL SCREEN MODE. 2. Select SAVE to save the picture as JPEG file or select PRINT to print the image. Save as AVI file During playback, you can save the backup file in AVI format. 1.

  • Page 60: External Devices

    EXTERNAL DEVICES 1. TCP/IP SETUP • Set up TCP/IP settings. 2. RS232C SETUP • Set up RS232 port settings. 3. PANTILT SETUP • Set up PTZ control. 4. SPOT MONITOR SETUP • Set up the oup put time. 5. AUDIO SETUP •...
  • Page 61 1. DDNS ON/OFF • Press the ENTER key to turn DDNS ON or OFF. 2. DNS SERVER • Set up DNS Server’s IP address. Press the ENTER key to enter the DNS SERVER. Use UP and DOWN arrow keys to move the cursor and [+] [-] or J.Shuttle to change the value.

  • Page 62: Rs232C Setup

    DHCP SETUP 1. DHCP MODE • Press the ENTER key to switch DHCP to AUTOMATIC. 2. DETECT IP • Press the ENTER key to start. Press MENU to cancel the detection. RS232C SETUP Set RS232 SETUP to communicate with serial devices.

  • Page 63: Pantilt Setup

    PANTILT SETUP COMMAND SETUP Press UP and DOWN arrow keys to select and [+] / [-] to change the value. 1. CHANNEL • Select PTZ channel. 2. MODEL • Select PTZ protocol. 3. PTZ ID • Select PTZ ID. 4. BUADRATE •...

  • Page 64: Spot Setup

    7. LENGTH • Set up the segment for PTZ control code. 8. CODE • PTZ CMD control code. Please refer to PTZ Camera Control for more details. SPEED SETUP Press UP and DOWN keys to select and [+] / [-] to change the value. 1.

  • Page 65: Audio

    AUDIO 1. Channel • Channel your working with. 2. Record • To set the record on/ off. 3. Play • To set the audio on / off in playback mode. Note: the DVR will not play or record AUDIO under the following conditions: 1.

  • Page 66: Factory Default

    FACTORY DEFAULT Press to “select” and ENTER for selection. Move the cursor to FACTORY DEFAULT and hit ENTER. Move the cursor to ALL and hit ENTER to turn all ON. Move the cursor to RUN and press ENTER to execute the Factory Default.

  • Page 67: Language

    1. ALL • Set all the settings back to factory default. FACTORY DEFAULT 2. SCREEN DISPLAY SCREEN DISPLAY • CAMERA COOLR SETUP Set”SCREEN DISPLAY” back to factory default. MOTION SETUP PANTILT SETUP 3. CAMERA COOLR SETUP SCHEDULE SETUP • Set”CAMERA COLOR SETUP” back to factory default. CONFIGUATION 4.

  • Page 68: Advance Hardware Installations

    Chapter ADVANCE HARDWARE INSTALLATIONS SPOT SPOT: Second monitor output. Once alarm or motion is triggered, it will automatically pop-up or display in sequence according to the set up.

  • Page 69: Loop

    LOOP To monitor a single channel, connect the “loop out” of the corresponding channel to a monitor. To record a specific channel, connect the “loop out” of the corresponding channel to a DVR, VCR, or recording device.

  • Page 70: Sensor And Alarm Installation

    SENSOR AND ALARM INSTALLATION Input & Output 4 Channel 8 Channel 16 Channel 1. D1~D16 Alarm Input/GND for Location • 16 Sensor inputs, for sensor input installation 2. Relay Output NO/NC/COM • The application of relay output is NO+COM + NC+COM...

  • Page 71: Serial Port Setup

    Sensor installation • Alarm will be triggered once one (or more than one) alarm input (D1~D16) causes short circuit or open circuit with GND. Relay output installation • Alarm output can be NO or NC. • NO-COM: the NO and COM terminals are open-circuit, and closed-circuit when alarm triggered.
  • Page 72 To connect DVR to a PC, users must use a twisted RS232 cable.

  • Page 73: Ptz Camera Installation And Operations

    PTZ CAMERA INSTALLATION & OPERATION • Connect the PTZ D+ to the DVR D+, PTZ D- to DVR D-. 4 Channel 8 Channel 16 Channel...

  • Page 74: Ptz Camera Operation

    See PTZ camera manufacturer user manual for baud rate, protocol settings and camera command settings. Enter the baud rate, protocol, and PTZ camera address suggested by the manufacturer in PTZ setup. To set PTZ menu settings go to: SYSTEM MENU > EXTERNAL DEVICE > PANTILT SETUP > COMMAND SETUP 1.

  • Page 75: Microphone And Speaker Installation

    Displays PTZ command; press the ENTER key to send control code to PTZ. PTZ command set using MENU and NEXT keys: 1. ZOOM OUT or IN. 2. FOCUS FAR, NEAR or AUTO 3. IRIS OPEN, CLOSED or AUTO 4. AUTO SCAN 5.

  • Page 76: Hdd Installation

    • Connect a speaker to the audio output, to have audio playback sound. HDD INSTALLATION Set HDD in MASTER mode if it is the only HDD in system. Set HDD in Slave mode if it is a secondary HDD. Refer to the HDD manual for jumper settings. One HDD installation Insert the HDD shown in 1, and make sure the HDD is set to “MASTER”.

  • Page 77: Operation

    Chapter OPERATION DISPLAY CONFIGURATION 1. Time • Current system time or the recorded time in playback 2. Date • Current system date or the recorded date in playback 3. Camera title • Camera title of the displayed channel. Camera title can be modified in SYSTEM MENU>CONFIGURATION>CAMERA SETUP >...
  • Page 78 4. Record mode • The current recording mode alarm motion continuous 5. Record resolution • 50IPS@720X288/60IPS@720X240 • 100IPS@360X288/120IPS@360X240 • 200IPS@360X144/480IPS@360X120 • 8/16CH: 50IPS@720X288/60IPS@720X240 • 8/16CH: 100IPS@360X288/120IPS@360X240 • 8/16CH: 200IPS@360X144/480IPS@360X120 6. Quality • To show record quality LOW ~ HYPER 7. Network LED •...

  • Page 79: Screen Switch

    SCREEN SWITCH • Press the number button to switch to the corresponding channel for its full screen view • Mode: press to switch into different split modes: 4/6/8/9/13/16 splits. Press +/- button to adjust the order. PIP VIEW FREEZE VIEW Freeze in split mode •...

  • Page 80: View In Sequence

    VIEW IN SEQUENCE • Sequence is only functional in full screen. • Press SEQ for 2~3 seconds and enter sequence mode. Press SEQ for 2~3 seconds again to cancel it. Sequence order A ＞ B ＞ C ＞ D …＞A ＞ B … •...

  • Page 81: Key Lock

    KEY-LOCK After pressing “K. LOCK “, LOCK status will appear and disable all front panel controls. • To unlock, press and hold K.LOCK and enter Admin password. SWITCH AUDIO CHANNEL Press AUDIO you will see • . The number indicates the current audio output channel.

  • Page 82: Record

    RECORD • Emergency record (Red): press REC to start emergency record in continuous record mode, best resolution and quality. Schedule record (Green): record setup schedule. (White): record schedule is set to “not record”. Stop record • Record mode: Alarm record: records when alarm is triggered. Motion record: records when motion is detected.

  • Page 83: Playback

    PLAYBACK Play/Stop Press “ PLAY ” key • on front panel to start playback. Press“ PLAY ”during • playback to choose play forward or backward. Press“ STOP ”key to stop playback. • SWITCH AUDIO CHANNEL Press “SEQ/AUDIO” to switch to other audio channels •...

  • Page 84: Search Mode

    SEARCH MODE Press SEARCH key to open the search dialog window. You will see 3 modes for search: SEARCH BAR, TIME/DATE, and EVENT LIST. 1. SEARCH BAR • Search by recording percentage. Using Jog-shuttle to change percentage value. 2. TIME/DATE •...

  • Page 85: Event List

    TIME/DATE 1. START: the start time and date of recording • Shows the start time and date of the recording data. 2. END: the end time and date of recording • Shows the end time and date of the recording data. 3.
  • Page 86 Playback speed adjustments • While playback, using the direction keys to adjust the playback speed. Speed up the playback Slow down the playback. Rewind Play in forward direction. The range of speed adjustment: 1/16X~1X, 1X~64X Press “J.SHUTTLE”key to pause the playback. •...
  • Page 87 Adjust Playback speed by IR remote controller While playback, select the direction keys of remote control to adjust the speed. X times high-speed playback. X times low speed playback. Rewind. Play in forward direction. Adjust speed using REW key (High-speed backward playback) or FF key (High-speed forward Playback).

  • Page 88: Network And Client Software

    Chapter NETWORK AND CLIENT SOFTWARE Network Introduction View video from your PC anywhere in the world by connecting your DVR LAN connection to your network system. Network installation and setup 1. Connect DVR LAN connection to your LAN router.

  • Page 89: Static Ip Address

    Static IP address 2. Identify if you have Static IP or Dynamic IP service. If you do not know, ask your ISP (Internet Service Provider). Note: Static “IP address is highly recommended”, because of the video connection reliability. 3. Make sure you have DirectX 9.0c or later on your computer. If not go to www.microsoft.com/directx Go into Search to see if DirectX file is on your computer.
  • Page 90 4. Make sure that you have the following information: A. IP address. B. Subnet Mask. C. Default Gateway. D. If there is a DNS number. E. Next verify your IP address (for your domain) by going to www.whatismyip.com. This is the IP address you will use to log in remotely. 5.
  • Page 91 10. To connect to the world wide area network for remote viewing you must configure your router to allow port forwarding. Super Circuits does not provide technical support for router setup. Contact your service provider/router manufacturer for support on setting up port forwarding.
  • Page 92 PASSWORD SETUP ADMIN USER ID ________ NOTE: This is important and will come into play NEW PW ________ when trying to access the DVR from your PC. CONFIRM ________ Enter NEW PW DO NOT HIT ENTER hit down arrow key to ENTER CONFIRM and reenter your new password to confirm.
  • Page 93 15. A box will pop up and it should say “reply from” the IP address 3 or 4 times. You will also see Packets sent = 3 or 4, Received = 3 or 4 and Lost = 0. This will tell you that, you’ve successfully connected to your DVR and we can proceed.

  • Page 94: Installing Network Software

    17. You will need to recheck all DVR network settings above, check with IP provider or IT department, router settings, and make sure cables are good and connected. This could also be due to a bad cable between the DVR and router or a bad DVR Network Interface Controller (NIC).

  • Page 95: Software Operation

    Software operation Remote viewer interface 1. Live Display Remote DVR Live display 2. Current Status To show the current status 3. PTZ Camera Control To control PTZ Camera Zoom/Focus/Direction ※ Remote Control of PTZ 4. Screen Split Select Full/4/9/16 split screen display 5.

  • Page 96: Client Software Setup

    7. Disconnect Disconnect the DVR 8. Playback Enter playback 9. Setup Enter the setup 10. Power Close the remote program. 11. Transmission Rate Adjust transmission speed, range 1~10. You will lose Image quality when increasing transmission speed. NOTE: Two users can access remote video. Client software setup IP/PORT 1.
  • Page 97 2. Enter the DVR’s IP address and port number. 3. Enter the user ID as ADMIN and ADMIN password. The ADMIN password used here needs to be the same as the ADMIN password used in your DVR or the password you use to enter the DVR MENU.

  • Page 98: Ptz Control

    PTZ/SAVE 1. Circular Monitoring Interval • Set up sequential switch interval. 2. Scan Rate • Select Fast forward (FF) speed for remote Playback. 2. PTZ Type • Select PTZ protocol. 4. PTZ Baudrate • Select PTZ baud rate. 5. Set Path to Save Recorded Images Set path to save video clip.

  • Page 99: Remote Playback

    Remote playback • When the DVR is connected, click PLAYBACK to enter Playback interface. Remote Playback Interface 1. Playback Picture • Show the playback video 2. Time/Date Selection • Select time/date of playback 3. Record and Playback Status START – To show the record START Time/Date •...

  • Page 100: Search Button

    8. Auxiliary Function Button • SAVE : Save image as JPEG file when the playback is paused. • PRINT : Print picture when playback is paused. • EVENT : To show the event list. • RECORD : Record image in AVI format. 9.
  • Page 101 EVENT LIST • You can search playback video by using EVENT LIST. The events include Video Loss, Motion and Alarm. Press “EVENT” • • Select an event from Event List and click twice to start playback. Back up via Client software •...

  • Page 102: Dynamic Ip Settings

    DYNAMIC IP SETTINGS If you are unable to obtain a static IP address from your cable provider then you will have to use a dynamic name server service. We recommend ww.dyndns.com On their website under “Resources” select “Home Solutions”. Under the title of “Home Solutions” click the link for “Dynamic DNS”.
  • Page 103 Confirm Password: Confirm the password E-mail: Add an Email address for the password reminders 3. Enter group name and password to LOGIN DDNS function. 4. Select “ADD DVR” to add DVR information 5. Add DVR information: • DVR NAME: Set a DVR name •...

  • Page 104: Dvr Setup

    6. Edit and delete DVR information • EDIT: To edit the DVR information DELETE: To delete the DVR information Go to SYSTEM MENU > EXTERNAL DEVICE >TCP/IP SETUP > DDNS SETUP DVR setup SYSTEM MENU CONFIGURATION TCP/IP SETUP EXTERNAL DEVICE RECORD SETUP >>DDNS SETUP >>TCP/IP SETUP...
  • Page 105 • DDNS ON/OFF: Press > ENTER to turn ON the DDNS service. • DNS SERVER: Enter the DDNS Server IP address. • INTERVAL: Set interval for the DVR to auto-update IP address at DDNS server. (D- day / H- hour / M- minute) •...
  • Page 106 2. Select DDNS in IP/PORT setup. Go to DDNS setup > DDNS INFO 1. GROUP: Enter Group name registered on DDNS Server. 2. DVR NAME: Enter DVR name registered on DDNS Server. If the DVR name is entered and saved before, click LOAD to browse the list.

  • Page 107: Dvr Info

    DVR INFO 4. Get IP: Click “Get IP” to get the current DVR IP address and port number from DDNS server. IP Address: Show DVR’s current IP address and Port number 5. User ID: Enter ADMIN 6. Password: Enter the DVR Admin’s password and click OK to complete the DDNS setup.

  • Page 108: Remote Live View Via Ie Browser

    Remote Live View via IE Browser • Click WEB to link to your DVR 1. Live picture • Display video. 2. DVR info • IP: IP address of DVR • PORT: Enter PORT • ID: Use ADMIN • PW: Enter the ADMIN password 3.

  • Page 109: Web Network Backup

    6. Channel selection • Select a single channel for full screen display 7. PTZ control • Control PTZ camera 8. Scalability • Adjust transmission speed. PTZ: Select the protocol BAUDRATE: Select the baud rate CH: Select the ID of PEZ camera ZOOM: Zoom in/out FOCUS: Focus near/far IRIS: IRIS open/close...

  • Page 110: Function Setup

    1. Backup Information: • IP Address: Enter the IP address of DVR Network Port: Enter the port of DVR User ID: Enter “Admin” User Password: Enter Admin password Save File Path: Set path to save backup file (This function is active only when connection is established) Start Backup Time: The start time for backup file (This function is only active when connection is established”)
  • Page 111 Indicate the recorded start/end time Click [Find] to set the path for saving the backup file Set the file size of backup file (30~700MB) Set the start/end time of file backup 4. Click Apply to apply all setup 5. Select Start Backup to active the backup function (User can stop anytime during backup) Web backup player Click Backup Player to open the web page of “Backup Player”...
  • Page 112 1. Display the backup image 2. Display present time 3. Display the start/end time of backup file 4. Switch to different multi-screen displays 5. Channel selection: Ch1~Ch16 6. SPEED: Adjust fast forward DELAY speed: Adjust rewind speed. 7. Function bar on playback: Start at beginning.
  • Page 113 8. Function keys: • OPEN: Open the backup file • EDIT: Edit the backup image • AVI SAVE: To save the AVI file • EXIT: Log out the program 9. Audio options: • ON: To start the audio function Ch1~4: to select the channel with audio Save AVI file 1.

  • Page 114: Specifications

    Specifications...

  • Page 116: Appendix 1 Record Time Table

    Appendix.1 Record time table 4ch DVR...
  • Page 117 ※The numbers are for reference only.※The recording duration is calculated under the continuous recording mode (Record speed: 1/1X, No recorded audio) 8/16ch DVR...

  • Page 118: Appendix 2 System Configuration

    Appendix.2 System configuration Appendix.3 Play only mode Introduction PLAY ONLY MODE can be used in the following situations: • To playback a hard drive from another DVR • To playback deleted video after running HDD CLEAR. Enter “PLAY ONLY MODE” 1.
  • Page 119 To exit PLAY ONLY MODE, reboot the DVR and DO NOT press PLAY at boot up mode. Search 6. Use Search Bar to search the data by percentage. 7. NOTE: “”You cannot use Time/Date and EVENT LIST to search the data.”” Appendix.4 Play only mode Under PLAY ONLY MODE: 1.

This manual is also suitable for:

Dvq4cd-3Dmr16cd-3
