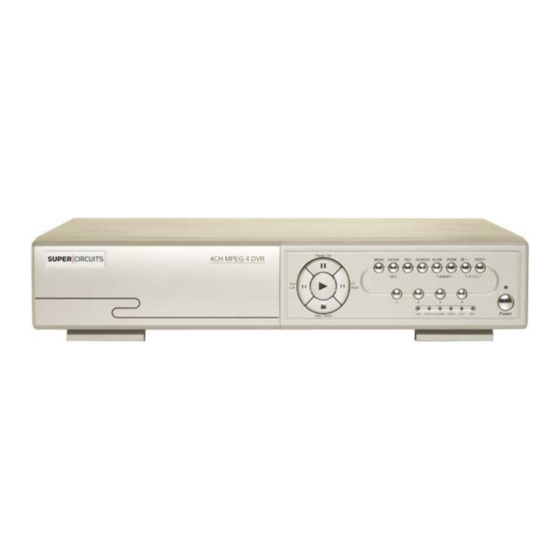

Super Circuits DVQ-2 Quick Start Manual

Super Circuits DVQ-2 Quick Start Manual

Hide thumbs Also See for DVQ-2:

Advertisement

Quick Links

DVQ-2, DMR8RT, DMR16RT
QUICK-START GUIDE
PLEASE READ BEFORE OPERATING YOUR DVR
Ready to go, right out of the box!
This digital video recorder is designed to function right out of the box. We made setting
up your DVR easier by adjusting the time, date and record settings for you. Your DVR is
set to record for 14 days with the video quality and frame rate set to the highest settings
for 14 days of recording.
Trouble Shooting
Inside this quick-start guide are easy to use techniques for the following symptoms:
Not showing video, follow the steps 1 - 5 below in this manual.
HDD (Hard drive) error messages follow the steps 1 - 5 below in this manual.
HDD not found, follow the steps 1 - 5 below in this manual.
All video camera images are distorted, follow the steps 1 - 5 below in this
manual.
DVR will not record; follow the steps 1 - 5 below in this manual.
DVR is not showing proper date & time, follow step 3 below in this manual.
Networking your DVR
View video from your PC anywhere in the world by connecting your DVR LAN
connection to your network system. See Networking on page 8.
IMPORTANT!!!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVQ-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Super Circuits DVQ-2

  • Page 1 DVQ-2, DMR8RT, DMR16RT QUICK-START GUIDE IMPORTANT!!! PLEASE READ BEFORE OPERATING YOUR DVR Ready to go, right out of the box! This digital video recorder is designed to function right out of the box. We made setting up your DVR easier by adjusting the time, date and record settings for you. Your DVR is set to record for 14 days with the video quality and frame rate set to the highest settings for 14 days of recording.
  • Page 2: Advance Settings

    Advance Settings If you need to adjust recording time, frame rate or quality refer to the main user manual also included with this DVR. Quick-Start Guide Contents Also, in this quick-start guide is instructions on how to do the following: 1.
  • Page 3 1. Connect your monitor to the DVR monitor output jack. The back of your DVR could be different from the below diagram. DVR Monitor Installation Turn your DVR on and press the “MENU” key on the front panel to enter the main menu list. The Menu allows you to configure your DMR settings. DVQ-2...
  • Page 4 DMR- 8 & 16 RT The DVR will ask you for a password. The password screen will appear: Password: 0000 The default admin password is 0000. Enter the default password, and press the “ENTER” key. Note: If you get a message “Password Error”, you have entered an incorrect password. •...
  • Page 5: System Reset

    2. RUN FACTORY DEFAULT SYSTEM RESET Go down to ADVANCE and hit the >ENTER key, select SYSTEM and hit the ENTER key. ADVANCE SYSTEM MENU CAMERA RECORD DETECTION TIMER DISPLAY DATE ALERT ADVANCE REMOTE SYSTEM NETWORK BACKUP HDD INFO EVENT LOG Select RESET DEFAULT and >...
  • Page 6: Time/Date Setup

    3. TIME/ DATE SETUP Set up the DVQ system time by selecting DATE in main MENU and hit MENU the Enter key. RECORD TIMER DATE ADVANCE You will see your TIME/DATE settings, enter correct date and time. DATE DATE 2007 MAR 14 11:05:59 FORMAT Y-M-D DAYLIGHT SAVING OFF...
  • Page 7: Hdd Overwrite

    You will see a dialog box with “CLEAR HDD ARE YOU SURE? YES OR NO”. Hit the LEFT key to select YES and hit the >ENTER key. CLEAR HDD CLEAR HDD ARE YOU SURE? YES OR NO CLEAR HDD You will see another dialog box asking for confirmation “CLEAR HDD CLEAR OK CLEAR OK “...
  • Page 8: Things To Do Before Networking Your Dvr

    2. To connect to the world wide area network for remote viewing you must configure your router to allow port forwarding. Super Circuits does not provide technical support for router setup. Contact your service provider/router manufacturer for support on setting up port forwarding.
  • Page 9 Setting up your DVR for networking 6. Access your DVR network settings by going to MENU / ADVANCE/ NETWORK. Set IP ADDRESS, GATEWAY, NETMASK and WEB PORT. MENU ADVANCE SYSTEM NETWORK RECORD CAMERA NETWORK TYPE STATIC TIMER DETECTION DNS 168. 95. DATE DISPLAY PORT 0080...
  • Page 10: Test Your Connection

    Test your connection 12. Return to your computer: go to the PC start menu and select “Run” 13. Type “cmd” and click “OK”. 14. A black box will pop up with a “C” prompt. After the “C” prompt type “ping” at the dos prompt, space bar and the IP address of the DVR and then click “>ENTER.
  • Page 11 FIG.2 If you’re seeing “Request timed out” and “Packets: Sent X, Received = X, Lost = X” like FIG.3 below, then you have not established a LAN connection between the DVR and the computer. You will need to recheck all DVR network settings above, check with IP provider or IT department, router settings.
  • Page 12: Who To Contact

    16. If you’re looking at FIG.2 then you have demonstrated that a Local Area Connection (LAN) has been made between the DVR and the computer. Proceed to Software installation. 17. Install the CD that came with your DVR into the PC and install Video Web Server. 18.
  • Page 13 16 / 8 / 4 CH Real Time MPEG-4 Network DVR 16CH / 8CH / 4CH 16CH / 8CH / 4CH 16CH / 8CH / 4CH Built in DVD RW Writer or CD RW Writer 16CH / 8CH / 4CH Built in DVD RW Writer or CD RW Writer...
  • Page 14: Install Hdd

    Install HDD : Install HDD : 16CH / 8CH 16CH (D) / 8CH (D) / 4CH (D) Carefully follow the steps to ensure correct installation. *** Note: If you want to install two HDDs, please set one HDD to “Master Mode” or “Single Mode”, and the other one to “Slave Mode”.
  • Page 15 Carefully follow the steps to ensure correct installation. *** Note: Please set one HDD to “Master Mode” or “Single Mode” *** • Step 1 Connect the connector with the HDD (Pic. 1). • Step 1 • Step 2 Put HDD into the HDD cartridge with the pins facing outside (Pic. 2). •...
  • Page 16: Physical Connections

    Physical Connections : Physical Connections : Take 16CH / 16CH (D) as an example 8CH / 8CH (D) MONITOR LOOP LOOP LOOP LOOP LOOP LOOP LOOP LOOP INPUT INPUT INPUT INPUT INPUT INPUT INPUT INPUT CALL RS 485 EXTERNAL I/O D / V DISK ARRAY LINK...
  • Page 17: System Time Setup

    System Time Setup : System Time Setup : Before using this unit, please set up the system time first in order to process the functions correctly. Press “MENU” button to enter menu list Enter the default password “0000” to unlock keys Go to “DATE”...
  • Page 18: Usb Backup

    Playback: Playback: Press “ PLAY ” button, and the DVR will playback the last recorded video. • FAST FORWARD (F.F. ) & FAST REWIND (REW) : • PAUSE / IMAGE JOG: • STOP: • CHANNEL SHIFT (Display Mode, Full Screen Switch, and Channel Display Switch) “SHIFT”...
  • Page 19: Disk Backup

    DISK BACKUP ~ FOR 16CH (D) / 8CH (D) / 4CH (D) Go to “MENU” “ADVANCE” “BACKUP”, and press ”ENTER”. The screen will show the following options: BACKUP BACKUP USB BACKUP DISK BACKUP Select “DISK BACKUP” and press “ENTER”. DISK BACKUP DISK BACKUP START TIME 2006-05-12 16 : 00 : 00...
  • Page 20: Network Setup

    Network Setup Network Setup There are two ways to make network setup: via your DVR locally or via the licensed AP interface. Via DVR Go to “MENU” “ADVANCE” “NETWORK”, and you will see a network setup screen as follows: NETWORK NETWORK NETWORK TYPE STATIC...
  • Page 21 Via Licensed AP Choose the icon (SYSTEM CONFIG) from the top control panel, and “System setting” window will be shown. Choose “Network” and you will see the screens from 1 to 3 on the right hand side for different setting. 1.
  • Page 22 IR Transmitter : IR Transmitter : * IR control for PTZ camera, DVR, and remote switch * IR emission distance: straight line is 10m; transmit at left and right 22.5° is 8m * Control up to 255 PTZ cameras and remote switch *...
  • Page 23: Pin Connection

    PIN Connection PIN Connection 16CH / 8CH 16CH (D) / 8CH (D) FUNCTION DESCRIPTION GROUND ALARM INPUT When connecting the wire from ALARM INPUT (PIN 2 -- 9) to GND (PIN 1) connector, DVR will start recording and the buzzer will be on. When “MENU ->...
  • Page 24 4CH / 4CH (D) Solder Side of DSUB 15 PIN 8 7 6 5 4 3 2 1 15 14 13 12 11 10 9 FUNCTION DESCRIPTION RS232-TX DVR can be controlled remotely by the keyboard of PC by using RS-232 serial communication signals.
