  • Page 1 MDVR50 Mobile DVR User Manual V1.07E V1.07E...

  • Page 2: Table Of Contents

    Contents CHAPTER 1:PRODUCT APPLICATION AND PARAMETER------------------------------------------- CHAPTER 2:PRODUCT INTERFACE DEFINITION AND FUNCTION DESCRIPTION--------------- 2.1:MDVR Out-design and Dimension---------------------------------------------------------- 2.4:Brief instruction of commonly used interface cable------------------------------------- 2.6:Instructions of function keys on remote controller-------------------------------------- CHAPTER 3: SYSTEM MENU SETTING INSTRUCTIONS ---------------------------------------- 3.1:Demo working and user login--------------------------------------------------------------- 3.2:System menu construction chart----------------------------------------------------------- 3.3:System setup------------------------------------------------------------------------------------ 3.3-1:Basic-------------------------------------------------------------------------------------------...

  • Page 3: Chapter 1:Product Application And Parameter

    MDVR-50 User Manual CHAPTER 1: PRODUCT APPLICATIONS AND PARAMETERS 1.1 The MDVR-50 is a function extensibile, device designed for on-board video monitoring and remote monitoring, It employs an embedded Linux platform, combined with the most advanced H.264 video compression / decompression technology and GPS. With an SD an card for storage, the MDVR can perform many functions such as audio-video recording, vehicle's driving information recording and remote management.
  • Page 4 MDVR-50 User Manual FORM 2 : MDVR BASIC ELECTRICAL PARAMETERS LIST Parameters Items Specifications 36Vdc, When long-term under 8Vdc, or long-term Power input DC8-36V over 36V,auto power off and enter protection mode. Power output 12V +/-0.2V Max:2A. Vehicle key signal 75Ù...
  • Page 5 MDVR-50 User Manual 1.3: MDVR NOTICE: To use your MDVR safely, acquire satisfactory performance, and extend the service life of the equipment, please follow the instructions below. 1. When you install and operate this equipment , please obey the products guidelines and the requirements of equipment connected to it.

  • Page 6: Chapter 2:Product Interface Definition And Function Description

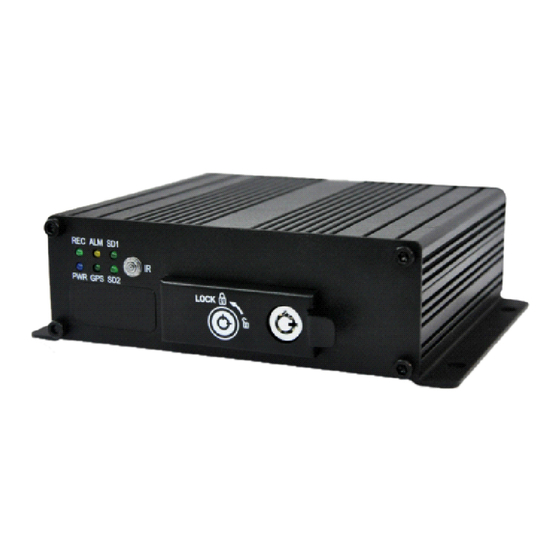

    MDVR-50 User Manual CHAPTER 2 : INTERFACE AND DESCRIPTION OF THE FUNCTIONS 2.1 MDVR OUTER DESIGN AND DIMENSIONS Figure 2-1 Unit mm Figure2-3 Panel Indicator Light Description V-OUT Video OUT SD1/SD2: Recording SD card indicator light. Light is on Function type MDVR dimension and installation holes (double SD card model), is shown in Figure 2-1 when the SD card is installed.
  • Page 7 MDVR-50 User Manual 2.3: DEFINITION OF SIMPLE TYPE MDVR BACK PANEL INTERFACE Figure 2-9 GPS Antenna AVIATION HEAD VIDEO & AUDIO INPUT 1--12VOUT 2--GND 3--A-IN 4--V-IN POWER INPUT VIDEO/AUDIO OUTPUT 1: Interface specifications, please refer to table 3, V-in & A-in with aviation head 2: 2-channel alarm input , 2 channel alarm output, a pair of school interface 2.4: COMMONLY USED INTERFACE CABLES Power cable:...
  • Page 8 MDVR-50 User Manual 3. The yellow cable must be installed on the ignition line to support the delay shut down. Otherwise, the last video recording may be lost. 4. The MDVR must receive power directly from the battery. Don't use iron wire for the ground line;...

  • Page 9: Instructions Of Function Keys On Remote Controller

    MDVR-50 User Manual 2.6 INSTRUCTIONS OF FUNCTION KEYS ON REMOTE CONTROLLER Power on /off LOGIN (mpt used) Number key area Picture adjustment PTZ control Direction key area Delete / cancel Exit / return System information Play back operation key area 4 images segmentation PTZ control key area Shortcut key / test key...

  • Page 10: Chapter 3 System Menu Setting Instructions

    MDVR-50 User Manual CHAPTER 3 SYSTEM MENU SETTING INSTRUCTIONS 3.1: DEMO WORKING AND USER LOGIN. Power on the MDVR after the power supply and other connecting devices are powered on. Always follow installation guidance. After Loading, a four-image monitoring interface appears. Press the remote control LOGIN button to open the login interface.

  • Page 11: System Menu Construction Chart

    MDVR-50 User Manual 3.2 SYSTEM MENUS CONSTRUCTION CHART BASIC POWER SYSTEM NETWORK PASSWORD NORMAL RECORD CHANNEL TIME LIST SUB-STREAM SENSOR SPEED LOGIN VEHICLE G-SENSOR TEMPERATURE FORMAT CINFIGURE TOOLS UPGRADE PLAYBACK SHORTCUT DETECTION Figure 3-5 INFO MODULE SYSTEM SETUP Figure 3-6 Figure 3-7 The SYSTEM submenu includes BASIC setup, POWER setup, NETWORK setup (not used), and PASSWORD setup.
  • Page 12 MDVR-50 User Manual 06:00:00 30 ( 06:00:00 22:00:00 Figure 3-8 Figure 3-9 4. "COMPANY NAME", "VEHICLE NUM", "DRIVER NAME""LINE NUM" Setting: Press ENTER to open the keyboard window, then use left/right/up/down/enter keys to enter the values. 5. HOME PAGE: Two options are availabe: "DEV STA" and "QUAD". QUAD open the normal monitoring screen when the device is turned on.

  • Page 13: 10 3.4: Recording Setup

    MDVR-50 User Manual 3.4 RECORD SETUP Figure 3-13 Figure 3-12 RECORD includes: NORMAL setting, CHANNEL setting and TIME LIST setting. It can acheive the highest quality recording after settings. With default settings, the device will start recording after being powered on. But in order to reach better recording function, you can modify the related parameters.

  • Page 14: Channel Setup

    MDVR-50 User Manual 3.4-2 CHANNELS SETUP 1 Set properties for each channel, including RES, QUAl MIC AUDIO,VOLUME etc . CH ENABLE RES. FPS QUAL MIC PREVIEW VOLUME FPS: 1-25 optional. 25 frames per second is real-time recording. 1-8 grade QUA optional. Grade 3 is the default.

  • Page 15: Vehicle Information

    MDVR-50 User Manual 3.5 VEHICLE INFORMATION Figure 3-18 Figure 3-19 It includes SENSOR, SPEED, G-SENSOR SETUP. SENSOR SETUP Figure 3-20 3.5-1 SENSOR SETUP- ALARM INPUT 1. When you install an MDVR, define the sensor name for each port settings. See Figure 3-20. For instance, change the name "INPUT"...

  • Page 16: Speed Setup

    MDVR-50 User Manual 3.5-3 SPEED SETUP VEHICLE Figure 3-22 1. If you select GPS to determine vehicle speed, press ENTER. The MDVR must have a GPS module installed and a good GPS signal. 2. If you select " Vehicle " to determine the speed, a pulse sensor is used to calculate the speed ratio (coefficient = pulse /speed ).

  • Page 17: 3:Motion Detection

    MDVR-50 User Manual 3.6-2 CONFIGURE MANAGE AND LOG SEARCH START TIME 2012-01-15 00:00:00 END TIME 2012-01-15 23:59:59 DATE TIME EVENT NAME 12/01/15 14:45:07 POWER ON 12/01/15 14:46:55 VIDEO LOST1 12/01/15 14:55:38 FILE PLAYBACK 12/01/15 14:56:25 REC NORMAL SET Figure 3-28 Figure 3-27 Configure manage includes import and export of the current system configuration.

  • Page 18: 4:System Upgrade

    MDVR-50 User Manual PROCEDURES OF SETTING DETECTION AREAS: Figure 3-30 Select CONFIGURE, then press ENTER to enter into motion detection configuration interface. See Figure 3-30. Step1 : Select the first cell, press ENTER (turns yellow). Move cursor with the arrow keys (turns green) Step2 : Select the second cell.

  • Page 19: Module Manage

    MDVR-50 User Manual 3.7 MODULE MANAGE 3.7-1 PTZ SETUP PTZ SETUP Protocol Baudrate Dbit Sbit Verify Num PELCO-D 2400 None 9600 Even PELCO-D PELCO-D 9600 Even PTZ SETUP 9600 Even PELCO-D SAVE Figure 3-37 INSTRUCTIONS : 1. Protocol:Set to PELCO-D or PELCO-P. 2.

  • Page 20: 1:Ptz Set

    MDVR-50 User Manual on the menu are used for controlling up, 8. Remote control opertation " down, left and right; ZOOM + and - are enlarge and narrow functions. Focus + and - increase and decrease focal length. IRIS+ and IRIS- adjust infrared l ights, PRESET is used "...
  • Page 21 MDVR-50 User Manual setup Record mode and others menus such as sensor setting, speed alarm setting, Normal shock acceleration, motion detection sett ing and related parameters and also connect peripherals. When an alarm signal occurs, the system will record video. When playing back the recording, the resolution (D1/HD1/CIF), video's starting and ending time, channel, and size is shown in the SEARCH RESULT display.

  • Page 22: Chapter 4: Common Shortcut Setup

    MDVR-50 User Manual CHAPTER 4: COMMON SHORTCUT SETUP 4.1 CABLES TESTING AND POWER ON The host power cable has three wires red, black and yellow. Red and black wires connect to the car battery directly: red wire to positive terminal and black to negative terminal. The yellow wire connects to the ignition swich (namely the key position before start motor).
  • Page 23 MDVR-50 User Manual alarm pre-record time (range 0-60 seconds), the alarm record delay time (range 30-900 seconds), and the alarm output time (range 5-240 seconds). The alarm output time setting can depend on external alarm equipment. If installing corresponding external alarm input devices, such as an emergency switch button, switch door magnetic door, sudden braking sensor and other sensors, the alarm settings of these devices include several types as follows: MDVR REAR PANEL ALARM INTERFACE...

  • Page 24: Ptz Connection And Setup

    MDVR-50 User Manual When When 4.3 PTZ CONNECTION AND SETUP Setup steps: Step 1. Choose the PTZ protocol. Options are PELCO-D and PELCO-P. Step 2. Set the baudrate (1200/2400/4800/9600) corresponding to the PTZ device. Step 3. Setup the PTZ device address. This address must match the address of the PTZ device (usually address is 1).
  • Page 25 MDVR-50 User Manual PLAYBACK RECORDED FILES ON PC Recorded files can playback on the MDVR, or can be transferred to a PC played using the MDVRPlayer. To install MDVRPlayer: Double-click the CD-ROM installation files "MDVR PLayer V1.0.1.30_111221.exe", select the installation language (Chinese and English), click OK, then click NEXT. When the installation is complete, an icon for the player is on the desktop.

  • Page 26: Appendix 1 : Faq

    MDVR-50 User Manual APPENDIX 1: FAQ Q: What should I do if a problem occurs that I can not solve myself? A: Please write down the unit number, software version number, and describe the problem in detail. Then submit it to our technical support for analysis. The more detailed the description that you include will make our analysis more efficient.

  • Page 27: Appendix 2 : Storage Space Reqirements

    MDVR-50 User Manual APPENDIX 2: STORAGE SPACE REQUIREMENTS Correlation between image quality and recording space Quality Resolution Storage Space The storage space required by one channel for each hour of recording is shown in the table above. The actual recording file size is dependent on the current channel, illumination variant, object movement, etc.
