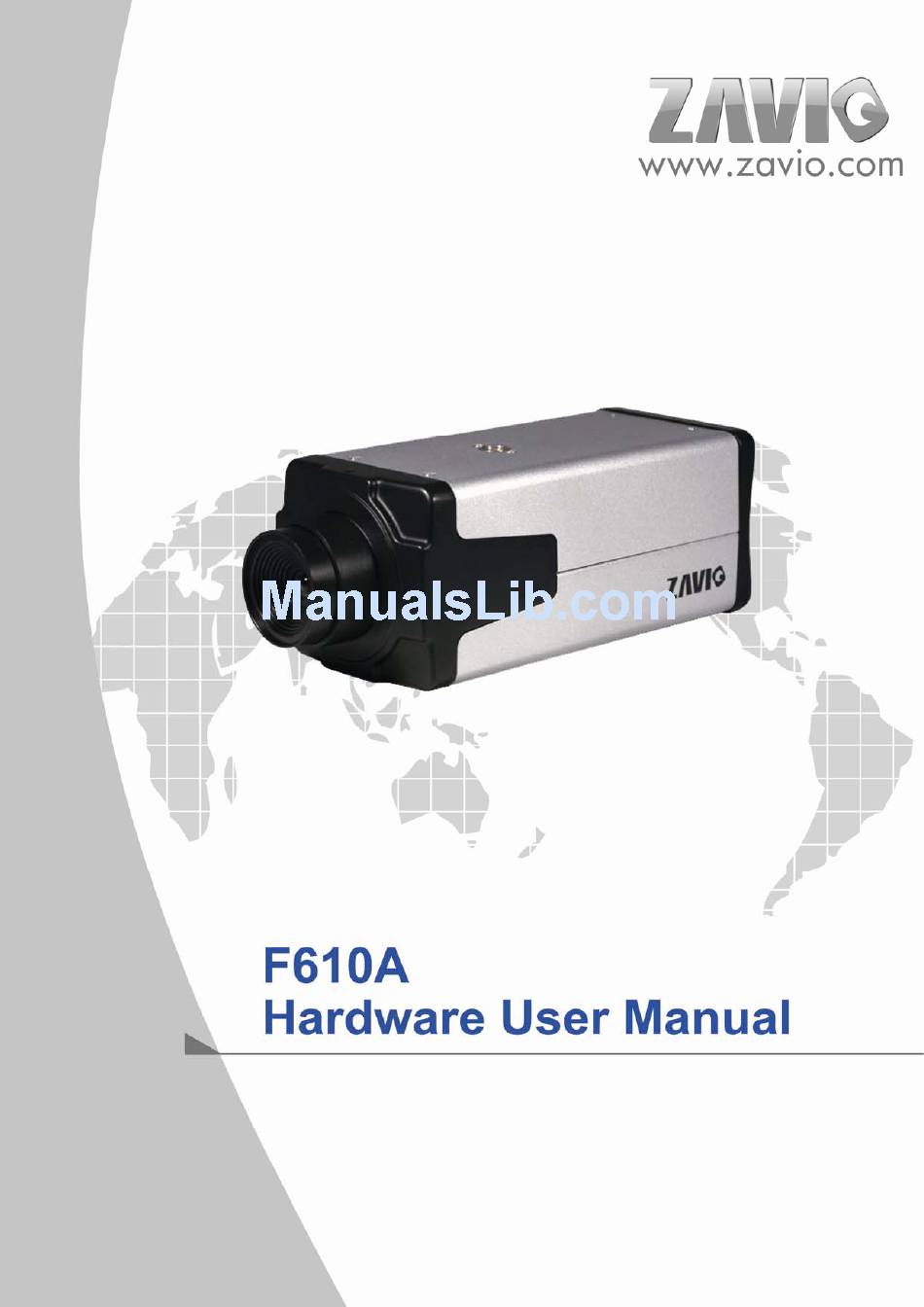

- Page 1 F610A User Manual...
-
Page 2: Table Of Contents
F610A User Manual F610A CCD Box IP Camera Hardware User Manual -Contents- CHAPTER 1. SAFETY INSTRUCTION ..................2 CHAPTER 2. INTRODUCTION .....................4 CHAPTER 3. PACKAGE CONTENTS ..................5 CHAPTER 4. PHYSICAL DESCRIPTION..................6 CHAPTER 5. BASIC CONNECTION ....................7 CHAPTER 6. APPLICATION......................8... -
Page 3: Chapter 1. Safety Instruction
F610A User Manual Hardware User Manual Chapter 1. Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following. - Page 4 F610A User Manual In case of a breakdown In case of system breakdown, discontinue use and contact your authorized dealer. In case of abnormal operation If the unit emits smoke or an unusual smell, If water or other foreign objects enter the cabinet, or ...
-
Page 5: Chapter 2. Introduction
F610A User Manual Chapter 2. Introduction The Zavio F610A is a high-performance Box IP camera equipped with a Sharp CCD sensor. F610A offers many important features such as improved quality with de-interlace filter and also provides incredibly stable and powerful firmware. -
Page 6: Chapter 3. Package Contents
F610A User Manual Chapter 3. Package Contents Lens - TV Lens 6mm 1/3”CS Camera - F610A Box Network Camera Quick Installation Guide - To provide brief product information and quick installation and wireless setting Software CD - To provide IP Surveillance Software, Intelligence IP Installer, User Manuals, and... -
Page 7: Chapter 4. Physical Description

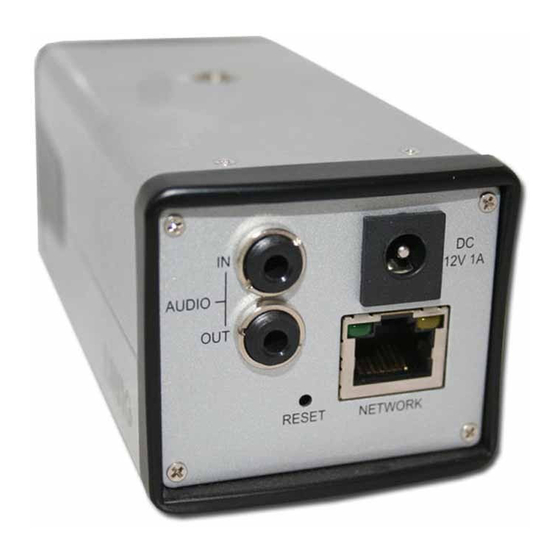

F610A User Manual Chapter 4. Physical Description Overview Lens- TV Lens 6mm 1/3”CS Audio In - To support audio in with Microphone for two way audio. Audio Out - To support audio out with earphones or speakers for two way audio ... -
Page 8: Chapter 5. Basic Connection
F610A User Manual Chapter 5. Basic Connection F610A is for wire connection. You can follow the procedure below to connect the IP Camera with power and Ethernet for wire connection. Wire Connection 1. Connect the power adaptor to IP Camera. -
Page 9: Chapter 6. Application
F610A User Manual Chapter 6. Application...
