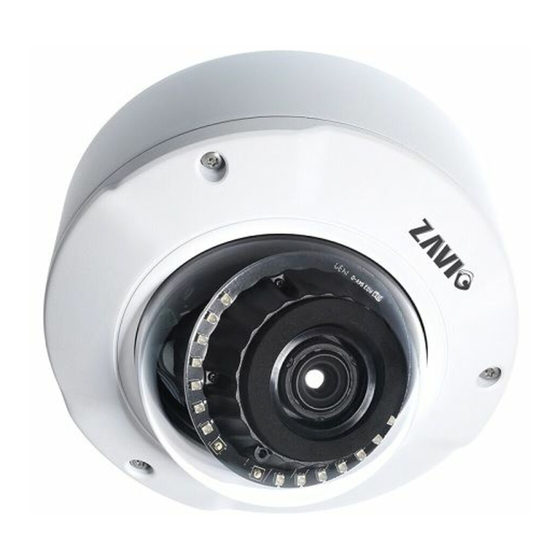

- Page 1 86085A3000030 ZAVIO Motorized Outdoor IR Dome Quick Installation Guide 0 ...
-
Page 2: Quick Installation Guide
Power Mode. See P.4 Installation of hardware and connection of all cables. See P.4 Windows: Go to Zavio website and download Camera Installation Tool. See P.8 Access the IP Camera using Camera Installation Tool. See P.9 MAC OS: using Safari Browser. See P.11 Lighting environment. -
Page 3: Physical Overview
Physical overview Conduit hole Dome bubble I/O Terminal Block: 1: Ground, 2: +12VDC, 3: Audio in, 4: Audio out, Light Sensor 5: Digital Output 1, Network / PoE ... -
Page 4: I/O Terminal Block Circuit
I/O Terminal Block Circuit AUDIO_IN AUDIO_OUT DC 12V RELAY 1 AUDIO_IN (+) AUDIO_OUT (+) DIODE DEVICE 1 DO-1 DO-2 RELAY 2 DI-1 DI-2 DIODE DEVICE 2 CAMERA I/O Terminal Block Pin Definition Definition Description Max. V/A Ground 12V DC + 12VDC 1.2 W Audio In Unbalanced, 1.4Vp-p, 1Vrms, terminal block... -
Page 5: Led Indicator
LED Indicator Color Indication Solid blue when network is established. Network Blue Blink blue when there is network activity. Solid red for booting up process Power Blue Solid blue for booting up completion Unlit When reset button pressed for at least 5 sec.to factory default Solid yellow means SD card ready SD Card Yellow... - Page 6 B. Wall mounting and Ceiling mounting a) Attached the alignment sticker to the wall. Drill five holes into the wall. Then hammer the supplied plastic anchors into the screw holes and secure the mounting plate. b) Attach the camera to the mounting plate and turn the camera clockwise until the clips snap to the mounting plate.
- Page 7 D. To adjust the view angle- 3 axis mechanism design 1. Turn the lens module right and left to your desired pan position. 2. Turn the lens module up and down to your desired tilt position. 3. Turn the lens module to adjust the image orientation to satisfied angle. ...
- Page 8 Windows: Go to Zavio Website and download Camera Installation Tool Please go http://www.zavio.com/softwaredownloads.php download “Camera Installation Tool”. And follow the installation process to complete the installation. 7 ...
- Page 9 Access the IP Camera using Camera Installation Tool 1. Please check two settings before using Camera Installation Tool. a. Browser’s Internet Properties → Security→ Default Level b. Browser’s Internet Properties → Privacy → Uncheck Pop-up Blocker 8 ...
- Page 10 2. Click the Camera Installation Tool Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the desired IP cameras from the list and click Link to IE. 3. Enter Username and Password to login to the IP Camera. (Default is admin / admin) ...
- Page 11 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: AxvideoView.cab from ‘Zavio Inc’. ...
- Page 12 7. Live video will display in the center of your web browser. MAC OS using Safari Browser 1. Select Safari Icon 2. Click Bonjour function and select the camera you wish to access. ...
- Page 13 3. Enter name and password to login to the IP camera (Default is admin / admin) 4. Live video will display in the center of your web browser. ...
- Page 14 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
-
Page 15: Application Of Ip Camera
Application of IP Camera 14 ... - Page 16 Memo ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. 15 ...
