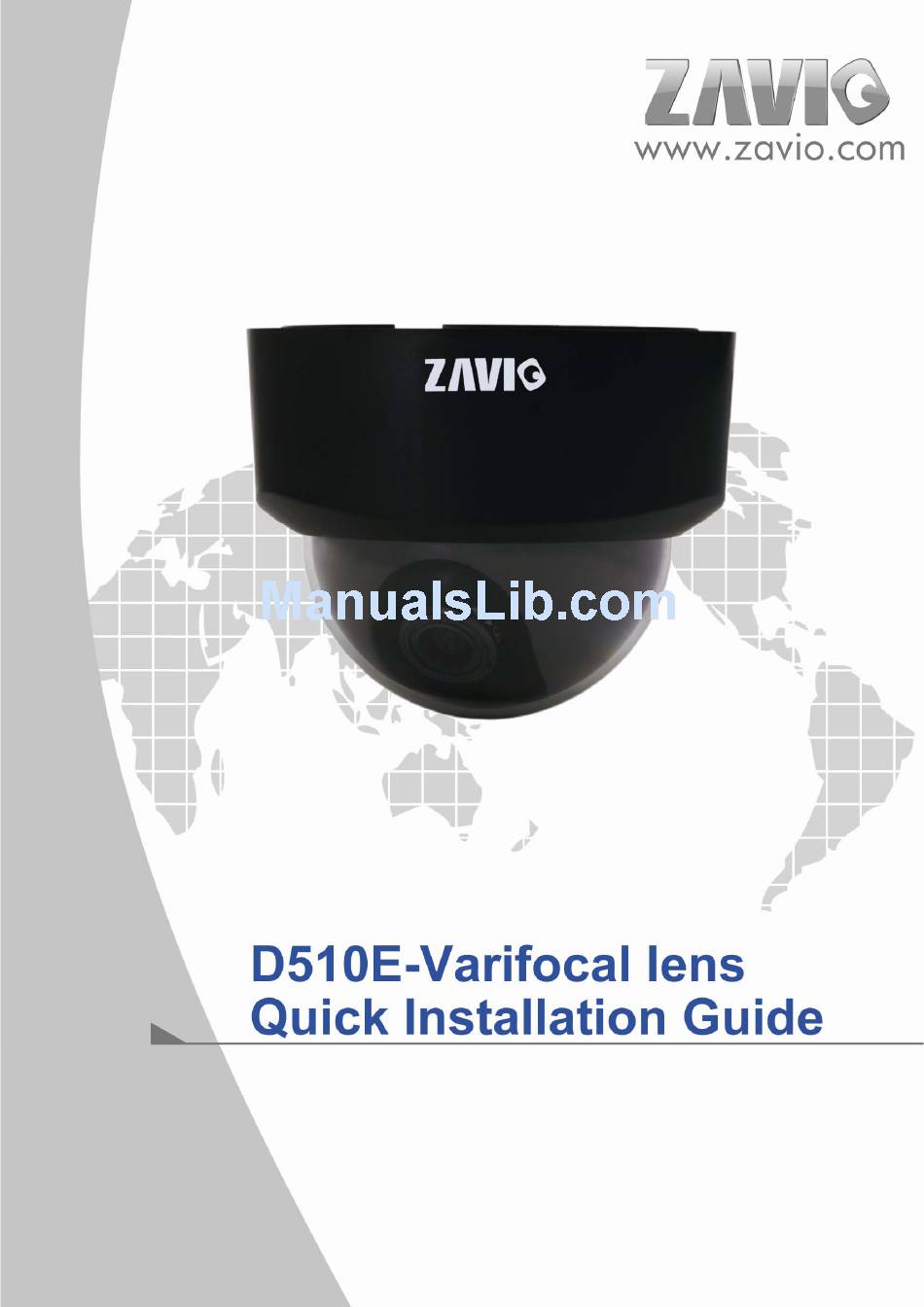

- Page 2 Zavio D510E-Varifocal lens Quick Installation Guide Please follow the installation steps below to set up your D510E-Varifocal lens IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.1 Install the hardware and connect all cables. See P.2 Microsoft OS: Use the software CD to install Intelligent IP Installer.
- Page 3 Install the hardware and connect all cables a. Wall mounting and Ceiling mounting 1. Unfasten the cover of the Dome IP Camera. Be careful do not scratch the cover glass. 2. Use the 2 supplied screws to fix the base of the IP Camera to a flat surface.
- Page 4 5. Rotate the black protective shield inside the dome to match the camera’s position. Fasten the cover. b. Connect all cables b1. Power over Ethernet (PoE) 1. Using a standard RJ-45 network cable, connect the IP Camera to a PoE-enabled Hub / Switch / Router b2.
-
Page 5: Default Level
Access the IP Camera using Intelligent IP Installer 1. Before using Intelligent IP Installer, please check two setting. a. Browser’s Internet Properties → Security b. Browser’s Internet Properties → Privacy → Default Level → Uncheck Pop-up Blocker 2. Click the Intelligent IP Installer Icon on your desktop. The main page will show up listing all active camera and video server devices. - Page 6 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
- Page 7 Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser. camera.
- Page 8 Select Safari function → Enter IP address in the web link → enter username and password (default value admin/admin) → The Zavio user interface and Live Image will show up in the middle of the screen. 2. Mobile phone viewing a.
-
Page 9: Image Setup
7. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is enabled. 8. Click on the small camera icon. Then, choose “View a new contact's webcam”. Camera at home says: 10. - Page 10 Access to the Internet a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the Information section. (Please go to Setting → Basic → Network→ Information) Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE section (Please go to Setting →...
- Page 11 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.
