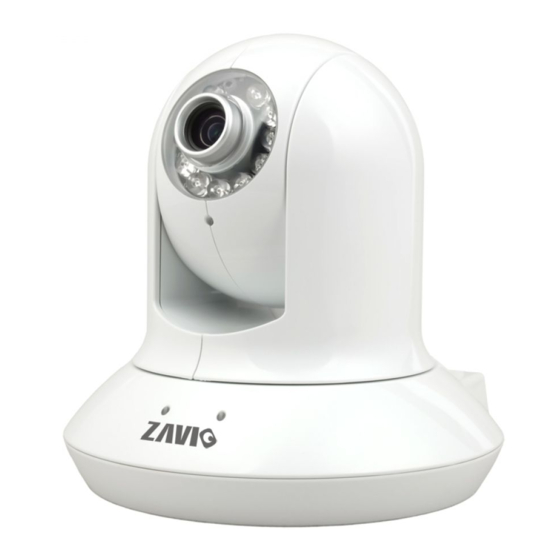

Summary of Contents for Zavio P5111
-
Page 2: Table Of Contents
Content Safety Instruction ................................Minimum System Requirement & Product Feature ....................Minimum System Requirement ............................ Product Feature .............................. Main Page ..................................Basic Setup ................................ Account ................................Network................................ Date Time ..............................Video ................................Live View................................. Video ................................Camera Setting ............................. PT Setting ..............................Playback ................................ -
Page 3: Safety Instruction
User Manual Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if it is not used properly. To avoid such accidents, be sure to heed the following. - Page 4 If water or other foreign objects enter the cabinet. If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2 Contact your authorized dealer or the store where you purchased the product. ...
-
Page 5: Minimum System Requirement & Product Feature
Minimum System Requirement & Product Feature System Requirement For normal operation and viewing of the network camera, it’s recommended that your system meet these minimum requirements for proper operation: Item Requirements Minimum Intel® Core 2 Duo or higher Graphic Card 256 MB RAM graphic cards (or equivalent on-board graphic cards) Minimum 1 GB of RAM,(2GB or above is recommended) -
Page 6: Product Feature
Product Features SYSTEM H.264 / MPEG-4 / Motion JPEG: Resolutions Higher than 1024 * 720 pixels Screen Resolution H.264 / MPEG-4 / Motion JPEG Compressing format Up to 30 fps at 1280x800 Frame Rate Rotation: Mirror, Flip, Mirror Flip Brightness / Contrast / Saturation/ Sharpness Image settings Overlay capabilities: time, date, text and privacy image Image snapshot... -
Page 7: Main Page
Main Page Toolbar of Main Page... - Page 8 Client Setting Click the drop-down menu to choose video compression mode of Live View among H.264, MPEG-4, MJPEG and H.264. Profile Note: As long as the operating system is not able to afford loading under H.264 mode, please downgrade the mode to MPEG-4 or MJPEG. Select the desired view size of image resolution between Fit View Size Screen and Full Screen.
- Page 9 Click the Home button and it brings you back to the center no matter what position you are Move the camera view to the direction that the various arrows you click on. Use the various direction arrows to steer the camera view to the required position， and name Preset it for the specified position.
-
Page 10: Basic Setup
Basic Setup Account Account List The device default account and password setting is “admin / admin”. That means everyone who knows IP address can access the device including all configuration. It is necessary to create a new password if the device is intended to be accessed by specific ones. -
Page 11: Network
Network TCP/IP Internet Protocol Version 4 (TCP/IPv4) Obtain an IP address automatically (DHCP): If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server. Obtain DNS server address automatically: Select this to obtain the address of DNS server automatically. - Page 12 Note: Reboot the IP Camera after the network setting has been made. Note: If you connect the IP Camera with your computer directly, the default network domain of camera is 192.168.1.xx PPPoE If your ISP provides Dynamic IP with authentication by username and password, type all PPPoE information in this part.
-
Page 13: Date Time
Use the following DNS server address: Select this when you set the fixed address as the IP address of DNS server. Primary DNS server: Enter the IP address of the primary DNS server. Secondary DNS server: Enter the IP address of the secondary DNS server. Note : 1. -
Page 14: Video
Manual setting: Select this mode to adjust manually the date and time of this IP Camera. Synchronize with NTP: Specify the NTP server name and click “Update now” to synchronize the date and time of this IP Camera with those of the time server, known as the NTP server. Time Zone Time Zone: Select the Time Zone format of Greenwich Mean Time among different cities. - Page 15 bandwidth usage and further apply on 3G. However, H.264 will occupy more system resources than MPEG-4. As long as the operating system appears operating difficulties under H.264 format, please change to select MPEG-4. Profile2(MPEG-4): MPEG-4 has the advantage of sending a lower volume of date per time unit across the network (bit-rate) compared to Motion JPEG and therefore provides a relatively high image quality at a lower bit-rate (bandwidth usage).
- Page 16 Profile There are five stream profiles available for quick set-up. These settings can be adjusted and new customized profiles can be created. Each profile has a descriptive name, describing its usage and/or purpose. The profiles can be selected from the Live View page. ...
-
Page 17: Live View
IR Cut Filter Threshold: Dark-This is the threshold for the IR cut filter image environment being bright turning to dark. Bright- This is the threshold for the IR cut filter image environment being dark turning to bright. IR / IR cut filter schedule: The IR cut filter can be scheduled manually as you wish to turn it on, you may configure each time mode in advance in “Schedule”. - Page 18 Image Setting Image Enhancement Brightness: The image brightness can be adjusted in the range 0-100, the a higher value produces a brighter image. Saturation: Adjust the saturation in the range 0-100, the higher value gets more colorful image. ...
-
Page 19: Pt Setting
Exposure time: Select a proper exposure time according to the light source of the surroundings. The exposure times are selectable as the following durations: 1/120second, 1/60 second, 1/30 second, 1/12 second, 1/6 second, 1/3 second, and 1second. Shorter exposure time brings less light. ... - Page 20 been written in, as well as the home position, which the device faces to when the power is turned on. Guard Tour Click “add” , name the tour first then add in the preset position you desired to form the tour. You can manually set the PTZ speed and the interval time.
-
Page 21: Playback
Playback Client PC This is for uploading the recorded file saved in the PC and play back to see the video. ❸❷❶ ❹❺ ❻ ❼ ❽ ❾ ❿... -
Page 22: Network Storage
❶ Click it to upload the recorded file in the PC ❷ Click it to stop the current video ❸ Click it to pause the playing video ❹ Click it to slow down the playing speed ❺ Click it to speed up the playing speed ❻... -
Page 23: Event
Event Event Server Event Server Click “Add” to create a event server then the setting page pops up. Name it, select your network type put on the storage location. This is optional to create the password for certain group to use it. Then click the “Test” button to see if it works, it will show the information on the pop-up window to see your setting if has been made successfully. - Page 24 General Name the event file and make it on or off. Trigger You may activate the following trigger types as you wish depends on various conditions: Motion Detection: Click it on for using Motion Detection function as a sensor. You must configure motion detection function before taking this as the trigger.
-
Page 25: Motion Detection
Night Mode: You may set up this action being activated continually while the event triggered or continually every period(by second) interval. Note : Only Motion Detection excludes Night Mode Schedule You may set up the event schedule as “always” or scheduled by working day, weekend or night mode. You must configure schedule before using it. -
Page 26: Schedule
Schedule The schedule is made for Event List to set the recording period. There are already 3 modes(Working Day、 Weekend and Night Mode) has been set for user, there are 7 more modes are available to set manually. System Maintenance Restart Restart button is for reboot the IP Camera digitally, you may reboot the camera manually or automatically. -
Page 27: Security
Security Account Please refer to p.9 IP Address Filter Once enabled it, the listed IP address are allowed or denied access to the product. Add the IP Address that you’d like to allow or deny and select allow or deny from the list and save it. HTTPS HTTPS is a URL scheme used to indicate a secure HTTP connection. - Page 28 General RTP Port Range: The default value of port range is 5000 ~ 7999 and can be changed from 1124 to 65534. RTSP Port: The default value is 554. If the IP Cameras connected with router and installed outside are over 2 sets and all of them need support RTSP, please fill the value in the blank space in the range from 1124 to 65534.
-
Page 29: Led
DDNS DDNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for DDNS is allowing an internet domain name to be assigned to a computer with a varying / dynamic IP Address.
