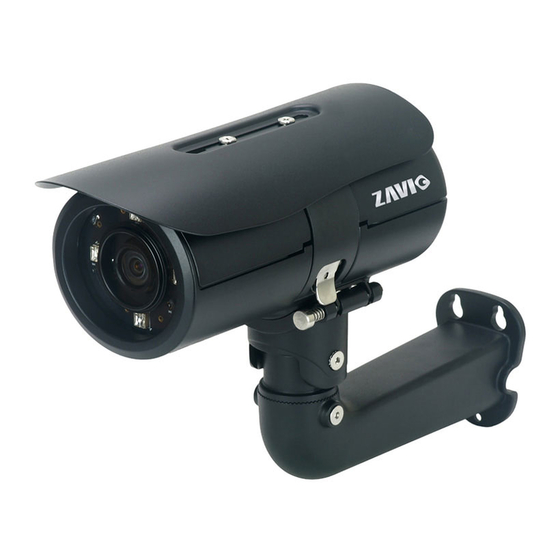

Zavio B7210 Quick Installation Guide Please follow the installation steps below to set up your B7210 Bullet IP Camera. Check the package contents against the list below. See P.1 Physical overview. See P.2 I/O Terminal Block Pin Definition. See P.3 I/O Terminal Block Circuit. -
Page 3: Physical Overview. See
Physical overview IR LED Lens Light Sensor DI / DO DC 12V/1.5A... -
Page 4: I/O Terminal Block Pin Definition. See
I/O Terminal Block Circuit Digital Input 1/2: Max: 30V DC Digital Output 1/2: Max: 24V / 100mA I/O Terminal Block Pin Definition Definition Description Max. V/A Ground 12V DC + 12V DC 1.2W Unbalanced, 1.4Vp-p, 1Vrms, terminal block AUDIO_In(+) Unbalanced, 1.4Vp-p, 1Vrms, terminal block AUDIO_In(+) Uses an NPN transistor with the emitter connected to the GND 100 mA... -
Page 5: Power Mode. See
LED Indicator Power Mode Power Requirement PoE Mode Power Consumption Power Requirement Adaptor Mode Power Consumption Note: Heater will be activated while the inner temparature drops under 5 and fan over 50 . Install the hardware and connect all cables a. - Page 6 b. Wall mounting and Ceiling mounting 1) Attached the alignment sticker to the wall. Drill four holes into the wall, which three for screws and one for cable. Then hammer the supplied plastic anchors into the screw holes and secure the plate with supplied screws (T1/4”*32).
- Page 7 c. Lens Focusing D. Connect all cables d1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Using a standard RJ-45 network cable, connect the IP Camera to a normal Hub / Switch / Router. d2.
-
Page 8: Microsoft Os
Microsoft OS:Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow these steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1. - Page 9 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
- Page 10 7. Live video displays in the centre of your web browser. Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4.
-
Page 11: Change The Web Interface Into Your Preferred Language. See
Lighting environment setting The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting environment of your country. Go to Setting > Live View > Camera Setting > Image Setting , select the environment setting you wish. Change the Web Interface into your preferred language Use the settings screen to set the language of the Web Interface. -
Page 12: Application Of Ip Camera. See
