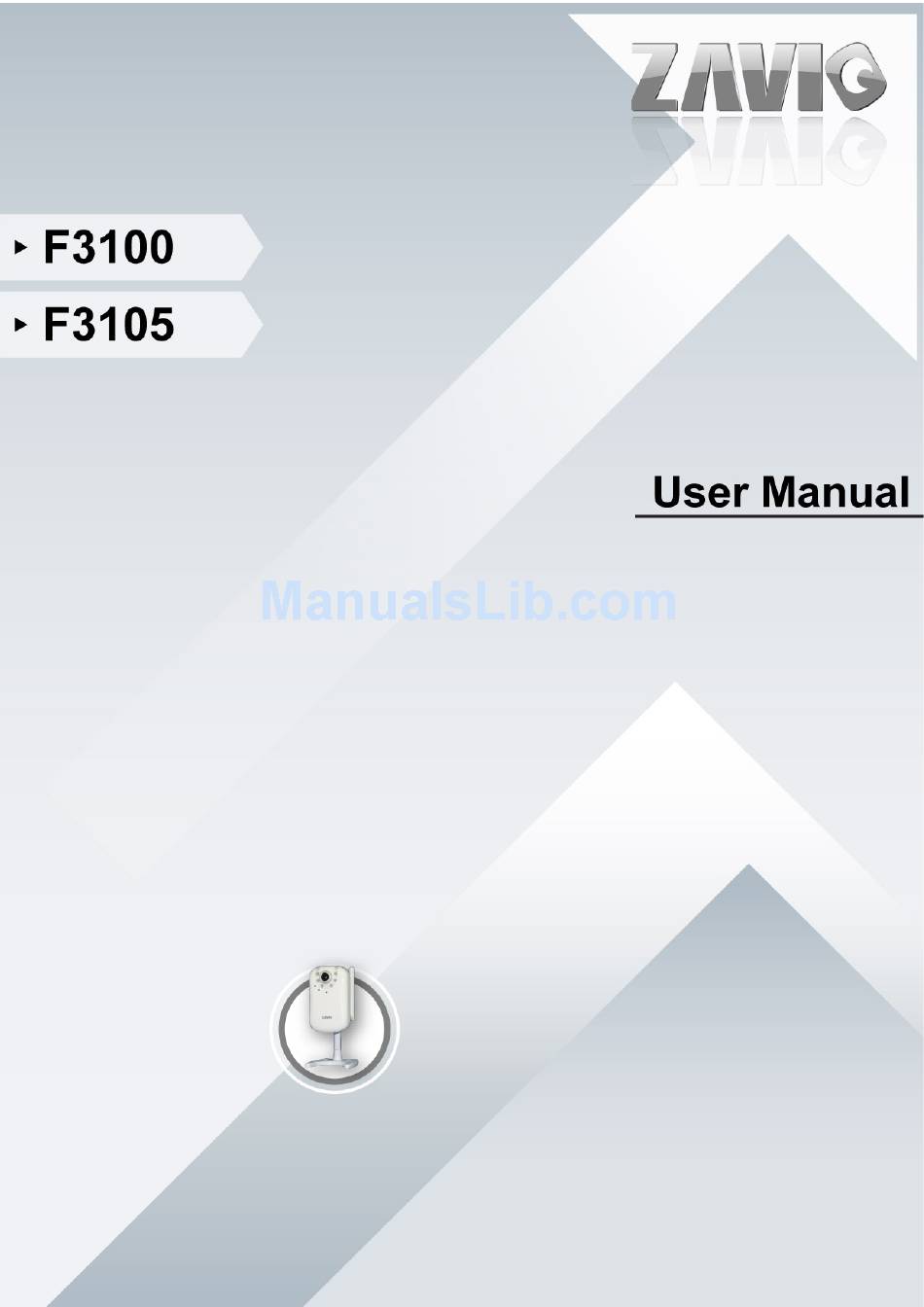

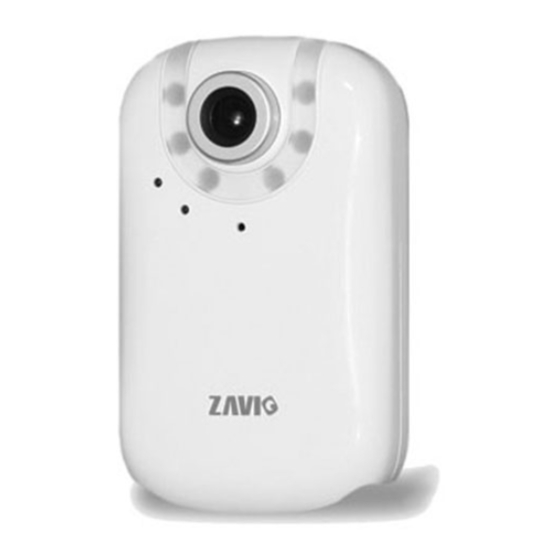

  • Page 1 F3100 & F3105 User Manual...

  • Page 2: Table Of Contents

    F3100 & F3105 User Manual Contents CHAPTER 1. SAFETY INSTRUCTION ........................1 CHAPTER 2. MINIMUM SYSTEM REQUIREMENT & PRODUCT FEATURE ..........3 2.1 S ............................3 YSTEM EQUIREMENT 2.2 P ............................... 4 RODUCT EATURES CHAPTER 3. USING IP CAMERA VIA WEB BROWSER ..................5 3.1 W...
  • Page 3 F3100 & F3105 User Manual 9.1.2 Alarm Sending............................... 54 9.1.3 Periodical Sending ............................56 9.2 SMTP ..................................57 9.2.1 General ................................57 9.2.2 Alarm Sending............................... 59 9.2.3 Periodical Sending ............................60 9.3 N ............................. 62 ETWORK TORAGE 9.3.1 General ................................62 9.3.2 Alarm Sending...............................

  • Page 4: Chapter 1. Safety Instruction

    F3100 & F3105 User Manual User Manual Chapter 1. Safety Instruction  Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following.
  • Page 5 F3100 & F3105 User Manual  In case of abnormal operation If the unit emits smoke or an unusual smell,  If water or other foreign objects enter the cabinet, or  If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2 ...

  • Page 6: Chapter 2. Minimum System Requirement & Product Feature

    F3100 & F3105 User Manual Chapter 2. Minimum System Requirement & Product Feature 2.1 System Requirement For normal operation and viewing of the network camera, it’s recommended that your system meet these minimum requirements for proper operation: Item Requirements Pentium 4 2.8GHz (or equivalent AMD)

  • Page 7: Product Features

    F3100 & F3105 User Manual 2.2 Product Features These easy-to-follow instructions make setup and operation quick and simple, so you’ll also soon be enjoying the benefits of these product features: SYSTEM H.264 / MPEG-4 / Motion JPEG: 4 resolutions from 1280x1024 to 320x240 via API and...

  • Page 8: Chapter 3. Using Ip Camera Via Web Browser

    F3105 User Manual Chapter 3. Using IP Camera via Web Browser 3.1 Windows Web Browser 1. Open your web browser, and enter the IP address or host name of the IP camera in the Location / Address field of your browser. Note : If you only want to view the video without accessing Setting screen, enter “http://<IP>/index2.htm”...

  • Page 9: Mac Web Browser

    F3105 User Manual 3.2 Mac Web Browser 1. Click the Safari icon, and enter the IP address of the IP camera in the Location / Address field of your browser. Note : If you only want to view the video without Setting screen “http://<IP>/index2.htm”...
  • Page 10 F3105 User Manual 3. The monitor image will be displayed in your browser. In the far left side of main configuration are Setting, Client Setting, and Image Setup. For more details, you can check Chapter 7.2、Chapter 7.3、Chapter 7.4 and Chapter 7.5. Using IP Camera via Web Browser...

  • Page 11: Chapter 4. Setting Up Wireless Configuration

    F3105 User Manual Chapter 4. up Wireless Configuration Setting The wireless network has to be set up by using cable network connection. After setting the camera correctly, the wireless function can work without cable network connection. Please follow the setting process below step by step: 1.
  • Page 12 F3105 User Manual 7. Otherwise, Choose Use the following IP address and Use the following DNS sever address.  Use the following IP address: Select this when the fixed IP address is set. IP address: Enter the IP address of the device. ...

  • Page 13: Chapter 5. Operating Ip Camera Via Mobile Phone

    F3105 User Manual Chapter 5. Operating IP Camera via Mobile Phone 5.1 Mobile Phone Viewing 5.1.1 3G Mobile Phone Streaming Viewing For 3G mobile phone viewing, type “ rtsp://<IP>:<PORT>/video.3gp ” into your 3G Streaming Link. <IP> is the Public IP address of your IP camera; <PORT> is the RTSP port of your IP camera (Default value is 554.) Example: rtsp://100.10.10.1:554/video.3gp Note: You can also use RTSP clients (RealPlayer, VLC, QuickTime Player…etc.) to view RTSP streaming, just type in “rtsp://<IP>:<PORT>/video.3gp”...

  • Page 14: Using Ip Camera Via Iphone

    F3105 User Manual 5.2 Using IP Camera via iPhone You can use ZAVIO Web User Interface via iPhone. Please follow the setting process below. Then you can use ZAVIO Web UI via iPhone. 2. Type IP address in your web link.

  • Page 15: Chapter 6. Msn Messenger

    F3105 User Manual Chapter 6. MSN Messenger Please follow the following steps to set up the Messenger function. 1. Download free MSN software and create a new MSN account (Camera at home) for Microsoft Live Messenger. 2.Go to “Setting→Basic→Network→Messenger,” set the Messenger to “ON” . Then, login in new account and password (Camera at home).
  • Page 16 F3105 User Manual 10. The IP Camera will accept your 11. Click Action button and choose Start invitation; the live video will show up in the Control Panel to use control panel. right screen after few seconds. 12. The dialog box will show up with “This 13.
  • Page 17 F3105 User Manual 14. You can click Camera icon 15. You can click paint palette icon snapshot then the picture will send to you showing up with tool bar to set up image. immediately. Then, you can use the tool bar to optimize video Brightness , Contrast Saturation...

  • Page 18: Chapter 7. Configuration Of Main Menu

    F3105 User Manual Chapter 7. Configuration of Main Menu In the left side of main configuration are Setting, Client setting, Image setting. For more details, please check Chapter 7.2、Chapter 7.3、Chapter 7.4.、Chapter 7.5. In the right side, you can control Live View in your main Browser. The functions include Snapshot, Open digital zoom, Audio, and Video Play.

  • Page 19: Live View

    F3105 User Manual 7.1 Live View 7.1.1 Snapshot You can capture a still image shot by clicking the camera icon and save it in the operating computer. Symbols Meaning a snapshot window appears after clicking the icon Save save the picture captured by snapshot into your computer mput er c omputer.

  • Page 20: Video Play Buttons

    F3105 User Manual 7.1.3 Video play buttons Symbols Meaning Pause the current video Play the video Stop the current video Record the current video Note: Concerning the recording storage requirement of your hard disk, please refer to the CHAPTER 10. APPENDIX / B. Storage Requirement Table. 7.1.4 Audio buttons Symbols Meaning...

  • Page 21: Setting

    F3105 User Manual 7.2 Setting This function is only for the Administrator. Click “Setting” on the home page of web user interface to get into the Basic and Advanced Settings menu. Click Basic folder, there are sub-folders including System, Camera, Network, and Security. Fore more information, you can see Chapter 8.1、Chapter 8.2、Chapter 8.3 and Chapter 8.4.

  • Page 22: Client Setting

    F3105 User Manual 7.3 Client Setting This function is only for the client. Click this button to control Mode, View Size, Protocol, and Video Buffer. 7.3.1 Mode Click the pull-down box to choose video compression mode of LIVE VIEW among H.264, MPEG-4, and MJPEG.

  • Page 23: Image Setup

    F3105 User Manual 7.4 Image Setup The tool bar can be adjusted to optimize video Brightness, Contrast, Saturation and Sharpness. 7.4.1 Brightness The value range is 0~99. The higher value the brightness is, the brighter the image is. 7.4.2 Contrast The value range is 0~99.

  • Page 24: Chapter 8. Setting-Basic

    F3105 User Manual Chapter 8. Setting-Basic Click the Basic folder to display the sub folders including System, Camera, Network, and Security. 8.1 System Click the folder of System to display the sub-folders including Information, Date / Time, Initialize, and Language. 8.1.1 Information The Information screen provides the product factory information which includes Product Name, Firmware Version.
  • Page 25 F3105 User Manual  Current Date / Time: This displays the current date and time of this IP Camera.  PC Clock: This displays the date and time of the monitoring PC clock.  Date / Time Format: You can click the pull down box to select different time display formats.

  • Page 26: Initialize

    F3105 User Manual  Time Zone: Select the Time Zone format of Greenwich Mean Time among different cities. The time display will be the same as the current date / time option.  Daylight Saving Time: There are two modes to choose for setting up daylight saving time.

  • Page 27: Language

    F3105 User Manual and follow the instructions on the browser to save the setting data file to the location you specified.  Restore Setting: Download the saved setting data of this IP Camera. Click “Browse” and select saved file. Click “OK” and this IP Camera is adjusted according to the loaded data and then restarted.

  • Page 28: Camera

    F3105 User Manual 8.2 Camera Click the folder of Camera to display the sub folders including General, H.264, MPEG-4, MJPEG, 3GPP, and Advanced. 8.2.1 General  RTSP: The default value is 554. If the IP Cameras connected with router and installed outside are over 2 sets and all of them need support RTSP, please fill some value in the blank space in the range from 1024 to 65535.

  • Page 29: H.264

    F3105 User Manual usage of this codec will cause frame-rate decreasing. Off: Select Off, audio file won’t be transmitted by IP CAM.  Audio Mode: You can select Full duplex or Half duplex.  Full duplex: Select it for simultaneous communication in both direction between the ...
  • Page 30 F3105 User Manual  Viewer Authentication: On: If the viewer authentication is On, the users will be requested to key-in username  and password when using QuickTime Player to have live viewing. Off: If the viewer authentication is Off, you can have live viewing on computer by ...

  • Page 31: Mpeg-4

    F3105 User Manual rate. Fixed Quality: Select the value of quality among Medium, Good, Delicate and  Excellent. Fixed Bitrate: Set the bitrate of H.264 image transmission for a line. Select one among  64Kbps, 128Kbps, 256Kbps, 384Kbps, 512Kbps, 768Kbps, 1Mbps, 1.5 Mbps, 2 Mbps, 3 Mbps, 4 Mbps, 5 Mbps, and 6 Mbps.
  • Page 32 F3105 User Manual QuickTime Player after entering “rtsp://ip:port/video.mp4” on the URL column directly.  Multicasting Streaming (if it’s on): Multicast Address: Specify the multicast server address.  Video / Audio Port: Specify the transmission port number of the video data, from ...

  • Page 33: Mjpeg

    F3105 User Manual recorded on FTP server. 8.2.4 MJPEG  Viewer Authentication: On: If the viewer authentication is On, the users will be requested to key-in username  and password when using QuickTime Player to have live viewing. Off: If the viewer authentication is Off, you can have live viewing on computer by ...

  • Page 34: 3Gpp

    F3105 User Manual  Quality: Auto: The quality and bit rate will be adjusted automatically according to the frame  rate. Fixed Quality: Select the value of quality among Medium, Good, Delicate and  Excellent. Fixed Bitrate: Set the bitrate of MJPEG image transmission for a line. You can select ...

  • Page 35: Advanced

    F3105 User Manual one among 64Kbps, 48Kbps, 32Kbps, 16Kbps.  IP Interval: It’s the ratio of i-frame & p-frame. You can select one among 1, 5, 10, 15, 30, 60, and 120. The ratio smaller, the streaming smoother. Note: The IP interval value means a RATIO of “ P-frame / I-frame “ in a certain section of frame sequences.
  • Page 36 F3105 User Manual shooting people or other subjects in front of a bright background. Slow Shutter: Click it on and the range of shutter speed will be from 1/5 to  1/120 sec. It will adjust the shutter speed automatically and helpful to capture the clear image when shooting in a dark place.

  • Page 37: Playback

    F3105 User Manual 8.2.7 PLAYBACK Clicking the button of “Open Files” and select the video file recorded previous, you can look for the desired image. Besides, you can still have the live view in the screen. The function of each button is as below illustration: Snapshot Mirror/ Flip Full Screen...

  • Page 38: Network

    F3105 User Manual 8.3 Network Click the folder of Network to display the sub folders including Information, PPPoE, DDNS, UPnP, Bonjour, IP Notification, Wireless and Messenger. 8.3.1 Information Display the MAC address of the device.  Obtain an IP address automatically (DHCP): If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server.

  • Page 39: Pppoe

    F3105 User Manual Use the following IP address: Select this option when the fixed IP address is set. IP address: Enter the IP address of the device.  Subnet mask: Enter the subnet mask.  Default gateway: Enter the default gateway. ...
  • Page 40 F3105 User Manual  IP Address: The IP address obtained at the PPPoE connecting with network.  User ID: Enter the user ID for authentication necessary for PPPoE connections. Type it up to 64 characters.  Password: Enter the password for authentication necessary for PPPoE connections. Type it up to 32 characters.

  • Page 41: Ddns (Dynamic Dns)

    F3105 User Manual 8.3.3 DDNS (Dynamic DNS) DDNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for DDNS is allowing an internet domain name to be assigned to a computer with a varying / dynamic IP Address.
  • Page 42 F3105 User Manual You can apply DDNS Note : How to apply DDNS username and Host name?? username and Host name by the following steps: 1. Login http://www.dyndns.org, click the Creat Account 2. Input all information and follow step by step with DynDNS Setting-Basic Network...
  • Page 43 F3105 User Manual 3. Login with new account and click Account → My Hosts → Add Host Services 4. Type domain in the Hostname field and select sub-domain Setting-Basic Network...
  • Page 44 F3105 User Manual 5. After type information, check your DDNS service. 6. Type your DDNS User ID, Password and Host name in Setting → Network → DDNS. After completing setting, reboot IP Camera. Setting-Basic Network...

  • Page 45: Upnp (Universal Plug And Play)

    F3105 User Manual 8.3.4 UPnP (Universal Plug and Play) If you have a Router to access to internet and the Router supports UPnP IGD function, you need to turn on the UPnP Port Forwarding function.  HTTP Port: Enter the HTTP port number and default HTTP port is 80. ...

  • Page 46: Bonjour

    F3105 User Manual 8.3.5 Bonjour Bonjour, also known as zero-configuration networking, enables automatic discovery of computers, devices, and services on IP networks. Bonjour uses industry standard IP protocols to allow devices to automatically discover each other without the need to enter IP addresses or configure DNS servers.

  • Page 47: Ip Notification

    F3105 User Manual 8.3.6 IP Notification When network notify type is set to “ON”, you can send an e-mail notification of the completion of the network setting.  Notify Type: You can select the notify type among DHCP, Static IP, and PPPoE. ...
  • Page 48 F3105 User Manual  Authentication: Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent.  On: When authentication is necessary an e-mail is sent, there are SMPT, POP before ...

  • Page 49: Wireless (For F3105)

    F3105 User Manual 8.3.7 Wireless (For F3105) The wireless network has to be set up by using cable network connection. After setting the camera correctly, the wireless function can work with cable network connection. Wireless settings must be the same as the access point or ad-hoc device. When changing the settings they should always be made first in the camera and then in the wireless access point.
  • Page 50 F3105 User Manual  Wireless Setting These settings control how the camera interacts with the wireless network. It is also possible to enable wireless encryption apart from identifying the wireless network. IP Address – This displays blank, 0.0.0.0 or IP Address. When it is blank, the camera ...

  • Page 51: Messenger

    F3105 User Manual 8.3.8 Messenger Messenger function provide an easy-connect feature. User can easy to know what camera’s private and public IP address is.  Protocol: support MSN only.  Login Account: Camera will use this account to login MSN server. This MSN account should be applied form http://www.msn.com.
  • Page 52 F3105 User Manual  Privacy: Switch privacy On / Off. When privacy turns on, only those users in allow list can access the camera  User: Input to this blank to edit allow list.  Allow List: When privacy turns on, only those users in allow list can access the camera. Setting-Basic Network...

  • Page 53: Security

    F3105 User Manual 8.4 Security Click the folder of Security to display the sub folders including Account and HTTPS. 8.4.1 Account The device fault account and password setting is “admin / admin”. That means everyone who knows IP address can access the device including all configuration. It is necessary to assign a password if the device is intended to be accessed by others.

  • Page 54: Https

    F3105 User Manual 8.4.2 HTTPS HTTPS is a URL scheme used to indicate a secure HTTP connection. It is syntactically identical to the http:// scheme normally used for accessing resources using HTTP. Using an https: //URL/ with a different default TCP port (443) and an additional encryption / authentication layer between the HTTP and TCP.

  • Page 55: Ip Filter

    F3105 User Manual 8.4.3 IP Filter IP Filter provides the function of controlling the range of IP address, similar with firewall service.  IP Filter: Select if you would like to have IP filter function.  Allow Range: The default range is from 0.0.0.0 to 255.255.255.255. Enter the “Start IP address”...

  • Page 56: Chapter 9. Setting-Advanced

    F3105 User Manual Chapter 9. Setting-Advanced Click the folder of Advanced to display the sub folders including FTP client, SMTP, Network storage, HTTP event, Schedule, Alarm buffer, Motion detection, Audio detection, and System Log. 9.1 FTP Client Use this menu to set up for capturing and sending a image or video clip to an FTP server. By using FTP client function, you can send files which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to FTP server.

  • Page 57: Alarm Sending

    F3105 User Manual  User Name: Type the user name for the FTP server.  Password: Type the password for the FTP server.  Retype Password: To confirm the password, type the same characters as you typed in the Password box. ...
  • Page 58 F3105 User Manual  Image File Name: Type the file name you want to assign to the files when sending to the FTP server. You can use up to 10 alphanumeric characters, - (hyphen) and _ (underline) for naming.  Suffix: Select a suffix to add to the file name Date &...

  • Page 59: Periodical Sending

    F3105 User Manual 9.1.3 Periodical Sending Select On, you can set to send an image file to FTP server periodically.  Remote Path: Remote path: Type the path to storage location of FTP server which you have authorized.  Image File Name: Type the file name of snapshot or video clip sent by SMTP up to 10 alphanumeric characters, - (hyphen) and _ (under score).

  • Page 60: Smtp

    F3105 User Manual 9.2 SMTP Set the SMTP menu when you want to send an image or video clip via e-mail. By using Mail (SMTP) function, you can send a mail with attached file which has been shot linked with the external sensor input or with the built-in motion detection function. The file can also be sent periodically.
  • Page 61 F3105 User Manual Note: If you use g-mail as your mail server, you should set 25 as your port number and tick SSL box.  Authentication: Select the authentication required when you send an email. Off: Select if no authentication is necessary when an email is sent. ...

  • Page 62: Alarm Sending

    F3105 User Manual 9.2.2 Alarm Sending Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Select On to send the image file to SMTP server linked with the alarm detection. ...

  • Page 63: Periodical Sending

    F3105 User Manual Note: You can set motion detection at motion detection screen. (Please go “Setting → Advanced → Motion Detection → Setting”) For more details, you can check Chapter 9.7. Audio Detection: Click it on for using Audio Detection function as a sensor. You can ...
  • Page 64 F3105 User Manual  Image File Name: Type the file name of the image sent by SMTP up to 10 alphanumeric characters, - (hyphen) and _ (under score).  Suffix: Select a suffix to be added to the file name sent by SMTP. Date &...

  • Page 65: Network Storage

    F3105 User Manual 9.3 Network Storage Network storage provides the storage function for saving image files to the specified computer and folder connected with the operating computer. 9.3.1 General Select On if you would like to use the network storage function. Then choose one protocol between Windows network (SMB/CIFS) and Unix network (NFS).

  • Page 66: Alarm Sending

    F3105 User Manual User Name: Type the name of workgroup.  Password: Type the password for workgroup.  Re-type password: Re-type password for workgroup.  9.3.2 Alarm Sending Set to transmit the snapshot or video clip file with connection to the alarm detection by the external sensor input or by the built-in motion detection function.

  • Page 67: Periodical Recording

    F3105 User Manual Motion Detection: Click it on for using Motion Detection function as a sensor. You  can set motion detection function at the motion detection function screen. Note: You can set motion detection at motion detection screen. (Please go “Setting → Advanced →...
  • Page 68 F3105 User Manual selecting On.  Image file name: Type the file name you want to assign to the file transmitted to the network storage location. You can use up to 10 alphanumeric, - (hyphen) and _ (underscore) for naming. ...

  • Page 69: Http Event

    F3105 User Manual 9.4 HTTP Event Set up this menu for sending commands to an HTTP server. By using HTTP client function, you can send the command defined by yourself, linked with the external sensor input or with the built-in motion detection function to HTTP server. HTTP client setting menu is composed of two tabs, General and Alarm sending.

  • Page 70: Alarm Sending

    F3105 User Manual 9.4.2 Alarm Sending Set to send the command with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Select “On“ to send the image and audio file to HTTP server linked with the alarm detection. Alarm Sending: Select On to set to send command with connection to the alarm detection.
  • Page 71 F3105 User Manual Audio Detection: Click it on for using Audio Detection function as a sensor. You can  set audio detection function at the audio detection function screen. Note: You can set audio detection at audio detection screen. (Please go “Setting → Advanced →Audio detection →...
  • Page 72 F3105 User Manual Parameter: the parameter of CGI (defined in URL of HTTP → General) is  from your target device. For example, move=down. Message: message will show up in the form of Message = PTZ down. If your  target device didn’t support the parameter of message, you can’t see the message.

  • Page 73: Schedule

    F3105 User Manual 9.5 Schedule Click Schedule on the Advanced mode menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client, e-Mail (SMTP), HTTP event, Record, and Alarm out setting menu setting menu.

  • Page 74: Alarm Buffer

    F3105 User Manual 9.6 Alarm Buffer When you click Alarm Buffer on the Advanced mode menu, the Alarm buffer setting menu appears. You can set in this menu to enable alarm buffer function connected with FTP Client, SMTP, Network Storage, and HTTP Event. Use alarm buffer function for recording audio and video file in the IP Camera before and after disconnected network.

  • Page 75: Motion Detection

    F3105 User Manual 9.7 Motion Detection There are three Motion Detection functions as sensors to set for different detecting zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially. Motion Detection function can support to FTP Client, SMTP, Network Storage, and HTTP Event.

  • Page 76: Audio Detection

    F3105 User Manual 9.8 Audio Detection The Audio detection has Threshold and Sensitivity inputs which you can adjust sequentially. Audio Detection function can support to FTP Client, SMTP, Network Storage, and HTTP Event. Click it on for using Audio Detection function as a sensor. You can set audio detection function at the audio detection function screen.

  • Page 77: System Log

    F3105 User Manual 9.9 System Log The System Log function allows users to review any changes and events happened. The system starts logging automatically after started.  Enable Remote Log: Enables user to send the log data to a specified log server. Setting-Advanced System Log...

  • Page 78: Chapter 10. Appendix

    F3105 User Manual CHAPTER 10. APPENDIX A. Frame-rate and Bitrate Table – Help to set IPCamera with your network environment to access Internet. Base on your network upload environment to choose the suitable Image-Quality setting. For example, if the network environment is ADSL 256Kb(upload) / 2Mb(download), the most fluent Image-Quality needs to set up under 256 Kb situation.
  • Page 79 F3105 User Manual 640*480 6144 6300 640*480 6144 6300 640*480 2048 2200 640*480 2048 2200 640*480 640*480 320*240 6144 5100 320*240 6144 3600 320*240 2048 2200 320*240 2048 2200 320*240 320*240 A.1.4. MPEG 4@ 15fps / kbps Quality 1280*1024 1280*720 640*480 320*240 Excellent...
  • Page 80 F3105 User Manual 640*480 640*480 320*240 6144 2200 320*240 6144 1800 320*240 2048 2200 320*240 2048 1800 320*240 320*240 A.1.7. MJPEG @ 15fps / kbps Quality 1280*1024 1280*720 640*480 320*240 Excellent 22000 16000 6000 2200 Detailed 12000 7000 3000 1200 Good 7000 5000...

  • Page 81: Vga Mode

    F3105 User Manual 320*240 Good 1000 320*240 Good 320*240 Medium 320*240 Medium A.2 VGA Mode A.2.1 H.264 @ 30fps / kbps Quality 640*480 320*240 Excellent Detailed Good Standard Medium A.2.2 H.264@15 fps / kbps Quality 640*480 320*240 Excellent Detailed Good Standard Medium A.2.3 H.264 / kbps, fps...
  • Page 82 F3105 User Manual A.2.5 MPEG4@ 15fps / kbps Quality 640*480 320*240 Excellent Detailed Good Standard Medium A.2.5 MPEG4 / kbps, fps Frame-Rate Current Image-Size Bitrate Setting Current Bitrate Setting Frame-Rate 640*480 6144 6300 640*480 6144 6300 640*480 2048 2200 640*480 2048 2200 640*480...
  • Page 83 F3105 User Manual 640*480 Medium 2500 640*480 Medium 1400 320*240 Excellent 4500 320*240 Excellent 2500 320*240 Good 2000 320*240 Good 1200 320*240 Medium 1000 320*240 Medium...

  • Page 84: Storage Requirement Table

    F3105 User Manual B. Storage Requirement Table - Help to set Recording Storage System. Please refer to the following table to find out the capability for recording into your hard disk. B.1 Mega Mode B.1.1 H.264 Storage Requirement GB / channel / day @ 15fps Quality 1280*1024 1280*720...
  • Page 85 F3105 User Manual 320*240 2048 182.6 320*240 2048 182.6 320*240 45.7 320*240 45.7 B.1.4 MPEG4 Storage Requirement GB / channel / day @ 15fps Quality 1280*1024 1280*720 640*480 320*240 Excellent Detailed 58.1 Good 12.5 Standard Medium B.1.5 MPEG4 Storage Requirement GB / channel / day @ 10fps Quality 1280*1024 1280*720...

  • Page 86: Vga Mode

    F3105 User Manual B.2 VGA Mode B.2.1. H.264 Storage Requirement GB / channel / day @ 30fps Quality 640*480 320*240 Excellent Detailed Good Standard Medium B.2.2. H.264 Storage Requirement GB / channel / day @ 15fps Quality 640*480 320*240 Excellent 12.5 Detailed Good...
  • Page 87 F3105 User Manual Medium B.2.6. MJPEG Storage Requirement GB / channel / day Frame-Rate Storage Image-Size Bitrate Setting Current Bitrate Setting Requirement 640*480 6144 6300 522.9 640*480 6144 6300 522.9 640*480 2048 2200 182.6 640*480 2048 2200 182.6 640*480 45.7 640*480 45.7 320*240...

  • Page 88: C. S Ystem R Equirement

    F3105 User Manual C. System Requirement – Help to setup System C.1. 16 Channel IPCamera with CIF Performance Equipment Configuration MainConsole Version 2.6.4 Professional Software: Intel Core 2 Quad Q6600 @ 2400 MHz CPU: 1024 MB (2 x 512 DDR2-SDRAM ) Memory: Marvell Yukon 88E8052 PCI-E ASF Gigabit Ethernet Controller Ethernet:...

  • Page 89: Europe - Eu Declaration Of Conformity

    F3105 User Manual Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: Clause Description EN 60950-1: 2001...
  • Page 90 F3105 User Manual Español Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con [Spanish] los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ [name of manufacturer] ΔΗΛΩΝΕΙ ΟΤΙ [type of equipment] [Greek] ΣΥΜΜΟΡΦΩΝΕΤΑΙ...

  • Page 91: Federal Communication Commission Interference Statement

    F3105 User Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
