Zavio F5110 User Manual

Hide thumbs Also See for F5110:
Table of Contents

Advertisement

Quick Links

Download this manual

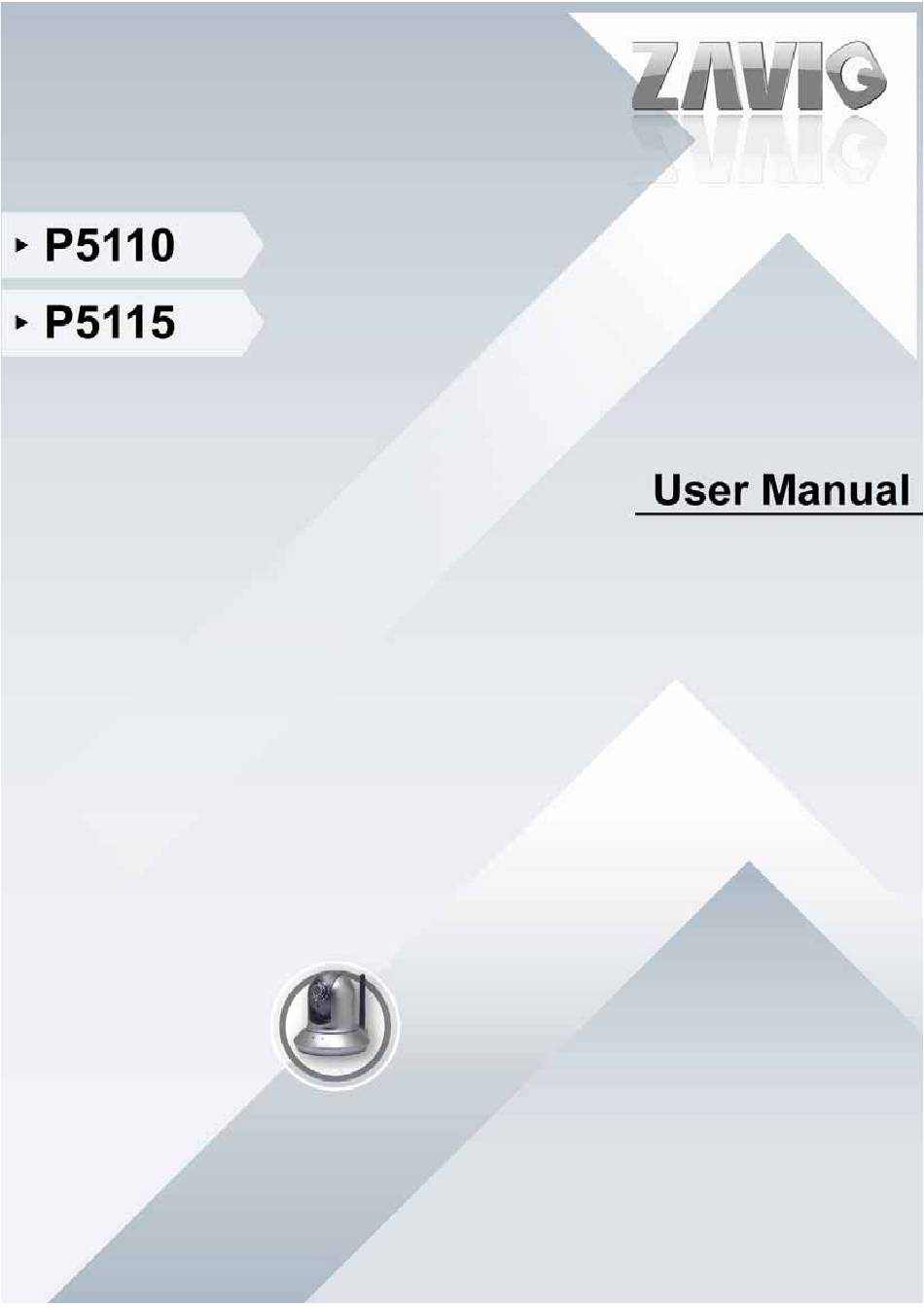

P5110 / P5115 User Manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F5110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zavio F5110

Summary of Contents for Zavio F5110

  • Page 1 P5110 / P5115 User Manual...

  • Page 2: Table Of Contents

    P5110 / P5115 User Manual Contents CHAPTER 1. SAFETY INSTRUCTION ........................1 CHAPTER 2. MINIMUM SYSTEM REQUIREMENT &................... 3 PRODUCT FEATURE..............................3 2.1 S ............................3 YSTEM EQUIREMENT ............................... 4 2.2 P RODUCT EATURES CHAPTER 3. USING IP CAMERA VIA WEB BROWSER ..................5 3.1W ............................
  • Page 3 P5110 / P5115 User Manual 8.3.7 Wireless (Only for P5115) ..........................46 8.3.8 Messenger..............................48 8.4 S ................................50 ECURITY 8.4.1 Account ................................50 8.4.2 HTTPS ................................51 8.4.3 IP Filter ................................. 52 CHAPTER 9. SETTING-ADVANCED ........................52 CHAPTER 9. SETTING-ADVANCED ........................53 9.1 PT C .................................

  • Page 4: Chapter 1. Safety Instruction

    P5110 / P5115 User Manual User Manual Chapter 1. Safety Instruction Before you use this product This product has been designed with safety in mind. However, the electrical products can cause fires which may lead to serious body injury if not used properly. To avoid such accidents, be sure to heed the following.
  • Page 5 P5110 / P5115 User Manual In case of abnormal operation If the unit emits smoke or an unusual smell, If water or other foreign objects enter the cabinet, or If you drop the unit or damage the cabinet:1 Disconnect the cable and the connecting cables. 2 Contact your authorized dealer or the store where you purchased the product.

  • Page 6: Chapter 2. Minimum System Requirement

    P5110 / P5115 User Manual Chapter 2. Minimum System Requirement & Product Feature 2.1 System Requirement For normal operation and viewing of the network camera, it’s recommended that your system meet these minimum requirements for proper operation: Item Requirements Pentium 4 1.8GHz (or equivalent AMD) Graphic Card 64 MB RAM graphic cards(or equivalent on-board graphic cards) 512 MB...

  • Page 7: Product Features

    P5110 / P5115 User Manual 2.2 Product Features These easy-to-follow instructions make setup and operation quick and simple, so you’ll also soon be enjoying the benefits of these PRODUCT FEATURES: SYSTEM H.264 / MPEG-4 / Motion JPEG: 4 resolutions from 1280x1024 to 320x240 via API and Resolutions configuration web page Screen Resolution...

  • Page 8: Chapter 3. Using Ip Camera Via Web Browser

    P5110 / P5115 User Manual Chapter 3. Using IP Camera via Web Browser 3.1Windows Web Browser 1. Open your web browser, and enter the IP address or host name of the IP camera in the Location / Address field of your browser. Note : If you only want to view the video without accessing Stting screen, enter “http://<IP>/index2.htm”...

  • Page 9: Mac Web Browser

    P5110 / P5115 User Manual 3.2 Mac Web Browser 1. Click the Safari icon, and enter the IP address of the IP camera in the Location / Address field of your browser. Note : If you only want to view the video without Setting screen “http://<IP>/index2.htm”...
  • Page 10 P5110 / P5115 User Manual 3. The monitor image will be displayed in your browser. In the far left side of main configuration are Setting, Client Setting, and Image Setup and PT control. For more details, you can check Chapter 7.2 Chapter 7.3 Chapter 7.4 and Chapter 7.5. Using IP Camera via Web Browser...

  • Page 11: Chapter 4. Setting Up Wireless Configuration (Only For P5115 )

    P5110 / P5115 User Manual Chapter 4. up Wireless Configuration Setting (Only for P5115 ) The wireless network has to be set up by using cable network connection. After setting the camera correctly, the wireless function can work without cable network connection. Please follow the setting process below step by step: 1.
  • Page 12 P5110 / P5115 User Manual 6. Choose the option of Obtain an IP address automatically (DHCP) and Obtain DNS server address automatically. 7. Otherwise, Choose Use the following IP address and Use the following DNS sever address. Use the following IP address: Select this when the fixed IP address is set. IP address: Enter the IP address of the device.

  • Page 13: Chapter 5. Operating Ip Camera Via Mobile Phone

    P5110 / P5115 User Manual Chapter 5. Operating IP Camera via Mobile Phone 5.1 Mobile Phone Viewing 5.1.1 3G Mobile Phone Streaming Viewing For 3G mobile phone viewing, type “ ” into your 3G rtsp://<IP>:<PORT>/video.3gp Streaming Link. <IP> is the Public IP address of your IP camera; <PORT> is the RTSP port of your IP camera (Default value is 554.) Example: rtsp://100.10.10.1:554/video.3gp Note: You can also use RTSP clients (RealPlayer, VLC, QuickTime Player…etc.) to view RTSP streaming, just type in “rtsp://<IP>:<PORT>/video.3gp”...

  • Page 14: Using Ip Camera Via Iphone

    P5110 / P5115 User Manual 5.2 Using IP Camera via iPhone You can use ZAVIO Web User Interface via iPhone. Please follow the setting process below. Then you can use ZAVIO Web UI via iPhone. 2. Type IP address in your web link.

  • Page 15: Chapter 6. Msn Messenger

    P5110 / P5115 User Manual Chapter 6. MSN Messenger Please follow the following steps to set up the Messenger function. 1. Download free MSN software and create a new MSN account (Camera at home) for Microsoft Live Messenger. 2.Go to “Setting Basic Network Messenger,” set the Messenger to “ON” . Then, login in new account and password (Camera at home).
  • Page 16 P5110 / P5115 User Manual 10. The IP Camera will accept your 11. Click Action button and choose Start invitation; the live video will show up in the Control Panel to use control panel. right screen after few seconds. 12. The dialog box will show up with “This 13.
  • Page 17 P5110 / P5115 User Manual 15. You can click paint palette icon 14. You can click Camera icon showing up with tool bar to set up image. Then, snapshot then the picture will send to you you can use the tool bar to optimize video immediately.

  • Page 18: Chapter 7. Configuration Of Main Menu

    P5110 / P5115 User Manual Chapter 7. Configuration of Main Menu In the left side of main configuration are Setting, Client setting, Image setting and PT control. For more details, please check Chapter 7.2 Chapter 7.3 Chapter 7.4. Chapter 7.5. In the right side, you can control Live View in your main Browser.

  • Page 19: Live View

    P5110 / P5115 User Manual 7.1 Live View 7.1.1 Snapshot You can capture a still image shot by clicking the camera icon and save it in the operating computer. Symbols Meaning a snapshot window appears after clicking the icon Save save the picture captured by snapshot into your computer computer computer.
  • Page 20 P5110 / P5115 User Manual 7.1.3 Video play buttons Symbols Meaning Pause the current video Play the video Stop the current video Record the current video Note: Concerning the recording storage requirement of your hard disk, please refer to the CHAPTER 10. APPENDIX / B. Storage Requirement Table. 7.1.4 Audio buttons Symbols Meaning...

  • Page 21: Setting

    P5110 / P5115 User Manual 7.2 Setting This function is only for the Administrator. Click “Setting” on the home page of web user interface to get into the Basic and Advanced settings menu. Click Basic folder, there are sub-folders including System, Camera, Network, and Security. Fore more information, you can see Chapter 8.1 Chapter 8.2 Chapter 8.3 and Chapter 8.4.

  • Page 22: Client Setting

    P5110 / P5115 User Manual 7.3 Client Setting This function is only for the client. Click this button to control Mode, View Size, Protocol, and Video Buffer. 7.3.1 Mode Click the pull-down box to choose video compression mode of LIVE VIEW among H.264, MPEG-4, and MJPEG.

  • Page 23: Image Setup

    P5110 / P5115 User Manual 7.4 Image Setup The tool bar can be adjusted to optimize video Brightness, Contrast, Saturation and Sharpness. 6.4.1 Brightness The value range is 0~99. The higher value the brightness is, the brighter the image is. 6.4.2 Contrast The value range is 0~99.

  • Page 24: Control

    P5110 / P5115 User Manual 7.5 PT Control 7.5.1 Pan / Tilt / Home control buttons Click the arrow button of the direction you want the IP camera to move. 7.5.2 Other camera control functions Preset: Move the camera toward the preset direction. Patrol: Before you start this function, you need to specify Guard tour settings in the Setting Menu under Advanced / Patrol setting.

  • Page 25: Chapter 8. Setting-Basic

    P5110 / P5115 User Manual Chapter 8. Setting-Basic Click the Basic folder to display the sub folders including System, Camera, Network, and Security. 8.1 System Click the folder of System to display the sub-folders including Information, Date / Time, Initialize, and Language. 8.1.1 Information The Information screen provides the product factory information which includes Product Name, Firmware Version.

  • Page 26: Date / Time

    P5110 / P5115 User Manual 8.1.2 Date / Time The Date/ Time screen displays all options of time setting. Current date / time: This displays the current date and time of this IP Camera. PC clock: This displays the date and time of the monitoring PC clock. Date / Time format: You can click the pull down box to select different time display formats.

  • Page 27: Initialize

    P5110 / P5115 User Manual Time Zone: Select the Time Zone format of Greenwich Mean Time among different cities. The time display will be the same as the current date / time option. Daylight Saving Time: There are two modes to choose for setting up daylight saving time.

  • Page 28: Language

    P5110 / P5115 User Manual and follow the instructions on the browser to save the setting data file to the location you specified. Restore Setting: Download the saved setting data of this IP Camera. Click “Browse” and select saved file. Click “OK” and this IP Camera is adjusted according to the loaded data and then restarted.

  • Page 29: Camera

    P5110 / P5115 User Manual 8.2 Camera Click the folder of Camera to display the sub folders including General, H.264, MPEG-4, MJPEG, 3GPP, and Advanced. 8.2.1 General RTSP: The default value is 554. If the IP Cameras connected with router and installed outside are over 2 sets and all of them need support RTSP, please fill some value in the blank space in the range from 1024 to 65535.
  • Page 30 P5110 / P5115 User Manual PHONE. While the option selected, your mobile phone will receive the audio file from IP Camera. And you can choose the bit rate from 4.75k to 12.2k. However, the usage of this codec will cause frame-rate decreasing. Off: Select Off, audio file won’t be transmitted by IP CAM.

  • Page 31: H.264

    P5110 / P5115 User Manual 8.2.2 H.264 Viewer authentication: On: If the viewer authentication is On, the users will be requested to key-in username and password when using QuickTime Player…etc. to have live viewing. Off: If the viewer authentication is Off, you can have live viewing on computer by QuickTime Player…etc.

  • Page 32: Mpeg-4

    P5110 / P5115 User Manual Quality: Auto: The quality and bitrate will be adjusted automatically according to the frame rate. Fixed Quality: Select the value of quality among Medium, Good, Delicate and Excellent. Fixed Bitrate: Set the bitrate of H.264 image transmission for a line. Select one among 64Kbps, 128Kbps, 256Kbps, 384Kbps, 512Kbps, 768Kbps, 1Mbps, 1.5 Mbps, 2 Mbps, 3 Mbps, 4 Mbps, 5 Mbps, and 6 Mbps.
  • Page 33 P5110 / P5115 User Manual Off: If the viewer authentication is Off, you can have live viewing on computer by QuickTime Player…etc. after entering “rtsp://ip:port/video.mp4” on the URL column directly. Multicasting streaming (if it’s on): Multicast Address: Specify the multicast server address. Video / Audio Port: Specify the transmission port number of the video data, from 1024 to 65535.

  • Page 34: Mjpeg

    P5110 / P5115 User Manual MPEG-4, the IP interval option will appear “Auto” automatically and can’t select. The limit is for avoiding damaging the recording quality of 5 seconds temporary-saved video recorded on FTP server. 8.2.4 MJPEG Viewer authentication: On: If the viewer authentication is On, the users will be requested to key-in username and password when using QuickTime Player…etc.

  • Page 35: 3Gpp

    P5110 / P5115 User Manual Note: The frame rate is up to 15 fps at 1280x1024, and up to 30 fps at 640x480. However, if you would like choose frame rate over 15 fps, the IMAGE SIZE of H.264/MPEG-4/MJPEG setting page has to been selected 320x240 or 640x480 at the same time.

  • Page 36: Advanced

    P5110 / P5115 User Manual Quality: Auto: The quality and bit rate will be adjusted automatically according to the frame rate. Fixed Quality: This item here can’t be selected. Fixed Bitrate: Set the bitrate of 3GPP image transmission for a line. You can select one among 64Kbps, 128Kbps, 256Kbps, 384Kbps, 512Kbps, 768Kbps, 1Mbps, 1.5 Mbps, 2 Mbps, 3 Mbps, 4 Mbps, 5 Mbps, and 6 Mbps.
  • Page 37 P5110 / P5115 User Manual Auto: Choose Auto and you have 3 options to adjust the exposure condition. Back Light Compensate: Click it on and it helps avoid problems in situations where the main subject ends up being too dark, such as when shooting people or other subjects in front of a bright background.

  • Page 38: Playback

    P5110 / P5115 User Manual 8.2.7 PLAYBACK Clicking the button of “Open files” and select the video file recorded previous, you can look for the desired image. Besides, you can still have the live view in the screen. The function of each button is as below illustration: Snapshot Mirror/ Flip...

  • Page 39: Network

    P5110 / P5115 User Manual 8.3 Network Click the folder of Network to display the sub folders including Information, PPPoE, DDNS, UPnP, Bonjour, IP Notification, Wireless and Messenger. 8.3.1 Information Display the MAC address of the device. Obtain an IP address automatically (DHCP): If a DHCP server is installed on the network, to select this while the IP address is assigned by the DHCP server.

  • Page 40: Pppoe (Point-To-Point Protocol Over Ethernet)

    P5110 / P5115 User Manual Use the following IP address: Select this option when the fixed IP address is set. IP address: Enter the IP address of the device. Subnet mask: Enter the subnet mask. Default gateway: Enter the default gateway. Use the following DNS server address: Select this when you set the fixed address as the IP address of DNS server.
  • Page 41 P5110 / P5115 User Manual IP address: The IP address obtained at the PPPoE connecting with network. User ID: Enter the user ID for authentication necessary for PPPoE connections. Type it up to 64 characters. Password: Enter the password for authentication necessary for PPPoE connections. Type it up to 32 characters.

  • Page 42: Ddns (Dynamic Dns)

    P5110 / P5115 User Manual 8.3.3 DDNS (Dynamic DNS) DDNS is a system which allows the domain name data held in a name server to be updated in real time. The most common use for DDNS is allowing an internet domain name to be assigned to a computer with a varying / dynamic IP Address.
  • Page 43 P5110 / P5115 User Manual You can apply DDNS Note : How to apply DDNS username and Host name?? username and Host name by the following steps: 1. Login http://www.dyndns.org, click the Creat Account 2. Input all information and follow step by step with DynDNS Setting-Basic Network...
  • Page 44 P5110 / P5115 User Manual 3. Login with new account and click Account My Hosts Add Host Services 4. Type domain in the Hostname field and select sub-domain Setting-Basic Network...
  • Page 45 P5110 / P5115 User Manual 5. After type information, check your DDNS service. 6. Type your DDNS User ID, Password and Host name in Setting Network DDNS. After completing setting, reboot IP Camera. Setting-Basic Network...

  • Page 46: Upnp (Universal Plug And Play)

    P5110 / P5115 User Manual 8.3.4 UPnP (Universal Plug and Play) If you have a Router to access to internet and the Router supports UPnP IGD function, you need to turn on the UPnP Port Forwarding function. HTTP port: Enter the HTTP port number and default HTTP port is 80. SSL port: Enter the SSL port number and default SSL port is 443.

  • Page 47: Bonjour

    P5110 / P5115 User Manual 8.3.5 Bonjour Bonjour, also known as zero-configuration networking, enables automatic discovery of computers, devices, and services on IP networks. Bonjour uses industry standard IP protocols to allow devices to automatically discover each other without the need to enter IP addresses or configure DNS servers.

  • Page 48: Ip Notification

    P5110 / P5115 User Manual 8.3.6 IP Notification When network notify type is set to “ON”, you can send an e-mail notification of the completion of the network setting. Notify Type: You can select the notify type among DHCP, Static IP, and PPPoE. SMTP Server Name: Type the SMTP server name up to 64 characters, or the IP address of the SMTP server.

  • Page 49: Wireless (Only For P5115)

    P5110 / P5115 User Manual User name, Password: Type the user name and Password of the user who has the mail account. This setting is necessary when the SMTP server which sends e-mails performs authentication. Recipient e-mail address: Type the recipient e-Mail address up to 64 characters. You can specify up to three recipient E-mail addresses.
  • Page 50 P5110 / P5115 User Manual Status of Wireless Network This list is the result of network scan. The network is currently linked to will be shown in blue. The following information is provided. ESSID - The name of a wireless network (or ad-hoc device). If the same name occurs several times this means that several access points for that network were found.

  • Page 51: Messenger

    P5110 / P5115 User Manual administrator can select the key length among 64 or 128 bits. 64bits is the default setting. 8.3.8 Messenger Messenger function provide an easy-connect feature. User can easy to know what camera’s private and public IP address is. Protocol: support MSN only.
  • Page 52 P5110 / P5115 User Manual Video Mode: You can choose to receive video streaming from Computer view (MPEG-4) or Mobile view (3GPP). IP Notification: Switch the IP notification On / Off. If this feature switches On, camera will send IP notification to the users who are allowed. Privacy: Switch privacy On / Off.

  • Page 53: Security

    P5110 / P5115 User Manual 8.4 Security Click the folder of Security to display the sub folders including Account and HTTPS. 8.4.1 Account The device fault account and password setting is “admin / admin”. That means everyone who knows IP address can access the device including all configuration. It is necessary to assign a password if the device is intended to be accessed by others.

  • Page 54: Https

    P5110 / P5115 User Manual 8.4.2 HTTPS HTTPS is a URL scheme used to indicate a secure HTTP connection. It is syntactically identical to the http:// scheme normally used for accessing resources using HTTP. Using an https: //URL/ with a different default TCP port (443) and an additional encryption / authentication layer between the HTTP and TCP.

  • Page 55: Ip Filter

    P5110 / P5115 User Manual 8.4.3 IP Filter IP Filter provides the function of controlling the range of IP address, similar with firewall service. IP filter: Select if you would like to have IP filter function. Allow range: The default range is from 0.0.0.0 to 255.255.255.255. Enter the “Start IP address”...

  • Page 56: Chapter 9. Setting-Advanced

    P5110 / P5115 User Manual Chapter 9. Setting-Advanced Click the folder of Advanced to display the sub folders including PTZ control, Preset position, Patrol, FTP client, SMTP, Network storage, HTTP event, Alarm output, Schedule, Alarm input, Alarm buffer, Motion detection, Audio detection, and System Log. 9.1 PT Control In this section, it provides Pan, Tilt, Auto Pan speed control setting.

  • Page 57: Preset Position

    P5110 / P5115 User Manual 9.2 Preset Position In this section, up to 32 Pan and Tilt positions can be saved, as well as the home position, which the device faces to when the power is turned on. 9.2.1 Setting Set: Use it to save the camera position to a preset number.

  • Page 58: Alarm Sending

    P5110 / P5115 User Manual Delete: Select a preset number from 1 to 32 in the list box. Use it to delete specific number preset position setting. 9.2.2 Alarm Sending Alarm Motion detection: Click it on for using Motion detection function as a sensor. You can set motion detection function at the motion detection function screen.
  • Page 59 P5110 / P5115 User Manual Note: You can set alarm buffer at alarm buffer screen. (Please go “Setting Advanced Alarm buffer Setting”) For more details, you can check Chapter 9.11. Alarm Input: Select the connected alarm. Sensor input1: The external sensor which is connected to sensor input1 of the alarm input.

  • Page 60: Patrol

    P5110 / P5115 User Manual 9.3 Patrol There are four patrol tours to set for composing different preset positions. Each one lists up to 8 positions which can be programmed, and the camera moves to the programmed positions sequentially. The camera stops when it moves to the last preset position. Tour name: Rename the tour name.

  • Page 61: Ftp Client

    P5110 / P5115 User Manual 9.4 FTP Client Use this menu to set up for capturing and sending a image or video clip to an FTP server. By using FTP client function, you can send files which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to FTP server.

  • Page 62: Alarm Sending

    P5110 / P5115 User Manual Attached file type: You can choose snapshot or video clip for alarm sending. Select “Snapshot,” one snapshot will be transmitted to the specified FTP server while motion detection / audio detection / alarm input triggered. Select “Video clip,” one 5-seconds video clip will be transmitted.
  • Page 63 P5110 / P5115 User Manual Sequence number: A consecutive number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name. Sequence number clear: Click Clear and the suffix of the sequence number returns to 1.

  • Page 64: Periodical Sending

    P5110 / P5115 User Manual 9.4.3 Periodical sending Select On, you can set to send an image file to FTP server periodically. Remote path: Remote path: Type the path to storage location of FTP server which you have authorized. Image file name: Type the file name of snapshot or video clip sent by SMTP up to 10 alphanumeric characters, - (hyphen) and _ (under score).

  • Page 65: Smtp

    P5110 / P5115 User Manual 9.5 SMTP Set the SMTP menu when you want to send an image or video clip via e-mail. By using Mail (SMTP) function, you can send a mail with attached file which has been shot linked with the external sensor input or with the built-in motion detection function.
  • Page 66 P5110 / P5115 User Manual Security setting: Tick SSL box if the mail server you use has security restriction. Note: If you use g-mail as your mail server, you should set 25 as your port number and tick SSL box. Authentication: Select the authentication required when you send an email.

  • Page 67: Alarm Sending

    P5110 / P5115 User Manual 9.5.2 Alarm sending Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Select On to send the image file to SMTP server linked with the alarm detection.
  • Page 68 P5110 / P5115 User Manual Alarm Motion Detection: Click it on for using Motion Detection function as a sensor. You can set motion detection function at the motion detection function screen. Note: You can set motion detection at motion detection screen. (Please go “Setting Advanced Motion detection Setting”) For more details, you can check Chapter 9.12.
  • Page 69 P5110 / P5115 User Manual Image file name: Type the file name of the image sent by SMTP up to 10 alphanumeric characters, - (hyphen) and _ (under score). Suffix: Select a suffix to be added to the file name sent by SMTP. Date &...

  • Page 70: Network Storage

    P5110 / P5115 User Manual 9.6 Network storage Network storage provides the storage function for saving image files to the specified computer and folder connected with the operating computer. 9.6.1 General Select On if you would like to use the network storage function. Then choose one protocol between Windows network (SMB/CIFS) and Unix network (NFS).

  • Page 71: Alarm Sending

    P5110 / P5115 User Manual Protocol- Unix network (NFS): Network storage location: Type the IP or name of specified computer and folder. For example, //IP/folder name or // my_nas:/folder name. Test: After setting the network storage location information, you can tick the test key to test if the connection between IP CAM and network storage location works.
  • Page 72 P5110 / P5115 User Manual Alarm sending: Select On to set to send mail with connection to the alarm detection. Image file name: Type the file name you want to assign to the file to attach a mail. You can use up to 10 alphanumeric, - (hyphen) and _ (underscore) for naming. Suffix: Select a suffix to add to the file name Date &...

  • Page 73: Periodical Recording

    P5110 / P5115 User Manual 9.6.3 Periodical recording You can set up to transmit image files to the network storage location periodically by selecting On. Image file name: Type the file name you want to assign to the file transmitted to the network storage location.

  • Page 74: Http Event

    P5110 / P5115 User Manual 9.7 HTTP Event Set up this menu for sending commands to an HTTP server. By using HTTP client function, you can send the command defined by yourself, linked with the external sensor input or with the built-in motion detection function to HTTP server.

  • Page 75: Alarm Sending

    P5110 / P5115 User Manual 9.7.2 Alarm sending Set to send the command with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Select “On“ to send the image and audio file to HTTP server linked with the alarm detection.
  • Page 76 P5110 / P5115 User Manual Parameter: the parameter of CGI (defined in URL of HTTP General) is from your target device. For example, move=down. Message: message will show up in the form of Message = PTZ down. If your target device didn’t support the parameter of message, you can’t see the message.
  • Page 77 P5110 / P5115 User Manual Parameter: the parameter of CGI (defined in URL of HTTP General) is from your target device. For example, move=down. Message: message will show up in the form of Message = PTZ down. If your target device didn’t support the parameter of message, you can’t see the message.
  • Page 78 P5110 / P5115 User Manual Message: message will show up in the form of Message = PTZ down. If your target device didn’t support the parameter of message, you can’t see the message. So you can just take the message as a note. For example: PTZ down.

  • Page 79: Alarm Output

    P5110 / P5115 User Manual 9.8 Alarm Output You can set Alarm Output function in this menu to control the alarm out of I / O port on the rear of the device linked to the alarm detection and the timer. Alarm Output: To activate the Alarm output function, select On.
  • Page 80 P5110 / P5115 User Manual Alarm Input: Select the connected alarm. Sensor Input: The external sensor which is connected to sensor input1 of the alarm input. Note: You can set the alarm input function at alarm input screen. (Please go “Setting Advanced Alarm Input Setting”) For more details, you can check Chapter 9.10.

  • Page 81: Schedule

    P5110 / P5115 User Manual 9.9 Schedule Click Schedule on the Advanced mode menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client, e-Mail (SMTP), HTTP event, Record, and Alarm out setting menu setting menu.

  • Page 82: Alarm Input

    P5110 / P5115 User Manual 9.10 Alarm Input When you click Alarm Input on the Advanced mode menu, the Alarm Input setting menu appears. You can set in this menu to control the external alarm input of I / O port on the rear of the device linked to FTP, SMTP, HTTP Sending Function, and Network Storage.

  • Page 83: Alarm Buffer

    P5110 / P5115 User Manual 9.11 Alarm Buffer When you click Alarm Buffer on the Advanced mode menu, the Alarm buffer setting menu appears. You can set in this menu to enable alarm buffer function connected with FTP Client, SMTP, Network Storage, HTTP Event, Alarm Output and so on. Click it on to use alarm buffer function for recording audio and video file in the of IP Camera before and after disconnected network.

  • Page 84: Motion Detection

    P5110 / P5115 User Manual 9.12 Motion Detection There are three Motion Detection functions as sensors to set for different detecting zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially. Motion Detection function can support to FTP Client, SMTP, Network Storage, HTTP Event, Alarm Output and so on.

  • Page 85: Audio Detection

    P5110 / P5115 User Manual 9.13 Audio Detection The Audio detection has Threshold and Sensitivity inputs which you can adjust sequentially. Audio Detection function can support to FTP Client, SMTP, Network Storage, HTTP Event, Alarm Output and so on. Click it on for using Audio Detection function as a sensor. You can set audio detection function at the audio detection function screen.

  • Page 86: System Log

    P5110 / P5115 User Manual 9.14 System Log The System Log function allows users to review any changes and events happened. The system starts logging automatically after started. Enable Remote Log: Enables user to send the log data to a specified log server. Setting-Advanced System Log...

  • Page 87: Chapter 10. Appendix

    P5110 / P5115 User Manual CHAPTER 10. APPENDIX A. Frame-rate and Bitrate Table – Help to set IPCamera with your network environment to access Internet. Base on your network upload environment to choose the suitable Image-Quality setting. For example, if the network environment is ADSL 256Kb(upload) / 2Mb(download), the most fluent Image-Quality needs to set up under 256 Kb situation.
  • Page 88 P5110 / P5115 User Manual 640*480 6144 6300 640*480 6144 6300 640*480 2048 2200 640*480 2048 2200 640*480 640*480 320*240 6144 5100 320*240 6144 3600 320*240 2048 2200 320*240 2048 2200 320*240 320*240 A.1.4. MPEG 4@ 15fps / kbps Quality 1280*1024 1280*720 640*480...
  • Page 89 P5110 / P5115 User Manual 640*480 640*480 320*240 6144 2200 320*240 6144 1800 320*240 2048 2200 320*240 2048 1800 320*240 320*240 A.1.7. MJPEG @ 15fps / kbps Quality 1280*1024 1280*720 640*480 320*240 Excellent 22000 16000 6000 2200 Detailed 12000 7000 3000 1200 Good...

  • Page 90: Vga Mode

    P5110 / P5115 User Manual 320*240 Good 1000 320*240 Good 320*240 Medium 320*240 Medium A.2 VGA Mode A.2.1 H.264 @ 30fps / kbps Quality 640*480 320*240 Excellent Detailed Good Standard Medium A.2.2 H.264@15 fps / kbps Quality 640*480 320*240 Excellent Detailed Good Standard...
  • Page 91 P5110 / P5115 User Manual A.2.5 MPEG4@ 15fps / kbps Quality 640*480 320*240 Excellent Detailed Good Standard Medium A.2.6 MPEG4 / kbps, fps Frame-Rate Current Image-Size Bitrate Setting Current Bitrate Setting Frame-Rate 640*480 6144 6300 640*480 6144 6300 640*480 2048 2200 640*480 2048...
  • Page 92 P5110 / P5115 User Manual 640*480 Medium 2500 640*480 Medium 1400 320*240 Excellent 4500 320*240 Excellent 2500 320*240 Good 2000 320*240 Good 1200 320*240 Medium 1000 320*240 Medium...

  • Page 93: Storage Requirement Table - Help To Set Recording Storage System

    P5110 / P5115 User Manual B. Storage Requirement Table - Help to set Recording Storage System. Please refer to the following table to find out the capability for recording into your hard disk. B.1 Mega Mode B.1.1 H.264 Storage Requirement GB / channel / day @ 15fps Quality 1280*1024 1280*720...
  • Page 94 P5110 / P5115 User Manual 320*240 2048 320*240 2048 320*240 320*240 B.1.4 MPEG4 Storage Requirement GB / channel / day @ 15fps Quality 1280*1024 1280*720 640*480 320*240 Excellent Detailed Good Standard Medium 0.35 B.1.5 MPEG4 Storage Requirement GB / channel / day @ 10fps Quality 1280*1024 1280*720...

  • Page 95: Vga Mode

    P5110 / P5115 User Manual B.2 VGA Mode B.2.1. H.264 Storage Requirement GB / channel / day @ 30fps Quality 640*480 320*240 Excellent Detailed Good Standard 0.25 Medium B.2.2. H.264 Storage Requirement GB / channel / day @ 15fps Quality 640*480 320*240 Excellent...
  • Page 96 P5110 / P5115 User Manual Medium B.2.6. MJPEG Storage Requirement GB / channel / day Frame-Rate Storage Image-Size Bitrate Setting Current Bitrate Setting Requirement 640*480 6144 6300 640*480 6144 6300 640*480 2048 2200 640*480 2048 2200 640*480 640*480 320*240 6144 5100 320*240 6144...

  • Page 97: System Requirement - Help To Setup System

    P5110 / P5115 User Manual C. System Requirement – Help to setup System C.1. 16 Channel IPCamera with CIF Performance Equipment Configuration Software: CPU: Memory: Ethernet: Hard Disk: Graphic card: Operating System: Results from Test with a Resolution of 352×240 320x240 Quality Frame Rate...

  • Page 98: Europe - Eu Declaration Of Conformity

    P5110 / P5115 User Manual Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: Clause Description Safety of Information Technology Equipment...
  • Page 99 P5110 / P5115 User Manual English Hereby, [name of manufacturer], declares that this [type of equipment] is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente [nombre del fabricante] declara que el [clase de equipo] cumple con [Spanish] los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.

  • Page 100: Federal Communication Commission Interference Statement

    P5110 / P5115 User Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This manual is also suitable for:

P5115
