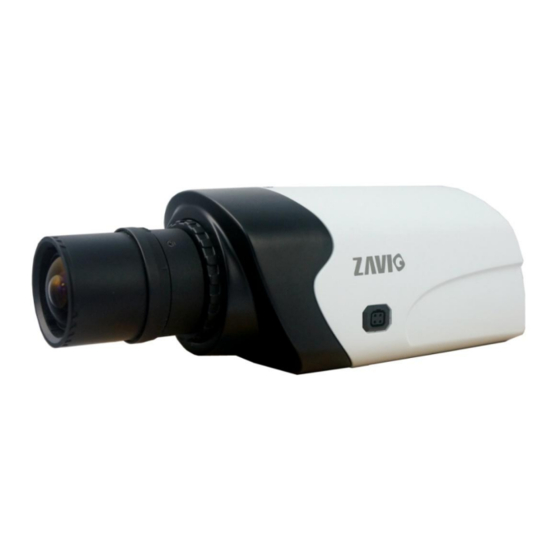

- Page 1 ZAVIO Indoor Box Camera Quick Installation Guide...
- Page 2 LED Indicator Definition. See P.4 Installation of hardware and connection of all cables. See P.5 Windows: Go to Zavio website and download Camera Installation Tool. See P.7 Access the IP Camera using Camera Installation Tool. See P.7 MAC OS: using Safari Browser. See P.10 Lighting environment.
- Page 3 Physical overview － Side － DC Iris connector － Front － Image sensor Lens connector － Rear － Reset: When the device is powered, press the reset button to reboot the device, or hold the reset button for 5 seconds to restore to factore settings.
- Page 4 I/O Terminal Block Circuit I/O Terminal Block Pin Definition Definition Description Max. V/A Relay contact output. 0.3A at 125V AC Out + Alarm Out + or 1A at 30V DC Connected to GND to activate, or leave In + Alarm In + 5V DC / 50mA floating (or unconnected) to deactivate.
- Page 5 Install the hardware and connect all cables A. Mounting the lens to the camera a) Mount the lens by turning it clockwise on the camera until it stops. b) Unscrew the focus controller to adjust to the desired focus. c) Tighten the focus controller when finished. B.
- Page 6 C. Connect all cables C1. Without Power over Ethernet (PoE) connection 1. Connect the power adaptor to the IP Camera. 2. Use a standard RJ-45 network cable and connect the IP Camera to a hub/switch/router. C2. Power over Ethernet (PoE) 1.
- Page 7 Windows: Go to Zavio Website and download Camera Installation Tool download “Camera Please go http://www.zavio.com/softwaredownloads.php Installation Tool”. And follow the installation process to complete the installation. Access the IP Camera using Camera Installation Tool 1. Please check two settings before using Camera Installation Tool.
- Page 8 b. Browser’s Internet Properties → Privacy → Uncheck Pop-up Blocker 2. Click the Camera Installation Tool Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the desired IP cameras from the list and click Link to IE.
- Page 9 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
- Page 10 6. Click Install 7. Live video will display in the center of your web browser. MAC OS using Safari Browser 1. Select Safari Icon...
- Page 11 2. Click Bonjour function and select the camera you wish to access. 3. Enter name and password to login to the IP camera. (Default is admin / admin) 4. Live video will display in the center of your web browser.
- Page 12 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
- Page 13 Application of IP Camera...
