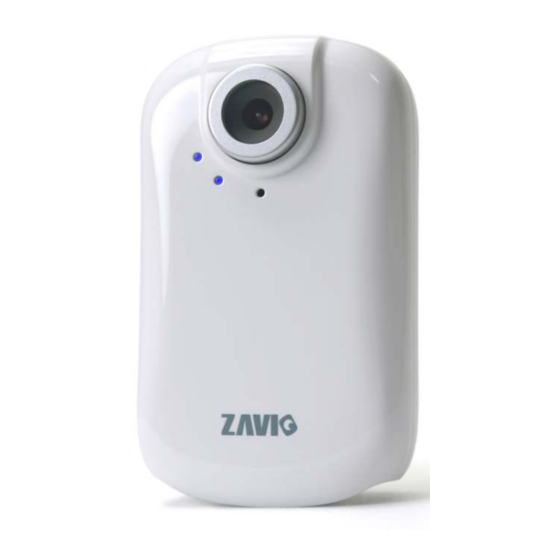

Zavio F611E User Manual
  1. Manuals
  2. Brands
  3. Zavio Manuals
  4. IP Camera
  5. F611E
  6. User manual

Zavio F611E User Manual

Box ip camera
Hide thumbs Also See for F611E:
Table of Contents

Advertisement

Quick Links

Before you use this Product

This Zavio product has been designed with safety in mind. However, if not used properly electrical products can
cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following.
Legal Caution
Video and audio surveillance can be forbidden by laws that vary from country to country. Check the laws in your
local region before using this product for surveillance purposes.
Heed the safety precautions
Be sure to follow the general safety precautions and the "Operation Notice."
In case of a breakdown
In case of system breakdown, discontinue use and contact your authorized Zavio dealer.
In case of abnormal operation
• If the unit emits smoke or an unusual smell,
• If water or other foreign objects enter the cabinet, or
• If you drop the unit or damage the cabinet:
1 Disconnect the cable and the connecting cables.
2 Contact your authorized Zavio dealer or the store where you purchased the product.
Operation Notice - Operating or storage location
Avoid operating or storing the camera in the following locations:
• Extremely hot or cold places (Operating temperature: 0 °C to +50 °C [32 °F to 122°F])
• Exposed to direct sunlight for a long time, or close to heating equipment (e.g., near heaters)
• Close to sources of strong magnetism
• Close to sources of powerful electromagnetic radiation, such as radios or TV transmitters
• Locations subject to strong vibration or shock
Ventilation
To prevent heat buildup, do not block air circulation around the device.
Transportation
When transporting the camera, repack it as originally packed at the factory or in materials of equal quality.
Cleaning
• Use a soft, dry cloth to clean the external surfaces of the device. Stubborn stains can be removed using a soft
cloth dampened with a small quantity of detergent solution, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene or thinners as they may damage the surface.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F611E and is the answer not in the manual?

Questions and answers

Related Manuals for Zavio F611E

Summary of Contents for Zavio F611E

  • Page 1: Before You Use This Product

    Before you use this Product This Zavio product has been designed with safety in mind. However, if not used properly electrical products can cause fires which may lead to serious body injury. To avoid such accidents, be sure to heed the following.

  • Page 2: Table Of Contents

    Index Installation............1 Using IP Camera via Ethernet......2 1. Initial accessing the IP Camera ..................3 2. Configuration of Main Menu ..................... 4 2.1 Main menu........................ 4 2.2 Camera control panel ....................5 2.3 Adjusting the Monitor Image .................. 5 2.4 Capturing the monitor image..................

  • Page 3: Installation

    Installation Installation Steps Follow these steps to install the Zavio F611E on your Ethernet: 1. Check the package contents against the list below. 2. Set the device. See IP Installer User Manual on the available methods. Package Contents Item Description...

  • Page 4: Using Ip Camera Via Ethernet

    Installer in Windows operation systems. This document focuses on introducing you to Microsoft web browser. The recommended browser for Windows is Internet Explorer 6.0. If you want to know how to use Zavio IP Camera with Intelligent IP Installer, check Intelligent IP Installer User’s Manual in Windows operation systems.

  • Page 5: Initial Accessing The Ip Camera

    1. Initial accessing the IP Camera 1. Start your web browser, and enter the IP address or host name of the ZAVIO IP Camera in the Location / Address field of your browser. 2. Use the default account “admin” and default password “admin”.

  • Page 6: Configuration Of Main Menu

    2. Configuration of Main Menu Main menu Monitor image Section 2.1 Main menu Snapshot Click this button to capture a live image shot by the device and store the picture in your computer. Setting This function is only for the Administrator. Click this button to get into the Basic and Advance settings menu.

  • Page 7: Camera Control Panel

    2.2 Camera control panel This function is only for PTZ Camera series. 1. Click the pulldown box to choose between MPEG4 and MJPEG video compression mode. 2. Click View Size to select the desired display image resolution among VGA 640X480 or VGA320X240.

  • Page 8: Capturing The Monitor Image

    Directly zoom in / out the image via the monitor window 1. Click to display the zoom in window. 2. Pull the to adjust the zoom range, and it will be showed on the above window. 3. You can use the right click of your mouse to move the to any where on the window.

  • Page 9: Language

    22), Patrol (See page 23), FTP Client (See page 24), SMPT (See page 28), Alarm output (See page 32), Schedule (See page 34), Alarm Input (See page 35), Alarm buffer (See page 36), Motion Detection (See page 37), Web Page (See page 39), and Mail (See page 39). 2.6 Language You can click the pulldown box to select system language, including Dansk, Deustech, English, Ellinika’, Korean and Traditional Chinese.

  • Page 10: Setting

    Setting 3.Basic Click the “Basic” folder to display the sub folders, including System (See page 9), Camera (See page 12), Network (See page 15), and Account (See page 20). 3.1 System 3.1.1 Information The Information page provides you with product factory information, including product name, serial number, firmware version, Web version and hardware version.
  • Page 11 3.1.2 Day & Time Current date & time：This displays the current date and time of the device. PC clock：This displays the date and time of the monitoring PC clock. Date & time format：Click the pulldown box to select among different time display formats, including yyyy-mm-dd hh:mm:ss (year-month-day hour:minute:second), mm-dd-yyyy hh:mm:ss (month-day-year...
  • Page 12 NTP server name：Type the host name or IP address of the NTP server, up to 64 characters. Time zone：Select the time zone and time difference from Greenwich Mean Time in the area where the device is installed from the pulldown box. 3.1.3 Initialize Reboot：Click this button to reboot the device.

  • Page 13: Camera

    3.2 Camera 3.2.1 General Overlay：Select to add Text Overlay or Privacy Mask on/off the display screen. The Text Overlay enables users to see Date/Time on the screen. The Privacy Mask enables users to conceal an area of the video image.
  • Page 14 3.2.2 MPEG4 MPEG4 viewer port Unicast streaming Video/Audio port number : Specify the transmission port number of the video data. It is initially set to 50000. Specify an even number from 1024 to 65534. Note： • Unicast streaming：Specify the transmission port number of the video data and audio data used when UDP (Unicast) is selected with the TCP/UDP transmission switching icon in the main viewer.
  • Page 15 Fixed Bitrate：Set the bit rate of MPEG4 image transmission for a line. Selectable values are 64, 128, 256, 384, 512, 768, 1024, 1536 and 2048 kbps. Note： • The selected frame rate and bit rate are a tentative value. The actual frame rate and bit rate may be different according to the image size, the shooting scene or the network condition.
  • Page 16 Frame rate：Set the frame rate of the MJPEG image. Selectable values are 5, 10, 15 fps. The unit “fps” stands for “frames sent per second”. Quality Auto：The quality will be automatically decided. Fixed quality：The selectable values are Medium, Standard, Good, Detailed and Excellent.

  • Page 17: Network

    3.3 Network The Network Camera default account and password setting is “admin/admin”. That means everyone might access the Network Camera including the configuration as long as the IP address is known. It is necessary to assign a password if the Network Camera is intended to be accessed by others.
  • Page 18 Primary DNS server：Enter the IP address of the primary DNS server. Secondary DNS server：Enter the IP address of the secondary DNS server, if necessary. HTTP port number：Select 80 in general situations. If you want to use a port number other than 80, select the text box and enter a port number between 1024 and 65535.
  • Page 19 automatically. Use the following DNS server address：Select this when you set the fixed address as the IP address of DNS server. Primary DNS server：Enter the IP address of the primary DNS server. Secondary DNS server：Enter the IP address of the secondary DNS server. 3.3.3 DDNS Server name：Enter the name of the DDNS Server User ID：Enter the user ID for authentication necessary for DDNS connections.
  • Page 20 provides port forwarding for opening a port in a router or firewall in a private network in order to let a party from the outside world contact a user inside. HTTP port：Enter the HTTP port number and default HTTP port is 80. MPEG4 viewer port：Enter the MPEG4 viewer port number and default MPEG4 viewer port is 8070.
  • Page 21 3.3.5 IP Notification When network notify type is set to On, you can send an e-mail notification of the completion of the network setting. Notify type：Select type of DHCP, Static IP and PPPoE will notify. SMTP server name：Type the SMTP server name up to 64 characters, or the IP address of the SMTP server.
  • Page 22 account. This setting is necessary when the SMTP server which sends e-mails performs authentication. Recipient e-mail address：Type the recipient e-Mail address up to 64 characters. You can specify up to three recipient E-mail addresses. Administrator e-mail address：Type the Administrator e-Mail address up to 64 characters. This address is used for reply mail and sending system messages from the SMTP server.

  • Page 23: Account

    3.4 Account 3.4.1 Setting The device default account and password setting is “admin/admin”. That means everyone might access the device including the configuration as long as the IP address is known. It is necessary to assign a password if the device is intended to be accessed by others. Use this menu to set the user names and passwords of Administrator and up to 9 different users (User 1 to User 9), and the access right of each user.

  • Page 24: Advance

    4. Advance Click the “Advance” folder to display the sub folders, including PTZ Control, Preset Position, Patrol, FTP Client, SMPT, Alarm Output, Schedule, Alarm Input, Alarm Buffer, Motion Detection. 4.1 FTP Client Use this menu to set up for capturing and sending images to an FTP server. By using FTP client function, you can send the image and audio file which has been shot and recorded linked with the external sensor input or with the built-in motion detection function to FTP server.
  • Page 25 Password：Type the password for the FTP server. Retype password：To confirm the password, type the same characters as you typed in the Password box. Passive mode：Set whether you use the passive mode of FTP server or not when connecting to FTP server. Select On to connect to FTP server using the passive mode. Attached file type：Set attached file type to MPEG or MJPEG.
  • Page 26 Sequence number: A consecutive number of 10 digits between 0000000001 and 4294967295 and two fixed digits 00 is added to the Image file name. Motion Detection：Click it on for using Motion Detection function as a sensor. You can set the motion detection function page. Note：...
  • Page 27 Image file name：Type the file name of the image sent to FTP server up to 10 alphanumeric characters, - (hyphen) and _ (under score). Suffix：Select a suffix to be added to the file name sent to FTP server. None：The name of the sent file will be the Image file name. Date &...

  • Page 28: Smtp

    4.2 SMTP Set the SMTP menu when you want to send an image via e-mail. By using Mail (SMTP) function, you can send a mail with attached image which has been shot linked with the external sensor input or with the built-in motion detection function. The image file can also be sent periodically.
  • Page 29 Off: Select if no authentication is necessary when an email is sent. On: When authentication is necessary an e-mail is sent, select one of the authentication methods from the followings. SMTP: Select if SMTP authentication is necessary when an e-mail is sent. POP before SMTP: Select if POP before SMTP authentication is necessary when an e-mail is sent.
  • Page 30 4.2.2 Alarm sending Set to send the mail with connection to the alarm detection by the external sensor input or by the built-in motion detection function. Alarm sending：Select On to set to send mail with connection to the alarm detection. File attachment：Set whether an image file is attached to the mail sent or not.
  • Page 31 Note： • Motion Detection works only when the Video mode is set to MPEG4 and the Cropping is set to Off. Alarm Input： Select the connected alarm. Sensor input1: The external sensor which is connected to sensor input1 of the camera I/O port.
  • Page 32 Interval：Set the periodical sending is effective interval. Min value is 30 min and Max value is 24 hour. Effective period：Set the period when the periodical sending is effective. Always：The periodical sending is always effective. Schedule：You can specify the period when the periodical sending is effective in the schedule setting in the other section.

  • Page 33: Alarm Output

    4.3 Alarm Output When you click Alarm output on the Advance mode menu, the Alarm output setting menu appears. You can set in this menu to control the alarm out of I/O port on the rear of the device linked to the alarm detection and the timer. 4.3.1 Setting Alarm output：To activate the Alarm output function, select On.
  • Page 34 display the Alarm buffer setting menu. For details, see “Setting the Alarm Buffer — Alarm buffer setting Menu on page (3) Alarm Input: Control the external alarm input of I/O port on the rear of the device linked to FTP and SMTP sending function. Click Alarm Input to display the Alarm input setting menu.

  • Page 35: Schedule

    4.4 Schedule When you click Schedule on the Advanced mode menu, the Schedule setting menu appears. This is the same menu as the setting menu which is displayed when you click Schedule to set Effective period and Schedule in FTP client setting menu, e-Mail (SMTP) setting menu, Image memory setting menu, Alarm out setting menu and so on.

  • Page 36: Alarm Input

    4.5 Alarm Input When you click Alarm Input on the Advance mode menu, the Alarm input setting menu appears. You can set in this menu to control the external alarm input of I/O port on the rear of the device linked to FTP and SMTP sending function. 4.5.1 Setting Sensor input 1 ：...

  • Page 37: Alarm Buffer

    4.6 Alarm Buffer You can set the Pre-alarm image and audio (the image and audio before the alarm detection) and the Post - alarm image and audio. These can be set when Alarm sending FTP client setting menu or Image memory setting menu is set to On, and besides when Use alarm buffer is selected.
  • Page 38 Note： • The value of Recording capacity differs depending on Image size, Bitrate (for MPEG4) and Image quality (for MPEG4 and MJPEG) in the camera setting menu.

  • Page 39: Motion Detection

    4.7 Motion Detection When you click Motion Detection on the Advance mode menu, the Motion Detection setting menu appears. There are three Motion Detection functions as sensors to set for different detecting zones. Each one has Threshold and Sensitivity inputs which you can adjust to specific zone sequentially.
  • Page 40 Sensitivity：You can use the tool bar to set down-limit value. When detecting zone signals are over setting value, it would carry on assigned work. Carry out the following steps： 1. Click On to Motion Detection 1 choose one of eight orders. 2.

  • Page 41: System Log

    4.8 System Log The System Log function allows users to review any changes and events happened. The system starts logging automatically after started.

  • Page 42: Web Page

    Web Page Click “Web page” to visit our website. Mail Click “Mail” to send Zavio support department an email.
