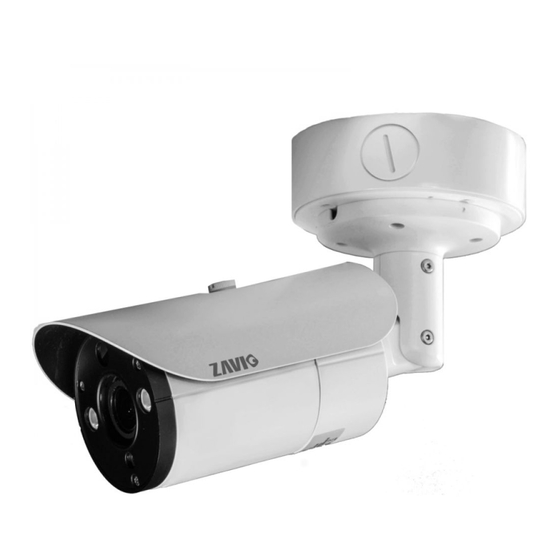

- Page 1 ZAVIO Motorized Outdoor IR Bullet Quick Installation Guide 0 ...
-
Page 2: Quick Installation Guide
LED Indicator Definition. See P.3 Installation of hardware and connection of all cables. See P.4 Windows: Go to Zavio website and download Camera Installation Tool. See P.5 Access the IP Camera using Camera Installation Tool. See P.6 MAC OS: using Safari Browser. See P.9 Lighting environment. -
Page 3: Physical Overview
Physical overview Lens IR LED IR LED Light Sensor Micro-SD Card Slot The micro-SD card slot is built inside the housing. Remove the three screws of the back housing as below No.1, and you’ll see the micro-SD card slot. - Page 4 I/O Terminal Block Circuit I/O Terminal Block Pin Definition Definition Description Max. V/A Connect to GND to activate, or leave Alarm Input 1 30V DC floating/unconnected to deactivate. Connect to GND to activate, or leave Alarm Input 2 30V DC floating/unconnected to deactivate.
- Page 5 Install the hardware and connect all cables A. Wall mounting and Ceiling mounting 1) Attached the alignment sticker to the wall. Drill four holes into the wall. Then hammer the supplied plastic anchors into the screw holes and secure the bracket with supplied screws.
- Page 6 1. Make sure all components are assembled as shown on the below graph. 2. Check that the Ethernet Port and the Waterproof main body are tightly fasten. Windows: Go to Zavio Website and download Camera Installation Tool Please go http://www.zavio.com/softwaredownloads.php download “Camera...
- Page 7 Access the IP Camera using Camera Installation Tool 1. Please check two settings before using Camera Installation Tool. a. Browser’s Internet Properties → Security→ Default Level b. Browser’s Internet Properties → Privacy → Uncheck Pop-up Blocker 6 ...
- Page 8 2. Click the Camera Installation Tool Icon on your desktop. The main page will show up listing all active camera and video server devices. Select the desired IP cameras from the list and click Link to IE. ...
- Page 9 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: AxvideoView.cab from ‘Zavio Inc’. ...
- Page 10 7. Live video will display in the center of your web browser. MAC OS using Safari Browser 1. Select Safari Icon 9 ...
- Page 11 2. Click Bonjour function and select the camera you wish to access. 3. Enter name and password to login to the IP camera (Default is admin / admin) ...
- Page 12 4. Live video will display in the center of your web browser. Lighting environment setting Default setting for lighting environment is Auto. You may change exposure frequency to 50 or 60 Hz at Setting > Live View > Camera Setting > Image Setting.
- Page 13 Before accessing the Setting page to change the language of the web interface, you must download the language pack. 1. Go to http://www.zavio.com/downloads.php and download the language pack corresponding to your IP camera model. 2. Go to the IP camera setting page and upload the preferred language from the language pack downloaded from step 1.
- Page 14 Application of IP Camera 13 ...
- Page 15 Memo ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. ………………………………………………………………………………………………………………………………………………….. 14 ...
- Page 16 15 ...
