1. Presentation

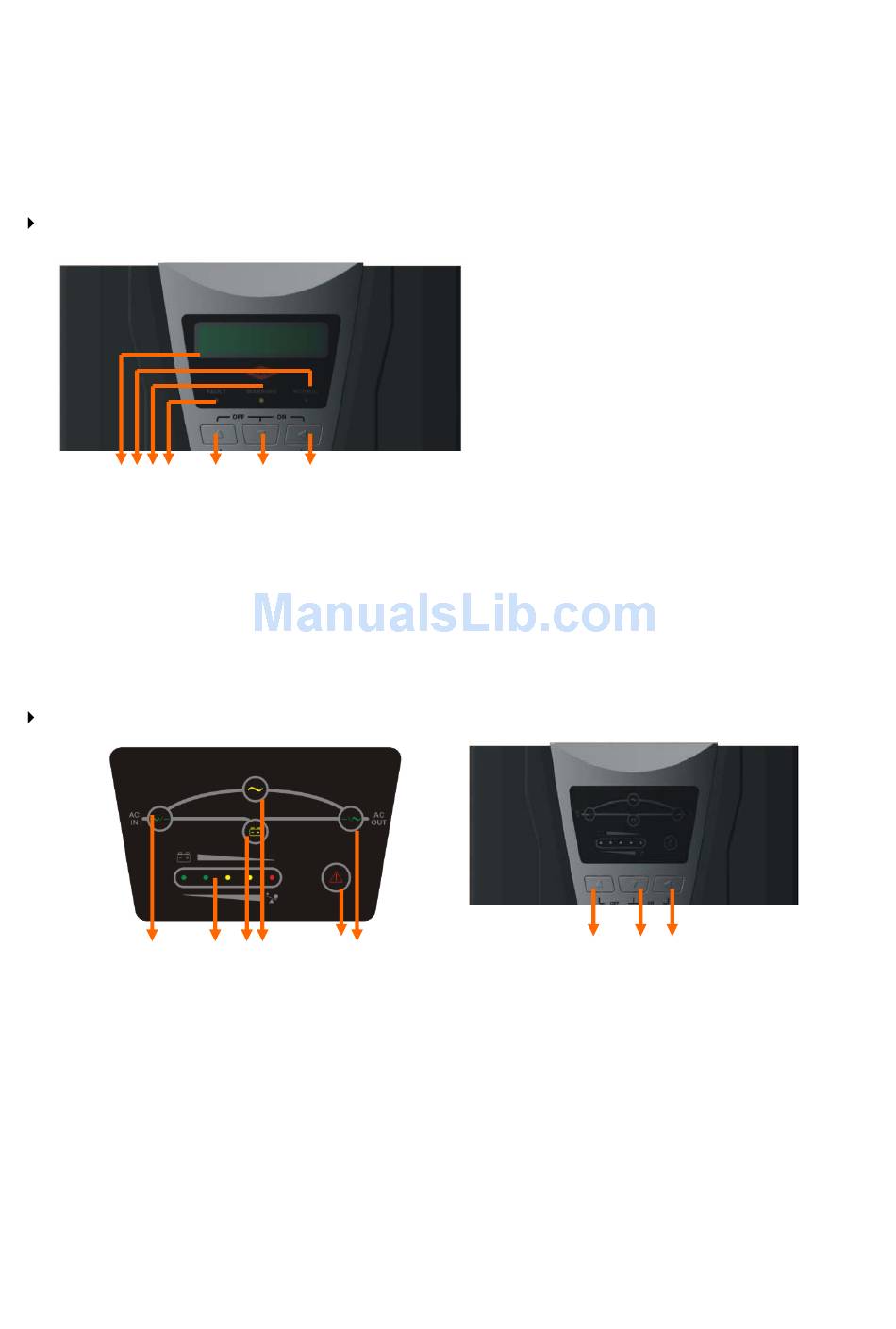

1.3 Front Panel

LCD

1 2 3 4
1. 2-line LCD Display
2. Normal LED (green)
3. Warning LED (yellow)
4. Fault LED (red)
5. Select-up button
6. Select-down button
7. Enter button
5-6. Off button
6-7. On button
5-7. Test/Silence button

LED

1
1. Line LED (green)
2. Load & Battery Capacity LEDs
3. Battery LED (yellow)
4. Bypass LED (yellow)
5. Fault LED (red)
6. Inverter LED (green)
7. Select-up button
8. Select-down button
9. Enter button
7-8. Off button
8-9. On button & Test/Silence button
POWERTRONIX .
5 6 7
2 3 4 5 6
- Page 3 of Total 29 -
7 8 9
January 2006
