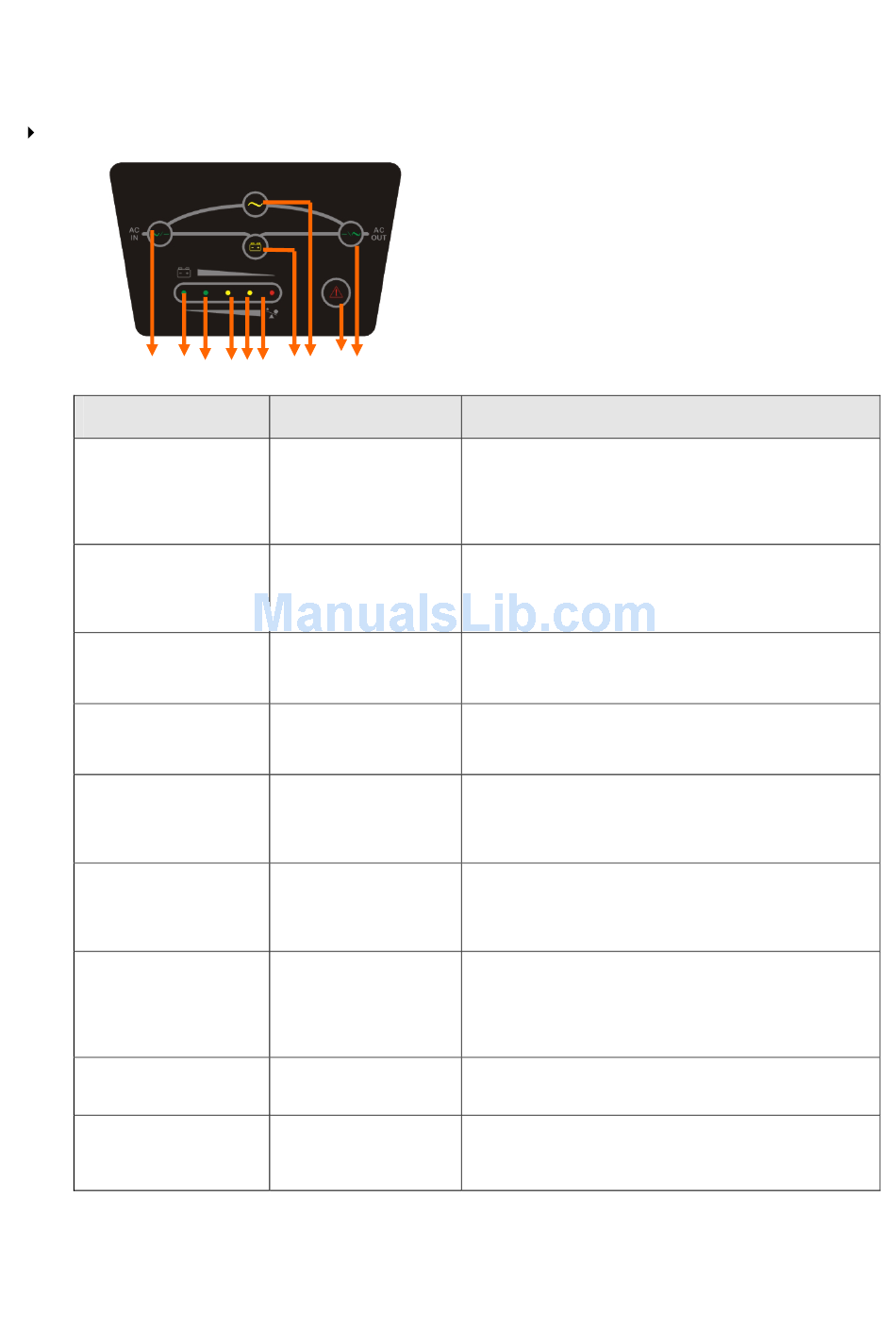

5. Troubleshooting

LED

8 6 5 4 3 2 10 7 1 9
LED Status /
Audible Alarms
The #1 Fault LED
and the #6 LED are
turned on, the
alarm beeps
continuously.
The #1 Fault LED
and the #2 and #5
LED are turned on,
and the alarm beeps
continuously.
The #1 Fault LED
and the #4 LED are
turned on, the UPS
beeps continuously.
The #1 Fault LED
and the #5 LED are
turned on, the UPS
beeps continuously.
The utility power
LED flashes.
The #1 Fault LED
and the #2 LED are
turned on, the UPS
beeps continuously.
The #1 Fault LED is
turned on, and the
battery LED is
flashed, the UPS
beeps every
second.
Battery LED flashes
The utility power is
normal, but the UPS
can not turn in line
mode
POWERTRONIX .
Possible Cause
The UPS transfers
to fault mode due
to internal
overheat.
The UPS output is
short circuited.
The UPS transfers
to fault mode due
to its internal fault.
The UPS transfers
to fault mode due
to its internal fault.
The voltage or
frequency of the
utility power is out
of the input range
of the UPS.
The UPS is
overloaded or the
load equipment is
faulty.
The charger of the
UPS is defective.
Battery low or
battery not
connected.
Maintain switch
loose
- Page 24 of Total 29 -
Action
Make sure the UPS is not overloaded; the air
vents are not blocked and the ambient
temperature is not too high. Wait for 10
minutes for the UPS to cool down before
turning on again. If failed, please contact the
Sales Representatives.
Remove all the loads. Turn off the UPS. Ensure
that the load is not failed or the UPS has no
internal faults before turning it on again. If
failed, please contact the Sales
Representatives.
Please contact the Sales Representatives.
Please contact the Sales Representatives.
The UPS is running in battery mode. To save
your data and close the application program.
Make sure the utility power is within the input
voltage or frequency range permitted by the
UPS.
Check the loads and remove all no-critical
equipment. Recalculate the load power and
reduce the number of loads connected to the
UPS. Check that the loads are not failed.
Please contact the Sales Representatives.
Check the battery. If the battery is damaged,
replace the battery immediately and ensure
that the battery breaker is in "ON" position.
Please contact the Sales Representatives.
