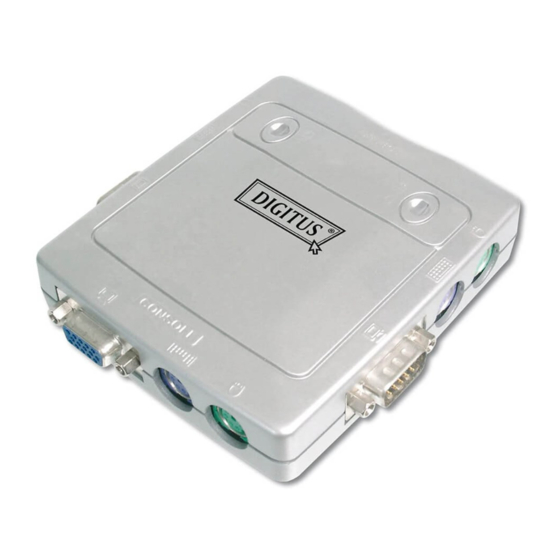

Digitus DC IC612I User Manual

KVM SWITCH

USER MANUAL

(DC IC612I / DC IC614I) Rev. 2-0
Package Contents –

1 Digitus DC IC612I or DC IC614I KVM Switch,
incl. cable

1 User Manual
Please contact your vendor if anything is missed.
Features

Controls PCs with one PS/2 keyboard, PS/2 mouse and
monitor respectively

Supports the standard PS/2 mouse, Microsoft IntelliMouse
(PS/2 compatible/Optical/Explorer 3.0), WheelMouse
Optical, Trackball (Optical 1.0/Explorer 1.0) & Logitech
TrackMan (Marble/Marble FX/ Marble+), Cordless
MouseMan (Wheel/Optical), Cordless TrackMan (FX/Live)
mouse, Cordless Optical TrackMan, MX300 Optical mouse

Fully supports the Microsoft IntelliPoint 5.0 mouse driver &
Logitech Mouse Ware driver

Supports the Windows 7, Vista, XP, 2000, NT4.0, ME, 98SE,
98, 95, DOS, Linux, Novell Netware, FreeBSD

Superior video quality - Up to 1920 x 1440, DDC, DDC2,
DDC2B, DDC2AB, 200MHz

Supports selecting PC by mouse clicking

Real mouse identification function
(DC IC612I)

3 ways for PC selection -- Push-button switch, hot key or
mouse clicking

Easy to install--No software required

Hot Pluggable

Integral keyboard and mouse emulation for PC booting
error free

Auto scan function to monitor PCs

Auto skips over the power-off PC

Beep sound and multi selection ways on/off option for port
selection

Specifications

Function
(DC IC614I)
PC Connectors
Port Selection
LEDs Selection
Keyboard
Emulation
Mouse
Console Port
Connector
-Keyboard CPU Port
Console Port
Connector
-Mouse CPU Port
Console Port 1x HD-15 Female (Std. VGA/SVGA)
Connector
-Monitor CPU Port
VGA Resolution
Scan Interval
Housing
Weight
Dimensions (LxWxH)
Cable
DC IC612I DC IC614I
2 4
Push-button Switch / Hot Key
/ Mouse Clicking
2 4
PS/2
PS/2
1x6 pin mini-DIN Female (PS/2)
2x6 pin mini-DIN 4x6 pin mini-DIN
Female (PS/2) Female (PS/2)
1x6 pin mini-DIN Female (PS/2)
2x6 pin mini-DIN 4x6 pin mini-DIN
Female (PS/2) Female (PS/2)
2x HD-15 Male 4x HD-15 Male
(Std. VGA/SVGA) (Std. VGA/SVGA)
1920x1440 (Max.), DDC, DDC2,
DDC2B, DDC2AB, 200MHz
5 sec ~ 30 sec
Plastic
140 g 250 g
106x97x27 mm 180x97x28 mm
2x 1.2m 2x 1.2m, 2x 1,8m
-1-

Hardware Requirements

Required specifications
One highest resolution VGA, SVGA or Multisync monitor
Console One PS/2 mouse
One PS/2 keyboard
One VGA, SVGA or Multisync card
PC One 6-pin mini-DIN (PS/2) mouse port
One 6-pin mini-DIN (PS/2) keyboard port
Digitus custom cables (part # 3L-1512C or 3L-1518C) or
Cable
equivalent

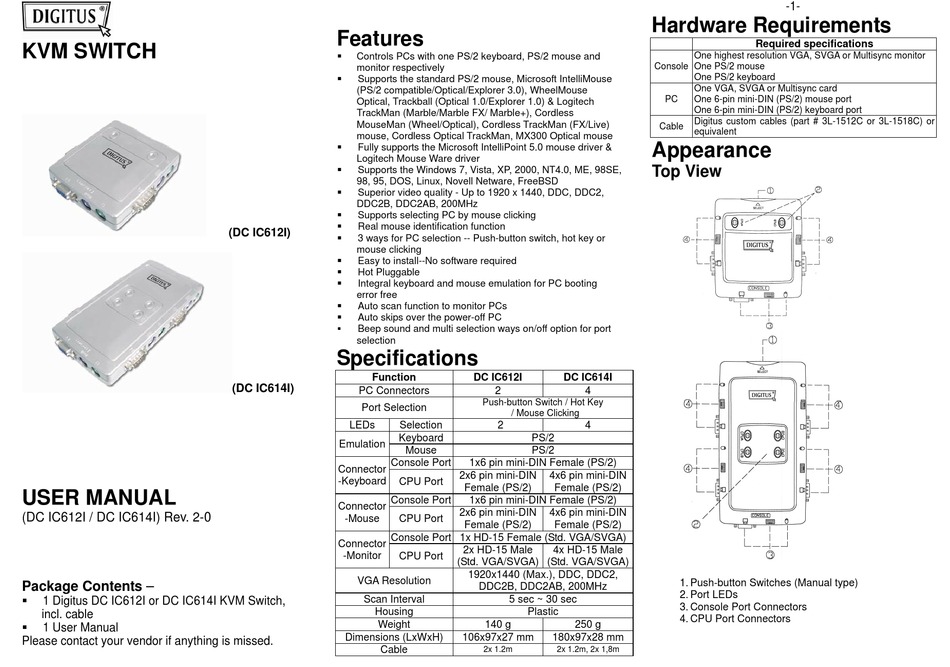

Appearance

Top View

1. Push-button Switches (Manual type)
2. Port LEDs
3. Console Port Connectors
4. CPU Port Connectors
