KVM-SWITCH
USER MANUAL
(V. 2.0)
DC-OC-12U
Package Contents –


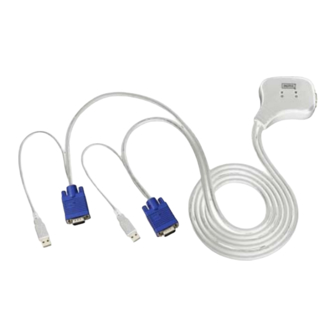

1 Smart View OC-12U KVM Switch

1 User Manual
Any thing missed, please contact with your vendor.
Features

Controls two PCs with one PS/2 keyboard, PS/2 mouse
and monitor respectively

USB 1.0, 1.1 & 2.0 Specification compliant and supports
UHCI, OHCI & EHCI host controller

Supports the standard PS/2 mouse & Microsoft
IntelliMouse (for Max. 5-button/scroll mouse)

Supports the Windows 98/98se/Me/2000/XP, Linux

Superior video quality - Up to 1920 x 1440, DDC2,
DDC2B, DDC2AB, 200MHz

PC selection by Hot Key

Easy to install--No software required

Hot Pluggable

Integral keyboard and mouse emulation for PC booting
error free

Auto scan function to monitor PCs

Auto skips over the power-off PC
-1-

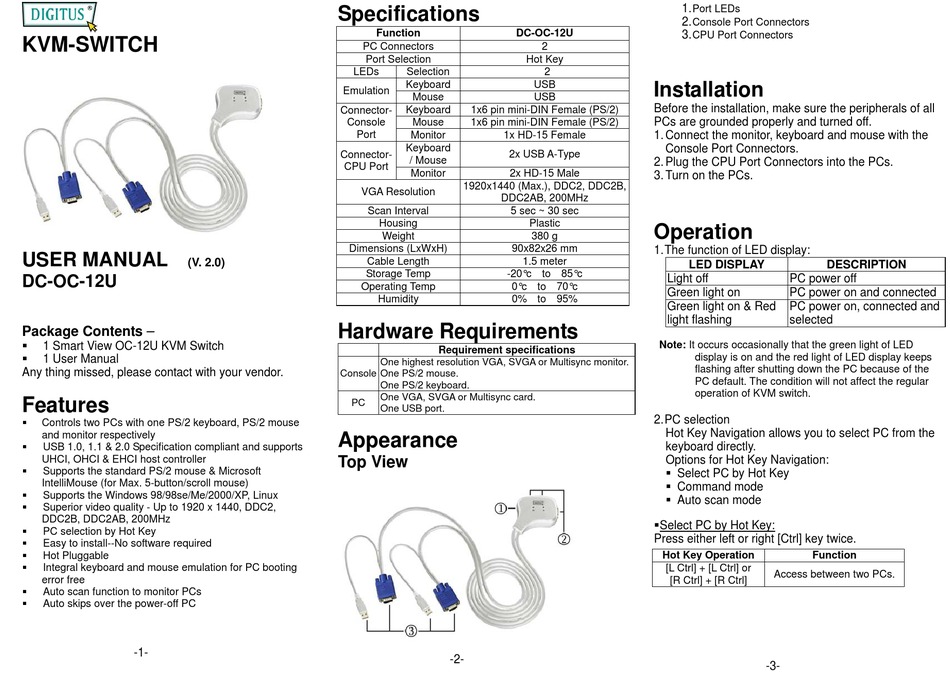

Specifications

Function DC-OC-12U
PC Connectors
Port Selection
LEDs Selection
Keyboard
Emulation
Mouse
Connector- Keyboard 1x6 pin mini-DIN Female (PS/2)
Console Mouse 1x6 pin mini-DIN Female (PS/2)
Port
Monitor 1x HD-15 Female
Keyboard
Connector- 2x USB A-Type
/ Mouse
CPU Port
Monitor 2x HD-15 Male
1920x1440 (Max.), DDC2, DDC2B,
VGA Resolution
DDC2AB, 200MHz
Scan Interval 5 sec ~ 30 sec
Housing
Weight
Dimensions (LxWxH) 90x82x26 mm
Cable Length
Storage Temp -20°c to 85°c
Operating Temp 0°c to 70°c
Humidity 0% to 95%

Hardware Requirements

Requirement specifications
One highest resolution VGA, SVGA or Multisync monitor.
Console One PS/2 mouse.
One PS/2 keyboard.
One VGA, SVGA or Multisync card.
PC
One USB port.
Appearance

Top View

-2-
1.
Port LEDs
2.
Console Port Connectors
3. CPU Port Connectors
2
Hot Key
2
USB
Installation
USB
Before the installation, make sure the peripherals of all
PCs are grounded properly and turned off.
1. Connect the monitor, keyboard and mouse with the
Console Port Connectors.
2. Plug the CPU Port Connectors into the PCs.
3. Turn on the PCs.
Plastic
Operation
380 g
1. The function of LED display:
1.5 meter
LED DISPLAY
Light off
Green light on
Green light on & Red
light flashing
Note: It occurs occasionally that the green light of LED
display is on and the red light of LED display keeps
flashing after shutting down the PC because of the
PC default. The condition will not affect the regular
operation of KVM switch.
2. PC selection
Hot Key Navigation allows you to select PC from the
keyboard directly.
Options for Hot Key Navigation:
 Select PC by Hot Key
 Command mode
 Auto scan mode
 Select PC by Hot Key:
Press either left or right [Ctrl] key twice.
Hot Key Operation
[L Ctrl] + [L Ctrl] or
[R Ctrl] + [R Ctrl]
DESCRIPTION
PC power off
PC power on and connected
PC power on, connected and
selected
Function
Access between two PCs.
