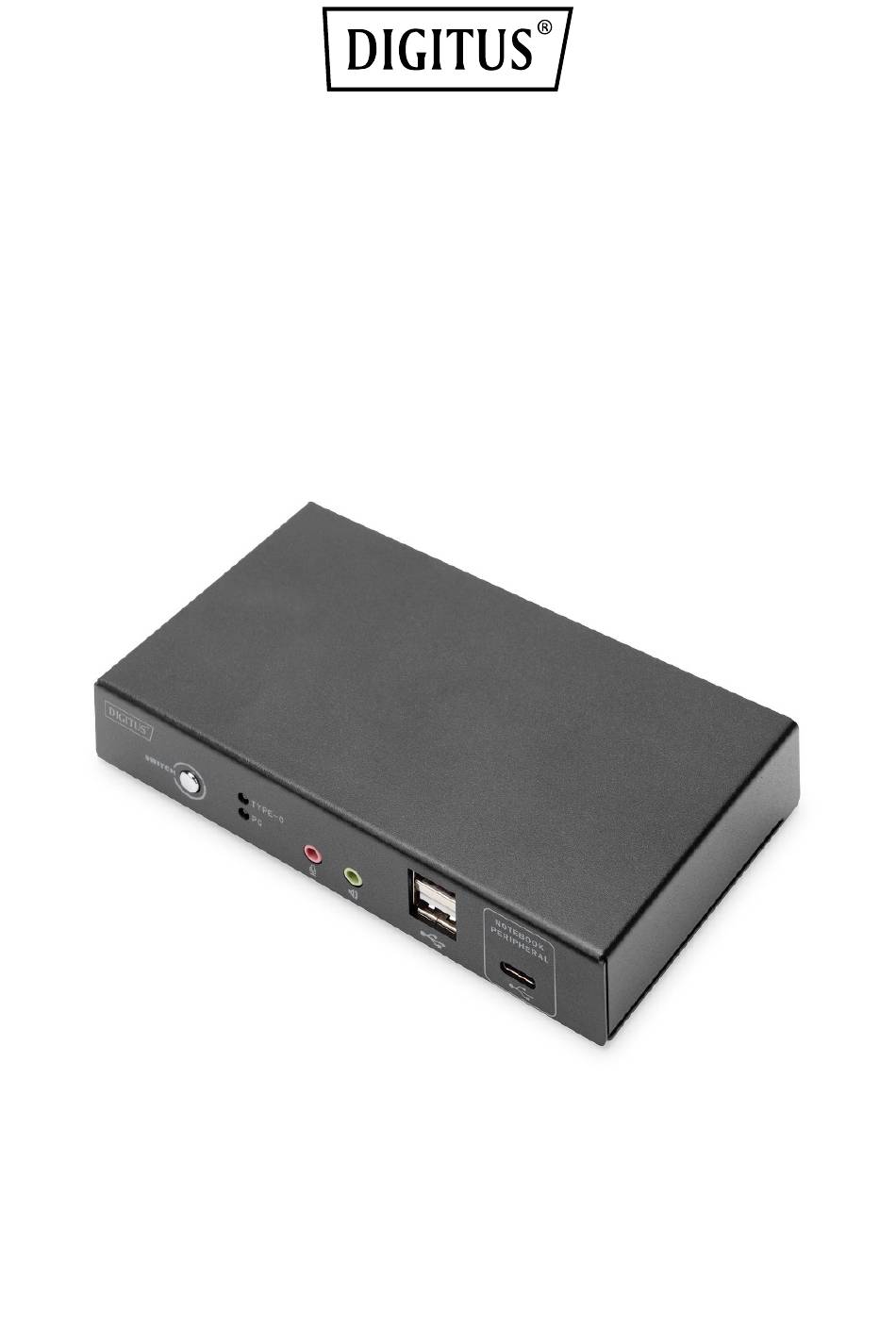

- Page 1 KVM Switch, 2 Port, 4K30Hz, USB-C/USB/HDMI in, HDMI out, Network Quick Installation Guide DS-12901...
- Page 2 User Considerations The manufacturer has the right to modify and change the information, documents and specification tables contained in the manual without prior notice. The manufacturer will not warrant, express, imply or legally declare its contents or specifically deny its marketability and applicability for special purposes. The same applies to any sold and licensed manufacturer's software described in this manual.
- Page 3 Regarding this Manual This user manual would assist you to effectively use product functions, including device installation, setting and operation procedures. For a better understanding of the contents of this manual see the following: Chapter 1 Introduction Introduces the rack KVM device system, including its functions, features and advantages, and describe and introduce its front and rear panel components.
-
Page 4: Table Of Contents
Table of Contents Chapter 1 Introduction ................5 Product Introduction ..................5 Main Features ....................5 Package Contents ..................6 Technical Data ....................6 Operating System ..................7 Components ....................8 Front view ..................... 8 Rear View ...................... 9 Chapter 2 Hardware Installation ..............9 Connection and Installation of Cables ............ -
Page 5: Chapter 1 Introduction
Chapter 1 Introduction Product Introduction The DIGITUS® 2-port KVM switch with USB-C™ and network connectivity gives you the ability to control two 4K-capable PCs from a single USB keyboard and mouse. Conveniently switch between the two PCs at the touch of a button, eliminating the need to reconnect all cables. -
Page 6: Package Contents
Package Contents The DS-12901 switch package includes the following contents: 1 x KVM-Switch, 2-Port, HDM, USB-C™ 1 x QIG 1 x KVM Cables 1.2m 1 x USB-C™ Cable 0.5m Check and make sure that all parts are present and not damaged in transit. -
Page 7: Operating System
Operating System Operating systems supported by remote users' computers include Windows XP and above The operating systems supported by the server connected to the switcher are shown in the following table: Operating System Version Windows Windows 2000/XP/2003/2008/Vista/7/10/11 Linux RedHat 9.0 or higher SuSE... -
Page 8: Components

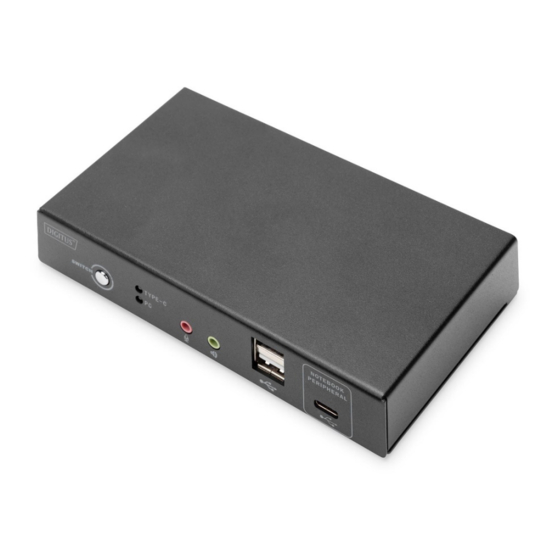

Components Front view Switch button Status indicator LEDs for status indication Audio connection Pink: Output interface for the local MIC Green: Local audio output interface USB 2.0 Type A Peripherals that are local USB2.0 expansion ports and can connect to the corresponding USB 2.0 interface USB Type-C™... -
Page 9: Rear View
Rear View USB Type-C™ USB Type-C™ power input (Power Only) USB 2.0 Type B The USB connection interface for that compute side HDMI HDMI Video Interface for monitor USB Type-C™ Connecting port for USB USB Type-C™ Notebook PC (Note: Do not connect to power charging adapter) RJ45 Network connection USB 2.0 Type A... -
Page 10: Chapter 3 Basic Operations
To install a 2-port desktop KVM device, follow these steps: 1. Insert the USB keyboard and USB mouse into the USB control port on the back panel of the device. 2. Connection HDMI display cable into the video output port on the rear panel of the device. -
Page 11: Keyboard Hot Key Switching
Keyboard Hot Key Switching Port Switch Operation: Left [shift] + Right [shift] Operation Instructions: 1. After the device is powered on, the default port is USB Type-C™ notebook computer connection port, and the red indicator light on the panel is lit. 2. -
Page 12: Appendix
Appendix Safety Instructions General This product is for indoor use only. Please read all the instructions and use them for future reference. Follow all warnings and instructions on the equipment. Do not place this equipment on any unstable plane (such as carts, shelves, tables, ... -
Page 13: Warranty Conditions
Please select equipment such as sudden wave suppressor, regulator or uninterruptible power system (UPS) to help prevent your system from experiencing sudden and instantaneous increase and decrease of power. Please properly fix the connecting wire and power cord of the system to ensure ... -
Page 14: Product Specification Parameters
Product Specification Parameters Model DS-12901 Port Selection Button & Hotkeys Console Display 1 x HDMI female Port Keyboard 1 x USB Type A female Mouse 1 x USB Type A female Connector Controlled PC graphics card 1 x HDMI female... - Page 15 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
