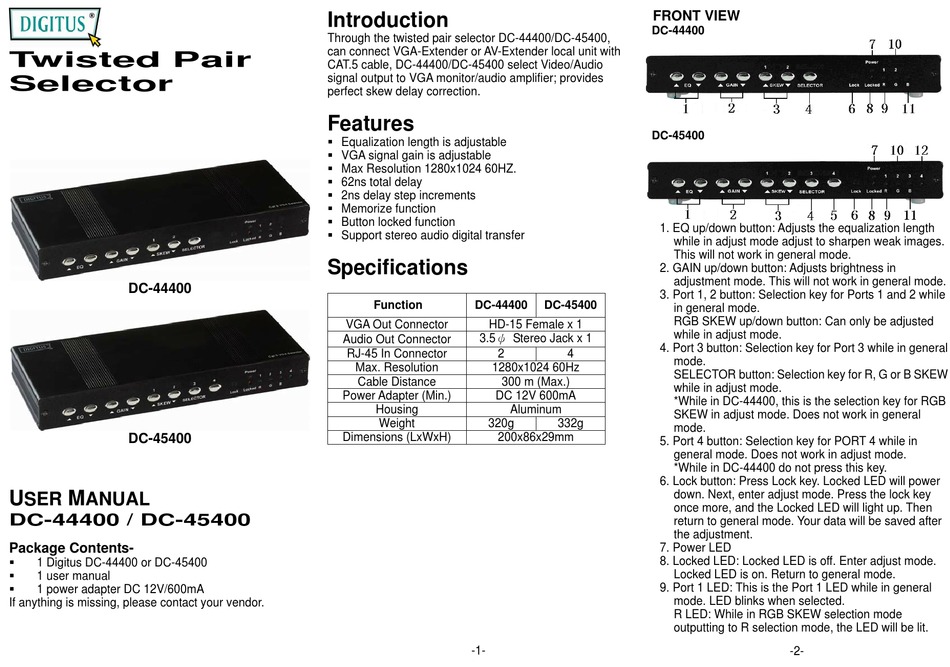

Digitus DC-44400 User Manual

Twisted Pair
Selector
DC-44400
DC-45400
U M
SER ANUAL
DC-44400 / DC-45400
Package Contents-

1 Digitus DC-44400 or DC-45400

1 user manual

1 power adapter DC 12V/600mA
If anything is missing, please contact your vendor.
Introduction
Through the twisted pair selector DC-44400/DC-45400,
can connect VGA-Extender or AV-Extender local unit with
CAT.5 cable, DC-44400/DC-45400 select Video/Audio
signal output to VGA monitor/audio amplifier; provides
perfect skew delay correction.
Features
 Equalization length is adjustable
 VGA signal gain is adjustable
 Max Resolution 1280x1024 60HZ.
 62ns total delay
 2ns delay step increments
 Memorize function
 Button locked function
 Support stereo audio digital transfer

Specifications

Function DC-44400
VGA Out Connector HD-15 Female x 1
3.5ψ Stereo Jack x 1
Audio Out Connector
RJ-45 In Connector 2
Max. Resolution 1280x1024 60Hz
Cable Distance 300 m (Max.)
Power Adapter (Min.) DC 12V 600mA
Housing
Weight 320g
Dimensions (LxWxH) 200x86x29mm
-1-
FRONT VIEW
DC-44400
DC-45400
1. EQ up/down button: Adjusts the equalization length
while in adjust mode adjust to sharpen weak images.
This will not work in general mode.
2. GAIN up/down button: Adjusts brightness in
adjustment mode. This will not work in general mode.
3. Port 1, 2 button: Selection key for Ports 1 and 2 while
DC-45400
in general mode.
RGB SKEW up/down button: Can only be adjusted
while in adjust mode.
4. Port 3 button: Selection key for Port 3 while in general
4
mode.
SELECTOR button: Selection key for R, G or B SKEW
while in adjust mode.
*While in DC-44400, this is the selection key for RGB
Aluminum
SKEW in adjust mode. Does not work in general
332g
mode.
5. Port 4 button: Selection key for PORT 4 while in
general mode. Does not work in adjust mode.
*While in DC-44400 do not press this key.
6. Lock button: Press Lock key. Locked LED will power
down. Next, enter adjust mode. Press the lock key
once more, and the Locked LED will light up. Then
return to general mode. Your data will be saved after
the adjustment.
7. Power LED
8. Locked LED: Locked LED is off. Enter adjust mode.
Locked LED is on. Return to general mode.
9. Port 1 LED: This is the Port 1 LED while in general
mode. LED blinks when selected.
R LED: While in RGB SKEW selection mode
outputting to R selection mode, the LED will be lit.
-2-
