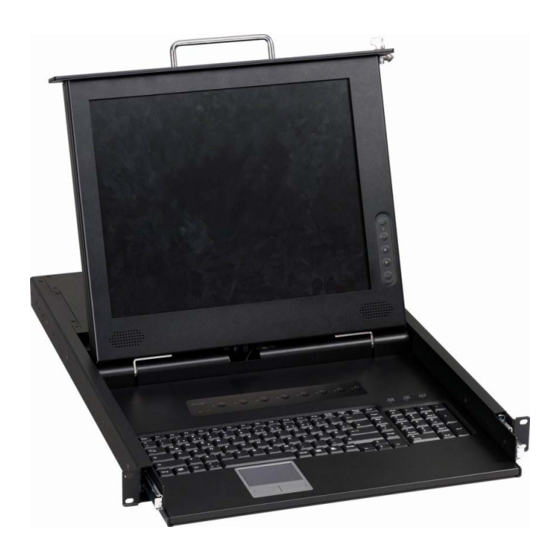

Digitus DC-72301 User Manual

Lcd kvm switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

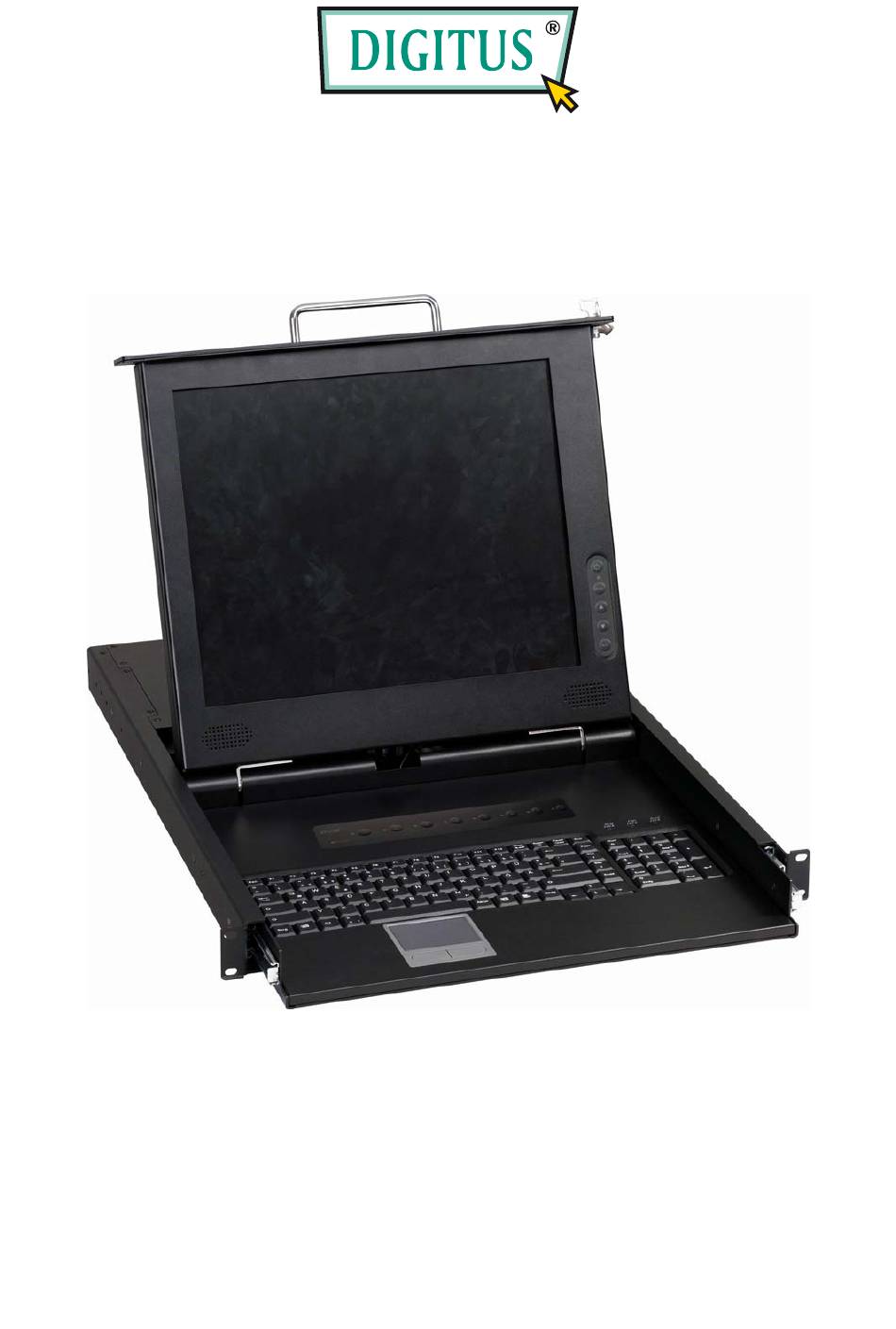

LCD KVM SWITCH
DC-72301 / DC-72302 / DC-72401
USER MANUAL
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DC-72301 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digitus DC-72301

Summary of Contents for Digitus DC-72301

  • Page 1 LCD KVM SWITCH DC-72301 / DC-72302 / DC-72401 USER MANUAL - 1 -...

  • Page 2: Lcd Monitor Specifications

    LCD MONITOR SPECIFICATIONS Size 17 inch Screen Type Contrast 500:1 Brightness 300 cd/m View Angle 140° Resolution 1280x1024@75Hz Response Time 8 ms Display Color 16.2 M OPERATION Keypad Define Power key: Use this key to turn on or off the LCD monitor. Menu key: Use this key to open the OSD menu and enter to next menu or to highlight a confirmed function.
  • Page 3 OSD Control Function List 1. Color: Contrast Brighthess Color Adjust Color Temp.: 9300, 6500, 5800, 5RGB, USER Exit 2. Image Setting: Clock Phase Gamma Sharpness Exit 3. Position: H.Position V.Position Exit 4. OSD Menu: OSD H.Pos OSD V.Pos OSD Timer Exit 5.

  • Page 4: Brief Introduction

    BRIEF INTRODUCTION The KVM Switch allows you to control several sets of personal computers by a keyboard, a mouse and a monitor. In the meantime, you just need to connect the cable and turn on the power to control up to 256 sets of personal computers without installing any additional interface card or software.

  • Page 5: Equipment Requirements

    FEATURES ‧ The keyboard, mouse and 17” LCD monitor were built-in on the KVM switch. ‧ Standalone machine controls up to 4/8/16 sets of PCs. ‧ Cascade controls 64/128/256 sets of PCs. ‧ Through OSD, you can use the hot key, mouse clicking and push button on front panel to switch PCs.

  • Page 6: Specifications

    SPECIFICATIONS DC-72301 DC-72302 DC-72401 3-in-1 Connecter HD-15 (Female) Monitor 17” TFT LCD Console Mouse Touch pad module Connector Keyboard Standard 104 keys Port Selection Keys on Front Panel Port LEDs Power Built-in Video Resolution 1280x1024@75Hz Dimensions 600x450x48 mm Weight 13.3 Kg 13.35 Kg...
  • Page 7 CONFIGURATION DC-72301 Front View DC-72302 Front View DC-72401 Front View 1. Port Selection Switches • Press the push button to directly switch to the corresponding PC. • In the cascade architecture, if the port is connected to KVM but not PC, then the push button will not respond.
  • Page 8 DC-72301 Rear VIEW DC-72302 Rear VIEW DC-72401 Rear VIEW 1. CPU Port Install the cable connected to a PC here. 2. Update Port The port provides a firmware update function. 3. AC Power Jack The AC Power is applicable for 100~240VAC, 50Hz~60Hz 4.

  • Page 9: Installation

    INSTALLATION Standalone 1. Make sure that the power switch at the rear panel of the KVM is OFF. Plug an end of the AC power cord into the KVM and the other end to an AC power supply. 2. Make sure to power off the PC and then install the 3-in-1 cable to each of the PC one by one. Note: If the ON-LINE LED (Green) of any port of a PC is on, then we recommend you to power off such PC (Turn off the power switch of the power supply of the PC or unplug the power cable of the PC) or wait till Step 4 to install that particular PC.
  • Page 10 7. Power on the PC. Note: It is not necessary to power down the whole system for install a new PC or KVM thereafter. All you need is to make sure that the new PC or KVM is OFF during the installation.
  • Page 11 OPERATION Port Selection The LCD KVM provides fours switching methods: Manual Key, Hot Key, Mouse Clicking and OSD. Manual Key It is the simplest switching method. You just need to press the Port Selection Switch on the front panel of the KVM. The Selection LED (Red) is on, indicating that you are switching to the corresponding port.
  • Page 12 Switch Menu Master List 03-04:Mail Ser 4 LIST: MASTER NAME ● Admin ● Θ Press Enter ● Mail Group Ο Θ ● Peter ● Web Group Ο ● Data Group Ο Θ  ↑↓: Move Space: Edit Esc: Exit F1: Smart View Enter: Switching F4: Auto Scan F9: System Setting...
  • Page 13 PWR: It shows the status of power supply and indicates a normal power supply for the equipment (PC or KVM) connected to the CPU port. C# : It shows the channel number; the DC-72301 will display 01~04; the DC-72302 will display 01~08 and the DC-72401 will display 01~08; 09~16 (Since the screen cannot display all at a time, therefore you can use PgUp/PgDn to switch the pages).
  • Page 14 System Setting Menu System Setting Channel Display Mode: Full Channel Display Time: 5 Sec Auto Scan Time: 5 Sec OSD Entry Hot Key: Number Lock Hot Key Switching: Mouse Clicking: Beeper Sound: Offline Skip: Manual OSD Language: English Security Level: None Console Lock Time: 5 Min...
  • Page 15 F4: OSD Position; You can enter the OSD position to make adjustments; we recommend you to unify the resolution for all computer display mode, and use this function again to adjust the OSD position. You can use the Up, Down, Left or Right keys on the keyboard or a mouse to move the OSD position.

  • Page 16: Troubleshooting

    5. After the update completes (which takes about 1.5 min), power off the KVM. Unplug the F/W Update Cable. Power on the KVM again. 6. You can use the system setting “F1”- Information in the OSD to examine whether or not the F/W version is the updated version.
