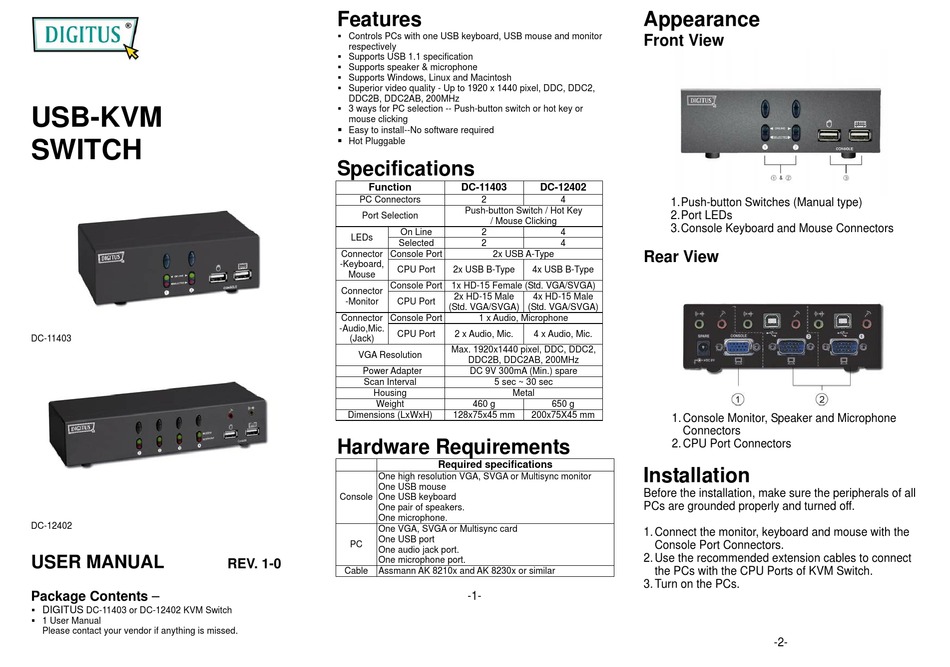

USB-KVM
SWITCH
DC-11403
DC-12402
USER MANUAL
Package Contents –

DIGITUS
DC-11403 or DC-12402 KVM Switch
 1 User Manual
Please contact your vendor if anything is missed.
Features
 Controls PCs with one USB keyboard, USB mouse and monitor
respectively
 Supports USB 1.1 specification
 Supports speaker & microphone
 Supports Windows, Linux and Macintosh
 Superior video quality - Up to 1920 x 1440 pixel, DDC, DDC2,
DDC2B, DDC2AB, 200MHz
 3 ways for PC selection -- Push-button switch or hot key or
mouse clicking

Easy to install--No software required

Hot Pluggable

Specifications

Function
PC Connectors
Port Selection
On Line
LEDs
Selected
Connector Console Port
-Keyboard,
CPU Port
Mouse
Console Port 1x HD-15 Female (Std. VGA/SVGA)
Connector
-Monitor
CPU Port
Connector Console Port
-Audio,Mic.
CPU Port
(Jack)
VGA Resolution
Power Adapter
Scan Interval
Housing
Weight
Dimensions (LxWxH)

Hardware Requirements

One high resolution VGA, SVGA or Multisync monitor
One USB mouse
Console One USB keyboard
One pair of speakers.
One microphone.
One VGA, SVGA or Multisync card
One USB port
PC
One audio jack port.
One microphone port.
REV. 1-0
Cable Assmann AK 8210x and AK 8230x or similar
DC-11403 DC-12402
2 4
Push-button Switch / Hot Key
/ Mouse Clicking
2 4
2 4
2x USB A-Type
2x USB B-Type 4x USB B-Type
2x HD-15 Male 4x HD-15 Male
(Std. VGA/SVGA) (Std. VGA/SVGA)
1 x Audio, Microphone
2 x Audio, Mic. 4 x Audio, Mic.
Max. 1920x1440 pixel, DDC, DDC2,
DDC2B, DDC2AB, 200MHz
DC 9V 300mA (Min.) spare
5 sec ~ 30 sec
Metal
460 g 650 g
128x75x45 mm 200x75X45 mm
Required specifications
-1-
Appearance

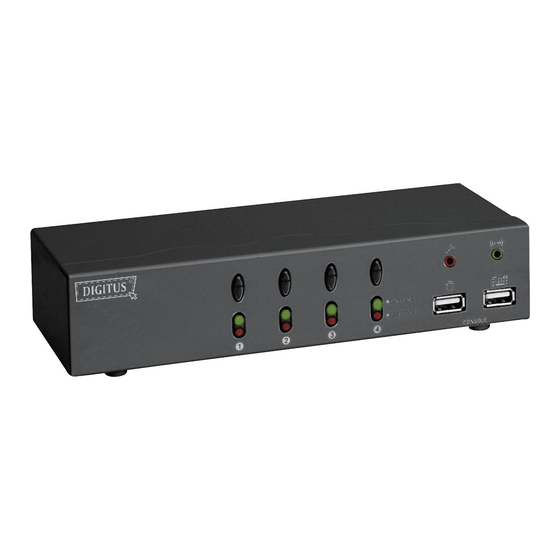

Front View

1. Push-button Switches (Manual type)
2. Port LEDs
3. Console Keyboard and Mouse Connectors

Rear View

1. Console Monitor, Speaker and Microphone
Connectors
2. CPU Port Connectors
Installation
Before the installation, make sure the peripherals of all
PCs are grounded properly and turned off.
1. Connect the monitor, keyboard and mouse with the
Console Port Connectors.
2. Use the recommended extension cables to connect
the PCs with the CPU Ports of KVM Switch.
3. Turn on the PCs.
