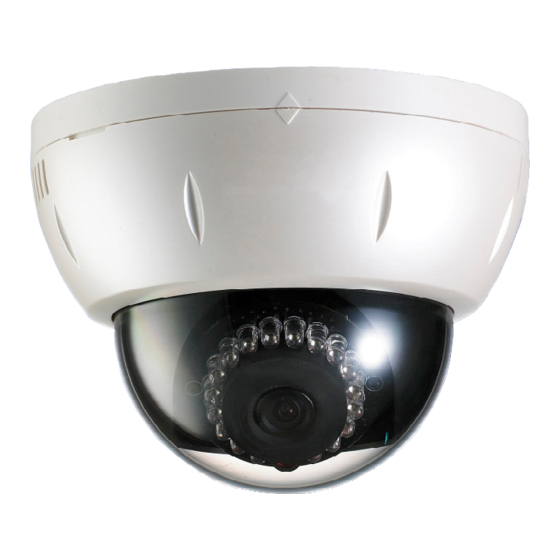

Network dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LDC3050IR
Network Dome Camera

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LDC3050IR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CNB LDC3050IR

Summary of Contents for CNB LDC3050IR

  • Page 1 LDC3050IR Network Dome Camera...
  • Page 2 Directions Be careful not to cause any physical damage by dropping or throwing LDC3050IR. Especially keep the device out of reach from children. Do not disassemble LDC3050IR. No After Service is assumed when disassembled. Use only the power adapter provided with LDC3050IR.

  • Page 3: Table Of Contents

    4.2 Quick Installation Guide........................12 4.2.1. Connect PC and LDC3050IR to network.................. 12 4.2.2. Install IP installer and set IP parameters on LDC3050IR ............13 4.2.3. Remote video connection to LDC3050IR ................. 16 4.2.4. Additional settings through connection to the Admin Page ............17 Trouble Shooting ...........................

  • Page 4: Introduction

    LDC3050IR is multi-codec (H.264, MJPEG) IP camera (or network camera) built with embedded software and hardware technology in pancake housing. It enables real time transmission of video of up to 1080P. Remote clients can connect to LDC3050IR for the real time video data through various client solutions running on PC or smart device.

  • Page 5: Specification

    1.2. Specification Camera Image sensor Progressive scan 1/2.9 inch CMOS 2.0M pixels Full resolution 1,920 x 1,080 pixels (Full HD) Min. illumination 0.2Lux (Color, DSS On), 0.00 Lux (IR LED On) S/N Ratio 50dB or more White Balance Auto/Manual Supported Off/ON Lens Built-in Fixed Mega Pixel Lens, f=3mm, F2.0...

  • Page 6: Applications Of Ldc3050Ir

    IP camera, CD (User’s guide, Software…) Optional Items Adapter DC 12V, 2A 1.3. Applications of LDC3050IR  Small Office, Home environment, Personal user.  Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.)  Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) ...

  • Page 7: Product Description

    2. Product Description 2.1. Contents The product package contains followings : Contents Description Remarks LDC3050IR IP camera LDC3050IR main unit GUIDE PATTERN Guide Pattern Software & User’s Guide Accessory Wall Anchors 3ea, Screw 3ea 2.2. Product Preview LDC3050IR IP-Installer CMS Software (NVR2)

  • Page 8: Physical Description

    2.3. Physical description Figure 2-1. External view of LDC3050IR Figure 2-2. Dimension Rev.1.1 (Sep. 2014)

  • Page 9: Inside

    Press the switch about 5 seconds while power is applied to return to factory default state  Power : Power input for supplying 12V DC power. Caution : If LDC3050IR is powered by PoE, do not plug in DC Jack with active DC power into DC power connector.  Network (LAN) 100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af).

  • Page 10: On Site Installation

    3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product.
  • Page 11 4. Place top cover. Combined in accordance with arrow Rev.1.1 (Sep. 2014)

  • Page 12: Getting Started

    1. Prepare a PC to run programs for the installation and video connection (PC is needed to assign IP address to LDC3050IR) 2. Connect LDC3050IR as shown in dotted line in Figure 4-1. The DC power through DC adaptor is no need to connect if LAN switch supports PoE (IEEE802.3af).

  • Page 13: Install Ip Installer And Set Ip Parameters On Ldc3050Ir

    4.2.2. Install IP installer and set IP parameters on LDC3050IR 1. Please insert the Setup CD into your CD-ROM drive, and then please setup Figure 4-2-1. IP Installer Setup 1 2. Please click ‘Install’ button to begin the Installation. Figure 4-2-2. IP Installer Setup 2 3.
  • Page 14 4. XNET IP Installer program is automatically launched like below right after the program installation. Please double click XNET camera on the list. Figure 4-3. IP Installer Start box 5. Select the camera of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 4-4.
  • Page 15 When you enter the IP address and click Set button, the box shown in Figure 4-4 will appear. Figure 4-5. Select Network Adapter Box 7. Select the adapter and click select button to change the IP address of the camera. Rev.1.1 (Sep.

  • Page 16: Remote Video Connection To Ldc3050Ir

    4.2.3. Remote video connection to LDC3050IR 1. Connection through Web Viewer Web Viewer offers simplest way of video connection to LDC3050IR. For video connection, enter the IP address of LDC3050IR in the URL window of Internet Explorer as: Can be omitted the [e.g.] Port 80...

  • Page 17: Additional Settings Through Connection To The Admin Page

    2. Connection through NVR2 NVR2 is a multi-channel CMS program for to IP camera or Video server. Install NVR2 on remote PC to connect to these products. It is needed to assign connection information to NVR2 program before connection. Details for the NVR2 can be found in [NVR2 User’s Guide]. Figure 4-7.

  • Page 18: Trouble Shooting

    5. Trouble Shooting 5.1. No power is applied  In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. The LAN switch supports standard PoE. Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af) ...

  • Page 19: Cannot Connect To The Video

    5.2. Cannot connect to the Video Check the status of the network connection through PING test. Try the following on your PC : Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) If “Reply from ~” message is returned (① in the figure below), the network connection is in normal state.

  • Page 20: Windows Vista Or Windows 7

    5.3. Windows Vista or Windows 7 Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for proper recording and still video capture in NVR2 and Web Viewer. <Windows Vista> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts”...
  • Page 21 <Windows 7> 1. UAC (User Access Control) configuration 1) Double-click “User Accounts” in control panel 2) Double-click “Change User Account Control setting” 3) Set to “Never notify” Rev.1.1 (Sep. 2014)
  • Page 22 2. Privilege Level Control 1) Select “NVR” icon on the desktop 2) Click right mouse button and select “properties” 3) Check “Privilege Level” in “Compatibility” tab Rev.1.1 (Sep. 2014)

  • Page 23: Technical Assistance

    5.4. Technical Assistance If you need any technical assistance, please contact your dealer. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5. Error message Rev.1.1 (Sep.
